Understanding ARRL Electrical Schematic Symbols for Circuit Diagrams

Use the American Radio Relay League (ARRL) reference as your baseline for component graphics in amateur radio projects. The ARRL handbook defines over 150 standardized annotations that eliminate ambiguity in transmission-line layouts, filter networks, and impedance-matching stages. Every layout should comply with these conventions to ensure instant recognition by fellow operators and regulators.

Start by marking ground references with a clear downward triangle–this avoids phase errors in grounded-grid triode amplifiers. Inductors are annotated with a continuous spiral; use at least three loops for coils exceeding 1 μH to distinguish them from fixed resistors. For capacitors, differentiate electrolytic polarities with a curved line (cathode) and a straight line (anode) to prevent reverse-voltage failures.

Transistors adopt a three-terminal circle, with arrows indicating current flow direction–place the emitter arrow on the outer edge for NPN, inward for PNP. MOSFETs swap the circle for a vertical line separating source and drain, with a diagonal gate arrow; align this arrow toward the source terminal to denote enhancement mode. Diodes require a simple triangle pointing toward the cathode, but add a parallel line for Zener types to highlight voltage-regulation roles.

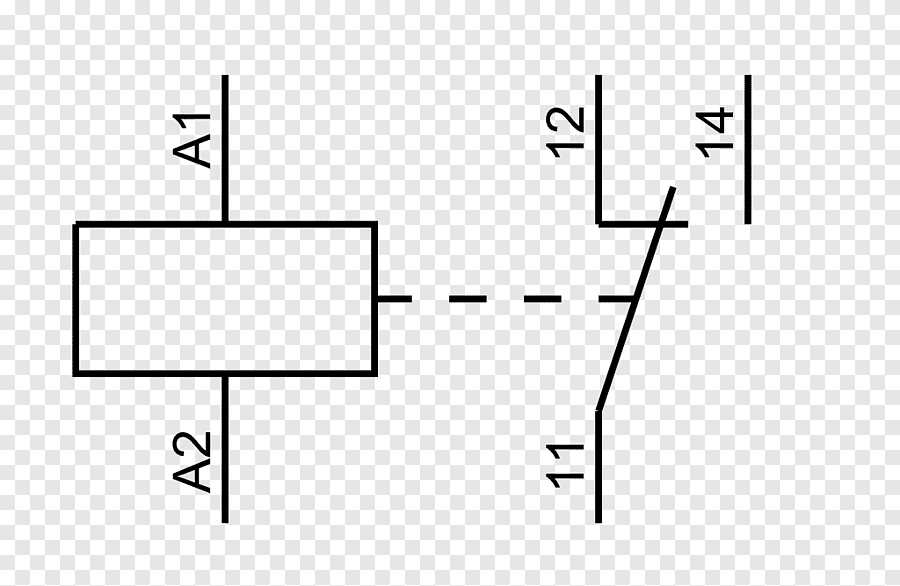

Relays demand a dashed rectangle enclosing a switch contact; annotate the coil with a diagonal slash to signal inductive load. Antennas use a straightforward dipole symbol (two diverging lines) for single-band designs, while multi-element arrays adopt stacked horizontal bars–each bar represents one additional director or reflector. RF connectors follow a coaxial arc, with an inner semicircle denoting the center conductor and an outer arc for ground.

Test points insert a target crosshair–four short radial lines intersecting at the node–ensuring alignment with oscilloscope probes. Vacuum tubes adopt a tall oval containing internal filament, grid, and plate annotations; notate heater pins with short intersecting lines within the oval. Always cross-reference each symbol against the ARRL master list before finalizing board traces to comply with FCC Part 97 certification.

Standardized Circuit Representations from the American Radio Relay League

Use the ARRL’s official component glyphs as your baseline–every resistor, capacitor, and inductor follows precise dimensions: 0.2 inches for fixed resistors, 0.3 inches for electrolytic caps, and 0.4 inches for ferrite-core inductors. Deviations risk misinterpretation during board fabrication, especially in multi-layer RF designs where trace impedance must match the 50-ohm standard.

Ground symbols vary by context: the three-line chassis ground for metal enclosures, the single triangle for signal return, and the dual-triangle earth ground for safety earth connections. Label each explicitly to prevent ground-loop errors in high-frequency amplifiers–ARRL recommends adding a reference designator (e.g., GND_A for analog return) next to every glyph.

Passive Component Annotations

Annotate all fixed-value resistors with their numeric tolerance in parentheses: “470 (5%)” rather than just 470 Ω. For trimmers, append the adjustment range in brackets–”10k [1k–20k]”–so technicians set them accurately before calibration. Variable capacitors should include the dielectric type (ceramic, mica) if it impacts frequency stability.

Transistors require emitter-base-collector labels (EBC) on bipolar glyphs and source-gate-drain (SGD) on FETs. Avoid the generic “Q” prefix; instead, use ARRL’s convention: “Q1 (2N2222A)” or “Q2 (IRF510)” to eliminate data-sheet lookups during prototyping. Add the pinout sequence (e.g., “E-B-C”) next to surface-mount packages where footprint orientation isn’t self-evident.

Power supply glyphs demand distinct symbols: a circle with a “V+” for DC sources, a tilted rectangle for batteries, and a wavy line for AC mains. Always indicate voltage and current ratings adjacent; omit this detail and risk oversights during fuse selection or regulator sizing. For multi-rail designs, append rail names (e.g., “+5V_DIG”) to prevent accidental short circuits during debugging.

Signal Path Markers

Coaxial ports must include impedance (typically 50 Ω or 75 Ω) and connector type (BNC, SMA) beneath the symbol. Antenna glyphs should show polarization (vertical/horizontal) and gain in dBi if critical to link budget calculations. Insert test-point markers–small circles labeled “TP1″–at every stage where signal integrity checks are mandatory, ensuring troubleshooting remains systematic.

Key Representations for Passive Components in Radio Design

Use fixed-value resistors with a zigzag line – two diagonal strokes intersecting a horizontal path – to denote standard carbon or metal-film types. The ARRL standard specifies this pattern without annotations unless precision values (1%, 0.1%) are required, in which case add a numeric label adjacent to the line. Avoid overcrowding by placing values only when necessary for clarity, particularly in circuits where resistance tolerance affects performance, such as RF filters or impedance-matching networks.

For capacitors, apply parallel lines || to represent non-polarized types like ceramic or mica units. Polarized variants–tantalum or electrolytic–require an additional curved line along one plate |) or a plus sign + near the positive terminal. Always orient polarized devices with the negative side downward on the page to prevent misinterpretation during assembly. High-voltage capacitors (above 100V) warrant a numeric label specifying working voltage to avoid component failure during operation.

Inductors follow a spiral or coil pattern ≈≈≈ with three to four loops for air-core types. Ferrite or iron-core inductors incorporate a double line ≈|≈ through the center of the coil to indicate the core material. When documenting RF chokes or tuned circuits, include inductance values (in microhenries or nanohenries) and core material (e.g., “3.9µH ferrite”) to ensure accurate replication. Toroidal cores may be represented with a circular loop intersecting the coil lines ⊙≈, but omit this detail unless the core shape is critical to performance.

Variable resistors–potentiometers or trimmers–use the zigzag line with an arrow ↗ crossing diagonally. For multi-turn trimmers, add a numeric label (e.g., “10k 20T”) to indicate resistance and adjustment range. Position the arrow on the side of the adjustable terminal to show the wiper’s path. In RF circuits, avoid placing variable resistors near active components to minimize parasitic coupling.

Capacitors with multiple taps (e.g., ganged tuning units) use stacked parallel lines ⏦ with connection dots at each tap point. Label each section with capacitance and voltage ratings if they differ. For feedthrough capacitors–critical in VHF/UHF designs–use a filled circle ● where the lead passes through a shield, along with a numeric value. Always orient feedthrough units with the grounded side toward the enclosure to maintain proper shielding.

Inductors with adjustable cores (slug-tuned) depict the standard coil with a perpendicular arrow =|↗ along one side. Specify the tuning range (e.g., “2-10µH”) and core material (brass, ferrite) to guide adjustments. For bifilar or transmission-line inductors, use interleaved coil lines ≈≈≈≈ with dots marking the start/end of each winding. This prevents phase reversal in balanced circuits like push-pull amplifiers.

Temperature-sensitive resistors (thermistors) or inductors (ferrite beads) require additional annotations. Thermistors use the standard zigzag with a “T” label or β-value (e.g., “10k NTC 3435”). Ferrite beads combine the coil symbol with an impedance value at a specific frequency (e.g., “60Ω@100MHz”). Always verify component footprints against datasheets–ARRL representations prioritize function over physical dimensions, but critical layouts (e.g., PCB antennas) may need exact spacing.

Decoding ARRL Transistor and Diode Representations in Circuit Blueprints

Begin by identifying the base, emitter, and collector leads in bipolar junction transistors (BJTs) using the ARRL standard. The symbol shows a solid line for the base, a line with an arrow for the emitter, and an unmarked line for the collector. NPN types have the arrow pointing outward; PNP types point inward. For field-effect transistors (FETs), the gate is a perpendicular line, the source has an arrow, and the drain lacks one. JFETs mark the gate with a short line, while MOSFETs use a broken line to indicate the insulated gate.

Diodes display a triangle pointing toward a straight line–the anode (positive) connects to the triangle’s base, while the cathode (negative) aligns with the line. Zener diodes add a small “Z” shape at the cathode. Schottky diodes replace the straight line with a curved one. Light-emitting diodes (LEDs) include two small arrows pointing away from the symbol. Varactor diodes show two parallel lines near the cathode to denote their capacitance effect under reverse bias.

Key Variations in Transistor Notation

• BJTs: Check the arrow direction–outward for NPN, inward for PNP. Emitter arrow placement is critical for correct orientation.
• FETs: JFETs use a solid gate line; MOSFETs show a broken gate line. Enhancement-mode MOSFETs may include a dashed channel line.
• Phototransistors: Include an additional arrow pointing toward the base or collector to indicate optical sensitivity.

For diodes, verify polarities by locating the triangle’s base (anode) and line (cathode). Tunnel diodes add a small loop near the cathode. Thyristors (SCRs) use a three-terminal symbol: anode, cathode, and gate, with the gate marked by a perpendicular line near the cathode. Triacs mirror two SCRs back-to-back but omit the gate mark on one side. Pay attention to these subtleties to avoid miswiring components.

Practical Interpretation Steps

1. Scan the blueprint for transistor symbols–note emitter arrow direction to determine NPN or PNP.
2. Examine diode symbols: triangle-to-line orientation confirms anode-to-cathode flow.
3. Check for additional marks (e.g., “Z” for Zeners, arrows for LEDs) to identify special variants.
4. For FETs, distinguish JFET (solid gate) from MOSFET (broken gate) by the gate line style.
5. Compare symbol labels against component datasheets if ambiguity arises.

Misinterpretation often stems from overlooking small details like the MOSFET’s broken gate line or the SCR’s gate mark. Use a multimeter in diode-test mode to confirm polarities if the blueprint lacks clear labeling. For transistors, verify pin assignments with a continuity test–BJTs should show high resistance between base-collector and base-emitter in one direction. Always cross-reference blueprint notations with physical component markings when prototyping.
