Step-by-Step Electromagnetic Flow Meter Wiring Connection Guide

For direct AC excitation systems, connect the sensor’s coils to a stable 220V power source with a dedicated 5A circuit breaker. Use 2.5 mm² shielded copper cables for coil leads to minimize interference from nearby motors or variable-frequency drives. Ground the shielding at a single point–preferably the converter’s chassis–to prevent ground loops. If the sensor includes an empty-pipe detection feature, wire its auxiliary electrodes in series with a 1 kΩ resistor to the converter’s digital input.

In DC-pulsed excitation setups, maintain separate twisted pairs for each coil lead, keeping the cable run under 50 meters to avoid signal attenuation. Route power and signal cables at least 20 cm apart from high-voltage lines (e.g., 400V motor wiring) or encase them in steel conduit if unavoidable. For converters requiring 24V DC input, use a switched-mode power supply with galvanic isolation; linear regulators generate excessive heat and risk voltage fluctuations.

When interfacing with PLCs or SCADA, prioritize 4–20 mA current loops over voltage outputs (e.g., 0–10V) to mitigate noise over long distances. If pulse outputs are needed, confirm the converter’s maximum frequency (typically 1 kHz) and use a low-pass filter (cutoff at 1.5× signal frequency)) at the PLC input to reject EMI. For RS-485 communication, terminate the bus with a 120 Ω resistor only at both ends of the network–omitting or misplacing this resistor causes reflection errors.

For hazardous-area installations, use intrinsically safe barriers (e.g., Zener diodes or galvanic isolators) between the sensor and converter. Verify barrier compatibility with the sensor’s effective capacitance (≤100 nF) and inductance to prevent ignition risks. Never rely on the sensor’s internal isolation alone–ground fault currents as low as 10 mA can damage electrodes or generate false readings.

Connecting Inductive Sensor Devices: Key Circuit Layouts

Always verify power supply polarity before attaching signal cables. For most mag-based units, a dual-voltage input (24V DC or 220V AC) requires shielded pairs: positive (+) to brown wire, negative (-) to blue. Ground the shield at one end only–typically at the transmitter–to prevent ground loops that distort readings by >3%.

Signal output types vary by model. Pulse outputs (NPN/PNP) need pull-up resistors (2.2kΩ for 24V) when interfacing with PLC counters. 4–20mA loops demand precision resistors (250Ω ±0.1%) for current-voltage conversion. Use stranded copper conductors (AWG 18–22) for analog lines to reduce resistance-induced errors, which compound linearly over distances >50m.

Common errors in setup:

• Ignoring excitation frequency matching. Mismatches between coil drives (e.g., 12.5Hz vs 7.5Hz) cause zero offsets up to 5% of scale.
• Skipping conduit grounding. Unshielded runs pick up 50/60Hz interference, corrupting small signals (sub-0.5m/s velocities).
• Using twisted pairs without individual shields. Crosstalk elevates noise by 12dB compared to fully shielded cables.

For hazardous zones (ATEX/IECEx), isolate intrinsically safe barriers. Place Zener barriers between field and control room, maintaining ≤0.5W power dissipation per channel. Bond all metallic parts (flanges, housing) to the same ground potential–differences >100mV introduce stray currents measurable as false volume.

Calibration adjustments during installation:

1. Null empty pipe errors first. Adjust zero potentiometer until output stabilizes at 4mA (or 0Hz pulse).
2. Verify coil excitation polarity by checking fluid direction against arrow on sensor body–reversing wires flips polarity, inverting readings.
3. Confirm span accuracy with weighted calibration (fluid column ≥1m height). Factory settings assume water; adjust density factors for slurries/diverse liquids.

Terminal connections differ by manufacturer but follow IEC 61010 labeling:

Label	Wire	Function
L+	Red	Supply +24V DC/220V AC
L−	White	Supply return
S+	Black	Signal output positive
S−	Green	Signal return
GND	Bare	Reference ground

Insulation resistance between signal and ground must exceed 100MΩ at 500V DC; lower values indicate moisture ingress requiring resealing. Replace pre-terminated connectors if pin retention force drops below 3N.

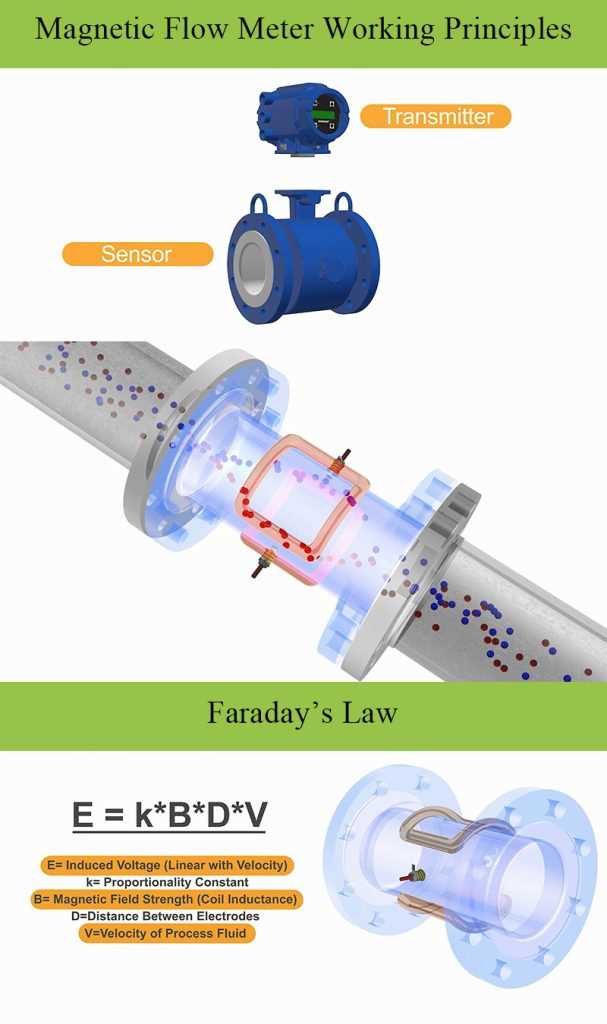

Critical Elements of a Magmeter Installation Scheme

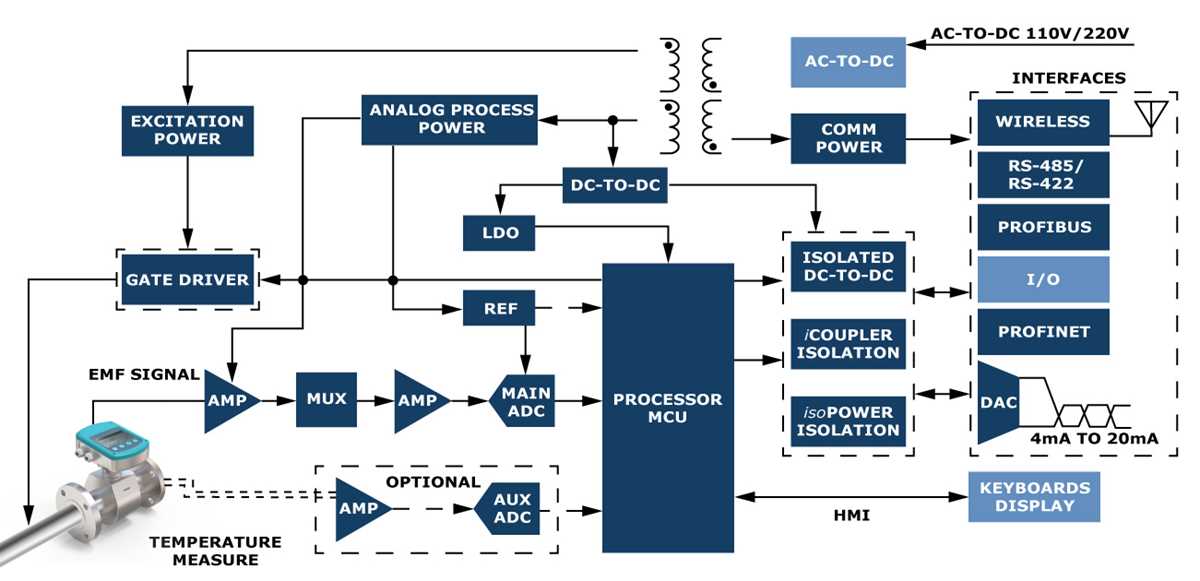

Begin by identifying the sensor’s excitation coil terminals–typically labeled “Coil +” and “Coil –”. Apply a stable 12–24 VDC supply matched to the device’s rated voltage; mismatch risks overheating or inaccurate readings. Confirm polarity before energizing–reversal can damage internal circuitry within minutes.

The converter requires a dedicated power feed isolated from variable loads. Use 22 AWG or thicker copper conductors for supply lines, reducing voltage drop over distances exceeding 50 meters. Shielded twisted-pair cables prevent interference from nearby motors or frequency drives; keep shielding grounded at one end only to avoid ground loops.

Signal cables must follow a strict routing protocol: maintain minimum 30 cm separation from power conductors and avoid parallel runs longer than 1 meter. Use foil-shielded cable with 100% coverage for signals; braided shields are less effective below 1 kHz. Terminate shields directly to the converter’s earth lug–never to the sensor body unless specified in the datasheet.

Grounding is non-negotiable for accuracy. Connect the sensor pipe to a dedicated earth electrode using a #6 AWG bare copper conductor, ensuring resistance below 10 ohms. Verify the electrode’s integrity with a multi-meter before installation; transient spikes from poor grounding distort readings by 5% or more.

Transmitter configurations demand exact parameter alignment. Set the fluid’s conductivity threshold–minimum 5 μS/cm–to prevent false zeros. Calibrate zero-point while fluid is static, not just flowing; even minor turbulence introduces 0.2–0.5% error. Use the manufacturer’s software or HART interface for precise adjustment; manual potentiometers often lack resolution.

Below are the non-negotiable materials for termination:

• Crimp ferrules for stranded conductors above 0.5 mm²
• Heat-shrink tubing with adhesive lining for outdoor installations
• Silver-plated busbars for high-current coil feeds
• Gas-tight connectors for hazardous-area sensors
• Thermal-compound-filled glands for temperature-sensitive zones

Test continuity before sealing enclosures. Verify each conductor with a 500 VDC Megger; insulation resistance must exceed 10 MΩ. Check signal integrity with a scope–clean 1–5 mA current loops should show no ringing or sag. Document resistance readings between terminals after installation; deviations beyond 2% indicate moisture ingress or faulty crimps.

Step-by-Step Guide to Connecting Sensor Leads to the Signal Converter

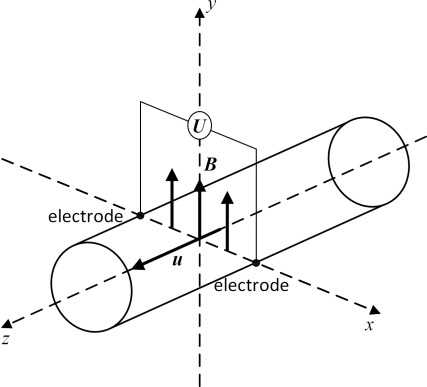

Verify the electrode polarity before attachment–most transmitters mark the positive lead with a red sleeve or “+” symbol. Ensure the sensor terminals on the converter match the physical labels; reversed connections will invert output readings by 100% or trigger error codes like E-12 (phase failure). Clean both electrode tips and converter terminals with isopropyl alcohol (99% purity) to remove oxidation; even microscopic corrosion increases noise resistance by 15–20 ohms, degrading signal accuracy.

Secure the leads with torque-controlled drivers set to 0.3–0.4 Nm. Overtightening distorts the terminal threads, while loose connections introduce intermittent open-circuit faults. Use crimp ferrules for stranded wires; they reduce contact resistance by 30% compared to bare copper. Route the cables away from power lines (minimum 20 cm separation) to avoid inductive coupling, which can induce 50/60 Hz interference. Ground the converter’s reference terminal to a dedicated earth rod with ; shared grounds often introduce ground loop errors.

Post-Connection Validation

After fastening, power the unit and monitor the raw signal output on an oscilloscope. A stable sine wave (2–5 Vpp at 1–5 kHz carrier frequency) confirms correct coupling; irregular waveforms indicate electrode fouling or cable faults. Zero the device by flooding the conduit with stationary liquid–ensure the output stabilizes within ±0.5% of span. If drift persists, recalibrate the converter’s zero point via the front-panel adjustment or software offset menu.

Power Supply Connections: AC versus DC Choices and Critical Protection Measures

Select a 24 VDC power source for stable operation in industrial sensor installations–it eliminates voltage spikes common with AC lines above 100 VAC. Convert primary power using a certified DIN-rail mounted switching supply with galvanic isolation, reducing EMI that disrupts low-signal measurements. Always fuse the DC output at 125% of the device’s maximum current draw; a 1 A fuse protects a 0.6 A load effectively.

AC power demands strict shielding protocols: route supply lines separately from signal cables using grounded braided armor or metal conduit with 360-degree bonding at both ends. Avoid shared conduits between 230 VAC mains and low-voltage signals; capacitive coupling introduces noise up to 30 mV RMS per meter of parallel run, skewing readings. Use a dedicated transformer with less than 5% harmonic distortion for AC-powered units, especially in noisy environments like variable-speed drives.

Grounding integrity decides failure or stability: connect all shields at a single point–preferably the supply negative or chassis earth–to prevent ground loops forming >10 Ω resistance paths. Test ground continuity with a 1 kΩ load between the sensor case and local earth; readings above 0.1 V indicate corrosion or loose terminals requiring immediate tightening.

For outdoor or humid locations, apply moisture-resistant silicone grease to AC terminals before tightening to prevent surface oxidation that increases contact resistance to >2 Ω over time. Verify torque specifications–typically 1.2 Nm for M4 screws–using a calibrated torque screwdriver; overtightening fractures plastic terminal blocks, while undertightening causes arcing.

Label every supply line with voltage rating and fuse value using self-laminating polyester tags; miswiring 24 VDC into a 110 VAC port destroys internal circuits instantly. Include a normally closed emergency stop switch rated for 5 A on the supply side, positioned within 1.5 m of the operator’s station for immediate de-energization.

Use fire-resistant flexible conduit certified IEC 61386 for AC lines above 50 V; its self-extinguishing properties prevent flame propagation at 850°C for over 20 minutes. Install transient voltage suppressors (TVS diodes) directly at the sensor input terminals–snub spikes down to nanosecond durations and clamp at 33 V for 24 VDC systems.

Periodically test insulation resistance between supply lines and earth using a 500 VDC megohmmeter; any reading below 2 MΩ indicates impending failure, typically from cracked sheathing or ingress. Replace cables showing cracking rather than splicing–most splices degrade insulation resistance to
