DIY Guide to Building Your Own Electronic Doorbell Circuit

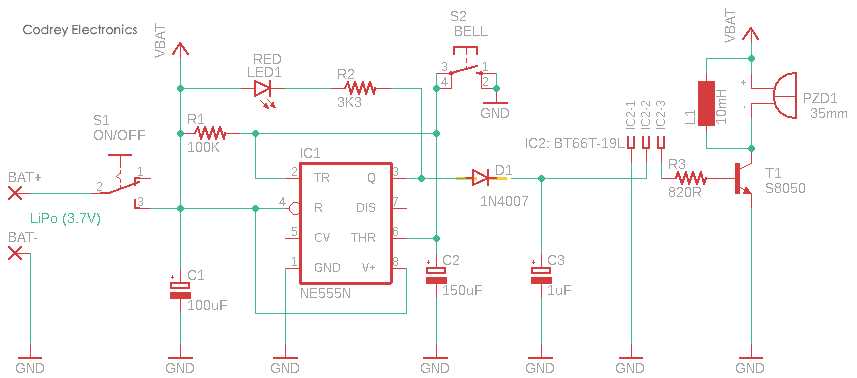

Use a 555 timer IC in astable mode for consistent signal generation. Connect pin 2 to pin 6 with a 10 kΩ resistor and add a 100 µF capacitor between pin 6 and ground. Adjust pulse frequency by swapping the resistor with a 1 kΩ–100 kΩ range or the capacitor with 1 µF–470 µF values. Keep the supply voltage stable at 9 V–12 V to prevent distortion.

Add an NPN transistor (BC547 or 2N3904) to drive the chime coil. Wire the 555’s output (pin 3) to the transistor base through a 4.7 kΩ resistor. Connect the emitter to ground and the collector to the chime’s + terminal. A 1N4007 diode across the chime coil protects the circuit from voltage spikes.

Test with a 1 W, 8 Ω speaker if a chime isn’t available. Connect it directly to the transistor collector with a 100 µF capacitor in series to block DC. For a louder response, replace the speaker with a relay (5 V coil) and attach a separate 12 V power source to the relay’s common and normally open contacts.

Include a pushbutton switch on the input side. Wire it in series with a 1 kΩ pull-down resistor to ground to prevent false triggers. For outdoor use, enclose the circuit in a waterproof box and use silicone-sealed wires at entry points. Check solder joints under a magnifier–dry joints cause intermittent failures.

Crafting a Custom Home Chime Circuit Layout

Begin with a transformer rated for 8–12V AC; match its output to the voltage spec of your solenoid coil or piezo buzzer. Connect the transformer secondary directly to a bridge rectifier (e.g., W04G), smoothing the DC with a 220μF electrolytic capacitor across the rectifier outputs. Add a 1N4007 diode in series before the push button to suppress voltage spikes when the coil de-energizes. Keep the button wiring under 3 meters to minimize voltage drop and false triggers from EMI.

• For a mono-tone alert: attach a single 4Ω 0.5W speaker between the transistor collector (2N2222) and +9V DC bus; drive the base via a 1kΩ resistor from the microcontroller or timer (e.g., NE555) output.

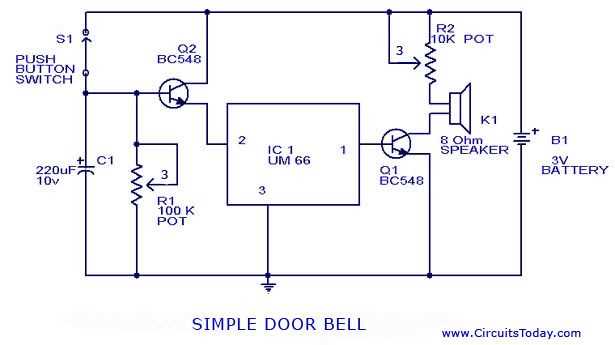

• For polyphonic chimes: cascade two 555 timers–first generates 2Hz clock pulses (adjustable via 1MΩ potentiometer), second drives a UM66 melody IC tied to a 220Ω current-limiting resistor and 0.1μF decoupling cap at VCC pin.
• Power LED indicators: insert a 220Ω series resistor on any visual LED, powered from the same rail as the main circuit to avoid latching.

Route PCB traces at minimum 2mm width for currents above 300mA; use adhesive copper tape for protoboards to handle peak coil surges. If ambient noise exceeds 60dB, swap the transistor-switched solenoid for a MOSFET (IRFZ44N) triggered by 5V logic. Test continuity with a multimeter on 200Ω scale between button leads–open-loop resistance should read >200kΩ; values below 50kΩ indicate moisture ingress requiring silicone sealant around solder joints.

Key Components for a Simple Visitor Alert System

Start with a pushbutton switch rated for low-voltage DC operation–typically 12V or below. Choose a momentary SPST (single-pole, single-throw) model with a current rating of at least 1A to handle brief surges without contact degradation. For outdoor installations, select a weather-resistant variant with a silicone seal to prevent moisture ingress.

A piezo buzzer or miniature speaker serves as the acoustic output. For a compact design, opt for a self-driven 5V-12V buzzer (active type) that requires no additional oscillation circuit. If adjustable tone is needed, a passive buzzer with a simple transistor-driven oscillator suffices. Verify sound pressure level (SPL) in decibels–85dB minimum ensures audibility in noisy environments.

The power supply dictates reliability. A 9V alkaline battery or 12V transformer with a bridge rectifier and smoothing capacitor (470µF, 25V) provides stable DC. For battery-powered systems, add a low-voltage cutoff circuit using a comparator (e.g., LM393) to prevent deep discharge. Avoid linear regulators for high currents–switching regulators (e.g., MP1584) improve efficiency.

Wiring gauge affects signal integrity. Use 22-20 AWG solid-core copper wire for indoor runs under 3 meters; stranded wire resists vibration better for longer lengths. For outdoor conduits, employ THHN-rated wire with UV-resistant insulation. Twist signal pairs (if using multiple buzzers) to minimize electromagnetic interference (EMI).

Signal Amplification and Isolation

A transistor or MOSFET isolates the switch from high-current loads. A 2N2222 NPN transistor (40V, 800mA) works for basic setups; for inductive loads (e.g., relays), use a TIP120 Darlington pair. Add a flyback diode (1N4007) across inductive components to absorb voltage spikes during switch-off events.

For multi-zone setups, a diode matrix prevents signal feedback. Each button feeds through a 1N4148 diode to its buzzer; diodes block current from one circuit to another. If using a microcontroller (e.g., ATtiny85), program debounce logic (10-50ms delay) to eliminate false triggers from switch bounce.

Consider auxiliary features for expandability. A red LED (with 470Ω resistor) in parallel with the buzzer provides visual confirmation. For hardwired systems, add a 1A fuse to protect against short circuits. Test continuity with a multimeter–ensure resistance across the switch drops to near zero when pressed; otherwise, clean contacts with isopropyl alcohol.

Step-by-Step Wiring Guide for a Transformer-Powered Entry Signal

Locate the low-voltage transformer, typically mounted near the main electrical panel or in a basement, attic, or utility closet. Verify its output voltage matches the device’s requirements–most operate at 16V AC or 24V AC, clearly labeled on the transformer’s casing. If the voltage is incompatible, replace the transformer before proceeding.

Turn off power at the circuit breaker controlling the transformer. Confirm deactivation using a non-contact voltage tester near the transformer’s terminals. Exposed wiring at this stage poses a severe shock risk; treat all wires as live until verified otherwise. Identify the transformer’s secondary terminals–usually screw-type labeled “C” (common) and “F” (front) or color-coded (red for F, white or black for C).

Connecting the Chime and Button

Run a two-conductor wire (e.g., 18/2 awg thermostat wire) from the transformer’s F terminal to the signal button’s first terminal. The button’s second terminal connects to the chime’s “Front” input. Route a separate wire from the transformer’s C terminal directly to the chime’s “Trans” or “Common” terminal. Keep wires taut but not stretched; secure them with insulated staples every 18 inches to prevent sagging or interference with moving parts (e.g., doors, ducts).

Strip 1/4 inch of insulation from each wire end. Twist strands clockwise, insert into terminal screws, and tighten to 12–15 inch-pounds–over-torquing can strip threads. For push terminals, fully depress the spring-loaded clamp to ensure a gas-tight connection. Avoid twisting wires together without mechanical fastening; this creates resistive joints prone to failure under low-voltage conditions.

Final Testing and Troubleshooting

Restore power at the circuit breaker. Press the button–listen for a crisp, uninterrupted tone. If the chime emits a weak buzz or clicks without sound, check for reversed F and C wires at the transformer or chime. Low voltage (below 14V AC at the chime) suggests excessive wire length (> 100 feet without compensation) or undersized conductors; install thicker wire (e.g., 16 awg) or relocate the transformer. If no response, probe the button’s terminals with a multimeter set to AC voltage–absence of voltage indicates an open circuit (broken wire or loose connection). Silence after initial operation often traces to a faulty button; bypass it temporarily by jumpering its terminals to isolate the issue.

Resolving Frequent Problems in Chime System Circuits

If the signal fails to sound, first verify the pushbutton contact. Corrosion or dirt on the switch terminals often interrupts current flow. Clean terminals with a wire brush or isopropyl alcohol. Check continuity with a multimeter–resistance should drop to near zero ohms when pressed. Replace the switch if readings remain inconsistent.

Low or intermittent sound volume typically points to a degraded transformer or loose wiring connections. Measure the transformer’s secondary voltage: most residential units output between 10VAC and 24VAC. Voltages below 8V indicate a failing transformer–replace it. Inspect all splices and terminal blocks for cold solder joints or oxidized connections; re-seal junctions with silicone gel to prevent future corrosion.

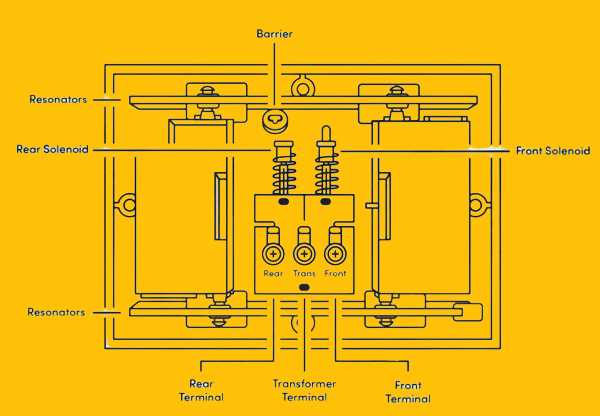

A continuous hum or buzz usually stems from a faulty solenoid in the striker assembly. Disassemble the chime housing and examine the solenoid coil for signs of overheating–darkened enamel or brittle windings confirm failure. Test coil resistance: values deviating more than 10% from factory specs (typically 200–500 ohms) mandate replacement. Lubricate moving parts with dry PTFE spray to reduce mechanical noise.

Symptom	Root Cause	Diagnostic Steps	Fix
No signal at all	Open circuit at pushbutton	Test continuity across switch terminals	Clean or swap switch
Weak, distorted output	Low transformer voltage	Measure AC output at secondary winding	Replace transformer if <8VAC
Constant buzzing	Short in solenoid coil	Check coil resistance, inspect for overheating	Replace striker assembly

Random false triggers often originate from RF interference. Install a 0.1µF ceramic capacitor across the pushbutton terminals to suppress voltage spikes. For units near fluorescent lights or garage door openers, shield the circuit with a grounded metal enclosure. Ensure all grounding points are connected to a true earth ground–not a neutral conductor–to minimize noise susceptibility.

If the system draws excessive current but produces no sound, suspect a shorted diode or capacitor. Locate the rectifier stage (usually a bridge or single diode) and measure forward voltage drop–anything below 0.5V suggests failure. Replace electrolytic capacitors exhibiting bulging tops or leaking electrolyte; reverse polarity during installation will destroy new components instantaneously.

Mechanical alignment issues bedevil piezoelectric and magnetic chimes equally. Loosen mounting screws and adjust striker position so it impacts the sound bar at the precise center; misalignment reduces volume or creates rattling. For wireless variants with fresh batteries that still fail, recalibrate the receiver’s RF channel via manufacturer-specific pairing steps–distance, walls, and metal obstacles can degrade signal integrity.
