Complete Guide to Wiring an Ethernet Wall Jack Step by Step
Use the T568B standard for most installations–it ensures compatibility with modern network hardware and reduces cross-talk between pairs. Pin assignments are as follows: 1 – Orange/White, 2 – Orange, 3 – Green/White, 4 – Blue, 5 – Blue/White, 6 – Green, 7 – Brown/White, 8 – Brown. For Power over Data Lines (PoDL), prioritize pairs 1-2 and 3-6; these carry both signal and voltage up to 30W under IEEE 802.3bt.
Strip the cable jacket back no more than 1.25 inches to avoid exposing excess conductor, then arrange wires according to the standard before inserting into the connector. Use a modular crimping tool with a 6-position die to terminate the plug; apply firm, even pressure until the contacts pierce the insulation. For fixed outlets, punch down each wire into an IDC terminal using a 110-type impact tool–ensure full insertion to prevent intermittent faults.
Test each connection with a certifier capable of measuring near-end crosstalk (NEXT) and insertion loss. Cat6 installations should not exceed 0.2dB per 100m at 250MHz; margins tighter than this risk signal degradation over distance. Avoid running cables parallel to power lines within 12 inches–inductive interference can corrupt packets at gigabit speeds. If daisy-chaining outlets, limit runs to four sequential ports per segment to comply with channel length limits (100m total).
For outdoor or industrial setups, switch to shielded twisted pair (STP) and ground the drain wire at a single point to prevent loop currents. Use gel-filled boots on connectors in damp environments; moisture ingress degrades performance faster than mechanical damage. Label each port with the physical location and VLAN assignment–misconfigured paths are harder to trace than broken terminations.
Connecting a Data Port: Step-by-Step Guide for Proper Termination
Begin by stripping 1.5 inches of outer insulation from the network cable using a precision cutter–avoid nicking the internal conductors. Separate the four twisted pairs and untwist each no more than 0.5 inch to maintain signal integrity. Align the wires according to the T568B standard: orange-white, orange, green-white, blue, blue-white, green, brown-white, brown. This sequence ensures backward compatibility with most installations.

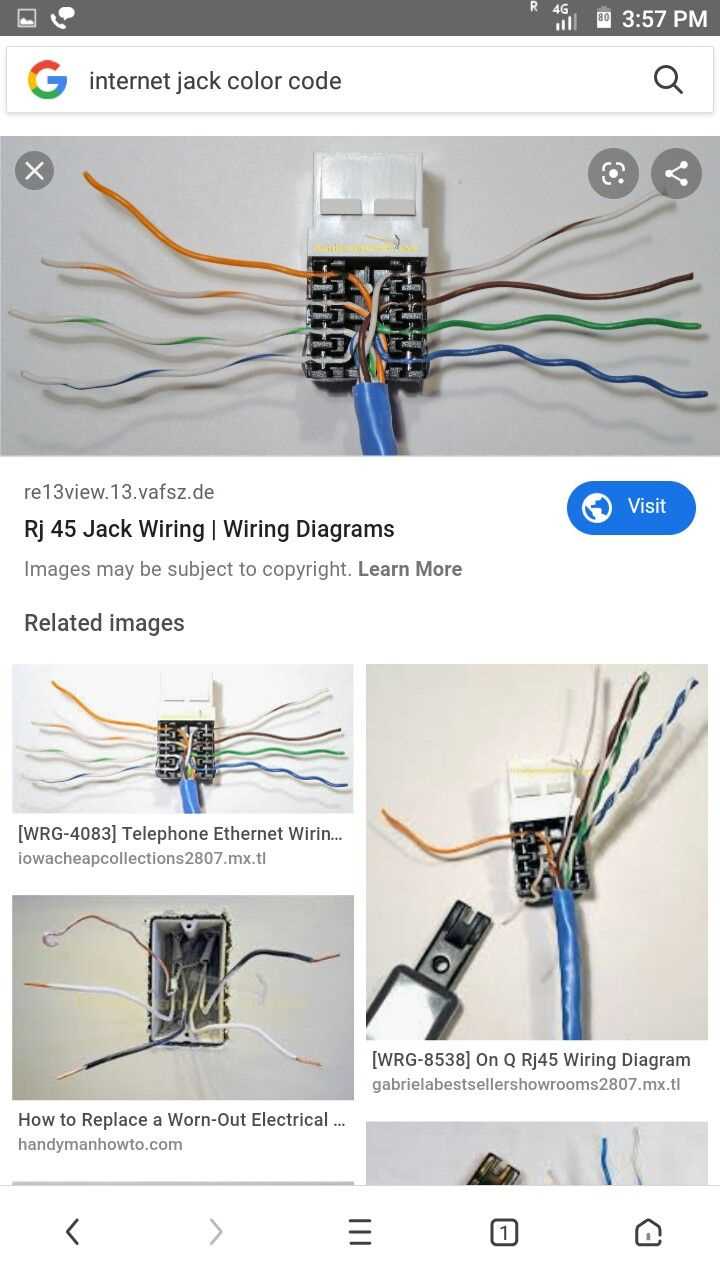

Insert each conductor into the corresponding slot of the keystone connector, pushing firmly until the wire seats fully against the blade. Use a punch-down tool with a 110 blade to trim excess length and secure the wires–apply steady pressure to avoid partial termination. Check for accidental shorts by verifying no stray copper filaments cross adjacent slots.
Testing and Validation After Installation
Attach a cable tester to both ends of the link: the main unit at the patch panel and the remote unit at the port. Run a full diagnostic scan, confirming all eight conductors register a solid connection with less than 0.5 dB insertion loss per pair. If any pair fails, re-terminate the problematic conductor, ensuring the twist remains intact up to the punch point.
For Gigabit speeds, also verify near-end crosstalk (NEXT) values–target below -40 dB for optimal performance. Record the test results for future reference, noting any deviations from baseline measurements. If a shielded cable was used, ensure the grounding strap connects to the metal housing of the keystone to prevent interference.
Label the installed port with a unique identifier matching the patch panel documentation. Use wrap-around adhesive markers or laser-engraved tags for durability. Repeat the same termination process for all ports in the series, maintaining consistency in color coding and twist lengths to avoid performance variances.
When mounting the faceplate, align screw holes with wall anchors and secure with #6 screws–do not overtighten. Snap the keystone into the faceplate until it clicks, verifying the latch engages fully. If the port will serve PoE devices, confirm the conductor gauge supports the expected current without overheating (24 AWG minimum for 30W loads).
For installations in damp environments, apply a thin layer of dielectric grease to the terminated ends before snapping the connector into place. This prevents corrosion without affecting signal transmission. Store leftover cable in a dry, coiled position to avoid kinks that could degrade performance later.
Essential Gear for Network Port Setup
Start with a puncture-style termination tool (110-type impact punchdown) for secure conductor seating–avoid cheap plastic models; spring-loaded steel variants reduce cable strain. A coaxial cutter with a 24–26 AWG guide ensures flush trims, preventing short circuits from exposed copper.
Low-voltage cable strippers with adjustable blades (Klein VDV001-08 or Greenlee 1955) cleanly remove outer jackets without damaging twisted pairs. For older Cat5e or flat-silver satin cables, use a razor slitter–blade depth at 1.5mm prevents nicking conductors.
Tone generators (like Fluke Networks Pro3000) paired with inductive probes trace hidden cables in crowded conduit runs. Probe tips must be non-conductive; avoid metal-tipped variants to prevent false positives from live circuits. Test continuity before terminating to catch damaged pairs early.
Precision and Safety Add-ons
Digital multimeter with a low-ohm setting (200Ω) verifies pair integrity post-termination. Set resistance thresholds: ≤0.5Ω for solid copper, ≤1.5Ω for stranded. A microscope or jeweler’s loupe (10x) inspects terminations for microscopic shorts or excessive untwisting.
Static-dissipative gloves (ANSI/ESD S20.20 compliant) prevent ESD damage to NICs during final connections. Grounding mats or wrist straps mitigate risks–even minor static can degrade signal integrity over time. Work on non-carpeted surfaces like laminate or vinyl to reduce charge buildup.
Fish tapes (flat or round steel) navigate conduits; choose diameters matching your conduit size (e.g., 3/16″ for ½” EMT). Lubricate with silicone-based pulling lube–never soap or wire wax, which leaves residue and attracts moisture. For vertical pulls, use a weighted drawstring (parachute cord) to drop lines between floors.
Termination and Testing Rig
A portable test adapter (Fluke DSX-8000 or Klein VDV501-850) certifies throughput, crosstalk, and return loss. Configure baseline tests for your cable type–Cat6: 250MHz bandwidth, Cat6a: 500MHz. Include a NEXT/PSNEXT screener to catch near-end interference from adjacent ports.
Modular crimpers (RJ45/RJ11 hybrid) with interchangeable dies secure plugs; ratcheting models ensure consistent pressure. Use booted connectors (e.g., STP Cat6) for strain relief in high-vibration areas. For final strain relief, cable ties rated for 10–25lbs, spaced ≤6″ apart, prevent kinking–never overtighten, as this deforms pairs and increases attenuation.
Step-by-Step Guide to Configuring a Network Outlet (T568A vs T568B)
Choose T568B as the default standard unless existing infrastructure mandates T568A. T568B dominates commercial installations due to backward compatibility with older crossover cables and VoIP systems, while T568A remains common in residential and legacy setups. Verify the color code sequence before stripping any cables to prevent miswiring.
Strip 1.5 inches of the outer jacket from the cable using a precision tool–avoid nicking internal conductors. Untwist pairs only enough to separate wires (no more than 0.5 inches) to maintain signal integrity. Straighten each conductor to eliminate kinks but keep pairs naturally twisted until insertion.

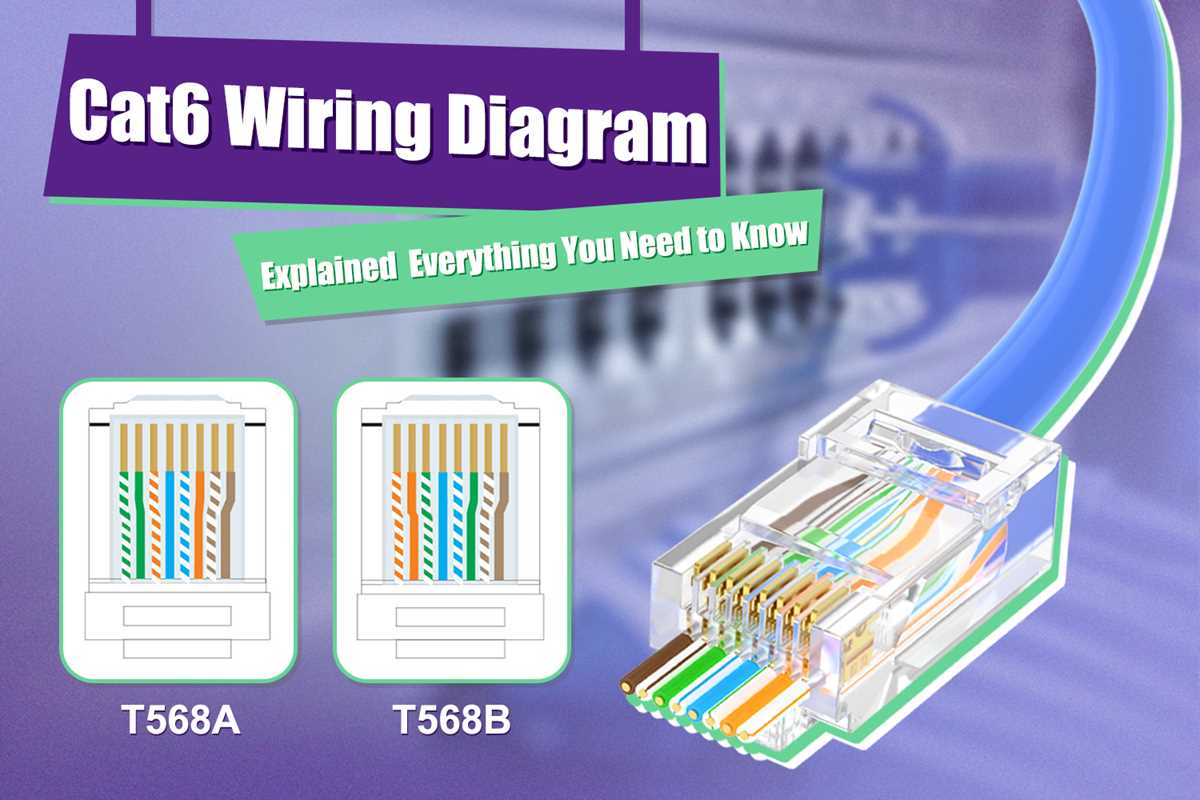

| Pin | T568A | T568B |
|---|---|---|
| 1 | White/Green | White/Orange |
| 2 | Green | Orange |
| 3 | White/Orange | White/Green |
| 4 | Blue | Blue |
| 5 | White/Blue | White/Blue |
| 6 | Orange | Green |
| 7 | White/Brown | White/Brown |
| 8 | Brown | Brown |
Insert wires into the termination block following the selected standard. Push conductors fully into slots until the outer jacket sits flush with the connector housing–partial insertion causes intermittent failures. Use a punch-down tool with 110-type blade to secure wires; apply firm, even pressure to ensure proper seating without splitting conductors. Test continuity with a cable tester before finalizing installation.
For shielded twisted pair (STP), ensure the foil shield makes contact with the outlet’s grounding tab. Trim excess wire flush with the housing to prevent short circuits. Label the outlet with the standard used (A/B) to simplify future maintenance. Avoid bending cables sharply–radius should exceed 4x the cable diameter to prevent signal degradation.
Gigabit setups require all eight conductors; fast Ethernet (10/100 Mbps) uses only pins 1, 2, 3, and 6 but leaving all wires connected future-proofs the installation. PoE (Power over Data Lines) distributes power via pairs 1/2 and 3/6 (Mode A) or 4/5 and 7/8 (Mode B); verify compatibility between devices before energizing.
Recheck connections after 24 hours–thermal expansion/contraction may loosen terminations. For outdoor or high-interference environments, use CAT6a or higher with appropriate shielding. Document cable runs in building schematics, noting length and pairing standards to streamline troubleshooting.
Critical Errors in Network Outlet Installation
Skipping cable length calculations before termination leads to excessive slack or tension. ANSI/TIA-568 standards specify a maximum of 100 meters for horizontal runs, but even minor miscalculations can force rework. Measure twice, cut once–leave only 12-15 inches of extra cable behind the plate to avoid bulk in the wall cavity while ensuring enough length for punch-down tools.
Incorrect pairing of conductors disrupts signal integrity. T568A and T568B schemes must remain consistent throughout the entire network path–mixing them introduces crosstalk. Pairs must be untwisted only 0.5 inches (12.7 mm) before termination to maintain impedance matching; excessive untwisting degrades performance, especially for Gigabit links.
Over-tightening patch panel screws damages insulation or severs copper strands. Use a torque-limited punch-down tool with 12-14 lb-in force; manual tools often apply inconsistent pressure, risking weak connections. Verify each wire clicks into place–failed terminations create intermittent faults that evade simple testing with a LAN cable checker.
Ignoring strain relief accelerates cable failure. Securing cables to studs or conduit prevents tension on connectors when furniture or devices shift. Use Velcro straps or cable guides–zip ties crush outer jackets over time, exposing conductors to moisture or physical wear. Avoid sharp bends (radius
Hidden Pitfalls in Termination Techniques
Color coding errors during installation go unnoticed until advanced diagnostics reveal latency spikes. Use a magnifying punch-down tool or a labeled wiring diagram on-site–fatigue causes misalignment even for experienced technicians. Test continuity with a tone generator within 30 minutes of termination; oxidation can form rapidly on improperly seated connectors.
Neglecting shielded cable requirements voids performance guarantees. Foil-shielded twisted pairs (F/UTP) demand 360-degree contact with grounding plates–omitting this step introduces electrical noise. Exposed drain wires must be trimmed to avoid short circuits; trim flush with the jacket, not just bent over the connector.
Assuming straight-through cables solve all connectivity issues overlooks crossover compatibility. Modern auto-MDI/MDIX ports handle crossovers automatically, but legacy hardware still requires manual adjustment. Label cabling ends with port numbers–unlabeled installations force trial-and-error troubleshooting later, wasting hours tracking down misconfigured links.
