How to Build and Understand an Electronic Overload Relay Wiring Schematic
Choose a solid-state current sensing module with a 5–30% adjustable trip range to match motor nameplate FLA values. For a 5 HP, 230V three-phase motor rated at 14A FLA, set the device between 14.7A and 15.4A; this margin prevents nuisance trips while ensuring rapid response above 130% FLA. Verify the sensing element handles continuous 20A without derating.
Connect line conductors directly through the sensor core–do not break the circuit. Route L1, L2, and L3 in parallel through a single toroidal opening; total ampere-turns induce proportional voltage across the pickup coil. Bypass the control voltage tap to a separate 120V or 24V transformer–mixing power and control voltage risks capacitor failure in current-limited designs.
Use a normally closed contactor rated ≥25A resistive at 600V for cutoff. Wire the module’s output contacts in series with the contactor coil; introduce a 2-second delay-on-release timer to avoid chatter on voltage dips. Test trip timing with a load bank: target 10 seconds at 300% FLA for Class 10 protection per NEMA standards. Silicon-controlled rectifiers or triacs should have a minimum IT of 50A to withstand inrush currents.
Ground the module chassis via a #12 AWG conductor to a clean earth rod–floating grounds amplify noise, skewing trip curves. Shield signal cables between the sensor and control board with foil braid grounded at one end only; avoid earth loops. Calibrate the trip point using a precision ammeter: measure actual current, adjust the potentiometer until the contactor drops out, then lock the setting with thread sealant.
For ambient temperatures above 40°C, derate module capacity by 2% per °C. Install a snap-action bimetallic switch in thermal series for independent backup; wire it directly to a backup contractor coil with no delay. Replace film capacitors annually if operating near harmonic-producing loads–capacitance drift distorts trip curves over time.
Designing a Protective Current Sensing Setup
Start with a precision current sensor like the Allegro ACS712 (20A variant) or Texas Instruments INA219 for low-power applications. Place the sensor in series with the load–never in parallel–to ensure accurate measurement of true current flow. For AC systems, opt for a hall-effect sensor with isolated outputs (e.g., LEM LTS 25-NP) to avoid ground loops and maintain safety. Calibrate the sensor using a known load; for the ACS712, expect 185 mV/A output at 5V supply, requiring an ADC with at least 12-bit resolution for reliable readings.
Implement a microcontroller (MCU) with fast response times–STM32F103 or ESP32 ideal for most scenarios–to process sensor data. Use interrupts (EXTI or GPIO) instead of polling for immediate overcurrent detection. Set thresholds based on motor or device specifications: for a 5A nominal current, trigger shutdown at 6.5A (30% margin). Store thresholds in non-volatile memory to retain settings after power cycles. Include hysteresis (e.g., 0.2A) to prevent rapid toggling during transient spikes.
| Component | Key Parameter | Typical Value |
|---|---|---|
| ACS712 (20A) | Sensitivity | 185 mV/A |
| INA219 | Max Bus Voltage | 26V |
| STM32F103 | Interrupt Latency | <5 µs |
| MOSFET (IRF540N) | VDS Max | 100V |
Pair the MCU with a solid-state switch: MOSFETs (IRF540N) for DC or triacs (BT139) for AC. Gate driver circuits (e.g., MCP1407) are mandatory for MOSFETs to ensure fast turn-off (sub-100 ns). Add flyback diodes (1N4007) for inductive loads to protect against voltage spikes. For AC systems, use optocouplers (MOC3021) to isolate the MCU from high-voltage switching. Calculate cooling requirements: a 10A load may need a heatsink with θJA < 15°C/W.
Log critical events (e.g., trip count, peak current) to an EEPROM like AT24C256 for diagnostics. Include a manual reset button and LED indicators for trip status. Test the system under worst-case conditions–e.g., locked rotor for motors–with an oscilloscope to verify response times. For 3-phase setups, use three sensors and a phase-sequence detector to prevent single-phase overloads from damaging equipment.
Power the circuit from a stable supply (LM7805 for 5V) with input filtering (100 µF capacitor) to avoid false trips from noise. For battery-powered designs, add a buck converter (LM2596) to extend runtime. Isolate high-voltage and low-voltage sections with PCBs featuring at least 2mm creepage distance for safety compliance (IEC 60950). Label all test points and critical nodes with silkscreen for troubleshooting.
Core Elements of a Modern Protection Module Blueprint
Integrate a precision current transducer at the input stage to monitor transient spikes down to microsecond resolution–opt for a Hall-effect sensor with ±0.5% accuracy and 50 kHz bandwidth to catch nuisance faults masquerading as normal startup surges.
Deploy a microcontroller unit running real-time firmware that evaluates three distinct trip curves: instantaneous (1–10× rated current), thermal (1.1–1.5× rated current), and ground-fault (30–500 mA). Ensure the processor has dual 12-bit ADCs to sample line and neutral conductors simultaneously, eliminating false tripping from single-phase imbalances.
Place back-to-back MOSFET switches rated for 150% of the motor’s locked-rotor current in series with each phase; specify devices with
Include a galvanically isolated 24 VDC power supply derived from the main bus via a flyback converter–snap-on auxiliary contacts must latch closed at 85% of nominal voltage and release at 70% to prevent chatter during brownouts.
Design a temperature compensation network using an NTC thermistor bonded to the heat-sink; the compensation curve should adjust trip thresholds by +0.2% per °C rise above 50 °C ambient, capping at 80 °C to prevent thermal runaway in inverter-fed drives with high PWM frequencies.
Add EEPROM storage to log the last ten trip events–store timestamp, peak current, trip class, and ambient temperature at 1 °C resolution; ensure the memory retains data for 10 years without refresh to comply with IEC 60255-22-4 Class 2 electromagnetic immunity requirements.
Wire a diagnostic LED array: one steady amber LED for normal state, one flashing red LED (2 Hz) for imminent trip, and one continuous red/green bi-color LED for communication health–RS-485 interface should update status every 50 ms with 12-bit CRC checksum to guarantee

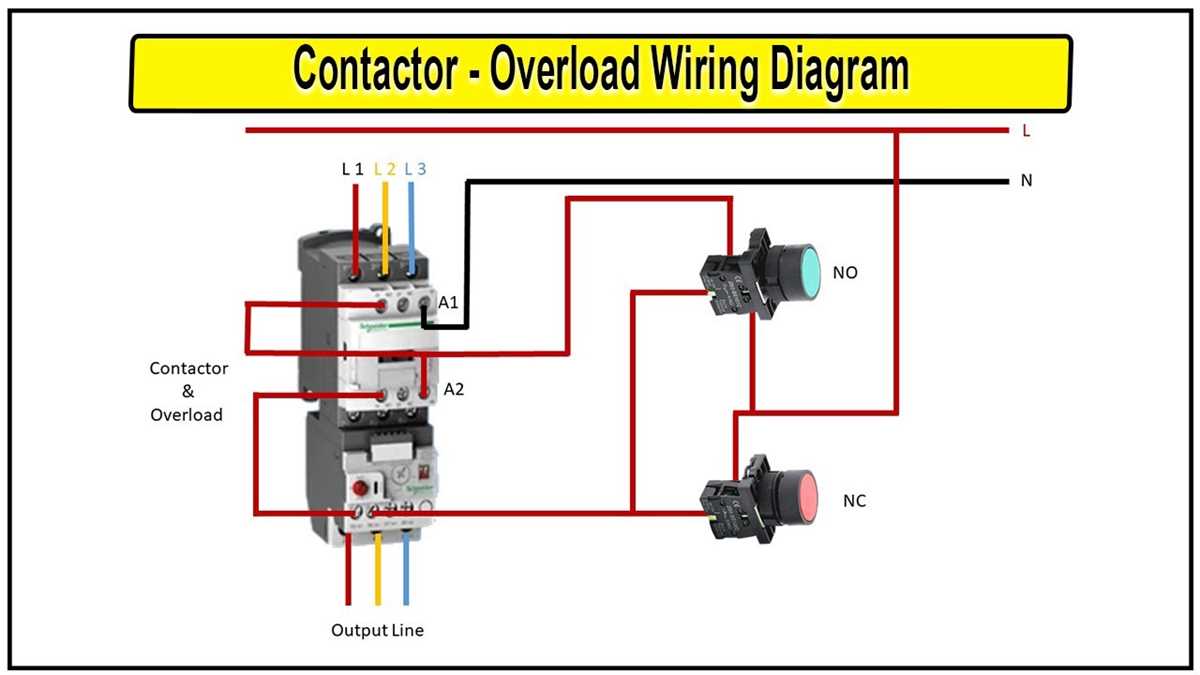

Step-by-Step Connection Guide for Protection Device Wiring
Begin by selecting the appropriate current range for your safeguard module–match the trip class (5, 10, 20, or 30) to the motor’s full-load amperage. Class 10 suits general-purpose motors, while class 20 or 30 accommodates high-inertia loads like pumps or conveyors. Cross-reference the motor’s nameplate amperage with the device’s adjustable rotary dial markings; set the dial precisely at or 10% above the nameplate value to prevent nuisance tripping while ensuring adequate protection.
Secure the Input and Output Links
Connect the incoming phase conductors from the contactor’s load terminals directly to the left-side terminals (L1, L2, L3) of the protective unit. Ensure tight, vibration-resistant crimps using ring lugs rated for at least 1.5 times the circuit’s current. Route the motor leads from the right-side terminals (T1, T2, T3) back to the motor’s junction box, maintaining uniform color coding–typically black (L1/T1), red (L2/T2), and blue (L3/T3)–to eliminate wiring errors during troubleshooting.
Integrate the control voltage paths by linking a normally closed (NC) auxiliary contact between the unit’s trip terminal and the contactor’s coil circuit. If the system uses 24V DC or 120V AC control voltage, verify the coil’s compatibility with the trip contact’s electrical ratings–most contacts handle 5A at 250V AC/DC, but check datasheets for inductive load derating. Use twisted pair wiring for control signals to minimize electromagnetic interference, especially near variable frequency drives.
Validate and Energize
Apply a 50% test current using a clamp-on ammeter and a variable autotransformer; monitor for correct trip times–Class 10 should disconnect within 10 seconds at 600% of set current, Class 20 within 20 seconds. If tripping occurs prematurely, reduce the dial setting incrementally until stable operation is achieved, then re-test. For three-phase imbalance scenarios, introduce a single-phase condition; the device must trip within 3–4 seconds at 115% of the highest phase current to comply with IEC 60947-4-1 standards.
Finalize by labeling all conductors with heat-shrink tubing near termination points, noting trip class and setpoint values. Seal exposed junctions with IP65-rated gland fittings if the installation spans outdoor or washdown environments. Record the dial setting and test results in the motor’s maintenance log for future reference adjustments.
Common Fault Detection Methods in Protection Device Schematics
Begin troubleshooting by isolating the thermal trip mechanism from the load path. Measure resistance across heater coils–values below 0.1Ω or above 10Ω indicate degradation requiring replacement. Use a multimeter in continuity mode to verify bimetallic strip functionality; a click test during simulated overloads confirms proper deflection. For solid-state variants, check control signals at the base of power transistors (typically 0.6–0.8V for silicon types) and inspect optocouplers for consistent forward voltage drops (1.2V for standard LEDs).
- Input Signal Verification: Probe the sensing input–AC systems should register 90–110% of nominal current; DC inputs often require 4–20mA thresholds. Fluctuations exceeding ±5% suggest sensor drift or wiring faults.
- Power Supply Checks: Test DC rails (e.g., 5V, 12V, 24V) at the protection module’s terminals. Ripple should not exceed 50mV peak-to-peak–higher values point to capacitor failure or regulator instability.
- Feedback Loop Diagnostics: Monitor trip signals during staged faults. Delayed response (>200ms) indicates microcontroller latency or corrupted firmware; verify watchdog timer resets in software-controlled units.
- Mechanical Wear: Examine pivot points in electromechanical designs for lubricant depletion or oxidation–apply conductive grease sparingly to avoid altering calibration thresholds.
- Environmental Factors: Log operating temperatures; overheating (>60°C) may necessitate derating or improved cooling. Humidity levels above 70% accelerate corrosion–replace corroded connectors with gold-plated variants.
