How to Build and Understand a Basic Electronic Toggle Switch Design

For a bistable latching mechanism requiring minimal components, use a CD4013BE flip-flop IC paired with two NPN transistors (e.g., 2N3904). Ground the CLK pin through a pushbutton to switch states–each press toggles the output between high and low without holding the button. Add a 10kΩ pull-down resistor on the base of the transistor driving the load to prevent floating inputs. This setup draws under 50µA in standby while handling 200mA loads at 12V.

To isolate the signal path from high-current loads, replace mechanical relays with a TLP290G optocoupler. Connect its LED side to the flip-flop’s output via a 330Ω series resistor; the transistor side switches the load directly. This eliminates contact bounce and extends lifespan beyond 100,000 cycles. For inductive loads (motors, solenoids), add a flyback diode (1N4007) across the output terminals to clamp voltage spikes.

When implementing on perfboard, route ground traces as a star topology to minimize noise. Use 0.1µF ceramic capacitors across IC power pins to filter transients–place them within 2mm of the pins. For power sources, choose a LM2596 buck converter over linear regulators to reduce heat dissipation when stepping down 24V to 5V for logic circuits. Test continuity with a logic probe before applying full voltage.

Debugging? Check for ~0.7V drop across transistor bases during switching; lower values indicate incorrect biasing. If random toggles occur, probe for parasitic oscillations–add a 10nF capacitor between the flip-flop’s Q and Q̅ outputs to stabilize transitions. For long wire runs (>1m), use twisted pairs and terminate with 220Ω resistors to prevent signal reflections.

Designing a Bistable Latching Mechanism for Low-Power Control

For a reliable on-off latch using discrete components, pair a CD4013 flip-flop with two pushbuttons and a dual-coil relay. Connect the SET input to one button via a 10kΩ resistor and the RESET to the other; use 1N4148 diodes to block reverse voltage from the relay coils. The flip-flop’s Q output directly drives a 2N2222 transistor, which handles up to 800mA–sufficient for most 5V or 12V relays. Decouple the power supply with a 100nF capacitor placed within 2cm of the IC to prevent false triggering during transient spikes.

Reduce standby current to microamps by substituting the relay with a MOSFET like the IRLZ44N. Gate voltage thresholds of 2-4V allow direct interfacing with CMOS logic levels; ensure the gate-source voltage never exceeds ±20V. Replace pushbuttons with momentary tactile switches rated for 50mA minimum to avoid contact bounce; add a 1μF tantalum capacitor across each switch to filter noise. For inductive loads, include a flyback diode (1N4007) and a snubber network (100Ω + 0.1μF) to suppress voltage transients exceeding 50V.

To extend mechanical switch life, use software debouncing on a microcontroller running at 3.3V. Sample the input every 20ms; ignore transitions shorter than 50ms. Assign separate I/O pins for ON and OFF commands to prevent race conditions–sequential logic ensures only one command executes at a time. Flash an ATtiny13 with open-source firmware; consume under 0.3μA in sleep mode while retaining state. Alternatively, build hardware debouncing with a 74HC14 Schmitt trigger inverter and an RC network–time constant of 50ms eliminates multiple triggers.

For galvanic isolation, opt for an HCPL-3120 optocoupler driving a IGBT. The device withstands 1414V peak isolation voltage and handles 2A continuous current. Drive the LED side with a 330Ω resistor from a 5V rail; connect the IGBT’s gate to a 15V zener diode to prevent overshoot. On the high-side, use a P-channel FET (IRF9540) with a gate driver (TC4427) to switch loads up to 100V–quiescent current remains below 2mA. Place a 10kΩ pull-down resistor on the gate to prevent floating input during power-up.

Minimize quiescent current further with a latching reed relay (Coto 9007). The coil draws 10mA only during state change–store the last state magnetically. Add a 1MΩ resistor across the contacts to bleed residual charge, preventing erratic behavior. For battery-operated devices, use a buck converter (TPS62743) to drop 3.6V to 3.0V; it delivers 75% efficiency at 10μA load. Logical state transitions are confirmed via a bi-color LED–green for ON, red for OFF–driven by a ULN2003 Darlington array to sink 50mA per channel.

Core Elements for a Fundamental Bistable Control Assembly

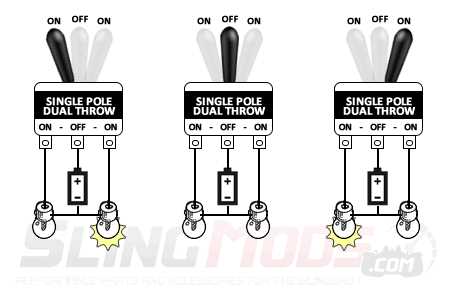

Begin with a mechanical actuator rated for at least 250V AC and 5A resistive load. Select models with gold-plated contacts for low-current applications below 100mA to prevent oxidation-induced failures. SPDT (single-pole double-throw) variants offer the simplest implementation; avoid DPDT unless simultaneous switching of two independent paths is required.

The power handling component must match the actuator’s specifications. For mains voltage (110-240V), use a suitably sized relay with a coil voltage matching your control signal (5V, 12V, or 24V DC). Solid-state relays provide silent operation but introduce voltage drop; mechanical relays offer galvanic isolation at the cost of audible clicking and contact wear.

• MOSFET (IRFZ44N) for DC switching up to 60V/50A
• TRIAC (BT136) for AC applications up to 4A/600V
• Optocoupler (PC817) when input-to-output isolation >5kV is critical

Debounce protection is non-negotiable. A 100nF ceramic capacitor across the actuator contacts, combined with a 10kΩ pull-up resistor, eliminates false triggers. For microcontroller-driven designs, implement a 50ms software delay after detecting a state change to fully reject contact bounce.

Signal Conditioning Essentials

Use a Schmitt trigger IC (74HC14) for noisy environments. Its 1.2V hysteresis window (typical) rejects voltage fluctuations below this threshold. When interfacing with a logic controller, a 2N3904 transistor in common-emitter configuration converts weak signals (3.3V) to robust outputs (5V/12V), handling up to 200mA collector current.

1. Input: 3.3V logic → 2kΩ base resistor → 2N3904 → 10kΩ collector resistor
2. Output: Emitter grounded; collector pulls down ≤1mA load
3. Alternative: ULN2003 Darlington array for driving multiple loads (500mA per channel)

Ensure power supply stability. A 7805 linear regulator provides clean 5V for logic components, but dissipates heat: anticipate 2W per 1A load. For higher currents, switch to an LM2576 buck converter (80% efficiency at 3A), reducing thermal losses while maintaining tight voltage regulation (±2%).

Grounding strategy dictates reliability. Star topology prevents ground loops; route high-current paths separately from logic traces. Use a 10μF electrolytic capacitor at the power entry point and 100nF ceramics near each IC’s power pins. For EMI-sensitive applications, add a ferrite bead (1kΩ @ 100MHz) in series with the actuator wiring to suppress RF interference.

Step-by-Step Assembly of a Self-Holding Pushbutton Mechanism

Begin by sourcing a dual-coil bistable relay (e.g., Panasonic TQ2-L-5V or Omron G6SK) rated for your voltage requirements–typically 5V, 12V, or 24V DC. Mount the relay onto a prototyping board or enclosure, ensuring the coil terminals (labeled A1/A2 or +/−) and contact points (common, normally open, and normally closed) are accessible. Use 22–24 AWG stranded wire for signal paths and 18 AWG for power if current exceeds 2A. Verify the relay’s specifications: coil resistance (e.g., 125Ω for 12V models), contact rating (often 5A at 250VAC), and switching time (<10ms).

Component Interconnection Guide

From	To	Wire Gauge	Notes
Power supply (+)	Relay coil (A1)	22 AWG	Add a flyback diode (1N4007) in parallel, cathode to +
Momentary pushbutton (output)	Relay coil (A2)	22 AWG	Use a pull-down resistor (10kΩ) if debounce isn’t handled
Relay contact (common)	Load (+)	18–22 AWG	Match gauge to load current (e.g., 18 AWG for 5A)
Load (−)	Power supply (−)	18–22 AWG	Ensure common ground for all components

Connect a flyback diode (1N4007) across the relay coils to suppress voltage spikes; orientation matters–cathode (striped end) connects to the positive terminal. For debounce, use a 0.1µF ceramic capacitor in parallel with the pushbutton or implement a 555 timer delay circuit (1–2 seconds). Test with a multimeter: coil voltage should drop to near zero when energized, and contact continuity should toggle with each pushbutton press. For high-current loads (e.g., motors >3A), add a snubber circuit (0.1µF capacitor + 100Ω resistor in series) across the relay contacts to prevent arcing.

Common Pitfalls in Binary Control Interface Arrangements

Avoid placing momentary state selectors too close to high-current paths. Inductive loads–like relays or motors–generate transient spikes during switching, which can couple into adjacent traces, causing false activations. Maintain at least 5mm clearance between control lines and power routes, or use a ground plane as a shield. Test with an oscilloscope during prototyping to confirm no cross-talk exceeds 50mV.

Using undersized conductors for actuating signals causes voltage sag, especially in battery-powered designs. A 0.2mm trace over 10cm can drop 0.3V at 100mA, degrading logic thresholds. Calculate current draw first–most mechanical latching mechanisms pull 50–150mA during engagement–and match trace width accordingly. For 1oz copper, a 1mm width handles 500mA safely; double it for reliability.

• Ignoring contact bounce introduces errors. Typical mechanical contacts rebound for 5–20ms. Without debouncing–RC (1kΩ, 0.1µF) or firmware delay (50ms)–a single press may register as multiple triggers. Hardware debouncing adds cost but is more reliable; software requires code overhead but saves space.
• Omitting a failsafe state risks uncontrolled operation. Always include a default position powered independently–e.g., a pull-up/down resistor–so the selector defaults to “off” or “safe” if power is cut or logic fails.
• Neglecting thermal relief vias around fixed terminals increases soldering difficulty and weakens joints. Use four 0.5mm vias spaced 1.2mm from the pad edge to balance heat transfer and mechanical strength.

Placing the actuator too far from edge connectors creates awkward ergonomics. Ideal placement allows access within 20–30mm of the board edge, aligning with case cutouts. If mounting PCB vertically, ensure toggle height does not exceed enclosure depth minus 5mm for clearance.

Component Selection Errors

Relying on micro-miniature form factors for high-cycle applications shortens lifespan. A sub-miniature SPDT may survive 10,000 cycles, while a standard-sized unit lasts 50,000+ under identical load. Match mechanical endurance to project needs–industrial controls should exceed 100,000 cycles. Check datasheets for “electrical life” ratings at specified current/voltage.

1. Skipping EMI suppression invites interference. A 1nF capacitor across contacts and a ferrite bead on input lines reduce radiated noise. For sensitive analog circuits, add a common-mode choke rated for twice the expected current.
2. Underestimating mounting torque strips threads or cracks housing. Hand-tighten plastic-bodied selectors to 0.2Nm; metal-bodied units tolerate 0.5Nm. Use a torque driver for consistency.
3. Disregarding ambient conditions (dust, moisture) accelerates failure. Encapsulate exposed contacts in conformal coating or opt for sealed units (IP67) in harsh environments. Silicone conformal coating withstands –40°C to +200°C.

Final layout oversight: leaving no test points for diagnostics. Include 0.8mm via test points near the control signal origin and load connection to probe without desoldering. Label them clearly–e.g., “CTRL_IN,” “LOAD_OUT”–for quick troubleshooting.
