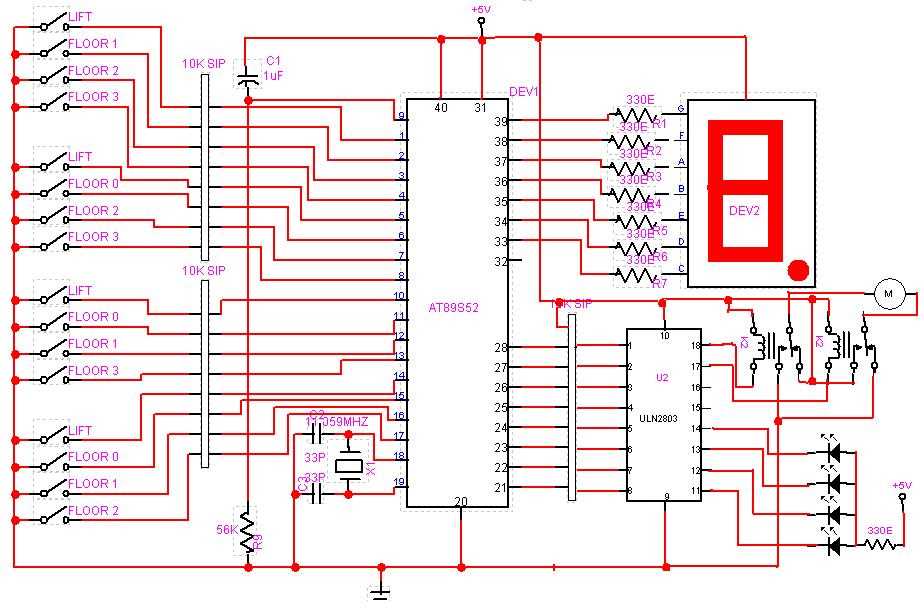

Electrical Schematic for Elevator Motor and Brake Control Systems

Begin with a three-phase power supply rated at 400V AC, ensuring proper grounding at the source to prevent interference. Use a dedicated 32A circuit breaker for the main feed to isolate faults without affecting auxiliary systems. Connect the primary conductor to a contactor with a 24V DC control coil–this reduces voltage hazards in technician-accessible areas while maintaining robust switching capability.

Integrate a thermal overload relay directly downstream of the contactor, calibrated to 120% of the motor’s full-load current. For a 7.5kW motor, set the relay to trip at 16A after 10 seconds of sustained overload. Install current transformers (5A secondary) on each phase to feed analog signals to a PLC or standalone monitoring module. This allows real-time adjustment of acceleration curves without hard-coding values into the drive.

Place emergency stop pushbuttons–normally closed, red with yellow background–at both the top and bottom landings. Wire them in series with the safety circuit’s 24V DC loop, ensuring a single failure doesn’t compromise operation. Include door interlock switches in the same loop; use dual-channel micro-switches with gold-plated contacts to resist oxidation in humid shafts.

Select a variable frequency drive (VFD) with a braking chopper rated for 200% of motor torque. Configure the VFD’s ramp-up time to 3.5 seconds and ramp-down to 2.8 seconds–this balances passenger comfort with energy efficiency. Connect the drive’s analog output (0-10V) to a tachometer generator on the sheave shaft for closed-loop speed regulation, eliminating drift caused by mechanical wear.

Route all low-voltage control cables–typically 0.75mm² shielded twisted pair–in separate conduits from power wiring to minimize inductive coupling. Use ferrite beads on both ends of communication lines between the car and landing controllers. Terminate all cable shields at a single grounding point near the main junction box, avoiding loops that could introduce stray currents.

Install relays with silver alloy contacts for directional control; mechanical life should exceed 10 million cycles under 2A resistive load. Parallel redundant relays for each direction to prevent single-point failures. Mount all control relays on DIN rails with snap-on labels indicating function–this simplifies troubleshooting during downtime.

For weight compensation, use a load cell with a 4-20mA output connected to the VFD’s secondary analog input. Calibrate the load cell at 0% (empty car) and 100% (rated capacity) to adjust torque limits dynamically. Add a 10kΩ pull-down resistor on the signal line to prevent false readings from open circuits.

Understanding Vertical Transport Electrical Schematics

Begin by isolating the power distribution segment in the schematic–this typically occupies the top left quadrant. Verify voltage ratings for each supply line (380VAC for main motors, 24VDC for safety chains, 110VAC for door operators) and cross-reference with nameplate data on the drive unit. Mismatched values indicate either obsolete documentation or unauthorized modifications, both requiring immediate recalibration before energizing.

Trace the emergency stop network next: it must form a continuous series linking car top, pit, and control panel without branching. Each push-button station must interrupt both phase and neutral to comply with EN 81-20; bypassing this creates a latent single-point failure. Label every junction with a unique identifier (e.g., ES-1, ES-2) and capture thermal images post-test to detect loose terminals that standard multimeter checks miss.

Examine the selector relay logic–modern systems use solid-state PLCs, but legacy schematics rely on mechanical relays wired in a ladder formation. Confirm coil voltages (12V, 24V, or 48V) and ensure NO/NC contacts align with the travel direction table. A single reversed contact causes the cab to oscillate between floors without stopping; use a logic probe to verify pulse timing during dry runs.

Inspect the door interlock subsystem last. Each gate must have two independent micro-switches (one for safety, one for operation) connected in parallel yet monitored separately–failure to do so violates ASME A17.1/CSA B44 requirements. Measure switch bounce (max 5ms) and replace any component exceeding 2ms. Ground all metallic enclosures through 6 AWG copper wire directly to the building’s earth bus, not through conduit.

Document every adjustment in a revision log: date, technician initials, and resistance readings (Ohms ±5%). Retain physical copies–digital backups alone are insufficient during power outages or cyber incidents. Store records adjacent to the machinery space in a fireproof, humidity-controlled cabinet (max 65% RH) to prevent corrosion of historical data.

Perform a full load test quarterly: simulate 110% rated capacity, record acceleration (0.7–1.2 m/s²), deceleration (0.5–0.9 m/s²), and settling time (). Deviations outside these ranges signal failed dampers or misaligned guide rails; correct immediately or risk sheave wear rates doubling within 500 cycles.

Core Elements of a Fundamental Elevator Electrical System

Select a motor rated for 150% of the maximum load to handle dynamic braking and emergency stops without overheating. For typical passenger units, a 3-phase AC induction motor with 11 kW power suits buildings up to 10 floors; above this height, opt for a 15 kW model. Ensure the motor’s insulation class matches the operating temperature–Class F (155°C) is standard, while Class H (180°C) extends lifespan in high-ambient environments.

Install a brake assembly with dual solenoids and redundant springs to comply with safety codes. The brake lining should consist of non-asbestos organic (NAO) material, offering a coefficient of friction between 0.35–0.45 for consistent stopping force. Adjust the air gap to 0.3–0.5 mm; gaps outside this range cause delayed response or excessive wear. Regularly lubricate the release mechanism with molybdenum disulfide grease to prevent sticking.

Component	Recommended Spec	Tolerance/Note
Controller Unit	PLC with 24V DC input	±10% voltage fluctuation tolerance
Limit Switch (Upper)	Mechanical, SPDT	Actuation force ≤2.5 N
Counterweight	40–50% of full load	Adjust in 2% increments for optimal balance

Use relays with gold-plated contacts (minimum 1 µm thick) for low-voltage signaling circuits. For power relays handling motor currents, specify 30 A contact rating with a mechanical lifespan of 1×10⁷ operations. Position relays vertically to avoid dust accumulation on contacts; horizontal mounting reduces lifespan by 30% in dusty environments. Replace relays if coil resistance deviates more than ±5% from the nominal value.

Incorporate overspeed governors into the rope system with a tripping speed of 115% of the maximum vertical speed. For a 2 m/s unit, set the governor to activate at 2.3 m/s. Use a centrifugal governor with a stainless steel flyweight and a phosphorus bronze friction pad. Test monthly by simulating overspeed conditions; replace the governor if tripping time exceeds 120 ms or falls below 80 ms.

Choose cables with tinned copper conductors and XLPE insulation for power lines. For 3-phase supply, use 4-core cables (including ground) with a cross-sectional area of 6 mm² for runs up to 30 m; increase to 10 mm² for longer distances to limit voltage drop to ≤3%. Separate signal wires (≤1 mm²) into shielded twisted pairs with a 100 Ω characteristic impedance to minimize interference. Route cables through galvanized steel conduits with a minimum bend radius of 6× the cable diameter.

Designate a power supply with dual transformers–one for the logic system (24V DC) and another for auxiliary functions (e.g., lights, doors). The logic transformer should have a VA rating 1.5× the total load; a 300 VA unit suffices for most mid-rise installations. Include a battery backup with a 12-hour runtime, sized at 10% above the calculated amperage draw. Use deep-cycle AGM batteries to avoid maintenance and electrolyte leaks.

Fit door operators with brushless DC motors for precise torque control. Specify a motor with a holding torque of 1.2 N·m and a peak torque of 3 N·m to handle emergency reversals. Pair the motor with a 24V encoder (1024 pulses/revolution) for position feedback. Lubricate the helical gear mechanism with polyalkylene glycol (PAG) oil every 200,000 cycles; contamination reduces efficiency by 18% per year.

Integrate emergency devices with fail-safe operation. Install a manual lowering valve bypassing the control system, allowing descent at 0.5 m/s during power loss. Include a load-weighing transducer (±1% accuracy) to prevent overloading; calibrate annually by testing with dead weights at 20%, 50%, and 100% of capacity. Use a surge protector with a clamping voltage of 150V and a response time ≤5 ns to shield the logic board from transient spikes.

Wiring Practices for Reliability

Avoid daisy-chaining; run dedicated lines from each device to the main panel to isolate faults. For safety circuits, use series wiring so a single fault halts operation. Label every wire at both ends with heat-shrink tubing imprinted with the circuit number. Twist signal wires at 2.5 turns per 10 cm to cancel induced noise. Secure all connections with crimp terminals and apply antioxidant paste to copper conductors before termination.

Preventive Measures

Schedule quarterly inspections for mechanical wear on ropes–replace if diameter reduces by more than 5% or if broken wires exceed 6 per lay length. Test phase rotation monthly; reversed phases reduce motor efficiency by 40% and accelerate bearing wear. Check brake spring tension weekly; adjust to achieve a deceleration rate of 0.5–0.7 g. For logic boards, reapply thermal paste annually if the processor temperature exceeds 60°C under load.
