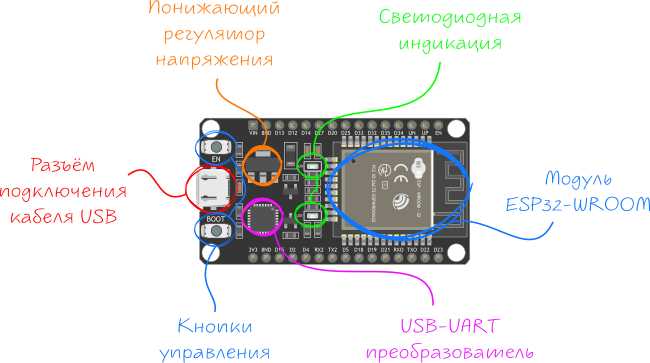

Complete ESP32-WROOM Module Pinout and Circuit Wiring Guide
Begin with a stable 3.3V power supply. The module tolerates 3.0V–3.6V, but 3.3V ensures optimal performance while avoiding thermal stress. Bypass capacitors are non-negotiable–place a 10µF electrolytic and a 0.1µF ceramic as close as possible to the VCC and GND pins to filter noise. Ignoring this step invites sporadic reboots and ADC inaccuracies.
Grounding requires a star topology. Route all GND paths to a single point near the power source to prevent ground loops. Shared traces with high-current peripherals–motors, LEDs, or relays–will inject noise into analog readings. Use a separate analog ground plane if precision matters, tying it to the main ground at one point only.
Pull-up resistors on I2C lines (4.7kΩ) and boot-mode pins prevent floating inputs. GPIO0, GPIO2, and GPIO15 dictate startup modes; incorrect states here will prevent flashing. GPIO0 must float high during normal operation unless you’re entering bootloader mode. Pull GPIO15 low to avoid boot failure–this pin affects flash voltage selection at startup.
For UART communication, connect TXD to RXD and RXD to TXD. Use 1kΩ series resistors if interfacing with 5V logic to avoid damage. The module’s pins are 3.3V only–exceeding this risks permanent failure. Debugging? Enable UART0 (GPIO1/TX, GPIO3/RX) during development, but disable it in production to free pins for other uses.
SPI flash requires attention to timing. CS/GPIO5 must transition cleanly–use a 10kΩ pull-up to ensure proper flash initialization. MISO, MOSI, and CLK should have 33Ω series resistors to reduce ringing during high-speed operations. If flash fails, verify voltages and solder joints first; cold joints here are common culprits.
Antennas demand clearance. Keep traces away from switching regulators and high-frequency components. A 20mm keepout zone around the onboard PCB antenna improves RF performance. For external antennas, a U.FL connector or wire requires matching network adjustments–consult the datasheet for component values or risk reduced range and connectivity drops.
LED indicators should use low-current GPIOs (e.g., GPIO2). A 220Ω resistor limits current to 10mA, enough for visibility without wasting power. Avoid driving relays or motors directly; use a transistor or MOSFET instead. The module’s maximum pin current is 12mA continuous, 40mA peak–exceeding this damages the die.
Reset circuitry should include a 10kΩ pull-up on the EN pin (labeled “CHIP_PU” on some variants) and a 1µF capacitor to ground for power-on stabilization. Without this, brownout detection may trigger falsely, causing erratic behavior.

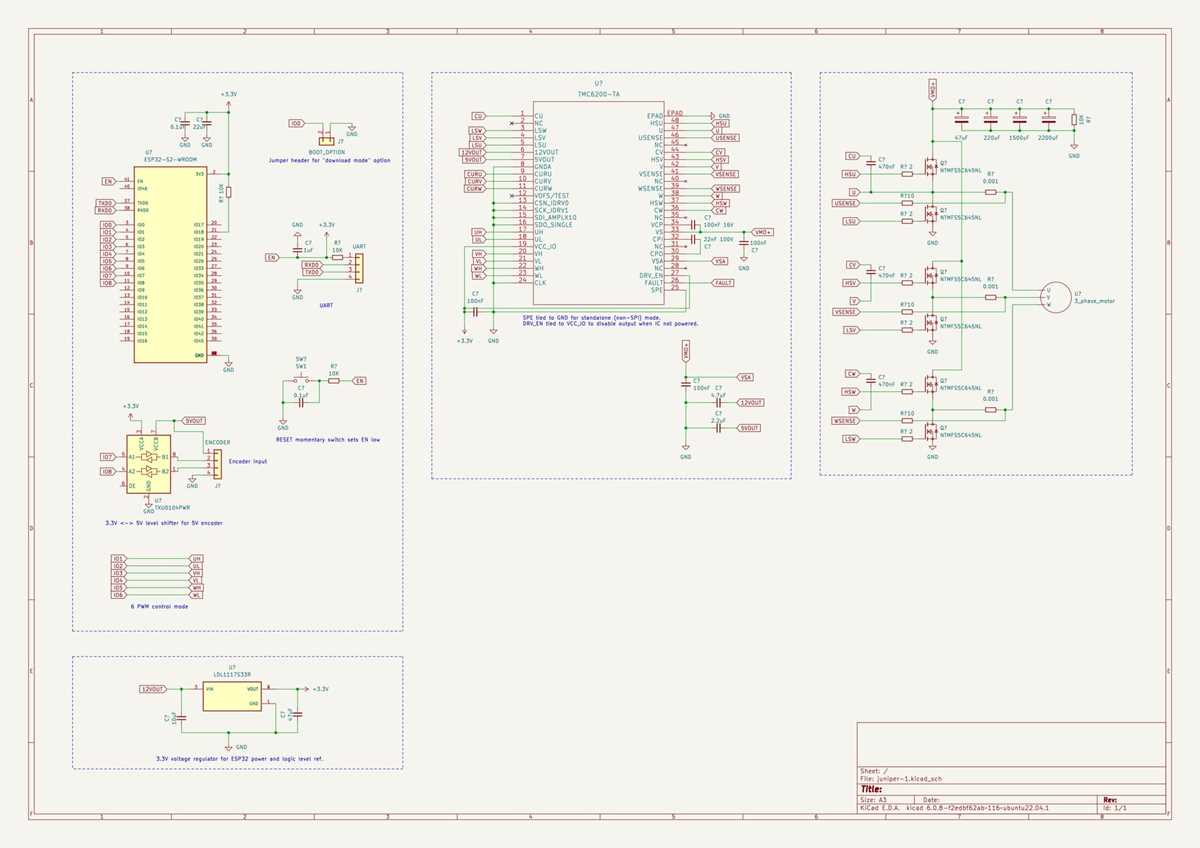

Building a Reliable Microcontroller Schematic: Key Steps
Start with a 5V to 3.3V linear regulator (e.g., AMS1117) directly after the power input. The module’s onboard LDO handles internal needs, but external sensors or peripherals demand stable 3.3V. Add a 10µF electrolytic capacitor on the input and a 1µF ceramic on the output to suppress noise–this prevents brownouts during Wi-Fi transmission bursts.
Route GPIO0, GPIO2, and GPIO15 as pull-down resistors (10kΩ) if boot modes matter. These pins dictate flash startup; floating states risk unpredictable behavior. For UART debugging, keep GPIO1 (TX) and GPIO3 (RX) clear of conflicts–enable only during development, then disable or repurpose in production to avoid stray signals.
Decoupling capacitors (0.1µF) should sit within 2mm of every power pin pair on the board. The 38-pin variant has six 3.3V/GND pairs; miss one and transient spikes during radio activity can corrupt memory or reset the core. Trace inductance kills stability–keep power lines thick (1-1.5mm) and short, especially for high-current RF sections.
Add a 30Ω series resistor on the antenna path if using an external Wi-Fi antenna. Without it, impedance mismatch degrades signal strength by 20% or more. For PCB antennas, ensure a 2mm keep-out zone around the trace–solder mask or silkscreen interference can detune the design beyond recovery.
Test power integrity with an oscilloscope at 20MHz bandwidth. Probe near the regulator output and the module’s 3.3V pin; ripple should stay under 50mV peak-to-peak. If it spikes, revisit capacitor placement or switch to a ferrite bead (e.g., 60Ω @ 100MHz) in series with the power input to block high-frequency noise.
Key Pinout Connections for Common Use Cases
For I2C communication, connect SDA to GPIO21 and SCL to GPIO22. These pins support standard 100 kHz and fast 400 kHz modes. Pull-up resistors (4.7 kΩ) are mandatory; omit them only if the peripheral module already includes them. Avoid long wires (over 30 cm) without proper shielding or impedance matching. If using a OLED display, confirm its voltage compatibility–3.3V only.
To drive a DC motor via an H-bridge, map IN1 to GPIO17 and IN2 to GPIO16. PWM control works best on these pins due to dedicated hardware channels. Set frequency to 5 kHz for smooth operation; higher values may cause overheating in certain L298N modules. Always include flyback diodes if the module lacks internal protection. For encoder feedback, attach A and B channels to GPIO34 and GPIO35 (input-only, no pull-ups).
WS2812 LED strips require precise timing. Assign the data line to GPIO4; this pin handles the strict 800 kHz signal with minimal jitter. Use a 330 Ω resistor in series to prevent voltage spikes. For strips longer than 30 LEDs, add a 1000 µF capacitor between VCC and GND near the microcontroller to avoid brownouts. Avoid powering more than 5 meters from a single 5V source–distribute power via parallel wires instead.
Use the following pinout for SPI devices:
| Signal | Pin | Notes |
|---|---|---|
| MOSI | GPIO23 | Hardware peripheral, default |
| MISO | GPIO19 | Input-only; add pull-down if floating |
| SCK | GPIO18 | Drive strength 40 MHz max, degrade to 20 MHz for long traces |
| CS | GPIO5 | Assert low during transfers; avoid GPIO32 if Wi-Fi is active |
UART debugging should use GPIO1 (TX) and GPIO3 (RX). These pins operate at 3.3V logic; connecting to a 5V serial adapter without a level shifter risks damage. For reliable communication, limit baud rates to 115200 bps–higher speeds may introduce errors on long cables. If USB-to-serial is unavailable, preserve GPIO0 for bootloader mode; accidental grounding during startup triggers firmware upload.
Touch sensors require low-noise environments. Assign T0 to GPIO4, T3 to GPIO15, and T4 to GPIO13. Calibrate sensitivity with touchRead() before deployment–raw values should hover 60–120 in open air. Avoid placing touch pads near high-frequency components; shield with grounded copper pours if interference is detected. For water-resistant designs, use capacitive buttons with 2–3 mm acrylic overlays.
Analog inputs demand careful routing. ADC1_CH0 (GPIO36) and ADC1_CH3 (GPIO39) tolerate 0–1.1V; exceeding this range distorts readings. For stable measurements, add a 0.1 µF capacitor between the ADC pin and GND. Noise reduction techniques include averaging 32 samples and disabling Wi-Fi during readings. ADC2 (GPIO0, 2, 4, 12–15) is unavailable when Wi-Fi is active–avoid these pins for analog signals in wireless projects.
Step-by-Step Power Supply Configuration
First, select a 5V DC power source with a minimum current rating of 500mA. Linear regulators like the AMS1117 or switching converters (e.g., MP2307) are preferred due to their efficiency and low dropout voltage. For battery-operated setups, use a 3.7V Li-ion cell with a TP4056 charging module to ensure safe voltage regulation.
Voltage Regulation
Connect the input voltage to a low-dropout regulator (LDO) if stability is critical. For 3.3V output, the XC6206 delivers 250mA with minimal heat dissipation. Avoid cheap knock-offs–verify the regulator’s datasheet for thermal resistance (θJA) and adjust heatsinking if ambient temperatures exceed 50°C. A 10µF tantalum capacitor on the output stabilizes transient responses.
- For USB power (5V), add a 1N4007 diode in series to prevent backflow.
- Use a 100nF ceramic capacitor near the regulator’s input and output pins.
- If noise is a concern, pair the LDO with a 22µF electrolytic capacitor on the input.
Power Delivery Optimization
For high-current loads (>800mA), bypass the LDO and use a buck converter like the LM2596. Configure the feedback resistors (typical ratio: 1.23V reference) to achieve the target voltage. Example: For 3.3V output, use 10kΩ and 3.3kΩ resistors. Add a Schottky diode (e.g., 1N5817) on the output to protect against reverse polarity. Measure ripple with an oscilloscope–it should not exceed 30mV peak-to-peak.
Ground loops introduce interference. Use a star-ground topology: connect all grounds to a single point near the power source. For long traces, widen them to 2mm to reduce resistance. If the system includes wireless modules, add a 1000µF bulk capacitor near the power entry to suppress voltage dips during transmission bursts.
Wiring Examples for GPIO Pins and Peripherals
For LED indication, connect a 220Ω resistor between the microcontroller’s pin 2 and the anode of a 5mm LED, then tie the cathode to ground (GND). This configuration limits current to ~10mA, ensuring stable operation without risking thermal damage. For capacitive touch sensors, attach a 1MΩ pull-down resistor to pins preconfigured for touch input (e.g., T3 or T4) and route the sensor pad via a short, shielded wire to minimize noise interference–avoid running parallel to high-frequency traces. When interfacing a BME280 environmental sensor via I2C, use a 4.7kΩ pull-up resistor on both SDA (pin 21) and SCL (pin 22) lines connected to VCC (3.3V), and keep trace lengths under 15cm to prevent signal degradation.
Motor and High-Current Load Control
To drive a 5V relay, utilize a low-side switching approach: connect the relay coil between VCC (5V) and the collector of an NPN transistor (e.g., 2N2222), with the emitter tied to GND. Attach the microcontroller’s GPIO (e.g., pin 16) to the transistor base via a 1kΩ resistor to saturate the transistor, ensuring full coil activation. Add a flyback diode (1N4007) in reverse polarity across the relay coil to clamp inductive spikes. For PWM-controlled DC motors, pair an L298N H-bridge module with a 0.1µF ceramic capacitor across the motor terminals to suppress brush noise, and decouple the module’s logic supply with a 10µF electrolytic capacitor placed within 2cm of the IC.
