Complete Step-by-Step Ethernet Cable Wiring Guide with Color Codes

For T568B termination–now the most widely adopted standard–arrange the stranded cores in this precise order: white-orange, orange, white-green, blue, white-blue, green, white-brown, brown. Apply uniform pressure when crimping to ensure each conductor makes solid contact with the gold-plated contacts; even a single loose strand reduces signal integrity. Verify continuity with a dedicated tester before securing the cable in place.

Twisted-pair alignment directly impacts cross-talk suppression: maintain pair twists as close as possible to the termination point, trimming excess sheath no more than 13 mm. Use solid-core cable for permanent in-wall installations, stranded for patch cords where flexibility matters–strand count per conductor affects durability but degrades high-frequency performance over extended runs. Cat6 demands tighter twist rates (up to 6 turns per inch) compared to Cat5e; any deviation undermines bandwidth.

Ground shielding–when present–requires a continuous drain wire connected to the metal shell of the jack; omit this step and electromagnetic interference will corrupt data. For Power over Data Lines deployments, assign pins 4–5 (blue pair) for positive voltage, 7–8 (brown pair) for return. Avoid mixing PoDL with standard signal paths unless the device explicitly supports the combined loads.

Always terminate both ends identically–crossed configurations (T568A ↔ T568B) serve only for direct device-to-device connections. Validate each cable immediately after termination; a marginal cable today turns into a diagnostic nightmare later. Cut faulty terminations and strip fresh conductors rather than attempting repairs; partial re-crimping almost guarantees intermittent faults.

Network Port Pinout Guide

Use T568A or T568B standards for terminating eight-position modular plugs. T568B is more common in commercial installations: pair 2 (orange/white-striped) on pins 1–2, pair 3 (green/white-striped) on pins 3–6, pair 1 (blue/white-striped) on pins 4–5, and pair 4 (brown/white-striped) on pins 7–8. Maintain consistent color-coding across all terminations to prevent miswiring, which causes crosstalk or link failure.

Strip cable jacket 2–2.5 cm, untwist pairs no more than 12 mm, and align wires in the correct order before inserting into the plug. Crimp firmly with a ratcheting tool; weak crimps cause intermittent connectivity. Verify continuity and pair-to-pair isolation with a cable tester: ensure pins 1–2, 3–6, 4–5, and 7–8 form closed circuits with 100 MΩ insulation between non-paired conductors.

Common Pitfalls

• Exceeding untwist length (>12 mm) degrades signal integrity.
• Mixing T568A and T568B at opposite ends creates a crossover link.
• Skipping post-crimp testing risks undetected short circuits.

For Power over Data Lines (PoDL), confirm pairs 4–5 and 7–8 carry voltage; some implementations use only 4–5 for power delivery. Check device specifications–misconfigured polarity may damage equipment. Replace damaged plugs immediately; cracked connectors expose conductors to corrosion or physical deformation under load.

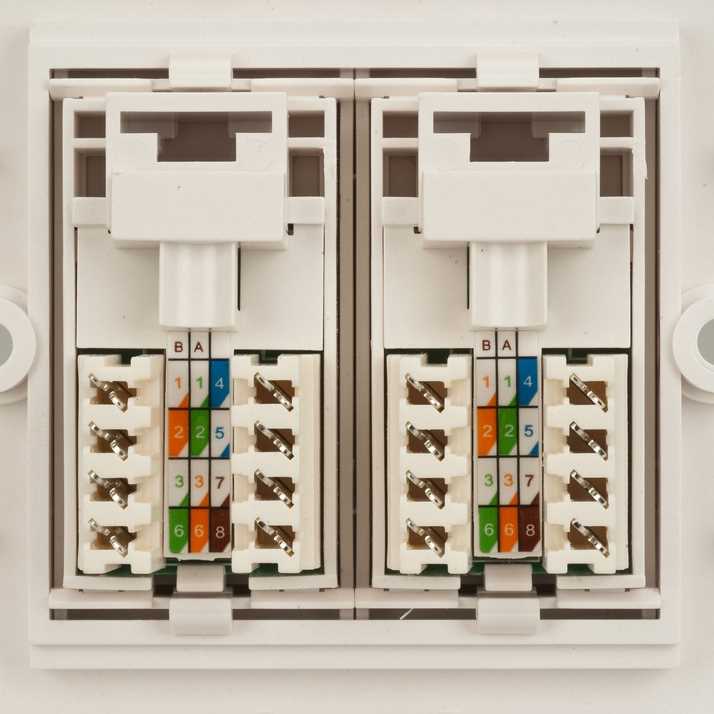

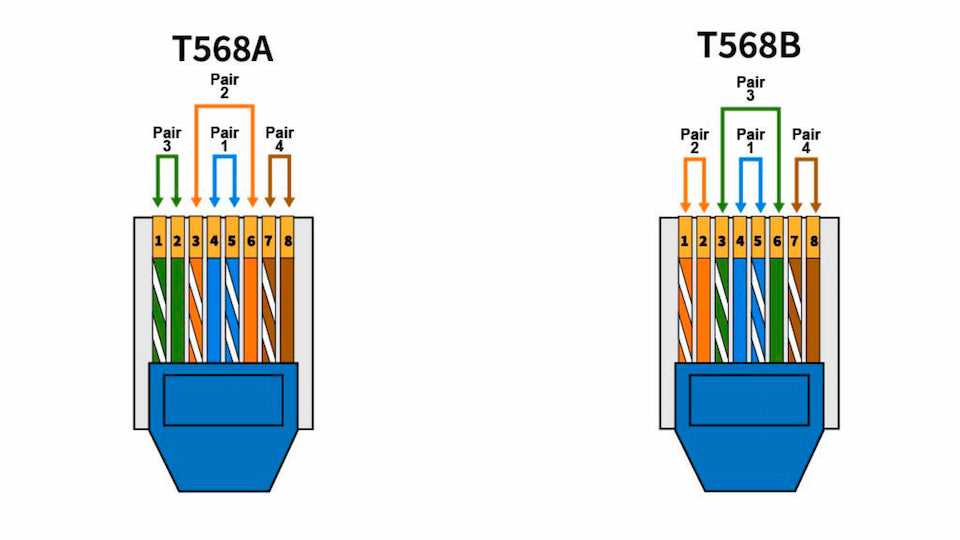

How to Distinguish T568A from T568B Pinout Schemes

Check the color order on the jack’s first pair: T568A starts with green-white (pin 1) and green (pin 2), while T568B begins with orange-white (pin 1) and orange (pin 2). Use a flashlight against the connector’s plastic housing–striped wires glow slightly, revealing their sequence. Prefabricated cables often stamp the standard on the sheath near the plug; look for tiny “A” or “B” markings.

Look for Physical Clues

Factory-made patch cords frequently follow T568B; jacks and wall plates lean toward T568A in residential spaces. Examine the clip side–wire pairs 1-2 and 3-6 should mirror each other. Mismatched standards show swapped pairs between ends, causing crosstalk. A quick probe with a multimeter set to continuity confirms arrangement: pins 1-2 and 3-6 conduct only if both ends match.

Color bands dictate function–pair 2 (blue) always occupies pins 4-5, while pair 3 (green in T568A, orange in T568B) sits on 1-2 or 3-6. If pin 1 carries green, it’s T568A; if orange, T568B. Resist swapping halfway–maintain consistency across all terminations in the channel.

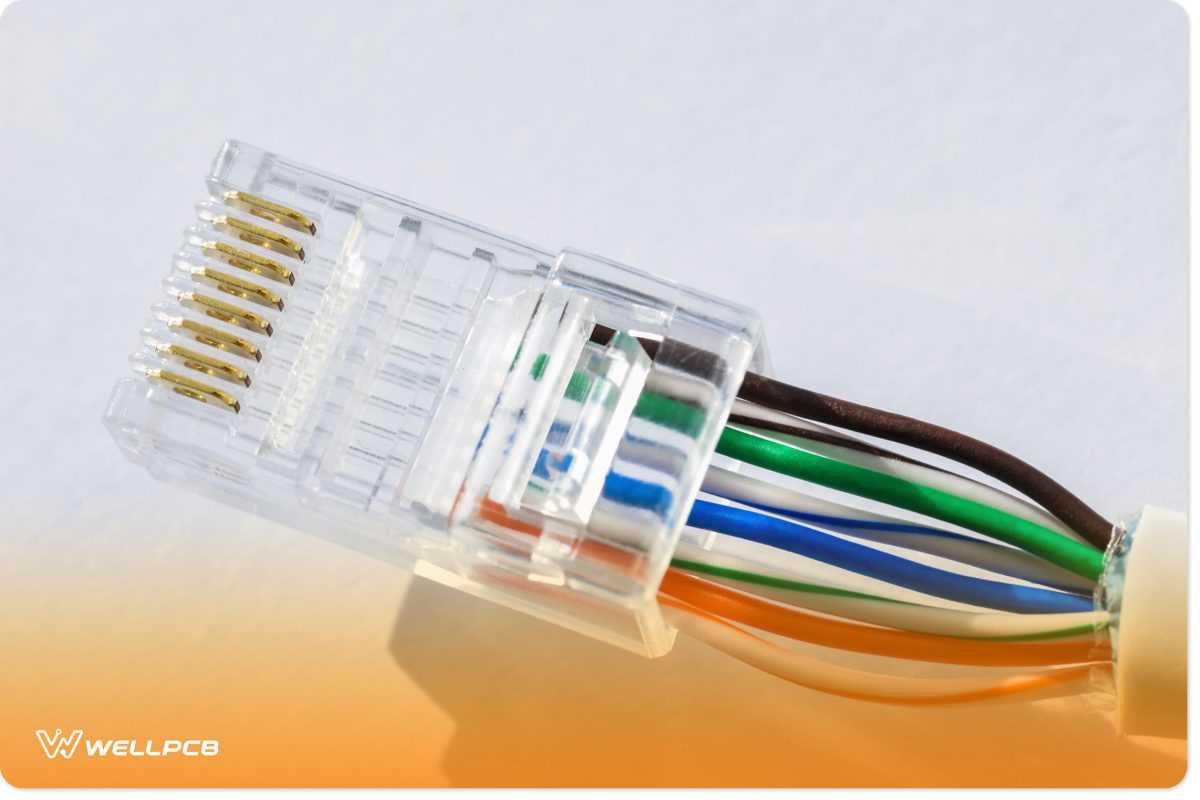

Step-by-Step Guide to Crimping an RJ45 Plug

Strip 1.5–2 cm of the cable jacket using a precision wire stripper, ensuring the twisted pairs remain untwisted. Trim any excess sheathing to prevent interference with the retention clamp. Verify the conductors are undamaged–nicks or cuts will degrade signal integrity.

Arrange the wires according to the T568B standard: orange/white, orange, green/white, blue, blue/white, green, brown/white, brown. Hold them firmly between thumb and forefinger, then straighten with a comb or your nails in a single motion–twisting after insertion weakens contact. Slide the wires into the plug until each conductor touches the inside lip; the jacket should extend just beyond the clamp. Use a magnifying lens to confirm proper alignment before crimping.

Place the plug into the crimping tool’s die, ensuring the gold pins align with the conductors. Squeeze firmly with steady pressure–a weak crimp causes intermittent connections. Inspect for: exposed copper (trim if needed), uniform pin indentation, and a secure jacket clamp. Test continuity with a cable analyzer, paying attention to crosstalk levels (should be below -30 dB at 100 MHz).

Common Mistakes When Assembling Network Links

Skipping the wire stripper and using scissors or pliers damages conductors, weakening signal integrity. Expose only 1.5–2 cm of twisted pairs to avoid untwisting beyond the shielding zone. Even minor tears in the copper core create resistance, leading to packet loss at gigabit speeds.

Misaligning colors by leaving pairs crossed or reversed causes immediate connection failure. Follow T568A or T568B strictly–mixing schemes disrupts differential signaling. When crimping, verify each strand’s position under the contact blade; a single reversed wire renders the link unusable.

Over-tightening and Poor Crimp Quality

Applying excessive force during termination flattens the contacts, preventing proper piercing into the conductors. Use calibrated crimper jaws rated for RJ45 housings; cheater pliers create weak joints. Inspect the pin insertion depth–fully seated contacts should sit flush with the housing.

Leaving excessive cable length between the termination point and device introduces crosstalk. Trim excess jacket so the exposed pairs measure under 1 cm. Longer untwisted sections act as antennas, degrading bandwidth by up to 40% in Cat6 installations.

• Ignoring cable pull tension damages internal pairs without visible jacket damage–follow manufacturer specs (typically 25 lbs max for Cat5e).
• Bending cables tighter than 4x their diameter fractures the copper core, creating intermittent faults.
• Crimping without first verifying pair twists shortens link reach; maintain twist uniformity up to the contact blades.

Environmental and Installation Errors

Running cables parallel to power lines induces noise–maintain at least 30 cm separation. Failing to use electromagnetic shielding for industrial setups degrades performance; shielded twisted pair reduces interference by 90%.

Terminating near fluorescent lights or motors without proper grounding introduces erratic latency. Ground both ends of shielded assemblies via drain wires to a common earth point. Never daisy-chain grounds–this creates ground loops, amplifying noise.

Overlooking tester validation leads to undetected faults. Use a dedicated cable analyzer to measure continuity, length, and crosstalk. A simple toner probe misses impedance mismatches, which surface only under load.

Tools Required for Network Cable Termination

Begin with a high-quality crimping tool rated for RJ45 and 8P8C modular plugs–brands like Klein Tools VDV226-110 or Fluke Networks FCXT450 ensure consistent pressure and avoid conductor damage. Pair it with a precision wire stripper calibrated for 22-26 AWG copper pairs (e.g., Paladin Tools 11017) to expose 19mm of insulation without nicking strands. A dedicated punch-down tool with a 110-type blade (IDEAL 30-599) is mandatory for keystone jacks, exerting 12-15 lbs of pressure for reliable IDC termination. Use a multimode fiber-rated cable tester (Fluke DSX-8000) forCat6/6a validation, checking for NEXT, PSNEXT, and return loss at 250MHz and 500MHz intervals. Keep a torque screwdriver (Wiha 72398) for shielded terminations, tightening jackscrews to 0.5Nm to prevent dielectric breakdown.

Tool	Critical Spec	Verification Method
Crimping pliers	8P8C die; 1000+ crimp cycles	Test 5 random plugs under 100g pull force
Insulation stripper	Adjustable 19mm cut depth	Micrometer measurement of stripped length
Punch-down impact	110 blade; 12-15 lbs impact	Cross-section under microscope for strand compression
Cable analyzer	500MHz bandwidth; TDR	Validate against ANSI/TIA-568-C.2 channel specs
Torque driver	0.5Nm setting	Digital torque wrench audit
