Step-by-Step Guide to Wiring an Extension Cord Plug Safely
For a standard three-prong power cable connector, match the wires as follows: green (or bare) to ground, white (neutral) to the wider slot, and black (hot) to the narrow slot. Verify connections with a multimeter before powering on–resistance between neutral and ground should read near zero ohms, while hot-to-neutral or hot-to-ground should measure 110–120V (U.S.) or 220–240V (EU). Use 14 AWG wire for 15A circuits and 12 AWG for 20A to prevent overheating.
Strip insulation back ⅜ inch (9.5 mm) on each conductor, twist strands tightly, and secure with wire nuts or crimp connectors rated for the amperage. For outdoor use, apply liquid electrical tape or heat-shrink tubing over exposed metal to block moisture. Never splice wires outside an electrical box–current leakage increases fire risk. Check local codes: some regions require GFCI protection for all outdoor connections.
Test polarity with a non-contact voltage tester after assembly. Reverse polarity (hot/neutral swapped) can damage appliances or create shock hazards even when the device appears off. For high-wattage tools (e.g., table saws), use a twist-lock connector to prevent accidental disconnection. Replace any connector showing burn marks, melting, or cracked housing immediately–these indicate dangerous internal failure.
Label wires during disassembly if modifying an existing cable. Photograph the original layout before cutting. Use dielectric grease on connections in humid environments to inhibit corrosion. For heavy-duty applications, consider a molded cable with integrated strain relief; pre-made cables reduce assembly errors but cost more than DIY splices. Always unplug the source cable before working.
Connecting Power Leads Safely: A Step-by-Step Breakdown

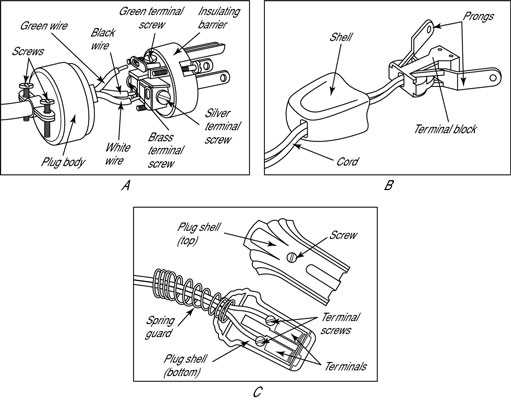

First, cut the outer jacket 2 inches from the end to expose three individual conductors–black (live), white (neutral), and green or bare (ground). Strip ½ inch of insulation from each wire using wire strippers, ensuring no copper strands are nicked. For polarized connectors, match the brass screw to the black wire, the silver to white, and the green screw to ground. Twist the exposed strands clockwise before looping them under the terminal screws to prevent loosening. Secure screws tightly with a screwdriver–loose connections create resistance and heat buildup. Verify polarity with a multimeter: 120V between black and white, 0V between white and ground, and 120V between black and ground.
Use 14 AWG copper wire for 15-amp circuits, 12 AWG for 20-amp loads–undersized conductors overheat. Avoid backstab connections; they fail under cyclic loads. For outdoor use, seal the junction box with silicone-filled caps rated for wet locations (e.g., IP68). Trim any excess wire to prevent shorts against the box walls. Test the assembly by plugging in a low-wattage load (like a 40W bulb) for 10 minutes–no warm housing means proper termination. Replace cracked or scorched housings immediately; compromised insulation risks shock or fire.
Essential Gear and Components for Attaching a Power Connector
Begin with a 12-14 AWG stranded copper cable–check local regulations for exact gauge requirements. Select a heavy-duty replacement terminal with internal strain relief if repairing outdoor or high-load equipment. Ensure the housing is rated for at least 15A/125V and marked with UL, CSA, or equivalent certification logos. A mislabeled or undersized connector can overheat under normal usage.
Precision Instruments
Use insulated crimping pliers with built-in wire cutters; generic tools crush terminals and cause loose connections. A calibrated multimeter verifies continuity and checks for potential shorts before final assembly. Include a small flathead screwdriver for adjusting clamps if the terminal uses side screws. Skip cheap wire strippers–opt for models with adjustable depth guides to prevent nicks on the conductor.
Keep heat-shrink tubing (3:1 ratio) or approved electrical tape ready for sealing splices; both methods must fully cover exposed metal after fastening. For outdoor applications, silicone-filled terminals prevent moisture ingress that corrodes contacts over time. Store spare screws, springs, and fasteners from the original terminal to avoid mismatches during reassembly.
Step-by-Step Guide to Stripping and Preparing Conductors for Secure Termination
Select a stripping tool matched to the gauge of the conductors–14 AWG requires a 1.6 mm notch, while 12 AWG needs a 2.0 mm cut. Measure 12 mm (½ inch) from the end of the insulation, align the blades perpendicular to the sheath, and squeeze just enough to score the outer layer without nicking the copper strands. Rotate the tool 360 degrees, then pull the cut insulation segment free in one motion; twisting risks fraying the bundle. For stranded cores, crimp 3 mm of exposed wire lightly with needle-nose pliers to prevent splaying during insertion into terminal blocks.
| Wire Gauge (AWG) | Strip Length (mm) | Strand Diameter (mm) | Tool Notch Setting (mm) |
|---|---|---|---|
| 18 | 9 | 0.8 | 1.2 |
| 16 | 10 | 1.0 | 1.4 |
| 14 | 12 | 1.6 | 1.8 |
| 12 | 13 | 2.0 | 2.2 |
After stripping, fan the individual strands of tinned copper wire with a brass brush to remove oxidation; oxidized strands increase resistance by up to 4%. For multi-conductor cables, separate each lead by 25 mm (1 inch) to prevent short circuits under compression. Inspect stripped ends under a 10x magnifier–any sharp burr exceeding 0.1 mm must be trimmed flush with diagonal cutters to avoid piercing terminal insulation during screw tightening. Twist strands clockwise only–counter-clockwise twisting weakens mechanical grip strength by 12-18% according to UL 486E tests.
How to Identify and Match Wire Colors to Power Connector Terminals
Begin by examining the cable’s internal conductors. Most modern power cables follow international color-coding standards, but variations exist based on region and voltage requirements. The three primary conductors in a standard three-prong power lead are:
- Hot (Live) wire – Typically black or brown in North American and European systems, respectively. It carries the current from the source to the device.
- Neutral wire – Usually white (North America) or blue (Europe/Asia). It completes the circuit by returning current to the source.
- Ground wire – Almost universally green, green with yellow stripe, or bare copper. It provides a safety path to earth in case of faults.
If the cable involves a two-prong configuration, expect only the hot and neutral conductors–ground is absent. Verify the color assignments against local electrical codes; some older installations or specialized equipment may deviate. For example, in Japan, neutral wires are often light blue, while Australia uses active (red), neutral (black), and earth (green/yellow).
Use a multimeter to confirm conductor roles if colors are ambiguous. Set the meter to AC voltage (200V or higher range) and probe between pairs of wires:
- Hot-to-neutral: Should read ~110–240V (depending on regional voltage).
- Hot-to-ground: Should match the hot-to-neutral reading.
- Neutral-to-ground: Should read 0V or near 0V (a slight reading may indicate a minor ground fault).
If readings don’t align, reassess the color coding–misidentification risks short circuits or equipment damage.

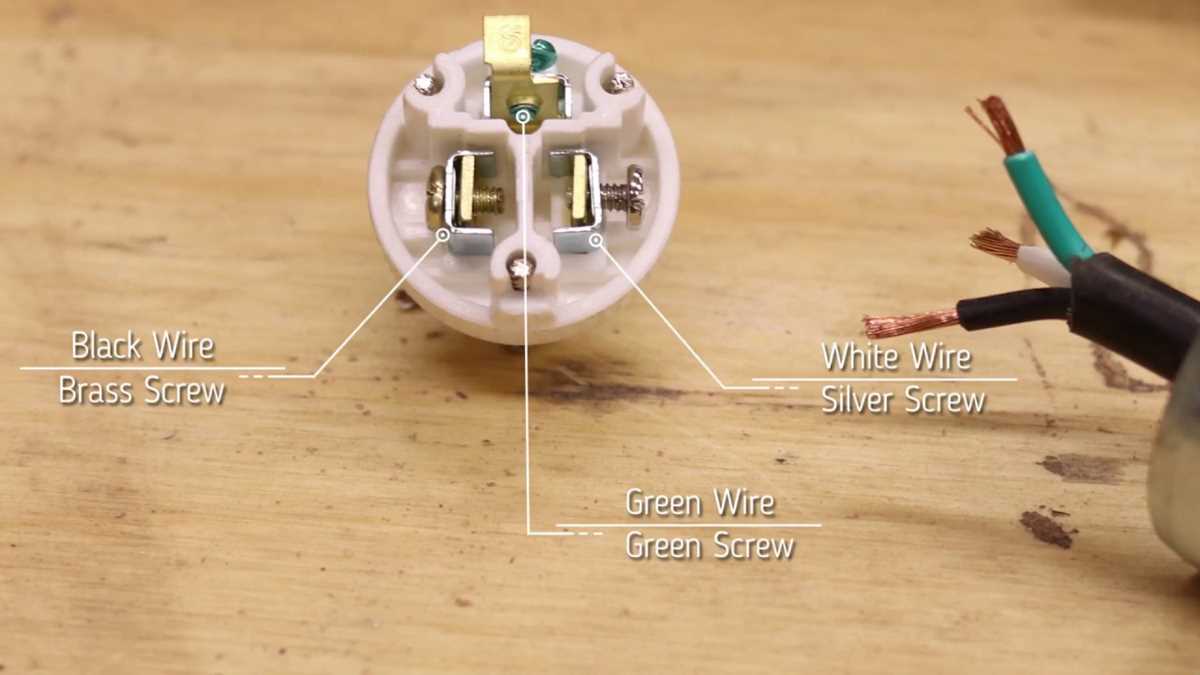

For polarized connectors (e.g., NEMA 1-15, Europlug), the hot terminal is physically smaller than the neutral slot to ensure correct insertion. Align the black/brown (hot) wire to the brass or gold-colored screw, white/blue (neutral) to silver, and green/yellow (ground) to the green screw or chassis mounting point. Avoid relying solely on screw colors–always cross-reference with the appliance’s documentation.
In three-phase systems (common in industrial equipment), wire colors expand to include:
- Phase 1 (L1) – Black (North America), Brown (Europe)
- Phase 2 (L2) – Red (North America), Black (Europe)
- Phase 3 (L3) – Blue (North America), Grey (Europe)
- Neutral – White (North America), Blue (Europe)
- Ground – Green/yellow
Mismatching phases can cause improper rotation in motors or overloading. Use phase rotation testers where polarity isn’t visually obvious.
For detachable power leads (e.g., IEC C13/C14, NEMA 5-15P), the female end’s terminals follow the same logic as fixed connectors. The male end’s pins are arranged symmetrically but polarized–inserting it backward will reverse hot/neutral. Test with a continuity checker to ensure the hot wire connects to the shorter pin (or designated slot) and neutral to the longer one.
Record deviations in a reference chart if working with non-standard cables. Label wires immediately after identification to prevent errors during reassembly. Store unused conductors securely–exposed copper invites accidental shorts. When in doubt, consult an electrician or the manufacturer’s technical manuals; some medical or laboratory devices use non-standard color coding for redundancy or isolation purposes.
Ensuring Your Rewired Connector Is Safe and Operational
Verify exposed conductors are fully inserted into terminal screws, tightened to 12–15 in-lbs with a torque screwdriver. Trim stray strands exceeding 1 mm to prevent short circuits. Slide the connector casing together securely; a 0.5 mm gap indicates misalignment and risk of strain.
Test continuity across each conductor using a multimeter set to 200 ohms; readings should show near-zero resistance between matching terminals. Check insulation integrity by measuring between live-neutral (OL), live-ground (OL), and neutral-ground (OL). Apply a 1,000 V insulation tester for 60 seconds; leakage current must remain below 0.5 mA. Energize the assembled unit at 125% of rated load for 10 minutes while monitoring for excessive heat–surface temperatures must not exceed 60°C.
