Complete Guide to Topens Gate Opener Electrical Connections Step-by-Step
Begin by identifying the main control board terminals on your access mechanism–most models feature labeled inputs for power supply, activation signals, safety sensors, and auxiliary devices. Ensure the voltage rating of your transformer matches the unit’s requirements (typically 18-24V AC/DC) before making any connections. Incorrect voltage can permanently damage the circuitry.
Attach the primary power cables to the designated terminals, observing polarity if DC or phase alignment if AC. For high-current setups, use 14-16 AWG wire with heat-resistant insulation to prevent voltage drop over extended runs. Secure all connections with crimp connectors or solder, then insulate with heat-shrink tubing to avoid short circuits or corrosion.
For safety loops, connect a pair of normally closed contacts (e.g., infrared beams or edge detectors) in series to the corresponding terminals. A broken loop must trigger immediate reversal. Verify sensor alignment: misdirected beams cause false activations or failure to detect obstacles. Test using a multimeter in continuity mode before finalizing the circuit.
If integrating remote operation, match the receiver’s signal coding to your transmitter frequency. Most modern units use rolling-code encryption–programming requires synchronization via a learn button or software interface. Failure to pair devices correctly will prevent wireless function, regardless of wiring.
Ground the system to a dedicated earth terminal or a metal post buried at least 600mm deep in damp soil. Poor grounding risks electrical noise interference, erratic operation, or surge damage during storms. Include a surge protector rated for outdoor use if local power fluctuations are common.
After completing connections, isolate the unit from power and perform a visual inspection: check for loose strands, exposed conductors, or crossed wires. Reconnect power and test each function–manual override, auto-close, and obstruction response–before full deployment. Document the pathway of each conductor in a schematic for future troubleshooting.
Automated Entry System Connection Guide
Begin by identifying the labeled terminals on the control board. Most models feature power input marked as L (live) and N (neutral). Connect these to a 110V-240V AC source, ensuring correct polarity–mismatched wires may cause irreversible damage. Verify voltage compatibility with your unit’s specification plate before attaching wires.
Attach safety edge sensors to the dedicated ports. These typically require two wires–one for signal transmission, another for ground. Test functionality by activating manual resistance; the system should halt immediately. If unresponsive, check for loose connections or damaged sensor strips, which often cause false negatives. Replace any frayed cables promptly to avoid misoperation.
The remote receiver module connects via a four-pin connector. Match the colored wires (red, black, green, white) to the corresponding board terminals. Red supplies power (usually 12V or 24V DC), black grounds the circuit, while green and white handle data transfer. Incorrect wiring here voids radio signal reception, rendering remotes ineffective. Confirm secure soldering or crimp connections to prevent intermittent failures.
Integrate external accessories like a warning light or photocells. These require separate voltage sources–consult the schematic for amperage ratings. A common error: exceeding the control board’s max load (often 500mA per channel). Use a multimeter to measure current draw before finalizing connections. Overloading risks board burnout, necessitating complete replacement.
Troubleshooting Common Errors
If the mechanism fails to respond post-installation, isolate the power source first. Measure voltage output at the board; if absent, trace back to the mains breaker or transformer. Check for blown fuses–a frequent culprit in silent systems. Next, inspect the motor’s overload protector; reset it if tripped, but note repeated trips indicate mechanical obstruction or motor failure.
Photocell misalignment causes erratic halts. Ensure emitter and receiver face each other without obstacles, and clean lenses of dirt or spider webs. Use a laser pointer to verify alignment–beam interruption should trigger reversal. For software-controlled units, reset the default parameters via the control panel if settings were altered unintentionally. Always refer to the unit’s unique identifier (found on the motor housing) when cross-referencing manuals or technical support.

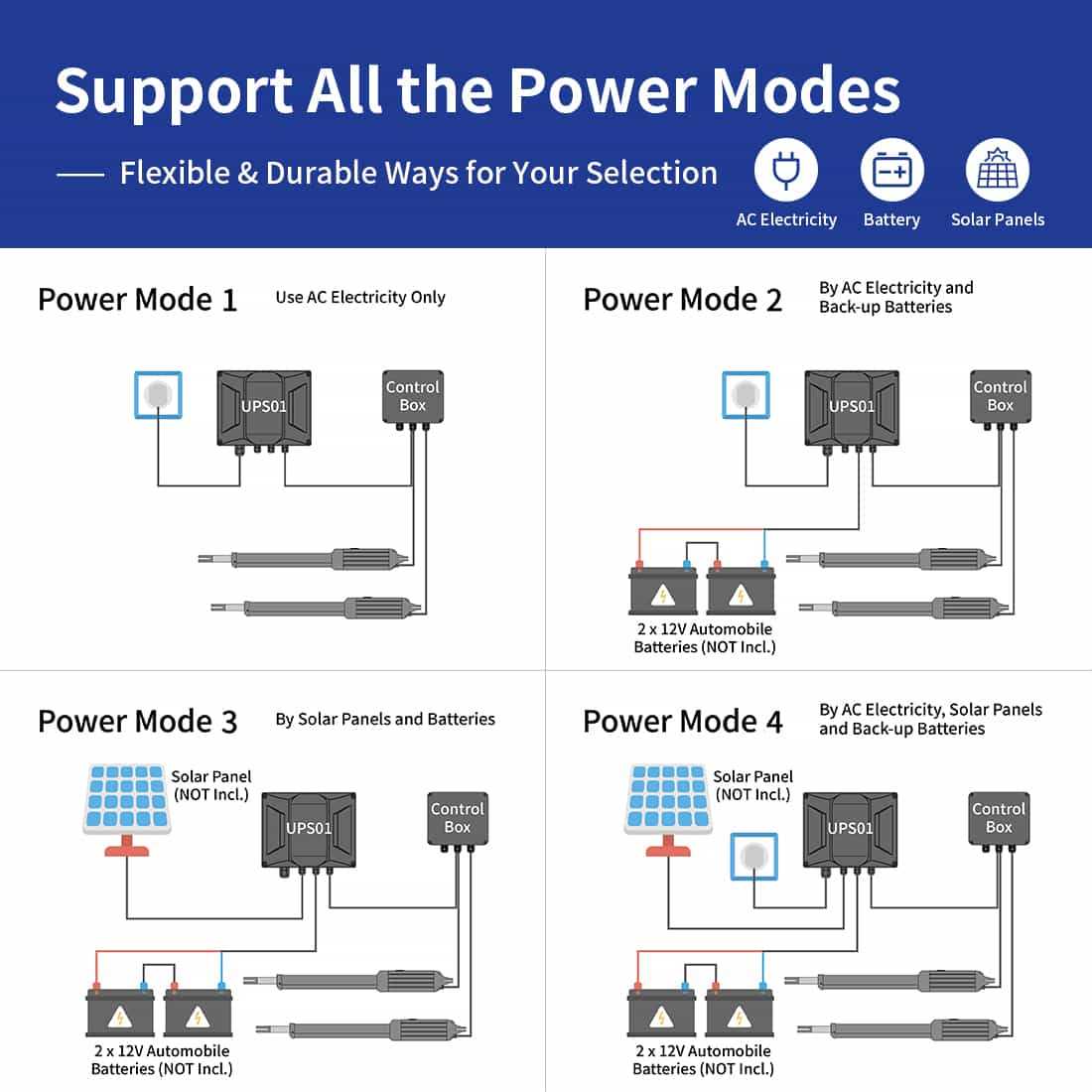

Supplying Power to Your Automated Entry System
Use a 24V DC power adapter rated for at least 2A to avoid voltage drops during operation. Connect the positive wire to the terminal marked “+” or “VCC” on the control board and the negative to “–” or “GND.” Check polarity with a multimeter before finalizing connections to prevent damage to internal circuits.
Locate the power input section on the main unit–typically near the transformer or fuse holder. Strip 5–7mm of insulation from both supply wires, then insert them into the designated screw terminals. Tighten the screws with a torque of 0.5 Nm to ensure secure contact without crushing the conductors.
If the system includes battery backup, link the primary adapter’s output to the battery charger input first. Bypass this step only if the unit lacks a rechargeable battery. Test the setup by activating the mechanism; input current should stabilize at 1.5–1.8A under load.
For outdoor installations, route the power cable through waterproof conduit. Seal entry points with silicone or heat-shrink tubing. Avoid exposing bare wires to moisture–corrosion at terminals can lead to intermittent failures within weeks.
Some models feature a separate low-voltage input for accessories. Wire this circuit to the same 24V source but use a 0.5A fuse to protect auxiliary components like lights or sensors. Label both supply lines clearly to simplify future troubleshooting.
Verify the adapter’s output matches the system’s requirements; overvoltage can fry control boards while undervoltage causes sluggish performance. Measure voltage under load–if it drops below 22V, upgrade to a higher-current adapter or check for loose connections.
In regions with unstable power, add a surge protector between the adapter and the mains outlet. Avarage surge ratings of 1kA per phase are sufficient. Without protection, voltage spikes from storms can destroy onboard microprocessors.
Keep the adapter indoors or in a ventilated enclosure if ambient temperatures exceed 40°C. Heat buildup reduces efficiency and shortens component lifespan. For solar-powered setups, ensure the panel delivers a minimum of 30W continuous output to maintain consistent operation.
Step-by-Step Installation Guide for Security Detector Connections
Begin by disconnecting the control unit’s power supply to eliminate risk of electrical shock. Locate the sensor terminal block–typically marked with “SAFETY” or “SENS” labels–on the main board. Verify the terminal polarities using a multimeter: the positive (+) wire usually carries 5-12VDC, while the negative (-) connects to ground.
Identify the infrared emitter and receiver pairs. Most systems use two-wire connections (signal and ground), but advanced models may include a third wire for diagnostic feedback. Match the wires to the manufacturer’s color code–common schemes are red (+), black (-), and white (diagnostic). Cross-reference your model’s technical sheet if colors deviate from standard configurations.
Prepare the mounting surface for the detectors. Clean the area with isopropyl alcohol to remove debris that could interfere with optical alignment. Position the emitter and receiver 10-15 cm above ground level, ensuring a direct line of sight. For sloped driveways, adjust the angle to maintain a clear path between devices–maximum effective range rarely exceeds 10 meters.
| Wire Color | Typical Function | Voltage Range | Failsafe Action |
|---|---|---|---|
| Red | Power (+) | 5-12VDC | Reverse polarity protection |
| Black | Ground (-) | 0VDC | Short circuit detection |
| White/Yellow | Diagnostic Feedback | 3.3-5VDC (pulsed) | Error LED activation |
Secure the wires to the terminal block using a precision screwdriver–over-tightening can strip threads, while loose connections may cause intermittent failures. Test continuity with a multimeter set to ohms (Ω) mode; resistance should read between 0.5-2Ω for intact circuits. If resistance exceeds 5Ω, inspect for corroded terminals or damaged cables.
Reconnect power and observe the sensor LEDs. A steady green light on both emitter and receiver confirms proper operation, while flashing red indicates misalignment or obstruction. Adjust the devices incrementally, checking LED status after each 2° rotation. For environments with ambient light interference (e.g., sunlight), install protective hoods over the detectors to minimize false triggers.
Common Troubleshooting Scenarios
If the system fails to arm after installation, verify the following:
- Power Supply: Confirm input voltage matches the control unit’s specifications (±10% tolerance).
- Wire Gauge: Ensure cables are 18-22 AWG for runs under 20 meters; use thicker 14-16 AWG for longer distances.
- Environmental Factors: Remove spider webs, condensation, or ice from sensor lenses–visibility thresholds drop below 70% when obstructed.
Finalize the setup by securing all cables with UV-resistant ties, avoiding sharp bends that could fracture conductors over time. Document the wire routing in a reference sketch, noting connections for future maintenance. Perform a functional test by blocking the sensor path–the motor should halt immediately, and a warning buzzer (if equipped) should activate within 500ms.
