Complete EZGO TXT 36V Wiring Schematic for Golf Cart Troubleshooting

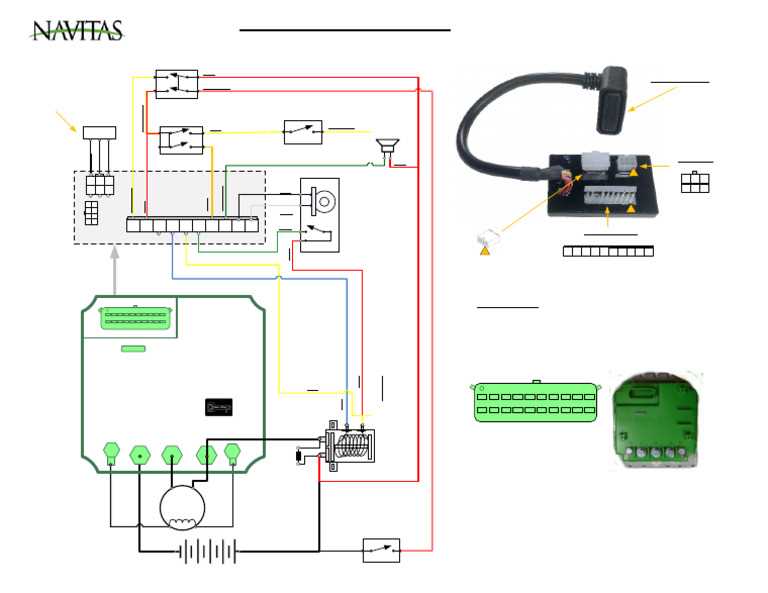

Start by locating the main solenoid–its terminals must align with the battery pack’s positive and negative leads. Miswiring here disrupts the entire circuit, leading to intermittent power loss or complete failure. Use a multimeter to verify 12V at the small terminals when the accelerator is pressed; anything below signals a weak connection or faulty controller.
Trace the cables from the speed controller to the motor. A common oversight is reversing the armature and field wires, which causes erratic acceleration. Label each wire during disassembly: red (positive), black (ground), and blue/yellow (motor-specific). If the cart jerks or stalls, swap the blue and yellow leads at the controller’s output–this often resolves torque issues.
Inspect the fuses and circuit breakers near the battery pack. A 30A fuse should protect the main power line; corroded or undersized fuses trip under load. Replace any fuse holder showing heat damage–oxidation increases resistance, reducing voltage to below 34V under acceleration. For chargers, ensure the DC input matches the onboard receptacle’s polarity; mismatches permanently damage the onboard converter.
Check the reverse switch continuity with a test light. If the cart moves forward in both directions, the switch contacts are welded or wired incorrectly. The correct sequence: momentary contact in reverse, latching in forward. For 36V systems, ground the frame near the controller to prevent voltage leaks–use #4 AWG cable for chassis bonds to maintain stability under load.
When troubleshooting, isolate the accessory circuit first. Headlights, turn signals, and horn draw 10–15A combined; overloading drops system voltage below 33V, causing controller shutdowns. Upgrade accessory wiring to #10 AWG if adding high-draw components. For persistent issues, map the schematic against the physical build using a color-coded diagram–discrepancies often trace to aftermarket modifications or rodent damage.
Electric Golf Cart Electrical Layout: Connection Schemes & Troubleshooting
Begin by locating the main solenoid under the seat–it’s the bridge between the battery pack and motor controller. Use a multimeter to verify voltage: 36–42V across the large terminals when the key is on. If readings drop below 34V, check battery connections for corrosion; clean terminals with a wire brush and apply dielectric grease.
Trace the wires from the throttle potentiometer to the speed controller. The red wire delivers power, black is ground, and white regulates resistance. Disconnect the white wire and measure resistance between red and white–values should smoothly increase from 0 to 5k ohms as the pedal moves. Any erratic jumps indicate a faulty potentiometer, requiring replacement.
Examine the charger port wiring if the cart fails to accept a charge. The positive (orange/red) and negative (black) leads must connect directly to the battery pack’s positive and negative terminals. Insert a fuse (30A) between the charger port positive and battery positive to prevent overheating. Verify the charger’s output voltage matches the pack’s rating; mismatches damage batteries within hours.
For headlight issues, confirm the light switch sends 12V to the bulbs when activated. The voltage regulator, typically a small module near the batteries, steps down 36V to 12V for accessories. Test regulator output with a multimeter–expected readings are 13.5–14.5V. If voltages stray, replace the regulator to avoid burning out bulbs or frying the solenoid.
| Component | Wire Colors | Expected Voltage | Failure Symptoms |
|---|---|---|---|
| Solenoid | Large red (+), black (-) | 36–42V | Clicking without engagement; no power |
| Throttle Potentiometer | Red (+), white (signal), black (-) | 0–5k ohms resistance | Jerky acceleration; no speed change |
| Voltage Regulator | Yellow input, red output | 13.5–14.5V output | Dim/flickering lights; accessories fail |
Check the forward/reverse switch if the cart moves in only one direction. The switch connects three wires: blue (forward), green (reverse), and black (common). With the key off, test continuity between black and blue/green terminals–no continuity means a broken switch. For temporary fixes, jumper the black and blue wires to test forward motion, but replace the switch promptly to restore functionality.
Inspect the motor brushes if the cart lacks power despite full batteries. Remove the motor cover and measure brush length–minimum acceptable length is 1/4″. Shorter brushes increase resistance, overheating the armature. Replace brushes in pairs to maintain balanced wear. While the cover is off, clean the commutator with a non-conductive cleaner to remove carbon buildup that causes arcing.
Fuses protect circuits from overloads but are often overlooked. The main fuse, usually a 250A class T fuse, sits near the batteries. Accessory fuses (10–30A) are housed in a small panel by the steering column. Always match fuse ratings to the original specifications–undersized fuses blow repeatedly, oversized fuses risk melting wires. Carry spares: common failures occur during startup surges.
Emergency Bypass Steps
If stranded, bypass the solenoid to limp home. Connect a heavy-gauge jumper wire between the large solenoid terminals. The cart will move immediately when the pedal is pressed–no key required. This method bypasses safety interlocks; use only for short distances to avoid overheating components. Never leave the bypass unattended; reverse polarity destroys the motor controller instantly.
Identifying Critical Electrical Parts in Your Golf Vehicle

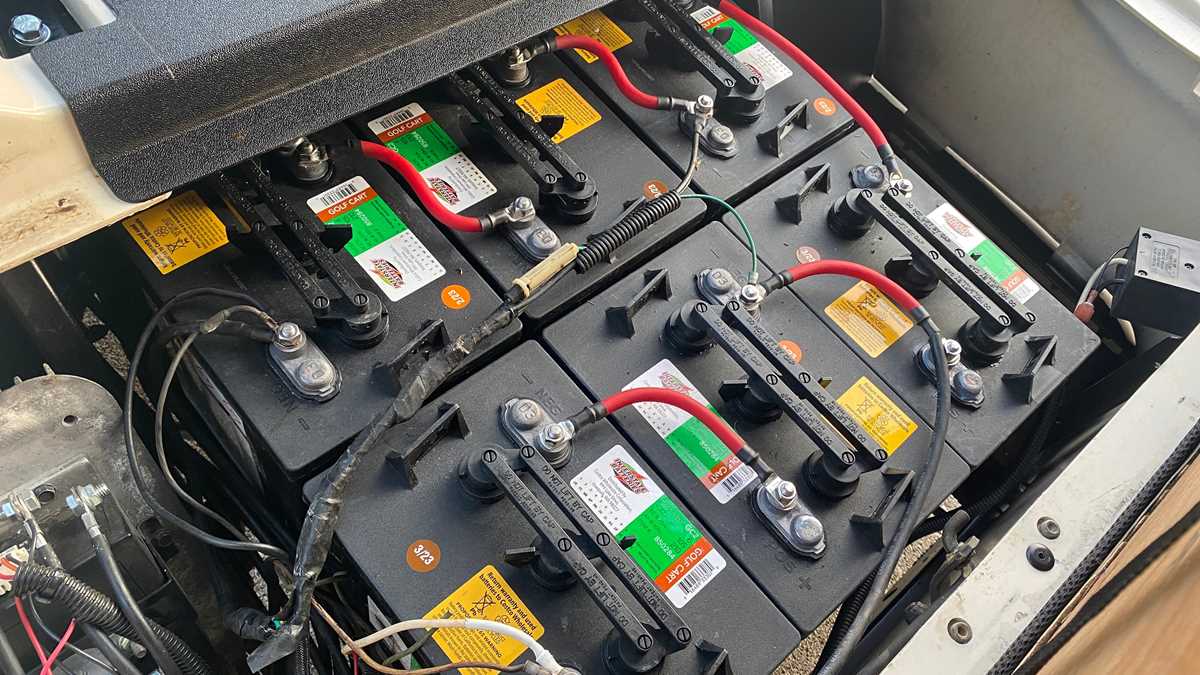

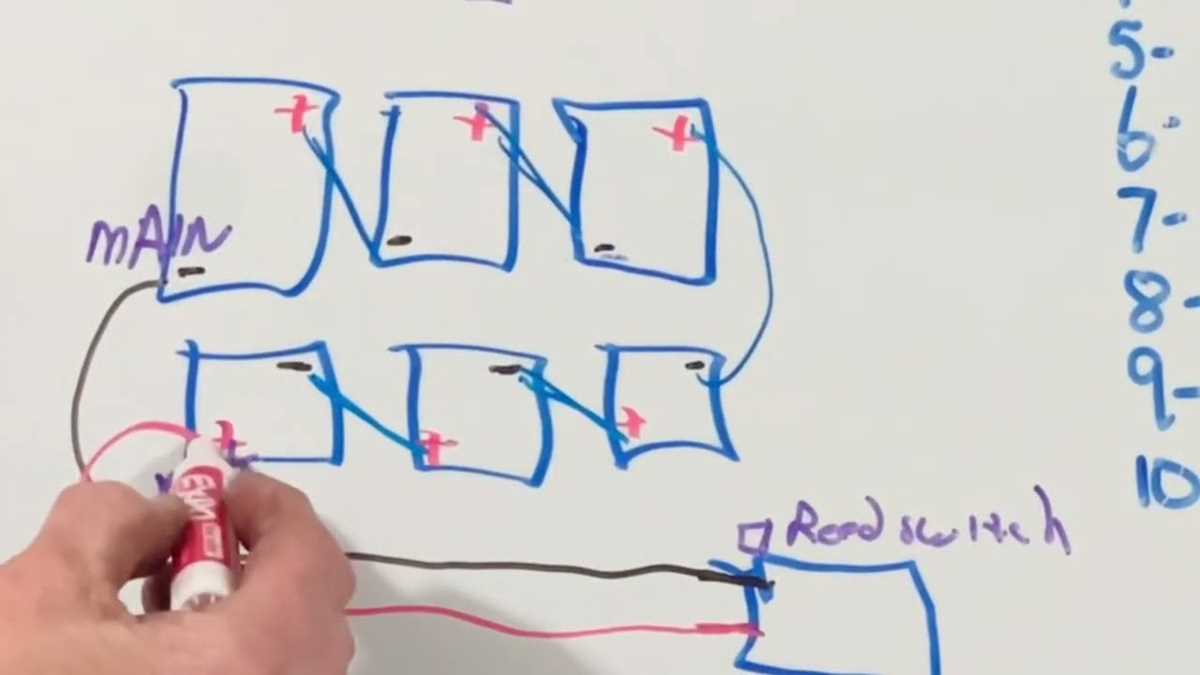

Begin by inspecting the battery pack under the seat frame–six 6-volt units connected in series form the power source. Verify each terminal clamp for corrosion; copper oxide buildup disrupts current flow even if cables appear intact. Trace the main positive cable (typically 4-gauge red) from the battery bank to the forward-reverse switch located beneath the passenger floorboard–this 60-amp component directs energy to the motor controller, making it a frequent failure point during sudden acceleration stalls.
Locate the solenoid mounted adjacent to the motor–its two smaller posts handle signal voltage, while the large terminals manage high-amperage output. A failing solenoid often emits a rapid clicking noise during startup attempts; test continuity across the coil terminals with a multimeter set to 200 ohms range (readings above 3 ohms indicate coil degradation). Check the controller’s heat sink fins for dust accumulation–excessive particulate impedes cooling, leading to thermal throttling during sustained incline climbs.
Follow the accelerator microswitch wiring harness behind the pedal assembly–two thin wires (white/blue and yellow) transmit activation signals. Corrosion at the switch contacts is common; clean with electronic contact cleaner or replace if pedal response feels inconsistent. Inspect the regenerative braking resistors (resistor bank) near the motor housing–burnt spots on the ceramic surface signal overheating, often caused by prolonged downhill braking or faulty diode bridges in the charging circuit.
Step-by-Step Instructions for Tracing the Electrical Flow in Golf Cart Systems
Begin by locating the main battery pack terminals. Use a multimeter set to DC voltage (20V–50V range) to verify connectivity between the positive and negative posts. Probe each battery connection individually–expect readings of approximately 6V per unit if the system consists of six 6V batteries. If values deviate, mark suspect cells for further inspection.
Key Points for Circuit Tracing
- Disconnect the vehicle’s primary power switch to prevent accidental shorts.
- Trace wires from the controller to each motor terminal, confirming no frayed insulation or corrosion at splice joints.
- Follow the thickest cables first–these typically handle primary current from the pack to the speed control module.
- Check solenoid functionality by engaging the throttle while observing for an audible *click*; no sound indicates coil failure or open circuit.
- Inspect the forward/reverse switch for burnt contacts or misalignment; clean with electrical contact cleaner if resistance exceeds 0.5 ohms.
Document each step with photographs or schematic notes. Label wires with masking tape if disconnecting components for testing, ensuring precise reassembly. For intermittent faults, tap connectors lightly with a wooden tool handle while monitoring voltage–interruptions reveal loose connections or cold solder joints. Replace degraded connectors with 4/0 AWG or 6 AWG marine-grade terminals, crimping with a ratcheting tool and sealing with heat-shrink tubing to prevent oxidation.
How to Identify and Fix Common Charging Circuit Problems
Start by inspecting the fuse link between the battery pack and the charger port–corrosion or a loose connection here is the most frequent cause of charging failures. Use a multimeter to test voltage at the fuse holder: readings below 34V indicate a break in the circuit. Clean terminals with a wire brush and dielectric grease, then retighten all fasteners to 12-15 inch-pounds. Replace any burnt fuse links with the same amperage rating (typically 25A for standard setups). If voltage is present but charging still fails, probe the charger’s output connector: normal operation should show 38-42V DC under load.
Check the solenoid relay next–it often sticks due to dirt buildup or worn contacts. Manually activate it by holding the throttle micro-switch while observing the relay’s click; no sound means replacement is needed. For intermittent charging, trace the thick red wire from the battery pack’s positive terminal to the charger socket, looking for chafed insulation, pinched sections, or loose crimps. Secure loose connections with solder and heat-shrink tubing for a waterproof seal. Always disconnect the negative terminal first and reconnect it last to prevent shorting.
