Step-by-Step USB Type C Fast Charger Internal Circuit Guide
For rapid energy transfer through USB-C ports, use a 20V/5A configuration with a power delivery (PD) controller chip like the TI TPS6598x or STMicroelectronics STM32G0. These ICs handle negotiation protocols and switch between voltage levels without overheating. Connect the VBUS line directly to a buck converter (e.g., TI LM5175) to step down from 20V to 5V/9V/15V as needed. Avoid passive components on VBUS–use 10µF ceramic capacitors for stable output.
Ground shielding is critical. Route GND return paths separately for high-current (VBUS) and signal (CC/D+/D-) traces to prevent interference. For the configuration channel (CC), include a 5.1kΩ pull-down resistor on both CC1 and CC2 pins to enable PD detection. Omit this, and the port defaults to legacy USB 2.0 mode. Use 0.1µF decoupling capacitors near the PD controller’s power input (VIN) and output (VREG).
Trace width matters more than most realize. For 5A continuous current, 2oz copper with ≥40mil (1mm) traces prevents voltage drops. Keep high-current paths short–lengthen traces, and resistance rises exponentially. For connector pinouts, follow USB-C v1.3 specs: A4 (VBUS), A5/A8 (CC), and B5/B8 (GND). Cross-check with an oscilloscope for ≤50mV ripple under load; anything higher indicates poor filtering.
Thermal management can’t be overlooked. Mount the buck converter and PD controller on heat-dissipating vias (minimum 12 vias, 0.3mm diameter) tied to a ground plane. Without this, components will throttle, reducing efficiency to from a claimed 100W. For firmware, flash the PD controller with USB-IF certified PD profiles–custom configurations risk triggering over-voltage protection or bricking devices.
Power Delivery USB-C Cable Connection Schematic

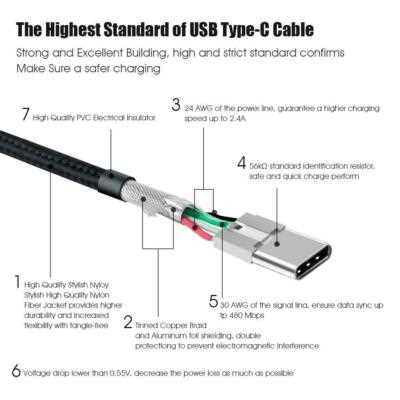

Use a 24-gauge copper wire for high-current paths to maintain voltage stability under 3A loads. Connect VBUS (red) directly to the input capacitor bank (2x 22µF ceramic) with minimal trace length–no more than 15mm between the connector pin and first capacitor. Signal lines CC1/CC2 (orange/grey) must include 5.1kΩ pull-down resistors on the source side and 10kΩ pull-ups on the sink side to negotiate power profiles correctly.
Key Pin Assignments and Safeguards
SBU1/SBU2 (blue/white) should be routed away from high-speed lanes to prevent crosstalk–keep them 0.5mm apart from adjacent traces. Add a 5V 1A PTC fuse in series with VBUS before the input capacitors to protect against accidental short-circuits. Ground returns (black) must use a star topology centered at the main filtering capacitor; avoid daisy-chaining ground paths to prevent ground loops.
Data lanes D+ and D- (green/white) require 27Ω series resistors within 3mm of the connector to match impedance and absorb reflections. For power delivery above 15W, add a 100nF decoupling capacitor on the secondary side regulator’s input, placed no further than 2mm from the IC’s power pin. Verify all connections with a multimeter in continuity mode before applying power–ensure no adjacent pins (e.g., VBUS and GND) show resistance below 1MΩ.
Thermal management is critical: use 2oz copper pours for VBUS and GND traces, extending them to cover at least 80% of the PCB’s layer if using a 4-layer board. Include a 150°C thermal fuse in the VBUS path for lithium battery applications. When soldering, apply heat only for 2-3 seconds per joint to avoid damaging the connector’s internal plastic retainers–excessive heat can melt the shell, causing misalignment.
For reversible cable configurations, CC pins must swap positions using an analog multiplexer (e.g., TI HD3SS3412) or ensure both CC1 and CC2 are populated with identical resistor values. Test the final assembly with a USB power meter: verify 9V/3A delivery within 30ms of insertion and no voltage drop exceeding 5% under full load. Store prototypes in ESD-safe bags–static discharge can destroy the PD negotiation IC without visible damage.
Key Components of a USB-C Power Delivery Board
Begin by selecting a PD controller IC with integrated negotiation protocols–opt for chips like STUSB4500 or FUSB302B to handle voltage/current profiles without additional firmware complexity. These controllers support up to 100W (20V/5A) and include built-in safeguards for overtemperature, overcurrent, and short-circuit protection, reducing external component count. Ensure the IC has I²C interfacing if you need to monitor or adjust settings dynamically via microcontroller.
- Buck converter: Use a synchronous design with low-RDS(on) MOSFETs (e.g., AOZ2255AI or TPS51218) for efficiency above 95%. Pair with a 10µH inductor (saturation current ≥6A) and low-ESR ceramic capacitors (2x 22µF input, 2x 100µF output) to minimize ripple below 20mVpp at full load.
- CC/CV feedback loop: Implement a type-III compensator in the error amplifier (e.g., TLV333) to stabilize the constant-current/constant-voltage transition. Use 1% tolerance resistors for the voltage divider to maintain output accuracy within ±0.5% across input swings (5V–24V).
- ESD protection: Place USBLC6-2SC6 diodes on the CC lines and PESD5V0S1BB near the VBUS pins to clamp transients to . Add a ferrite bead (e.g., BLM18PG221SN1L) in series with VBUS to suppress HF noise above 10MHz.
For thermal management, mount the MOSFETs and inductor on a 2oz copper PCB with thermal vias (0.3mm diameter, 1mm pitch) under the pads. Use a NTC thermistor (e.g., ERT-J1VR103J) adjacent to critical components to trigger shutdown at 110°C. Isolate high-current paths (VBUS, GND) from signal lines by maintaining a ≥1mm clearance and routing traces with ≥1.5mm width for currents above 3A. Validate the design with an electronic load at 0.1A–5A in 0.5A increments, ensuring transient response recovery time stays below 10ms.
Step-by-Step Assembly for USB-C Power Delivery Circuits
Begin by sourcing a certified PD (Power Delivery) controller with at least 60W output capability–NXP PCA9468 or TI TPS65987 are reliable choices. Verify the IC’s datasheet for pin assignments: VBUS (5V–20V), CC (Configuration Channel), and SBU (Sideband Use) require strict adherence to specified trace widths (minimum 1.5mm for 3A current). Use a regulated 5V supply for the controller’s logic section before connecting high-voltage lines to prevent overshoot.
Component Placement and Trace Routing
| Trace Purpose | Width (mm) | Layer | Via Count |
|---|---|---|---|
| VBUS (5A) | 2.5 | Top | 2 (staggered) |
| GND (return path) | 3.0 | Bottom | 3 (thermal relief) |
| CC (signal) | 0.25 | Internal | 0 |
Position the controller no farther than 30mm from the USB-C receptacle to minimize signal degradation. Route CC lines as differential pairs with 90Ω impedance, avoiding sharp bends–use teardrop pads for vias. Keep high-current paths (VBUS, GND) away from sensitive signals (SBU, D+/D-) to prevent crosstalk; maintain a 0.8mm clearance.
For voltage negotiation, integrate a 5.1kΩ resistor on each CC line to pull down to GND–this signals the source capability to the device. Populate the board with decoupling capacitors: 10µF (X5R) on VBUS near the connector, 1µF (0402) for each IC power pin, and 0.1µF (0201) for high-frequency noise suppression. Test continuity with a multimeter before applying power; a short on VBUS will destroy the receptacle instantly.
Validation and Safety Checks
Connect a USB-C power meter (e.g., ChargerLAB KM003) to verify PD profile negotiation. The circuit should output stable voltages–5V/3A, 9V/3A, 15V/3A, and 20V/3A–within ±5% tolerance. Check for thermal runaway: under 60W load, the controller’s temperature should stabilize below 80°C within 10 minutes. If overheating occurs, double the copper area around the IC or add a 15mm2 heatsink. For EMI compliance, use a ferrite bead (e.g., Murata BLM18PG221SN1) on VBUS near the connector to suppress transients.
Avoid These Critical Errors in Power Delivery Cable Assembly
Reverse polarity connections destroy voltage regulators instantly. USB Power Delivery (PD) protocols mandate strict adherence to the CC (Configuration Channel) pinout: pin A5 for CC1 and B5 for CC2. Swapping these leads to immediate circuit protection triggering or irreversible damage to the device’s battery management system. Always verify pin assignments against the official USB-C specification (Rev 2.1, Section 3.3) before soldering.
Neglecting EMI shielding invites RF interference that destabilizes high-current transfers. At 100W+ throughput, unshielded cables act as antennas, broadcasting harmonics that disrupt Wi-Fi and Bluetooth signals within a 2-meter radius. Use twisted-pair wiring for differential data lines (D+ and D-), and wrap the assembly in 85%+ coverage copper foil tape, grounded at both ends to the connector shells.
Mismatched Wire Gauge Creates Thermal Hazards
Undersized conductors generate excessive heat at rapid energy transfer rates. For 5A continuous current, AWG 24 copper wire suffices for short cables (
Overlooking connector retention forces causes intermittent failures. The USB-C interface requires 10N (Newtons) of retention force per contact pair, per USB-IF’s mechanical compliance test (MCT). Soldered connections without strain relief (e.g., hot glue or mechanical clamps) fail under vibration or repeated plug cycles, leading to open circuits. Test retention by applying 5kg vertical pull for 30 seconds–any movement indicates inadequate securing.
Skipping continuity checks after assembly misses latent defects. Use a milliohm meter to verify resistance across VBUS (4.5V–20V supply rails) stays below 50mΩ end-to-end. Cross-check CC pins for 56kΩ pull-down resistors on the device side (host must pull up to 5V). Even a single missing pull-up resistor disables PD negotiation entirely, defaulting to 5V/500mA.
Improper Ground Return Paths Induce Noise
Daisy-chaining ground returns through multiple connectors creates ground loops. Dedicate a separate ground return path for VBUS and analog grounds (AGND), tying them together only at a single star point near the power source. Failure to do so introduces 50mV AC ripple on VBUS, corrupting low-voltage ICs and reducing conversion efficiency by up to 12%.
