Step-by-Step Guide to Building a Basic LED Display Circuit Design

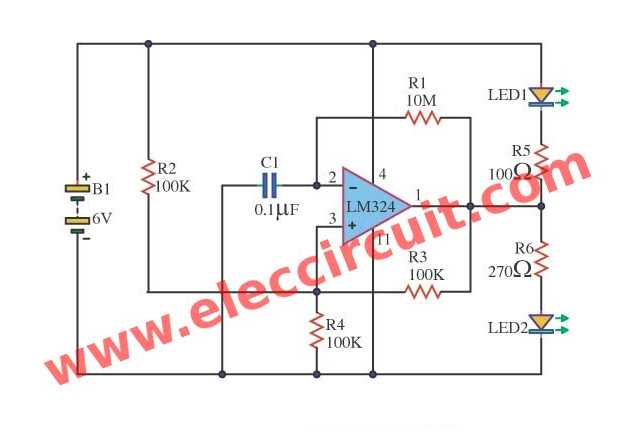

Start with a current-limiting resistor matched to your light-emitting component’s forward voltage. For standard 2V indicators, a 330Ω resistor works for 5V input; calculate exact values using Ohm’s Law to prevent burnout. Skip this step only if the driver IC includes internal regulation–but verify datasheets first, as assumptions here lead to failures within minutes.

Choose between sinking and sourcing configurations based on your driver’s capabilities. Shift registers like the 74HC595 handle sourcing well, but multiplexing chips like the MAX7219 require sinking. Test both setups on a breadboard before committing to a PCB layout–ground loops and noise often reveal themselves only in physical builds.

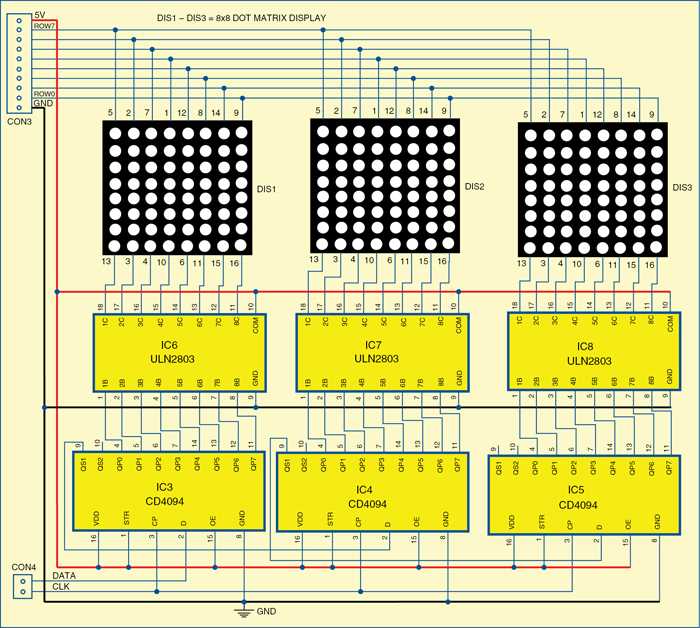

For matrix setups, row-column scanning rates should exceed 100Hz to avoid flicker detectable by the human eye. Lower refresh rates cause visible lag in video playback. If driving more than 8×8 elements, cascading controllers is mandatory; attempts to expand single-chip solutions beyond their limits introduce ghosting artifacts.

Power distribution demands copper pours or thick traces (minimum 35μm for 1A loads). Thermal vias under high-current areas prevent heat buildup sufficient to desolder connections. For outdoor use, seal connections with conformal coating–oxidation from humidity occurs faster than anticipated, degrading signal integrity within weeks.

Debugging begins with a logic analyzer or at least a multimeter in continuity mode. Voltage drops across components often indicate unintended shorts or open circuits invisible to visual inspection. Avoid relying on simulation software alone; real-world impedance mismatches and parasitic capacitance can invalidate theoretical results.

Building a Visual Output System: Key Schematic Insights

Start with a current-limiting resistor per light source–calculate values using Ohm’s law based on your power supply and component specs. For a 5V input and 20mA target, a 150Ω resistor suits standard 3mm bulbs; adjust for higher voltages (e.g., 330Ω at 12V). Skip this step only if using integrated driver modules with built-in regulation, like MAX7219 or TM1637, which handle brightness control internally.

For multi-element arrangements, organize clusters in series-parallel blocks to balance voltage drops. A 4×4 matrix, for example, pairs rows and columns via transistors (2N2222 for low loads, TIP120 for heavier currents) to prevent ghosting. Use decoupling capacitors (0.1µF ceramic) near power pins of microcontrollers to stabilize signals–omitting these risks flickering during rapid updates. Test each segment individually before full assembly to isolate faults early.

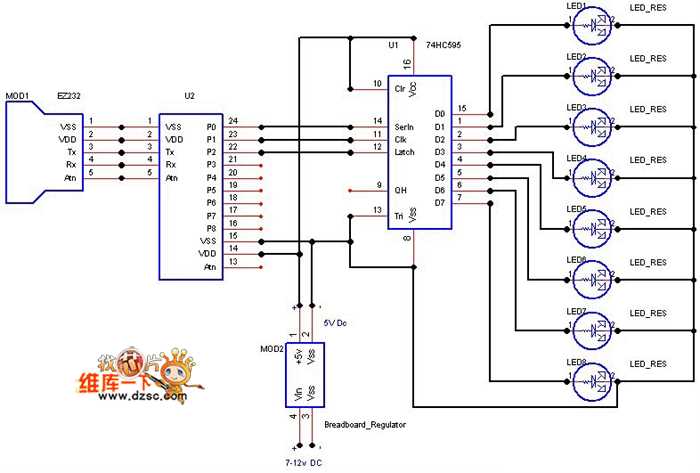

• Common cathode vs. anode layouts dictate driver IC selection–shift registers (74HC595) drive anode variants efficiently, while ULN2003 arrays suit cathode types.
• PWM-capable controllers (e.g., ESP32, Arduino Nano) enable brightness modulation without external resistors if pulse-width modulation pin tolerances match component ratings.
• Keep trace widths above 0.5mm for currents exceeding 100mA; copper pours on PCBs further reduce heat buildup.

Ground loops introduce noise–connect all grounds at a single star point near the power source. For large panels (>8×8), add buffer ICs (CD4050) between microcontroller and drivers to avoid voltage sag. When prototyping, breadboards suffice for

Core Elements for a Simple Light-Emitting Assembly

Select a 5mm through-hole emitter with a forward voltage of 1.8–3.3V and current rating between 10–20mA for general-purpose use. Low-power variants (e.g., 2mA) suit battery-operated setups, while high-brightness models (30mA+) work for outdoor indicators. Avoid exceeding the specified limits–thermal runaway degrades lifespan within seconds. Match the emitter’s spectral output to the application: 620–630nm (red) for visibility, 520–530nm (green) for contrast, 460–470nm (blue) for high-intensity needs.

Choose a current-limiting element with ±1% tolerance. A fixed carbon-film resistor (1/4W) suffices for basic setups, but metal-film (5% tolerance) ensures stable brightness across temperature swings. Calculate resistance using R = (Vs – Vf) / If, where Vs = supply voltage, Vf = emitter drop, If = target current. For a 12V source powering a 2V emitter at 15mA, a 680Ω resistor is ideal. Pulse-width modulation (PWM) enables dimming without a variable resistor, but add a 1N4001 diode in reverse polarity to clamp inductive spikes.

Opt for a DC supply aligned with the emitter’s forward voltage plus resistor dissipation. Linear regulators (LM7805) introduce dropout–use a buck converter (LM2596) for efficiency above 85%. For microcontroller integration, ensure the logic level (3.3V/5V) matches the emitter’s needs. Solder joints should handle at least 1.5× the expected current; use 22AWG wire for runs under 10cm, upsizing to 18AWG for longer traces. Avoid breadboards for permanent builds–high-impedance contacts oxidize over time.

Polarity protection prevents reverse-voltage damage. Add a 1N4007 diode across the emitter (anode to ground) or use a MOSFET (e.g., IRLZ44N) as an active switch for PWM. Heat sinks are unnecessary for sub-100mW emitters, but high-power variants (>1W) require copper-core PCBs or TO-220 packages with thermal paste. Test continuity with a multimeter before powering–shorts across the resistor mimic emitter failure.

Common Pitfalls and Adjustments

Flickering at low currents (below 5mA) often stems from unstable supplies–buffer with a 100μF capacitor. If brightness varies between identical units, check resistor batch tolerance or use a trimmer potentiometer (1kΩ) for fine calibration. For AC-driven assemblies, add a bridge rectifier (e.g., KBPC1005) and 470μF smoothing capacitor to prevent ripple visible to the human eye. Replace failed emitters promptly–open circuits strain the supply, while shorts overload adjacent components.

Step-by-Step Assembly of a 7-Segment Numeric Indicator

Begin by identifying the common pin configuration–most single-digit modules have a shared anode (positive) or cathode (negative) terminal. For a common cathode configuration, connect the common terminal to ground; for anode, link it to the power source. Verify the module’s datasheet for exact pin assignments–manufacturers label segments A through G plus the decimal point (DP) sequentially, but the order varies. Use a 220-ohm resistor on each segment line to prevent burnout when testing with a 5V supply.

Wire the segment pins to a microcontroller’s GPIO ports, matching the physical layout to your code’s logical assignments. Below is a typical wiring map for an 8-pin single-digit module (excluding power/ground pins):

Segment	Arduino Pin	AVR Port
A	2	PD2
B	3	PD3
C	4	PD4
D	5	PD5
E	6	PD6
F	7	PD7
G	8	PB0
DP	9	PB1

Implement bitwise operations in firmware to toggle segments efficiently–a byte-sized variable can represent each digit’s state, where each bit corresponds to a specific segment. For example, in C/C++: `byte digitPatterns[10] = {0x3F, 0x06, 0x5B, 0x4F, 0x66, 0x6D, 0x7D, 0x07, 0x7F, 0x6F};` maps 0-9 to their segment combinations.

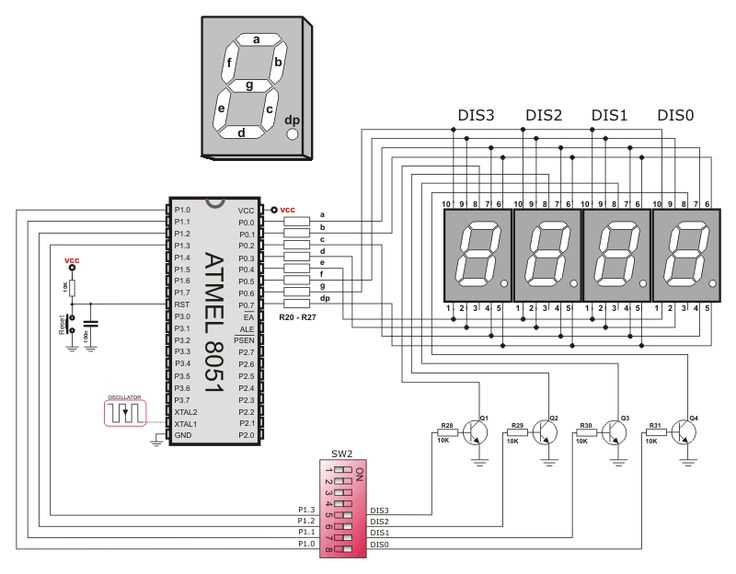

For multi-digit setups, use a persistent scanning technique–activate one digit at a time via a transistor (e.g., 2N2222), set the segments for that digit, then deactivate before moving to the next. Cycle through digits at >50Hz to eliminate flicker. Test segment illumination with direct GPIO toggling before integrating dynamic rendering logic.

Frequent Errors in Electronic Signage Wiring

Reverse polarity remains one of the most damaging oversights during assembly. Light-emitting components tolerate minimal voltage in the wrong direction; even brief exposure can degrade performance or cause permanent failure. Verify connections with a multimeter before powering any module–positive to anode (longer leg), negative to cathode (shorter leg or flat side of the housing). Bulkier panels often include reverse-protection diodes, but smaller arrays may lack this safeguard, making manual checks non-negotiable.

Inadequate current limiting devastates reliability. Every semiconductor element demands a resistor to cap amperage; omitting this causes thermal runaway, shortening lifespan from years to minutes. Calculate resistance using Ohm’s law: R = (Vsource - Vforward) / Iforward. For standard white elements at 3.3V, a 220Ω resistor suits 5V sources, while 100Ω works for 3.3V inputs. High-brightness variants require lower values–consult datasheets for exact tolerances.

• Mixing series-parallel clusters without balancing risks uneven brightness. One flawed segment in a series string extinguishes the entire chain, while incorrectly paired parallel strings create current hogging, overloading some paths while others dim.
• Exceeding the matrix’s scan rate causes visible flicker or ghosting. Most controllers support 1/4 to 1/16 duty cycles–any deviation distorts dynamic content. Adjust the microcontroller’s refresh rate to match the panel’s specifications.
• Using unshielded cables for data lines introduces EMI, corrupting signals over distances exceeding 30 cm. Twisted-pair wires or proper grounding minimize interference.

Ground loops emerge when modules share chassis grounds with high-current devices like motors or power supplies. This induces voltage fluctuations, creating visible artifacts or erratic behavior. Dedicate a separate ground path for each controller board, connecting them at a single star point near the power source. AVR-based microcontrollers and FPGA boards commonly reveal this issue during debugging–oscilloscope readings will show AC ripple on DC lines.

Heat Dissipation Pitfalls

Overlooking thermal management accelerates degradation. Most surface-mount emitters rate 85°C maximum; surpassing this thins phosphor coatings, reducing output by 15-30% within 1,000 hours. Aluminum-backed PCBs conduct heat efficiently, yet unpopulated or poorly soldered areas act as insulators. Apply thermal paste between the board and heatsink, ensuring even pressure across the entire surface. Fans or passive heatsinks become mandatory for densities above 10,000 elements per square meter.

Controller Misconfiguration

Incorrect timing parameters disrupt synchronization. WS2812B elements, for instance, demand precise 800 kHz PWM timing–too slow risks misinterpreting commands as noise, while too fast truncates data. STM32 HAL libraries often default to 1 MHz; override this for addressable chains using platform-specific delays:

1. Configure timer clocks to CLK_PERIPH / 2 for 800 kHz.
2. Ensure DMA streams avoid memory alignment gaps causing dropped bits.
3. Reinitialize GPIOs after sleep modes–low-power states reset configurations.

Precompiled libraries like FastLED abstract these steps but may fail for custom protocols; raw register manipulation yields consistent results.
