Key Elements and Structure of Fire Suppression System Schematics

Begin by segmenting the layout into three primary zones: detection, suppression, and control. Allocate 20-25% of the total space to detection nodes, positioning heat and smoke sensors at 3-meter intervals in corridors and 5-meter spacing in open areas like warehouses. Suppression elements–sprinkler lines, hydrants, and chemical dispensing units–must occupy 60-65% of the schematic, with pressure valves clearly labeled at 7-10 bar for standard applications. Reserve the remaining area for control panels, isolation switches, and fail-safe overrides, ensuring immediate access pathways for maintenance crews.

Use ANSI/NFPA 13 standards for pipe sizing: DN25 for branch lines (serving ≤12 sprinklers) and DN40-DN50 for mains supplying >12 outlets. Color-code zones: red for high-priority suppression, yellow for detection circuits, and blue for electrical isolation points. Avoid crossed lines by routing detection wires above suppression piping, separated by a minimum 15 cm gap to prevent signal interference under activation conditions.

Include a 1:50 scale legend for industrial facilities and 1:100 for residential/commercial setups, with all valves, pumps, and alarm interfaces marked with QR codes linking to manufacturer specifications and maintenance logs. For high-rise structures (>5 floors), incorporate zoned pressure reduction valves after every 3rd floor to maintain consistent flow rates. Verify compliance with EN 12845 for water storage tanks, requiring 60-90 minutes of capacity at 1,000 liters/minute output for hazard class OH3 environments.

Test readability under simulated emergency lighting–opt for matte finishes on prints to reduce glare–and confirm legibility at arm’s length (0.7-1 meter). Embed digital backups in DXF/DWG formats, with layer separation for civil, electrical, and mechanical systems, enabling quick modifications during retrofits. Prioritize fail-safe overrides: designate three redundant paths for power supply to critical suppression pumps, each with UPS backup delivering ≥30 minutes of runtime at full load.

Emergency Suppression System Layout Design

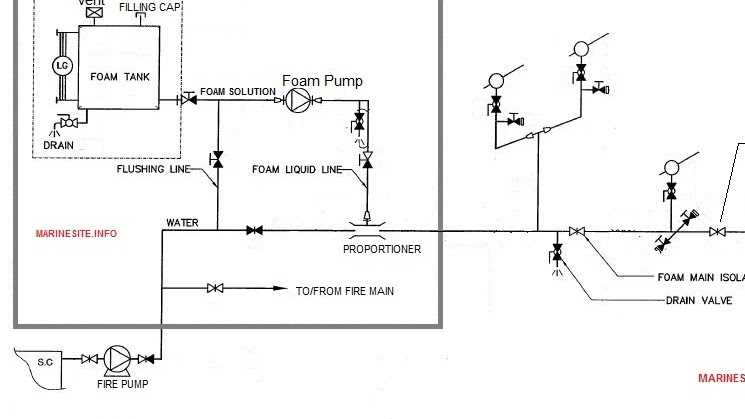

Begin by segmenting the suppression network into pressure zones, ensuring each sector maintains a minimum of 7 bar at the hydrant furthest from the pump. Use Class II standpipes for high-risk areas, such as server rooms or chemical storage, where 50mm diameter pipes deliver 750 liters per minute with NFPA-compliant residual pressure. For hazardous material zones, integrate foam proportioners with a 6% concentrate ratio, positioned within 5 meters of discharge points to prevent mixture degradation.

Label all valves, pumps, and alarms with braille-compliant tactile markers and color-coded bands: red for isolation valves, yellow for test connections, and blue for monitored shut-off valves. Include a dead-end flush valve at terminal points to prevent sediment buildup, sized at 25% of the main pipe diameter. For automated detection loops, use addressable modules spaced no more than 30 meters apart, wired in a loop topology with end-of-line resistors to detect tampering or faults instantly.

Verify the system’s integrity through hydrostatic testing at 1.5× working pressure for 2 hours, documenting any pressure drops exceeding 0.5 bar. For deluge systems in turbine halls, position open nozzles at 3-meter intervals with a K-factor of 80, angled perpendicular to equipment surfaces. Store as-built plans in fire-resistant vaults with redundant digital backups, including layer-by-layer CAD files and QR codes linking to maintenance logs.

Critical Elements for an Emergency Suppression Blueprint

Start with a clear identification of hazard zones, classifying areas by risk level–high, moderate, or low–based on occupancy load, combustible materials, and ignition sources. Use standardized symbols (ISO 6790 or NFPA 170) to mark each zone, ensuring consistency across all documentation. Assign color codes: red for high-risk (e.g., boiler rooms, kitchens), orange for moderate (e.g., warehouses, workshops), and yellow for low (e.g., offices, corridors).

Detection and Alarm Infrastructure

Integrate multi-sensor devices that combine heat, smoke, and CO detection to minimize false alerts. Position detectors at a maximum spacing of 9.1 meters (30 feet) in open areas and within 0.6 meters (2 feet) of any obstruction. Hardwire alarms to a central control panel with battery backup, ensuring 24-hour operation during power failure. Include manual pull stations at each exit and stairwell, positioned 1.2 meters (4 feet) above the finished floor.

• Heat detectors: Rate-of-rise (7–8°C/min) and fixed-temperature (57°C) models.
• Smoke detectors: Photoelectric for slow-burning fires, ionization for fast-flaring blazes.
• Flame detectors: UV/IR sensors for high-risk zones (e.g., fuel storage).

Specify suppression agent distribution networks with precise pipe sizing calculations. For wet systems, use Schedule 40 steel piping with corrosion-resistant coating; for dry systems, Schedule 80. Include a hydraulic calculation table showing pressure drops at each branch line, ensuring the most remote nozzle achieves minimum design density (e.g., 5 mm/min for ordinary hazards). Label all pipes with their contents, direction of flow, and pressure class in 25mm-high reflective letters.

Detail emergency control protocols with sequential activation steps. Designate primary and secondary water sources–municipal supply, gravity tanks, or fire pumps–with automatic switchover logic. Include a pump performance curve showing head pressure at 150% of rated capacity. For gas-based systems (e.g., CO₂ or inert gases), add time-delay devices to allow evacuation (minimum 20 seconds) and lockout switches to prevent accidental discharge.

1. Water-based: Wet pipe, dry pipe, pre-action, or deluge systems.
2. Chemical: Wet chemical (Class K), clean agents (FM-200, Novec 1230).
3. Gaseous: CO₂, inert gas mixtures (Inergen, Argonite).

Access and Maintenance Provisions

Ensure all system valves, pumps, and control panels are accessible without obstructions, with a minimum 1-meter clearance radius. Add isolation valves at each branch line for sectional shutdowns during maintenance. Specify a testing schedule: weekly for alarms, monthly for pump starts, and quarterly for full flow tests. Include labeled inspection ports for pipe inspections and sample points for water quality checks (pH, turbidity).

Step-by-Step Process for Designing an Emergency Suppression System

Begin by defining hazard classification according to NFPA 13 standards: Light (low combustibility), Ordinary Group 1/2 (moderate combustibility), or Extra Hazard (high combustibility). Use this classification to determine pipe sizing, sprinkler spacing, and water demand. For example, Light Hazard areas require 0.1 gpm/ft² (4.1 L/min/m²) coverage, while Extra Hazard demands 0.3 gpm/ft² (12.2 L/min/m²).

Calculate water supply requirements using the “density/area” method. Multiply the coverage area (ft²) by the required density (gpm/ft²) and add 15-20% for friction loss in pipes. For a 2,500 ft² Ordinary Hazard area, this results in: (2,500 × 0.15) + 225 = 600 gpm (2,271 L/min) minimum supply. Verify against available municipal flow data or storage tank capacity.

Select suppression agent based on occupancy. Wet pipe systems suit temperatures above 40°F (4°C); antifreeze or dry pipe systems are mandatory for sub-freezing environments. For high-value assets (server rooms, archives), pre-action systems with dual detection prevent accidental discharge. FM-200 or Novec 1230 may replace water where liquid damage is unacceptable, requiring 4-6% concentration by volume.

Pipe Network Layout Procedures

Design lateral pipe runs with a maximum 0.5% slope to facilitate drainage. Use Schedule 40 steel for mains ≤6″ (150mm) and Schedule 10 for larger diameters. Size pipes per NFPA 13 Appendix A: 1″ (25mm) for 1-2 heads, 1.25″ (32mm) for 3-5 heads, escalating to 6″ for 100+ heads. Maintain velocity ≤20 ft/s (6 m/s) to prevent water hammer.

Install alarm check valves at system entry points with pressure gauges upstream/downstream. Locate drain valves at low points and test connections on risers. For wet systems, include a 2″ (50mm) main drain with a 45° elbow to prevent sediment buildup. Dry systems require a quick-opening device (accelerator) to reduce trip time to ≤60 seconds.

Position sprinklers per occupancy rules: 6-8 ft (1.8-2.4m) spacing for Light Hazard, 4-6 ft (1.2-1.8m) for Ordinary. Maintain ≥18″ (450mm) clearance below deflectors. For sloped ceilings, install sprinklers perpendicular to the slope with ≤3:12 pitch compensation. Concealed sprinklers must have fusible elements ≤165°F (74°C) unless UL-listed for higher temperatures.

Post-Design Validation

Conduct hydraulic calculations using software (e.g., HydraCAD, AutoSPRINK) to verify water delivery meets design density at the most remote head. Print a summary report showing pipe lengths, friction loss (≤5 psi/100 ft or 0.34 bar/30m), and residual pressure (≥10 psi or 0.7 bar at the highest sprinkler). Submit calculations to AHJ with shop drawings showing pipe schedules, sprinkler types, and hanger locations.

Schedule a hydrostatic test at 200 psi (13.8 bar) for 2 hours, followed by a 50% flow test of the water supply. Document results with pressure readings every 15 minutes. For gas-based systems, perform a room integrity test using Door Fan Test equipment to confirm ≥10-minute hold time at design concentration.
