Fog Machine Remote Control Wiring Guide with Circuit Diagrams

Connect the control unit’s signal terminal to a low-voltage relay rated for 5–12V DC input, ensuring the coil draws no more than 100mA. Use 22 AWG stranded copper wire for signal paths–solid core risks fatigue under vibration. Ground the relay chassis directly to the power supply’s negative bus to prevent noise induction.

Power the trigger circuit from a separate 9V battery or a regulated 12V tap off the main supply, fused at 1A. Avoid tapping into high-current outputs like motor feeds–voltage sag can cause erratic triggering. Insert a 1N4007 diode across the relay coil (cathode to positive) to suppress transient spikes that may damage control electronics.

Route wiring in braided sleeving when passing near high-frequency emitters (e.g., LED drivers, RF transmitters). Keep signal and power lines paralleled no closer than 3cm to minimize crosstalk. For variable-intensity operation, replace the relay with a PWM-capable MOSFET (IRFZ44N or equivalent), driving it with a 5kHz signal modulated from 0% to 98% duty cycle.

Test continuity with a multimeter before energizing–open or shorted connections in the trigger loop can cause latch-up or overheating. Label all wires at both ends for rapid troubleshooting. If integrating with DMX, isolate the control circuit using an optocoupler (e.g., PC817) to prevent ground loops.

Control System Hookup Guide for Atmospheric Effects Generators

Connect the trigger switch directly to the low-voltage terminals on the generator’s control panel using 18-22 AWG stranded copper wire. Verify polarity if the unit requires DC input–most accept 12V or 24V–marked on the terminal block. Avoid sharing circuits with inductive loads; isolate the trigger line to prevent false activation or interference.

Wire Gauge	Maximum Length	Voltage Drop
18 AWG	15 m	0.5V
20 AWG	10 m	0.7V
22 AWG	5 m	0.9V

Use a shielded twisted pair for distances exceeding 10 meters to mitigate signal degradation. Ground the shield at the generator end only to prevent ground loops. If integrating with DMX, terminate the 5-pin XLR with a 120Ω resistor across pins 2 and 3; omit resistors for 3-pin connections unless specified by the manufacturer.

For wireless activation, pair the transmitter with a relay module rated for the generator’s control voltage. Secure the relay coil with a flyback diode (1N4007) to suppress voltage spikes. Position the antenna at least 2 meters away from power cables or metallic structures to maintain signal integrity. Test range in the actual installation environment–concrete and steel can reduce effective distance by 40-60%.

Label each connection at both ends with heat-shrink tubing or adhesive tags. Document the hookup in a schematic with wire colors, terminal numbers, and voltage readings. Include a kill switch in the circuit; mount it within 1 meter of the operator’s station for emergency override. Regularly inspect terminals for corrosion–clean with contact cleaner and tighten to 0.5 Nm torque to ensure consistent operation.

Choosing Suitable Electrical Parts for Distant Operation

Opt for low-voltage cables when connecting control panels to actuators in演出 or stage setups. Stranded copper conductors rated at 18-22 AWG handle signal transmission reliably while resisting interference. Solid-core variants risk brittle failure under repeated flexing, making multi-strand options mandatory for movable installations. Verify insulation with a minimum 300V rating–polyethylene or PVC jackets suffice for indoor use, but silicone-coated wires endure outdoor humidity and temperature swings.

Relay selection dictates response speed and load capacity. Mechanical relays (SPDT or DPDT) switch 10A at 250VAC but introduce audible clicks and wear after ~100,000 cycles. Solid-state variants eliminate noise and last 50+ million cycles, yet require heatsinks for currents above 5A. Match coil voltage to your controller’s output (12V DC or 24V AC common); improper voltage burns coils or fails activation.

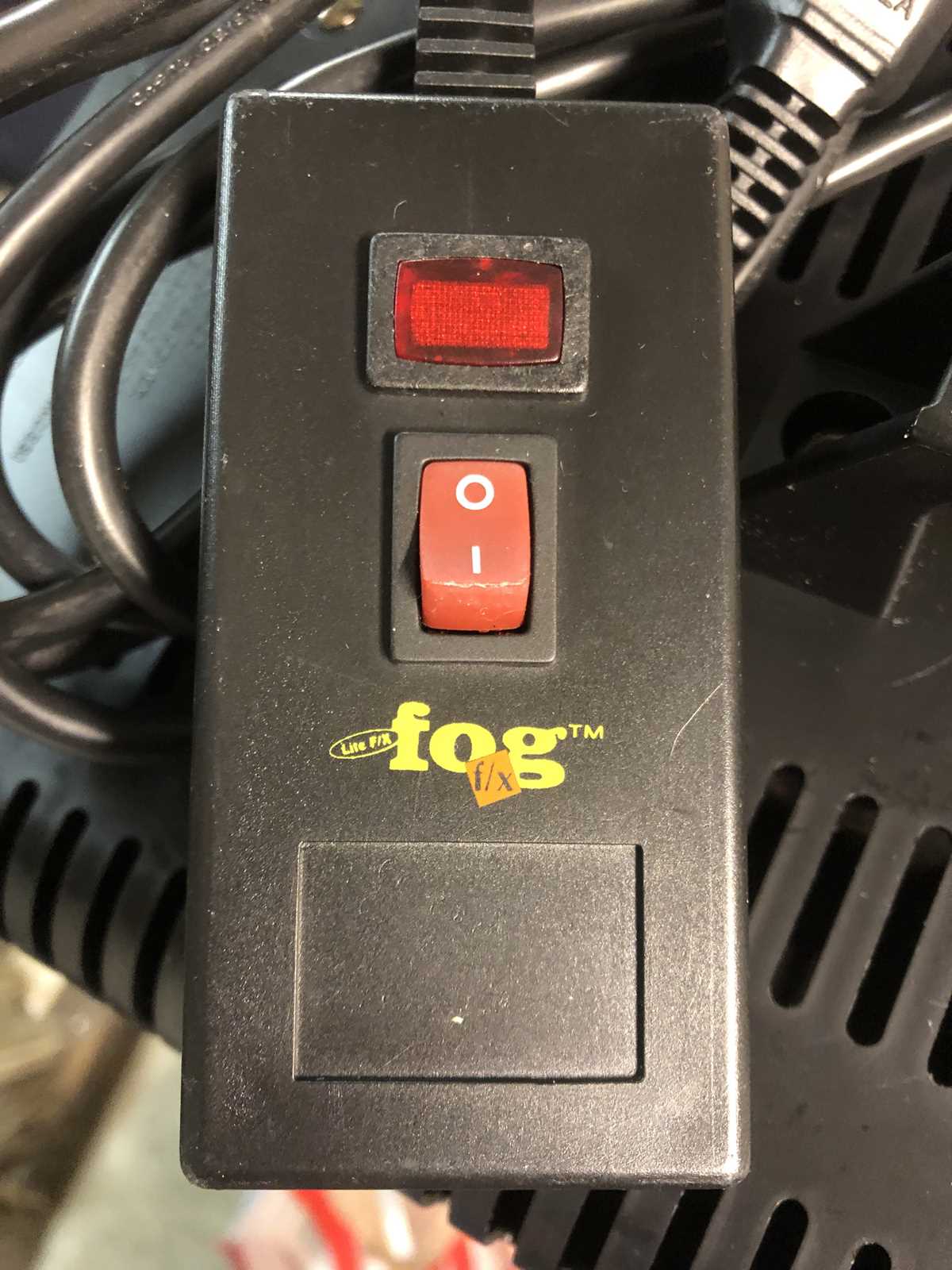

Button or toggle switches must align with your power source. Momentary pushbuttons suit transient triggers, while latching switches maintain state for prolonged dispensing. Check contact materials–silver-plated copper lasts longer under frequent use than plain brass, though gold-plated options prevent oxidation in high humidity. Seal ratings (IP65 or higher) matter for outdoor installations or environments with liquid exposure risks.

Connector Types for Secure Transmission

XLR connectors excel in professional rigs demanding durability. 3-pin XLR carries signal and power while resisting accidental disconnections–critical for suspended equipment. For simpler setups, 1/4″ TS jacks suffice but lack locking mechanisms. Avoid RCA connectors; their low voltage tolerance and loose fits invite intermittent failures under vibration. Solderless crimp terminals (e.g., Phoenix Contact) suit rapid field adjustments but mandate proper crimping tools to prevent loose strands.

Fuses protect circuits from overloads but require precise sizing. Time-delay fuses tolerate inrush currents (common with solenoid valves), while fast-acting types suit sensitive electronics like timers. Install fuse holders rated for your cable gauge–14-16 AWG wires pair with ATO/ATC holders, while 18-20 AWG needs mini blade fuses. Replace blown fuses with identical amp ratings; substitutes risk fire or equipment damage.

Signal Integrity and Noise Suppression

Twisted-pair cabling minimizes electromagnetic interference, especially when routing near fluorescent lights or power cables. Separate signal wires from mains lines by at least 12 inches or use shielded cable (e.g., STP with foil or braided shielding) for runs exceeding 20 feet. Ferrite beads on power entry points clamp high-frequency noise–essential when integrating with dimmers or variable-speed drives.

Grounding practices prevent stray currents. Dedicate a star-ground configuration, tying all returns to a single point near the power supply. Avoid daisy-chaining earth connections; it creates ground loops detectable as hum or erratic behavior. For DC systems, connect the negative terminal to chassis ground only at the power source, not at multiple nodes. Test grounding integrity with a multimeter (target

Plug-in terminal blocks simplify maintenance but demand secure connections. Spring-loaded types (e.g., Wago 221) ensure vibration-proof clamping but limit current to 20A. Screw terminals handle 30A+ but loosen over time; use thread-locking compound on terminal screws in high-vibration areas. For modularity, choose disconnectable blocks (e.g., Eurostyle) instead of hard-wired junctions–this eases troubleshooting without cutting wires.

Connecting Your Atmospheric Generator to a Control Unit: A Precise Guide

Locate the output terminals on your vapor emitter–typically marked as “trigger” or “activation” with two screw posts or connectors. Identify the polarity if specified (though many systems use momentary contact without strict polarity). Use 18-22 AWG stranded copper wire for reliable signal transmission over short distances (up to 15 meters). Strip 6-8mm of insulation from each wire end to ensure solid contact with terminals or solder points.

1. Disconnect all power sources from the emitter and controller before making connections.
2. Attach one wire to the “common” or ground terminal on the control unit (usually the larger or unlabeled post).
3. Connect the second wire to the “signal” or “trigger” terminal (often marked with a symbol like “⏻” or labeled “act”).
4. If using an inline fuse holder, insert a 1-2 amp fuse between the control unit’s positive output and the emitter’s trigger terminal.
5. Secure all connections with terminal blocks or solder, then insulate with heat-shrink tubing or electrical tape.

For emitters requiring a closed-circuit trigger (most stage units), wire the control unit’s relay contacts in series with the device’s activation switch. Use a multimeter in continuity mode to verify the circuit closes when the button is pressed. If your controller includes a delay function, confirm the emitter’s specifications match the timing parameters–most tolerate 0.5–3 second pulses without damage.

• DC Systems: Wire the controller’s relay between the emitter’s positive power input and the internal pump/heater relay. Avoid exceeding 12V unless the emitter’s documentation permits higher voltages.
• AC Systems: Connect the controller’s relay in parallel with the emitter’s manual switch. Use a solid-state relay for silent operation if noise is a concern.
• Wireless Adapters: For RF or Bluetooth modules, follow the module’s pinout–typically requiring a shared ground and a single data line. Pair devices before finalizing physical connections to prevent signal conflicts.

After securing all links, test the setup with brief activations (under 2 seconds) to confirm the generator responds to the controller. If the unit fails to activate, recheck the relay contacts for corrosion or bent pins. For persistent issues, bypass the controller temporarily using a direct switch to isolate the fault. Once verified, secure all wires with zip ties or conduit to prevent strain on connections during use.

Soldering vs. Crimping Techniques for Reliable Device Connections

Soldering provides a permanent bond with superior conductivity for high-current applications, especially when working with 18 AWG or thinner conductors. The molten alloy fills microscopic gaps, eliminating oxidation risks and reducing resistance to near-zero levels–critical for sensitive signal paths. Use 60/40 lead-tin solder for general purposes, switching to lead-free variants only where regulatory compliance demands it. Pre-tin both surfaces before joining to ensure even flow and prevent cold joints.

Crimping outperforms soldering in vibration-prone environments, such as mobile setups or installations with moving parts. A properly seated crimp creates a gas-tight seal that resists corrosion and mechanical stress, with industrial-grade tools like ratcheting crimpers forming an irreversible cold weld. Choose the correct terminal size–insulated butt connectors for 22-16 AWG, non-insulated for heavier gauges–matching the barrel diameter precisely to avoid weak points.

Temperature stability differs sharply between methods: soldered joints soften at 183°C (lead-tin eutectic point), while crimped connections maintain integrity up to 200°C. For outdoor or thermally variable conditions, crimping eliminates solder’s creep fatigue risks. However, soldering remains mandatory for surface-mount connections or when repairing printed circuit boards where crimp terminals cannot physically attach.

Mechanical strength favors soldering for static loads–properly executed joints withstand >10 kg pull force–while crimping excels under cyclic stress, routinely handling 20% higher fatigue cycles before failure. Test every joint with a calibrated pull force gauge (minimum 5 kg for 18 AWG wire) immediately after completion; visual inspection alone fails to detect 40% of weak connections.

Tool investment varies: a 40W temperature-controlled soldering station costs $80–$150, while a professional-grade crimper with interchangeable dies runs $250–$400. DIY soldering requires flux, desoldering braid, and heat-resistant work surfaces; crimping demands only terminals and precise alignment. Factor in consumables–solder spools last for ~200 joints, while 1,000 crimp terminals cost $30–$60 depending on insulation type.

Environmental factors dictate method selection: crimping tolerates humidity and contaminant exposure better than soldering, which absorbs moisture during cooling, creating microfractures. In cleanroom applications, soldering’s flux residue necessitates thorough cleaning–isopropyl alcohol with a lint-free wipe–whereas crimped terminals require no post-processing. For underwater or submersion-grade connections, only hermetically sealed crimps rated to IP68 prevent current leakage.

Skill requirement is asymmetrical: proficient soldering takes 8–12 hours of guided practice to master common pitfalls (bridging, insufficient heat), while consistent crimping is achievable within 2 hours. Certification programs exist–NASA-STD-8739.4 for soldering, IPC/WHMA-A-620 for crimping–standardizing quality benchmarks. Always cross-check specifications: military-grade solder joints demand 75% wetting, industrial crimps require 100% wire compression.

Hybrid approaches solve specific challenges: crimp the terminal first for mechanical anchoring, then solder the joint to combine flexibility with conductivity. This technique, common in aerospace applications, adds
