Complete Guide to PC Power Supply Cabling and Connector Layouts

Begin by identifying the 24-pin main connector–this is the backbone of your system’s energy delivery. Pin 1 on the motherboard side aligns with the +3.3V rail (orange wire) and must match the corresponding pin on the PSU cable. Mistakes here can fry voltage-sensitive components, so cross-reference with the ATX 2.4 standard before making connections. The COM (black) wires serve as ground references; never bridge them with live rails.

Locate the +5VSB (purple) line–it provides standby current even when the machine is off. This rail is critical for Wake-on-LAN and USB charging functions. If your build includes a modular PSU, verify that the floppy-style 4-pin connector (white or black housing) is oriented correctly; reversing it will short +12V to ground. For PCIe devices, the 6+2 pin connector delivers 75W via +12V rails–ensure the sense pin (often a smaller, separate wire) is seated properly to avoid undervoltage errors.

For SATA drives, the 15-pin connector carries three rails: +3.3V, +5V, and +12V. The first rail (orange) is rarely used by modern SSDs but must not be ignored if working with legacy hardware. Molex connectors, though obsolete, follow the same principle–yellow for +12V, red for +5V, and black for ground. When daisy-chaining, limit the load to 4A per rail to prevent voltage drops.

Test each connection with a multimeter before powering on. Set it to DC voltage and probe the yellow (+12V) and red (+5V) lines against a black ground pin. Expected readings should be within ±5% of nominal values. If voltages drift outside this range, suspect a faulty unit or improper load balancing. For split-rail systems, monitor the OCP (over-current protection) thresholds–exceeding 18A on +12V1 or 15A on +12V2 will trigger shutdowns.

Understanding ATX Connector Pinouts for Reliable System Integration

Always verify the 24-pin motherboard connector layout before connecting. Pin 1 (orange, +3.3V) and Pin 10 (yellow, +12V) serve distinct roles–mistaking them risks short circuits. Modern units split the original 20-pin design into a detachable 4-pin section (Pins 11-12-13-14) to maintain backward compatibility with older boards. Use a multimeter set to DC voltage mode to confirm each rail delivers within ±5% of rated voltage before finalizing connections.

For PCIe devices, locate the 6+2-pin connector’s yellow (+12V) and black (ground) wires. Never force connections–misaligned pins create resistance, generating heat that degrades cables over time. The thinner 12VHPWR standard (16-pin, 12V/4x 5V sense lines) requires precise insertion to avoid damaging the motherboard’s slot. Check for manufacturers’ color coding: AWS (Auxiliary, White, Sense) wires often appear in white or gray, signaling feedback lines rather than power rails.

• Pin 8 (gray): Power Good signal (>2.5V indicates stable output)
• Pin 9 (purple): +5VSB (Standby voltage, active when PSU is plugged in)
• Pin 16 (green): PS_ON# (Drive low to turn on main rails)
• Pins 3, 5, 7, 15, 17, 18, 19, 24 (black): Ground references

SATA connectors carry +12V (yellow), +5V (red), +3.3V (orange), and grounds (black). The 3.3V rail is often underutilized in storage devices but critical for some SSDs. Molex-to-SATA adapters lack the 3.3V line–avoid them for drives requiring this rail. Peripheral connectors (4-pin Molex) deliver +12V (yellow) and +5V (red); cross-loading (e.g., +12V only) risks overheating smaller wires. Test each connector under load using a dummy resistor (e.g., 10Ω for +12V) to ensure voltage drop remains below 0.1V.

Modular units simplify cable management but introduce potential failure points at the connector level. Inspect modular headers for bent pins or corrosion–oxidation increases resistance, leading to voltage drop. For troubleshooting, trace the 24-pin connector’s Pin 16 (green) to the motherboard’s power switch: a brief jumper to ground (black) should enable the unit. If voltages are unstable, isolate the fault by testing with a minimal configuration (CPU + 1 RAM stick). Replace suspect cables rather than reterminating them–hand-crimped connections rarely meet OEM specifications for amperage tolerance.

Identifying Key Connectors in a Standard ATX Energy Unit

Locate the 24-pin motherboard plug first–it’s the largest interface, typically color-coded with black and white housing, and delivers primary voltage rails (3.3V, 5V, and 12V) along with ground lines. Verify pinouts using a multimeter if documentation is absent: pins 8, 9, and 10 (often marked “PS_ON#,” “COM,” and “5VSB”) control soft-start functionality and standby rail. Replace any damaged cables immediately–intermittent connections here risk motherboard corruption.

Check peripheral plugs like the 4-pin Molex, 15-pin SATA, and 6+2-pin PCIe: the Molex carries 5V/12V for legacy drives, SATA delivers 3.3V/5V/12V for SSDs, while PCIe provides 12V for GPUs–ensure cable latch clicks audibly when seated. Use a pinout guide to distinguish EPS (4+4-pin CPU) from PCIe by their unique keying; forcing a misaligned plug damages components. For modular units, label connectors before detachment to avoid cross-wiring during reassembly.

Step-by-Step Guide to Reading a 24-Pin Mainboard Energy Interface Schematic

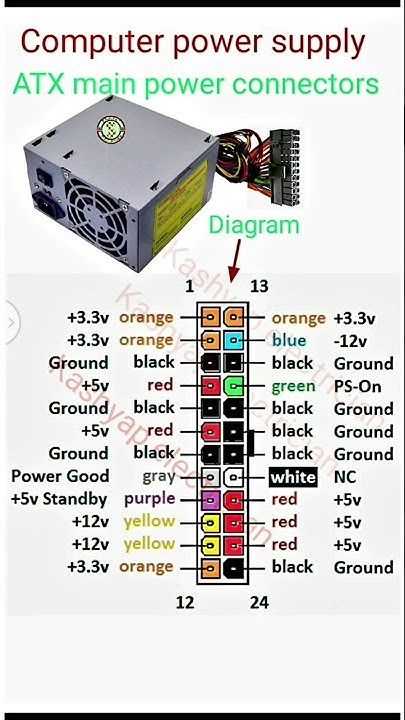

Identify the +3.3V, +5V, and +12V rails first–these are critical voltage paths marked in distinct colors (orange, red, and yellow respectively). Verify each rail’s pin assignment against the ATX standard: pins 1–3, 5–6, and 10–11 carry +3.3V; pins 4, 9, 19–20 deliver +5V; while pins 12, 18, and 21–22 supply +12V. Cross-reference with the board layout manual to confirm no deviations.

Locate the ground connections–pins 3, 5, 7, 13, 15, 17, 18, 23, and 24–indicated by black wires. These serve as the reference point for all voltage measurements. Use a multimeter to validate continuity between these pins and the case chassis; discrepancies suggest a faulty connection or damaged trace.

Trace the PS_ON# signal (pin 16, green wire) and confirm its interaction with the system controller. When active (pulled low), it engages the energy source; when high (idle), the system enters standby. Test this by momentarily shorting pin 16 to ground–if the unit activates, the signal pathway is intact.

Examine the +5VSB (standby voltage) pin (9, purple wire), which maintains auxiliary circuits during sleep modes. Its presence should remain steady even when the primary energy delivery is disabled. Measure no less than 4.75V here; lower readings indicate degradation in the standby regulator or excessive load on the rail.

Check the PWR_OK signal (pin 8, gray wire) for a 100–500 ms delayed high pulse after PS_ON# activation. This confirms stable voltage output across all rails. Absence or premature triggering suggests instability–inspect capacitors, transformers, and the controller IC for degradation.

Review the -12V rail (pin 14, blue wire), often overlooked but essential for legacy serial ports and some PCI slots. Voltage should measure between -11.4V and -12.6V. Deviations beyond this range may cause erratic behavior in older peripherals or communication failures.

Compare the 24-pin schematic against the actual harness for inconsistencies in wire gauge or connector crimping. Thin wires or loose terminals elevate resistance, leading to voltage drops under load. Replace any suspect connections with 18 AWG or thicker conductors to ensure reliable energy transmission.

Connecting CPU 4+4 Pin and PCIe 6+2 Pin Connector Plugs Correctly

Align the 4+4 pin CPU plug with the motherboard socket by matching the notched corners–apply firm, even pressure until it clicks. Verify the latch engages fully; partial insertion risks overheating or system instability. For dual-CPU setups, connect each 4+4 pin to its designated header–never mix rails from the same PSU output. If the system refuses POST, recheck the connection before troubleshooting elsewhere.

PCIe 6+2 pin plugs require splitting only when the device lacks an 8-pin slot–most GPUs accept either a single 6+2 or dedicated 8-pin. Insert the plug with the wider side facing upward (or as per the GPU’s orientation) to prevent bending pins. Avoid forcing the connector–misalignment can damage both the card and the PSU’s modular pins. Below are compatible configurations for common GPU requirements:

GPU Model	Connector Type	Required Plugs
NVIDIA RTX 3060 Ti	1x 8-pin or 6+2	Single plug
AMD RX 7900 XTX	2x 8-pin or 6+2	Two separate plugs
NVIDIA RTX 4090	1x 12VHPWR (adapter from 3x 8-pin/6+2)	Three plugs via adapter

After connecting, route cables behind the motherboard tray if the case allows–improper bundling can obstruct airflow. For non-modular units, secure excess length with Velcro ties, never zip ties–adjustments may be needed later. Test each plug individually with a multimeter if the system fails to boot; voltages should read 12V ±5% on yellow wires and 0V on black grounds. Replace frayed cables immediately–damaged insulation causes short circuits.

Common Mistakes When Connecting Peripheral and SATA Energy Cables

Avoid forcing connectors into ports–misalignment strips pins or damages sockets. Peripheral plugs (Molex) should slide smoothly; SATA interfaces require a gentle 90-degree insertion angle. Excessive pressure bends contacts, creating intermittent failures or shorts. Check for proper seating by tugging lightly–loose connections generate heat and corrupt data transfers.

Neglecting cable polarity causes immediate hardware failure. Molex connectors feature a distinct trapezoidal pin layout; reversing them fries drives or fans. SATA plugs include a L-shaped key to prevent inversion, yet bent guides allow incorrect insertion. Verify pin 1 alignment on peripheral cables–pinched wires from improper assembly melt insulation and risk fires.

Overlooking Connector Pin Counts

Mixing 4-pin Molex with 15-pin SATA adapters leads to unstable device operation. Many adapters split a single Molex into dual SATA, but the amperage distribution lacks balance–high-demand drives starve for current. Use native SATA energy leads for SSDs; converters add resistance and reduce efficiency by up to 12%.

Daisy-chaining SATA plugs strains the rail–each connector drops voltage by ~0.1V. A typical PSU rail supports four SATA devices; exceeding this causes ERR_DISK_RESET errors on boot. Install a dedicated SATA expansion card if demands exceed capacity, or redistribute devices across separate rails. Ignoring this risks spontaneous disconnections during heavy loads.

Ignoring Insulation Integrity

Frayed or brittle cable jackets expose conductive elements, bridging traces on PCB edges. Replace damaged leads immediately–exposed copper corrodes or shorts adjacent components. Shielded SATA cables prevent signal interference; unshielded variants corrupt large file transfers at rates exceeding 5%. Test cables with a multimeter before installation; continuity issues manifest as disk read errors.

Bundling peripheral and SATA leads tightly traps heat, degrading plastic insulation over time. Space cables at least 5mm apart; use Velcro ties instead of zip-wraps. Over-tightening wraps constricts conductors, increasing resistance and inductance. Leave slack near moving parts (fans, drives) to prevent stress fractures–vibrations weaken solder joints, causing intermittent energy drops.
