Complete Ford Bronco Starter Solenoid Wiring Guide with Diagram

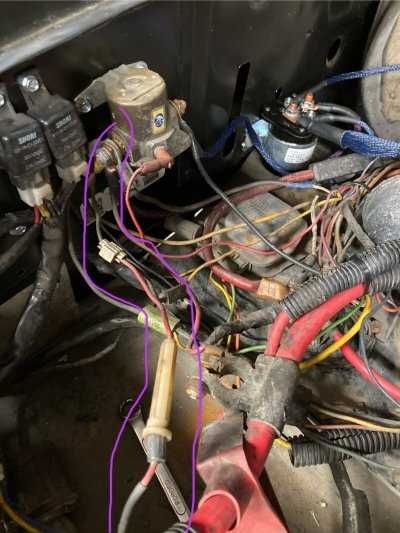

Locate the primary relay near the power distribution block–typically mounted on the inner fender or firewall. This component bridges the ignition switch signal to the engagement coil. Trace the red cable from terminal S (smaller post) to the ignition output; it carries the trigger voltage when the key turns to the crank position. Verify continuity with a multimeter set to 20VDC; expected reading is 9–13 volts during activation.
Examine the M (motor) terminal connection: a thick braided cable links to the drive assembly. This path delivers 200–400 amps under load, demanding a 4-gauge minimum specification. Corrosion on this circuit often causes voltage drop–clean terminals with a wire brush and apply dielectric grease to prevent future resistance buildup.
Identify the grounding strap, usually bolted to the chassis or engine block. Poor grounding mimics solenoid failure; measure resistance between the case and negative battery post–values above 0.2 ohms indicate a faulty connection. Replace the strap if frayed or coated with engine residue.
For auxiliary circuits–like the park-neutral safety switch–follow the thin purple wire to the transmission range sensor. This switch interrupts the S-path when the gear selector is in drive or reverse. Bypass it temporarily with a jumper wire to diagnose no-start conditions; persistent issues point to misaligned transmission adjustments or sensor degradation.
When troubleshooting intermittent engagement, check for voltage spikes on the B+ (battery) terminal during cranking. A failing relay produces erratic readings on an oscilloscope–look for jagged waveforms above 14.5 volts. Swap the relay with a known-good unit (like the horn or AC relay) as a quick isolation test.
Understanding Your Off-Road Vehicle’s Electrical Relay Connections
Begin by locating the main power relay beneath the hood near the battery. The primary cable–typically a thick, red wire–should connect directly to the positive terminal. Use a 12-gauge fuse holder inline with this cable, no more than 18 inches from the battery, to prevent fire hazards. The secondary trigger wire (often yellow or purple) must attach to the ignition switch’s “start” position, ensuring proper engagement when the key turns.
Grounding is critical for reliable operation. Attach a braided ground strap from the relay’s metal housing to the vehicle’s chassis using a bolt no smaller than 10mm. Avoid painted surfaces–scrape the contact area down to bare metal with sandpaper or a wire brush. Poor grounding causes intermittent failures, especially in damp conditions or during high-vibration scenarios like rock crawling.
Key Components and Their Voltage Readings
- Battery terminal: 12.6V (open circuit), 13.8–14.4V (engine running).
- Trigger wire (ignition circuit): 9–12V when key is turned to “start”.
- Main contactor output: 0.2V drop maximum under load (400A test).
- Solenoid coil resistance: 0.5–0.8 ohms (use a multimeter to verify).
For models equipped with a Winch or auxiliary lighting, isolate the relay’s load circuit. Install a dedicated 40A circuit breaker between the battery and relay to prevent overload. The auxiliary circuit should never share a fuse with the primary system–this separates high-current accessories from critical engine functions. Label both circuits clearly to simplify future troubleshooting.
Test procedures require a systematic approach. With the engine off, probe the relay’s supply terminal with a voltmeter while an assistant turns the ignition. A reading below 10V indicates either a weak battery, corroded connections, or a faulty ignition switch. Next, jump the main relay contacts briefly with a screwdriver–if the engine cranks, the issue lies upstream (trigger wire or starter motor). Never bypass safety features like neutral safety switches during diagnostics.
- Disconnect the negative battery cable first when servicing.
- Apply dielectric grease to all electrical connections.
- Tighten terminal bolts to 8–10 Nm of torque.
- Inspect wires for fraying every 12 months or 15,000 miles.
- Avoid routing wires near sharp edges or moving parts.
- Use heat-shrink tubing instead of electrical tape for long-term reliability.
Replacement relays must match the original specifications exactly. Aftermarket units rated below 300A will fail prematurely under load. Verify compatibility by checking the part number against the manufacturer’s data sheet–common OEM identifiers include “F5TZ-11350-A” or “XL3Z-11350-AA.” When reinstalling, align the relay’s orientation with the factory mounting position to ensure proper heat dissipation and vibration resistance.
Pinpointing the Right Connector Posts on Your Off-Roader’s Relay Switch
Locate the battery feed post–this is the thicker stud closest to the mounting bracket, typically marked “B” or left unlabeled. It accepts the heavy-gauge cable from the positive terminal; verify with a multimeter–healthy voltage reads 12.6V at rest. Adjacent sits the “S” (start switch) terminal, a smaller-diameter post delivering 8-10 volts during cranking; any deviation signals trigger circuit corrosion or loose connectors. The motor lead post sits opposite, stamped “M” or housing a single thin wire–this routes high-current directly to the drive assembly when engaged.
Label discrepancies persist across model years: ‘78–‘86 variants confuse novice mechanics by swapping “S” and “I” markings–ignore “I” entirely, as it denotes ignition bypass circuitry irrelevant to crank activation. Use heat-shrink tubing to insulate spade connectors on the control circuit; corrosion here mimics failed engagement, yet a 9V battery test across “S” and ground confirms integrity within seconds–clicking absent voltage demands relay replacement, not rewiring.
Detailed Procedure for Diagnosing the Relay Control Pathway in Early Off-Road Vehicles
Locate the primary relay module under the dashboard on the driver’s side–match the color-coded harness pins to the reference schematic for your model year. Pin B typically carries the activation signal from the ignition switch, while Pin S connects to the magnetic switch terminals.
Disconnect the battery negative terminal before probing any circuits to prevent accidental shorting of high-current pathways. Use a multimeter set to continuity mode to verify the integrity of the ignition switch output at Pin B when turning the key to the crank position. Expected voltage: 10.5–12.6V.
| Component | Pin Identifier | Expected State (Crank) |
|---|---|---|
| Ignition switch | B | Active signal |
| Relay coil | S | Ground return |
| High-current contacts | 30 & 87 | Closed circuit |
Trace the wire loom from the relay socket to the magnetic actuator–look for chafing near the firewall grommet where the harness exits the cabin. Resistance above 0.5 ohms indicates corrosion or damaged strands requiring replacement.
Check the ground connection at the engine block mounting point with a test light; clip the alligator lead to the positive terminal, touch the probe to the ground stud, and observe illumination. If faint, clean the contact surface and re-secure with a star washer.
With the key held in crank, measure voltage drop across the high-current contacts (Pins 30 and 87)–less than 0.2V confirms clean contact. If higher, disassemble the relay and polish the contact surfaces with 1000-grit sandpaper.
Inspect the wire gauge on the battery feed (minimum 4 AWG) for signs of heat damage at crimp connections. Replace any undersized or discolored segments with tinned copper wire of identical gauge.
Reassemble all connections, then apply dielectric grease to each terminal before torquing to manufacturer specifications (8–12 ft-lbs for stud terminals). Reconnect the battery and test operation; if the actuator clicks but the engine does not rotate, verify the plunger engagement within the magnetic assembly.
Typical Electrical Problems and Diagnostics in Off-Road Vehicle Cranking Systems
Inspect the battery terminals first if the engine fails to crank or clicks repeatedly without engaging. Corrosion or loose connections often cause voltage drops–clean terminals with a wire brush and retighten clamps to ensure a secure, low-resistance path. Use a multimeter to verify battery voltage: readings below 12.4V at rest indicate a weak or failing cell, while 9.6V or lower under load (during cranking) confirms insufficient power delivery. Replace the battery if capacity tests reveal less than 70% of original rating.
Test the control circuit by bypassing the ignition switch temporarily. Connect a jumper wire from the battery’s positive terminal to the small terminal on the relay or switching mechanism–if the engine turns over, the issue lies in the ignition switch, fuses, or wiring harness. Check for continuity in the harness using a test light or multimeter; broken or shorted wires often hide beneath protective sleeves near the firewall or under the dashboard. Repair or replace damaged sections with heat-shrink tubing to prevent future moisture intrusion.
Key Symptoms and Solutions
- Single click, no crank: Verify relay function by swapping with a known-good unit of identical rating (typically 30-40A). If the problem persists, jump the relay socket terminals to isolate whether the issue is in the relay or downstream components.
- Slow cranking: Measure voltage at the motor’s main terminal while attempting to start–readings below 9.5V suggest excessive resistance in cables, poor connections, or a failing battery. Upgrade to 4-gauge cables if voltage loss exceeds 0.5V between battery and motor.
- Intermittent engagement: Tap the relay housing lightly with a screwdriver handle while turning the key; if the motor responds, the relay contacts are likely pitted or worn. Disassemble and clean contacts with fine-grit sandpaper, or replace the relay entirely.
Examine ground paths next. A faulty ground strap between the engine block and chassis can mimic other electrical failures–remove paint and rust from contact surfaces, then secure the strap with star washers to ensure a solid connection. For persistent issues, add a secondary 4-gauge ground cable directly from the battery negative terminal to the transmission case. Document all changes with photos or notes to avoid misdiagnosis during future troubleshooting.
