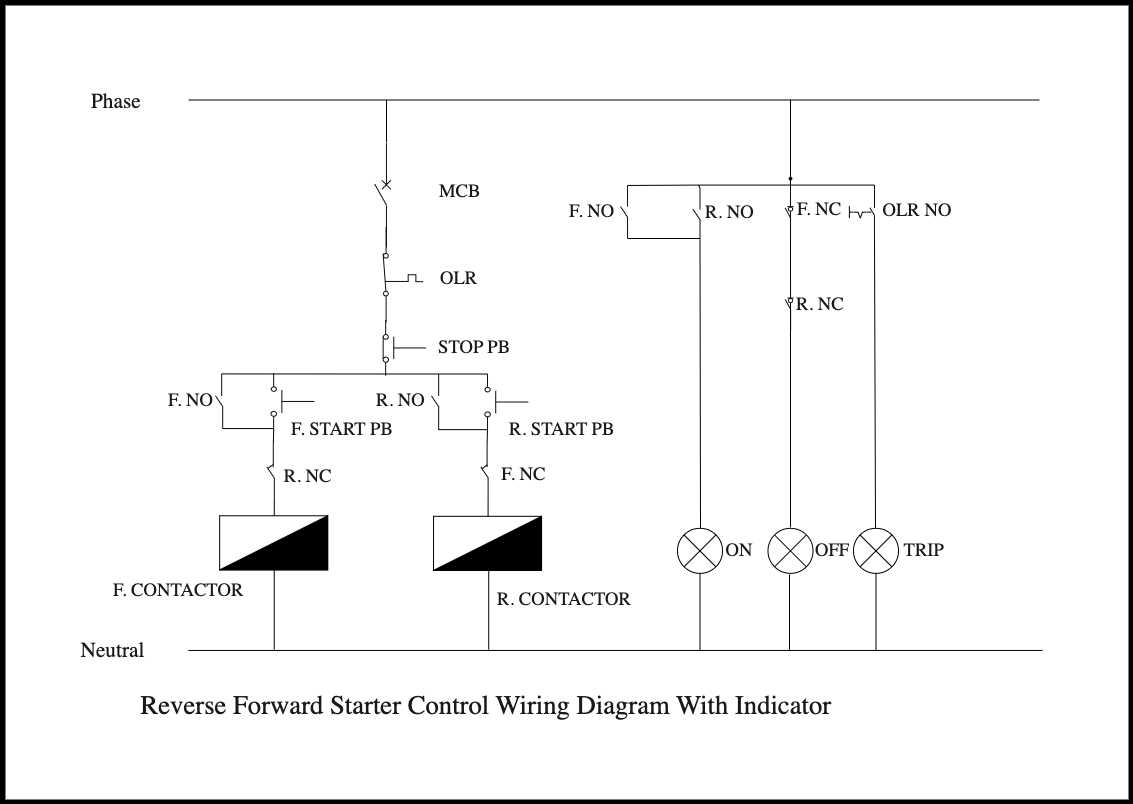

Understanding Forward and Reverse Circuit Diagrams for Engineering Design
Start by isolating key components in your circuit layout. Identify power sources, signal paths, and load elements–label each with precise voltage, current, or resistance values. For switching applications, map both conductive states (on and off) separately. Use standardized symbols: IEC 60617 for global clarity, IEEE 315 for North American compliance. A 0.5 mm trace width suffices for 1A currents, but increase to 1.5 mm for 3A or higher to prevent overheating.
Verify polarity and ground connections before finalizing. Misaligned grounds create unexpected feedback loops, especially in dual-supply systems (±5V or ±12V). For microcontroller-driven designs, incorporate decoupling capacitors (0.1 µF ceramic) within 2 cm of each IC power pin to filter noise. Add a bulk capacitor (10 µF electrolytic) at the power entry point to stabilize transient demands.
Test path reversibility by tracing signals backward from output to input. Replace ambiguous connections with diodes (1N4007 for general-purpose) to enforce unidirectional flow where needed. For motor drivers, include flyback diodes (Schottky types like 1N5819) across inductive loads to clamp voltage spikes during state transitions.
Document every constraint: trace clearances (10 mil minimum for home etching), component footprints (imperial vs. metric), and thermal pads for high-power devices. Annotate netlists with reference designators (R1, C2, U3) and functional labels (VCC, GND, CTRL) for future debugging. Export Gerber files with a 1:1 scale preview to catch scaling errors.
Bidirectional Circuit Layouts: Key Implementation Steps
Start by selecting a dual-control relay or H-bridge module rated for at least 20% above your load’s peak current. For DC motors under 12V, opt for ICs like L298N (2A per channel) or TB6612FNG (1.2A continuous), as they include built-in flyback diodes–eliminating the need for external suppression. AC systems require solid-state relays (SSR) with zero-crossing detection; Omron G3MB-202P handles 2A at 240V, but verify snubber circuit placement if switching inductive loads. Always pair relays with MOVs or RC snubbers sized per the device’s surge rating: 1.5x the line voltage for MOVs, 100nF + 100Ω for RC networks.

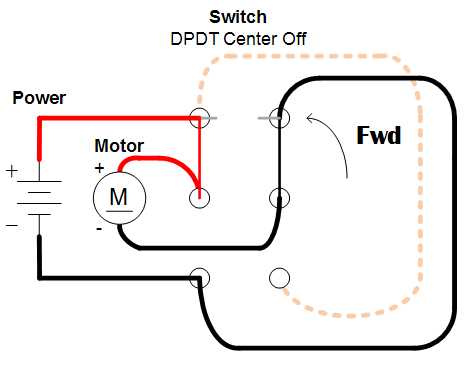

- Wire direction switches using a DPDT configuration–center-off for safety–to prevent short circuits. Label terminals clearly: “A1/A2” for left movement, “B1/B2” for right, and “COM” for common.
- For microcontroller-driven setups, isolate low-voltage logic (3.3V/5V) from high-power sections using optocouplers (e.g., PC817) or gate drivers (IR2104 for MOSFETs). Add 10kΩ pull-down resistors to floating inputs.
- Include a thermal cutout (e.g., bimetallic switch) if continuous operation exceeds 70% of the device’s current rating, mounted within 10mm of heat-generating components.
Critical Safety Checks Before Power-Up
Measure resistance between all output terminals and ground with a multimeter; values below 1MΩ indicate leakage paths–recheck solder joints or PCB traces. For brushed motors, confirm brushes are seated properly; misalignment causes arcing and reduces reversing efficiency by up to 30%. Test the circuit at 50% of the target voltage first, observing for unexpected heating or noise. If using PWM for speed control, limit frequency to 2-5kHz to avoid relay chatter; filter cap values should match the inductance (L) of the load: C = 1/(2πf √(L)).
Building Bidirectional Motor Control with Relay Logic
Select SPST relays rated 30% above motor surge current; for a 5A DC motor, use 10A relays. Wire coil voltage to match control voltage (e.g., 12V relays for 12V systems).
Connect two relays in crossed arrangement: one relay’s NC contact to the motor’s positive terminal, its NO contact to negative, and vice versa for the second relay. This ensures opposing paths when energized.
Use a DPDT switch or H-bridge logic gates to simultaneously activate only one relay at a time. Prevent cross-conduction by adding 10ms delay in control signals or interlocking relay coils with diodes.
Add flyback diodes across relay coils (e.g., 1N4007) and a snubber circuit (0.1µF capacitor + 47Ω resistor) across motor terminals to suppress voltage spikes. For AC motors, use RC snubbers (0.22µF + 100Ω).
Fault Prevention
Incorporate thermal overload protection: place a bimetallic switch in series with the input power, calibrated to 120% of motor FLA. For precision, use a PTC fuse on the motor winding.
Test continuity between opposing relay contacts before powering on; resistance should exceed 10MΩ. Verify control signals with a scope: relay activation pulses must not overlap, even transiently. Use 1kΩ pull-down resistors on control inputs to avoid floating states.
For 3-phase motors, expand to three relays per direction and add phase sequence monitoring via optical isolators or Hall-effect sensors. Keep wiring runs under 50cm between relays and motor to minimize inductive noise.
Creating a Bidirectional Control Circuit Layout in KiCad
Launch KiCad’s Eeschema editor and immediately place the primary components: two SPDT relays (e.g., Relay_SPDT_THT from the Relay_SPDT library) at coordinates X=100mm, Y=150mm and X=100mm, Y=80mm. Align a motor symbol (search Device:Motor_DC) between them at X=200mm, Y=120mm. Connect the motor’s terminals to the common pins of both relays using 5mm-wide traces labeled Load_A and Load_B. Avoid crossing lines by routing traces vertically first, then horizontally.
- Assign power rails: draw a VCC line at the top (Y=200mm) and a GND bus at the bottom (Y=50mm). Use the Power:VCC and Power:GND symbols.
- Add limit switches (search Switch:SW_SPST) at X=30mm, Y=180mm and X=30mm, Y=60mm. Wire their NO contacts to the relay coils.
- Place a 3-position selector (Switch:SW_3PDT) at X=50mm, Y=120mm to toggle direction. Label the center pin OFF, the upper pin FWD, and the lower pin REV.
For coil activation paths, route traces from the selector’s outer pins to the relay coils with 0.5mm clearance from other nets. Insert flyback diodes (Device:D) across each coil, anode to GND, cathode to VCC. Use the Annotate Schematic tool (F hotkey) to auto-assign reference designators–verify numbering starts with K1 for relays and S1 for switches. Run Electrical Rules Check (ERC) to catch floating pins; ignore warnings for unconnected relay NC pins if unused.
- Export the netlist via File > Export > Netlist, selecting KiCad PCB format.
- In Pcbnew, import the netlist (F8) and arrange footprints manually–relays require 30mm spacing for screw terminals.
- Set trace widths: VCC=2mm, signal=0.3mm. Draw copper pours for GND on the back layer (B.Cu) with 3mm clearance.
- Generate Gerbers (File > Plot) with:
- Gerber format, layers F.Cu, B.Cu, F.SilkS, B.SilkS, F.Mask, B.Mask, Edge.Cuts
- Enable Include drill files and UseExtendedX2format

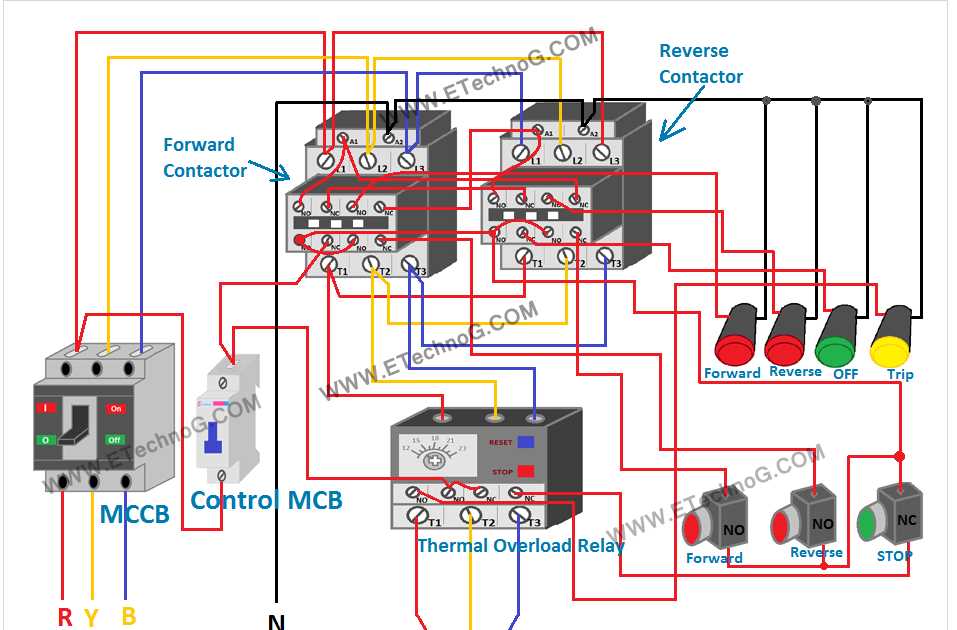

Common Errors in Dual-Direction Control Circuit Wiring and Prevention
Mislabeling terminal connections causes unintended operation cycles or damage. Verify wire destinations against the manufacturer’s datasheet before crimping: L1 must pair with motor input A, L2 with B, and grounding points secured to chassis or neutral busbar. Apply a multimeter continuity test between switch contacts and motor terminals at 0V position to confirm isolation, ensuring no accidental cross-connections remain.
Typical Incorrect Practices and Corrections
| Error | Consequence | Corrective Measure |
|---|---|---|
| Omitting auxiliary contact interlocks | Simultaneous energization of opposing relays creates a short circuit across phases | Install NC auxiliary contacts rated for the full motor current on each relay output; physically interlink them mechanically if electrical interlocking is absent |
| Ignoring motor thermal protection | Overcurrent from rapid direction changes triggers burnout in windings | Insert a bimetallic overload relay with trip class 10 or 20 into the main supply bus; calibrate trip threshold to 120% of FLA |
| Reversing phase sequence mid-cycle | Violent torque spikes shear couplings or break shafts | Employ a solid-state timer module set to 2-3 seconds pause between ON and OFF commands, ensuring zero-speed crossing before switching direction |
| Connecting capacitor start-induction run motors directly | Phase shift distortion inverts centrifugal switch timing, preventing disengagement | Use a separate start relay triggered only during initial ramp-up; bypass switch must open before 75% synchronous speed |
Over-tightening switch terminal screws damages conductor strands, increasing contact resistance. Torque to 1.5 Nm for 18-22 AWG copper wires; use ring terminals for stranded conductors thicker than 16 AWG. When testing, operate the toggle or pushbutton through five full cycles at 60% load to seat contacts evenly and expel oxidation oxides formed during storage.
Determining Power Specifications for Bidirectional Control Circuit Elements
Begin by identifying the motor’s locked-rotor current from its datasheet–this value defines the minimum current handling capacity required for switching devices like relays or contactors. Multiply this figure by 1.5× to 2× to accommodate transient spikes during direction changes, especially in inductive loads. For example, a 5A motor demands at least 7.5A–10A rated components to prevent overheating or premature failure.
Voltage ratings for switching elements must exceed the supply voltage by 25%–30% to account for back-EMF generated during deceleration. If operating at 24V DC, select components rated for 30V or higher. For AC systems, choose Snubber circuits across relay coils if the supply exceeds 48V to suppress voltage spikes that can degrade insulation over time.
Trace the current path through each branch of the circuit–power lines, control coils, and auxiliary contacts all demand separate sizing. A common oversight involves neglecting the control voltage path; 24V relay coils pulling 100mA require wiring and fuse ratings based on this value, not just the motor’s high-current lines. Use AWG 18 or thicker for coil circuits if wire runs exceed 2 meters to limit voltage drop.
Fuses or circuit breakers protecting the main power path should trip at 110%–130% of the motor’s full-load current. For a 10A motor, a 12A–13A fuse provides adequate protection without nuisance tripping. For control circuits, fuse values as low as 200mA–500mA are sufficient, but ensure these are time-delay types to survive short-duration inrush currents during startup.
Thermal considerations dictate device selection: relays with silver-cadmium oxide contacts tolerate higher inrush currents but may require heat sinks if switching frequencies exceed 6 cycles per minute. Solid-state devices like MOSFETs demand derating curves–select a 60A device for a 30A application if operating above 60°C ambient temperature, as junction temperatures must stay below 125°C.
Test under worst-case conditions–full load with rapid directional changes–to verify component ratings before finalizing the design. Oscilloscope readings should confirm that voltage spikes remain below the breakdown voltage of semiconductors (e.g., 60V for a 48V system) and that current waveforms don’t exhibit prolonged overshoot beyond 10% of steady-state values.
Document all calculations and component specifications in a reference table: motor current, coil current, fuse ratings, relay contact ratings, and wire gauges. Include margin values (e.g., “20% headroom”) to simplify future modifications or troubleshooting without re-deriving each parameter.
