Complete Guide to Connecting 4-Way Trailer Electrical Wiring
Start by verifying the voltage output from your tow vehicle’s connector. Most standard setups use 12V DC, but mismatches in power supply can burn out bulbs or blow fuses. Use a multimeter to confirm live feeds–ground (-), tail lamps (brown), left turn/brake (yellow), and right turn/brake (green). Label each wire before cutting to avoid confusion.
Mount the socket at a protected location, away from sharp edges or moving parts. Secure it with corrosion-resistant bolts or rivets. Avoid stretching wires–leave 6-8 inches of slack to accommodate trailer movement. Solder splices only if you’re working in a moisture-free environment; otherwise, crimp connectors with a heat-shrink sleeve provide better protection against vibration and road spray.
Route cables through a corrugated conduit or split loom tubing to prevent chafing. Clamp them every 12-18 inches using plastic zip ties or automotive-grade clips. Ground the circuit directly to the frame, not through hinges or painted surfaces–paint is an insulator. Test each function (turn signals, running lights) before finalizing the installation; a quick probe with a test light saves hours of tracing faults later.

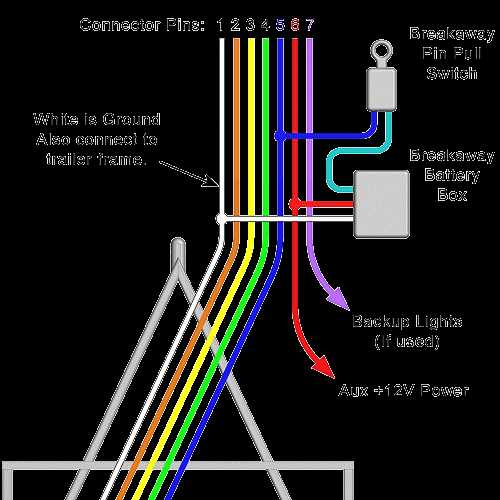

For reverse lights, some adapters include a dedicated pin (white with purple stripe). If your design lacks this, omit it–backing sensors or parking cameras are more reliable. Always fuse the circuit within 7 inches of the power source to protect against short circuits. Check local regulations; certain jurisdictions mandate minimum wire gauge (usually 16 AWG) for safety compliance.

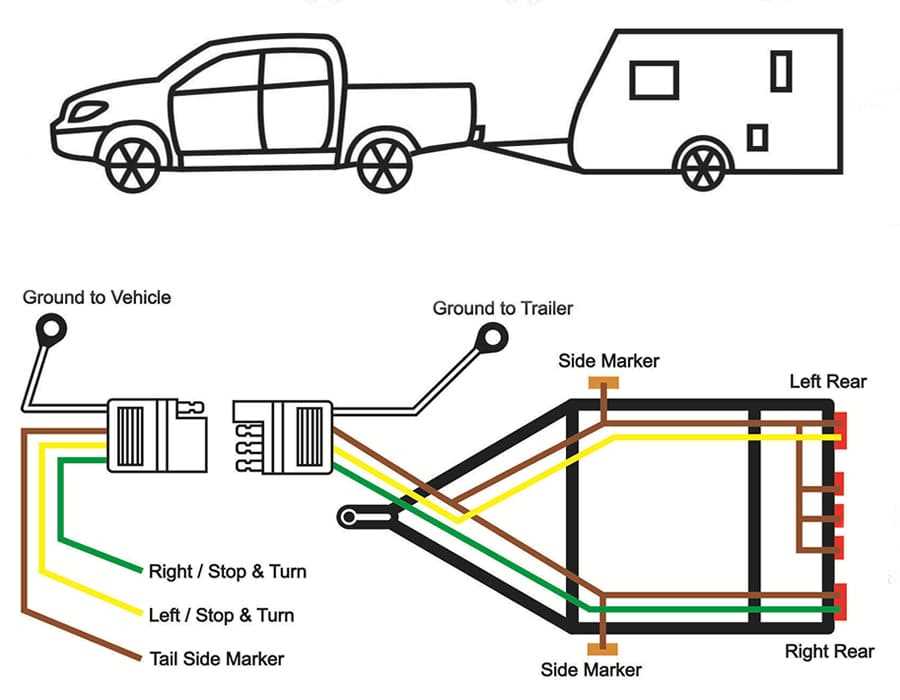

Electrical Connection Guide for Light-Duty Towing
Begin by verifying the pin configuration on your vehicle’s harness matches the standard U.S. flat-pattern layout: white for ground, brown for running lights, yellow for left turn/brake, and green for right turn/brake. Use a multimeter to test each pin’s voltage–ground should register 0V, while active circuits should show 12V when engaged. Avoid splicing wires directly to the tow vehicle’s harness; instead, connect via a 4-pin plug-and-play adapter to prevent voltage drop and ensure compliance with SAE J560 standards.
Test connections under load: Hook up the towed unit and activate each function–brake lights, turn signals, and marker lamps–while another person observes from behind. Flickering or dim illumination indicates a poor ground or corroded terminals; clean contact surfaces with a wire brush and apply dielectric grease. For trailers exceeding 2,000 lbs, add a separate fused circuit for auxiliary lighting to prevent overloading the existing system.
Troubleshooting Faulty Circuits
Isolate issues by disconnecting the harness and probing the pins individually–if a function fails on the tow vehicle but works on the trailer, the problem lies in the adapter or cable. Replace damaged wires with 18-gauge stranded copper rated for outdoor use; cheaper alternatives corrode within months. For persistent signal interference, install a 3-amp diode kit inline with the turn/brake circuit to eliminate feedback loops.

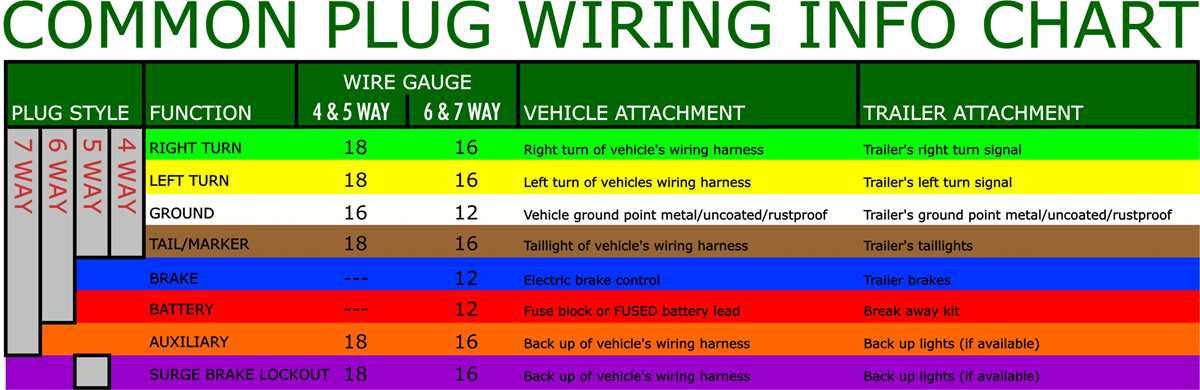

Standard Vehicle-to-Tow Connection Color Codes
Always match the connector pinout to the SAE J560 standard for reliability. Brown (tail lamps/RV marker lights), yellow (left turn/brake), green (right turn/brake), and white (ground) form the minimal setup. Verify voltage at each pin with a multimeter before connecting loads–12V nominal, dropping no more than 0.5V under load.

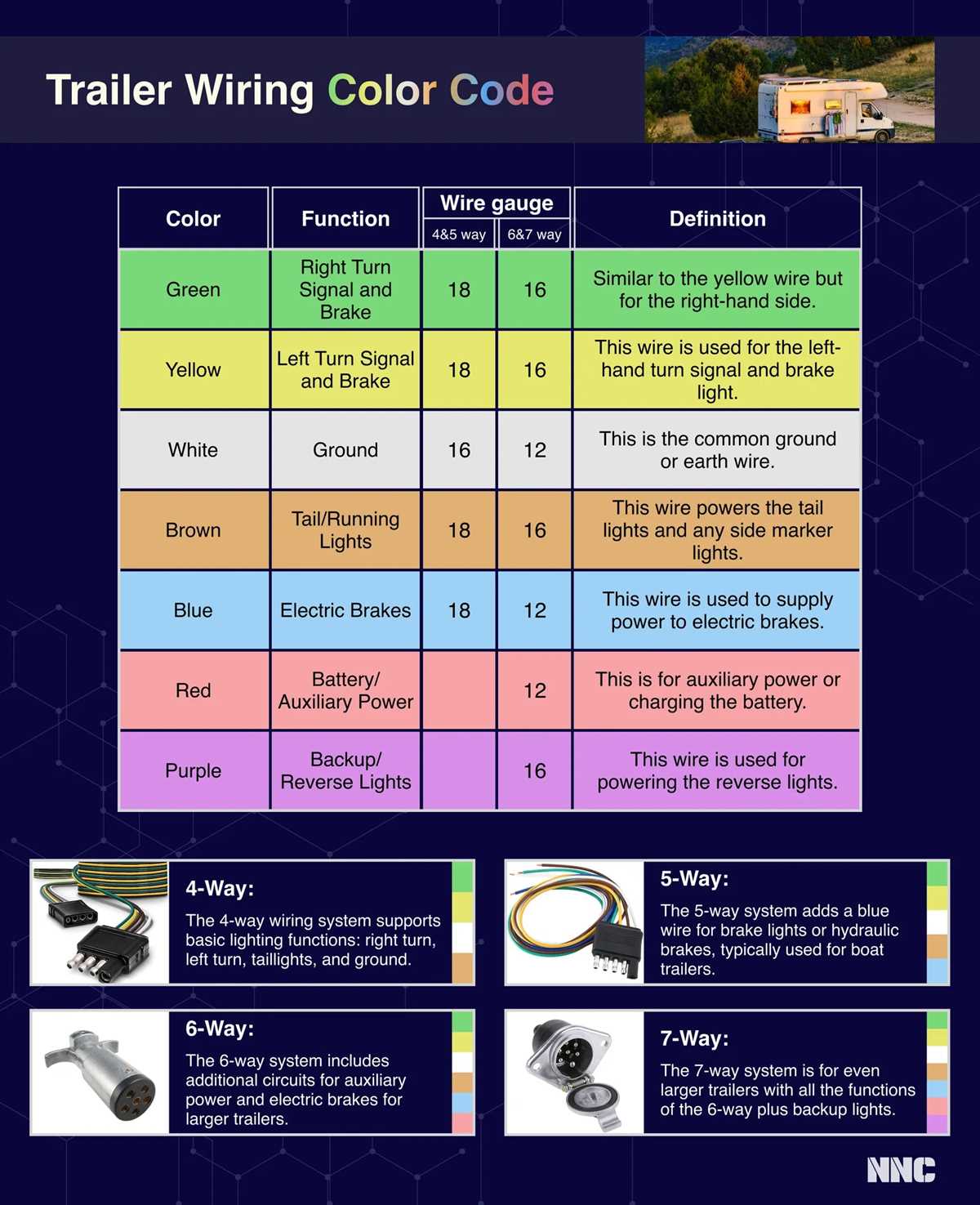

| Wire Color | Function | Pin # (Flat) |
|---|---|---|
| White | Ground | 1 |
| Brown | Running lamps | 2 |
| Yellow | Left stop/turn | 3 |
| Green | Right stop/turn | 4 |
Cross-check insulation integrity: crack-resistant PVC (SAE J1128) rated for 600V min. Splice only with crimp connectors (heat-shrink type) or solder + adhesive-lined tubing–twist-and-tape splices degrade within 12–18 months under vibration. For LED aftermarket loads, confirm draw ≤1.5A per leg to prevent controller damage.

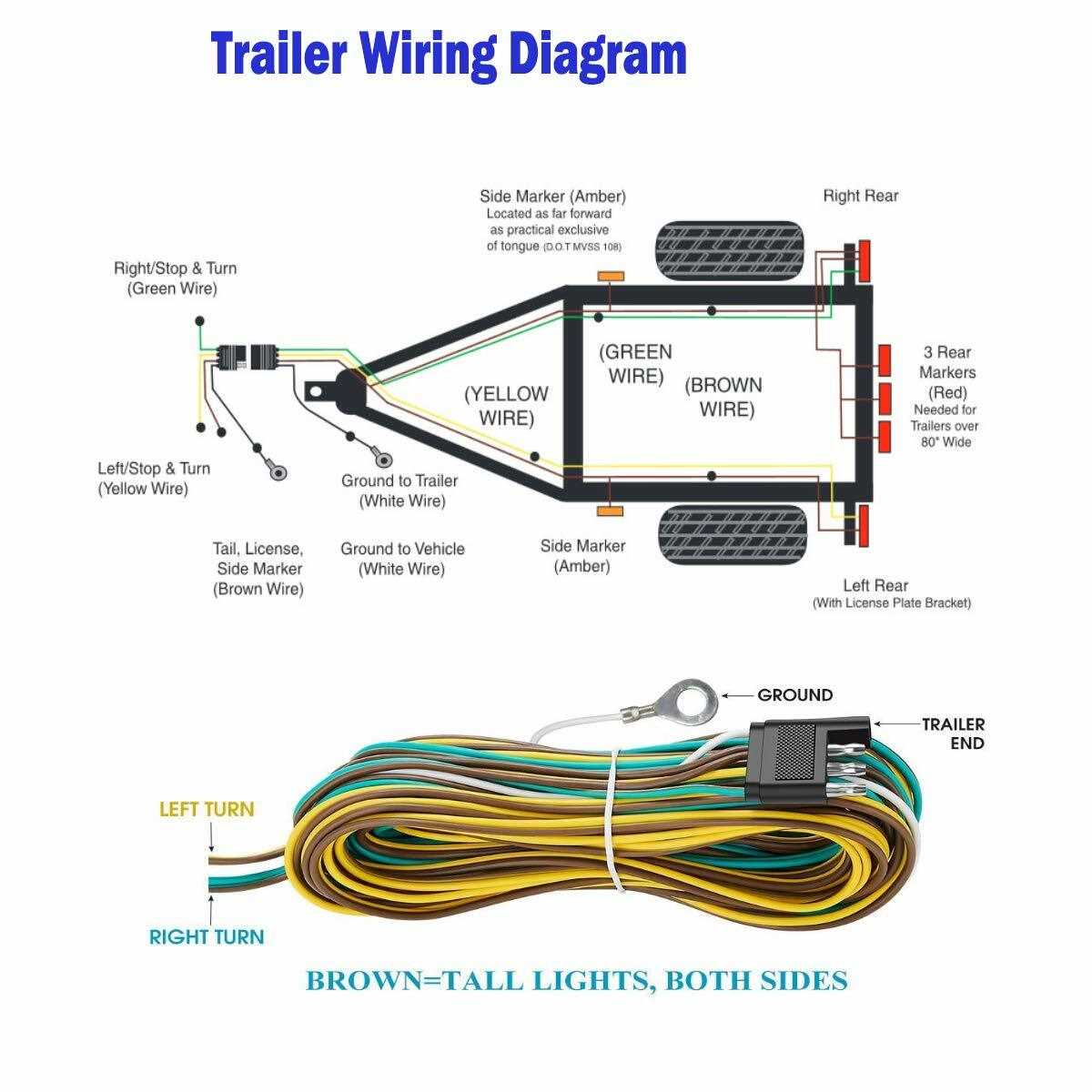

How to Install an Electrical Connector for Light Vehicles: A Practical Walkthrough

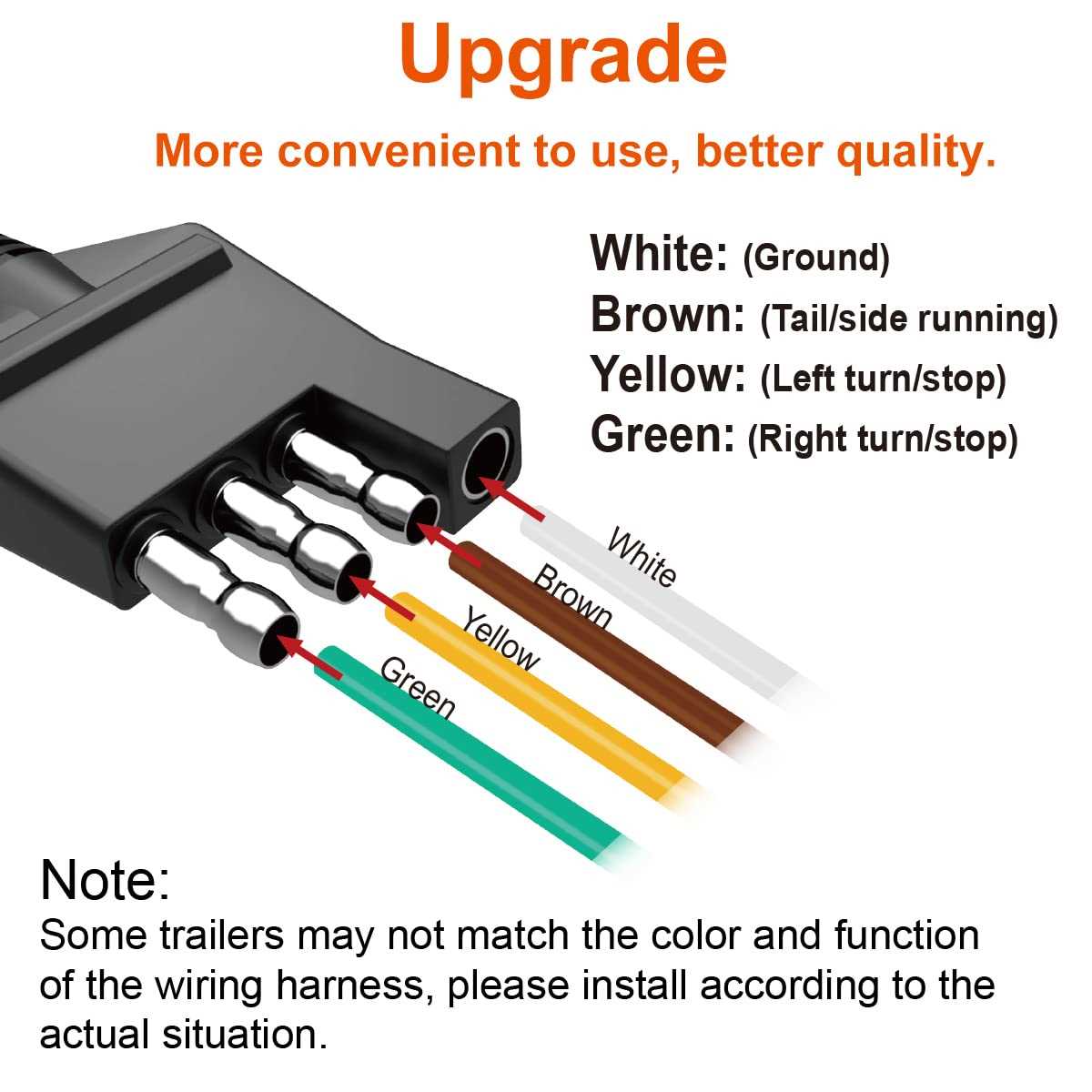

Begin by verifying the pinout of your vehicle’s harness matches the plug’s configuration. Most towing setups use a standard layout: yellow for left turn/brake, green for right turn/brake, brown for tail/running lights, and white for ground. Cross-check this against your plug’s documentation to avoid mismatches.
Strip the insulation from each wire on the connector’s pigtail, exposing approximately 5mm of copper. Use wire strippers calibrated for the gauge–typically 16-18 AWG for these applications–to prevent damaging strands. Twist the exposed ends tightly to prevent fraying.
Slide a piece of heat-shrink tubing onto each wire before making connections. This adds strain relief and insulation. Crimp each wire to its corresponding vehicle lead using butt connectors sized for the gauge. Apply firm pressure with crimping pliers to ensure a secure mechanical bond.
Solder the connections for added durability, especially if the setup will face frequent vibrations. Heat the joint evenly, allowing the solder to wick into the strands without creating excess buildup. Let each joint cool before handling to avoid weakening the bond.
Slide the heat-shrink tubing over each crimped and soldered joint, positioning it to cover the entire connection plus 3-5mm of the insulated wire. Apply heat evenly with a heat gun until the tubing contracts snugly. Avoid overheating, which can damage insulation.
Route the harness along the vehicle’s frame or existing wire loom, securing it with zip ties every 20-30cm. Keep the ground wire (white) as short as possible and attach it directly to a clean, unpainted metal surface on the chassis using a ring terminal and a self-tapping screw.
Test each function with a multimeter before connecting the plug. Set the meter to DC voltage and probe the pins while activating the vehicle’s lights, brakes, and turn signals. Confirm 12-14V is present on the correct circuits. For brake/turn signals, verify voltage drops to zero when the pedal or lever is released.
Reconnect the plug and perform a final system check with the light bar or mounted fixture. Ensure all lights illuminate correctly and no circuits are cross-feeding. If flickering occurs, re-examine the ground connection or check for corroded terminals. Seal any exposed wiring with dielectric grease before final assembly.
Solving Signal Problems in Light Vehicle Electrical Hookups
Check for corroded connectors first–disconnect the harness, inspect pins, and clean with a wire brush if oxidation is present. Replace any terminals showing green or white buildup, as even minor corrosion can disrupt ground or signal paths. Use dielectric grease after cleaning to prevent future issues.
Test each circuit with a multimeter before assuming component failure. Set the meter to DC voltage (20V range) and measure across the tow vehicle’s socket with the corresponding light activated–brake lights should read ~12V, turn signals ~12V pulsing (60-120 cycles per minute). If readings are absent or erratic, trace the lead back to the fuse box or flasher relay, depending on the vehicle’s age (pre-2000 models often use mechanical flashers, while newer ones rely on integrated modules).
- No brake light output? Verify the brake switch output with the pedal pressed–some vehicles share this circuit with rear running lights.
- Dim or flickering lights? Swap bulbs to rule out filament failure, then check for voltage drop across the ground wire (max 0.5V allowed).
- Turn signals cancel prematurely? Test the tow vehicle’s hazard switch–some ECUs misinterpret rapid on-off cycles as a fault.
- Intermittent failures? Wiggle test the harness while monitoring signals; cracked insulation or loose sockets often cause sporadic losses.
For vehicles with factory tow packages, consult the owner’s manual for pinout specifications–some European models reverse the left/right turn signal assignments. Adapter harnesses marked “universal” may not match; verify against a wiring standard chart (SAE J560 or ISO 1724) before use.
Essential Gear for Fitting a Vehicle-To-Hitch Plug
Grab 14-16 AWG stranded copper wire–never solid core–rated for at least 300V and 105°C. Strip ½ inch insulation with ratcheting crimpers (Klein Tools J203-8N or equivalent) to avoid nicking conductors. Use heat-shrink double-wall tubing (3:1 ratio) with adhesive lining–avoid electrical tape–since moisture creeps into even taped splices within 12-18 months. A multimeter (Fluke 115 or similar) with a low-ohm setting (≤1Ω) confirms continuity before final connections; set it to 200mV DC to detect phantom currents that trigger false signals in reverse circuits.
Keep wire brushes, dielectric grease, and a torque screwdriver (wiha 72015) set to 5-7 in-lbs–over-tightening splits brass terminals. For stubborn factory harnesses, a circuit tester with probes under 0.8mm (like the Klein NCVT-3) avoids damaging pin terminal plating. Snap-on 8MMFLEX or similar flex-head screwdrivers access recessed mounting points without stripping threads.
