Practical Guide to Creating FPGA Circuit Diagrams for Hardware Design

Start with a schematic editor that supports HDL integration. Tools like Xilinx Vivado or Intel Quartus Prime offer built-in layout generators–use them to avoid manual netlist errors. Define I/O pins first, grouping high-speed signals (DDR, PCIe, SERDES) near dedicated transceivers. Separate analog and digital ground planes early to prevent noise coupling. If working with mixed-signal designs, isolate sensitive traces (e.g., ADC inputs) with guard rings connected to a clean ground reference.

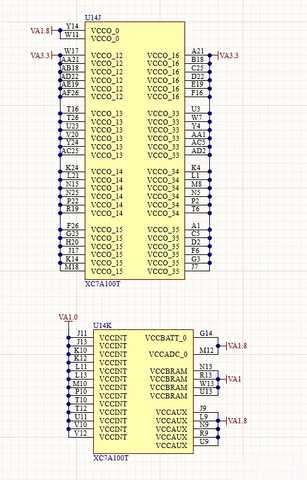

For power distribution, calculate current demands per voltage rail (V_CCINT, V_CCAUX, V_CCO). Use wide, short traces for high-current paths (minimum 20 mils per ampere) and add decoupling capacitors (100nF + 10µF bulk) near every power pin pair. Place series termination resistors (22–50Ω) close to output drivers to minimize reflections. Verify impedance with a calculator–differential pairs (LVDS, MIPI) require 100Ω ±10% matching, single-ended traces (GPIO, clocks) should target 50Ω.

Clock routing requires strict isolation. Route global clocks (CLK0, CLK1) on dedicated layers with minimal vias. Use length-matching for synchronous signals (±10 mils tolerance) and avoid routing clocks near noisy nets (switching regulators, high-current traces). For PLLs, include a dedicated analog power rail (V_CCAUX) with separate filtering. Add test points for oscilloscope probing at key nodes: PLL outputs, reference clocks, and high-speed transceiver lanes.

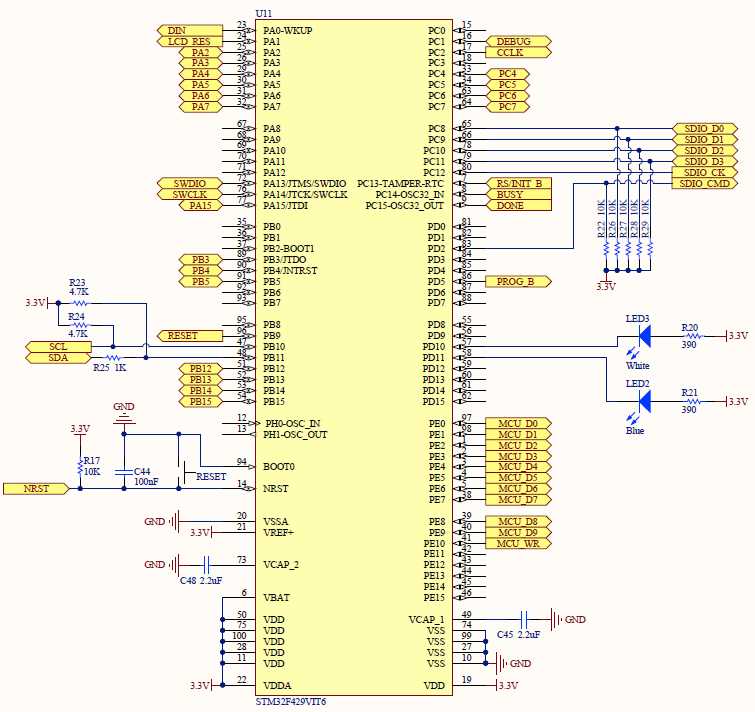

Dedicate a layer to configuration signals (PROGRAM_B, INIT_B, DONE). These must be pulled high (3.3V via 4.7kΩ) unless the design uses active configuration circuits. For multi-die assemblies, stagger the PROGRAM_B pins to avoid simultaneous startups. Route configuration interfaces (JTAG, SPI) with pull-ups/pulldowns as per vendor guidelines–Spartan-7 and Artix-7 families have strict requirements for CCLK and MOSI signal integrity.

Label every net with descriptive names–avoid defaults like net1 or signal_0. Use a consistent naming convention: p_ for differential pairs, clk_ for clocks, rst_ for resets. Export the netlist in both EDIF and Verilog formats for cross-verification. Before fabrication, run DRC checks for: missing vias, unconnected pins, overlapping polygons, and clearance violations (minimum 8 mils for most processes). For BGA packages, ensure via-in-pad designs follow IPC-7095 standards to prevent solder bridging.

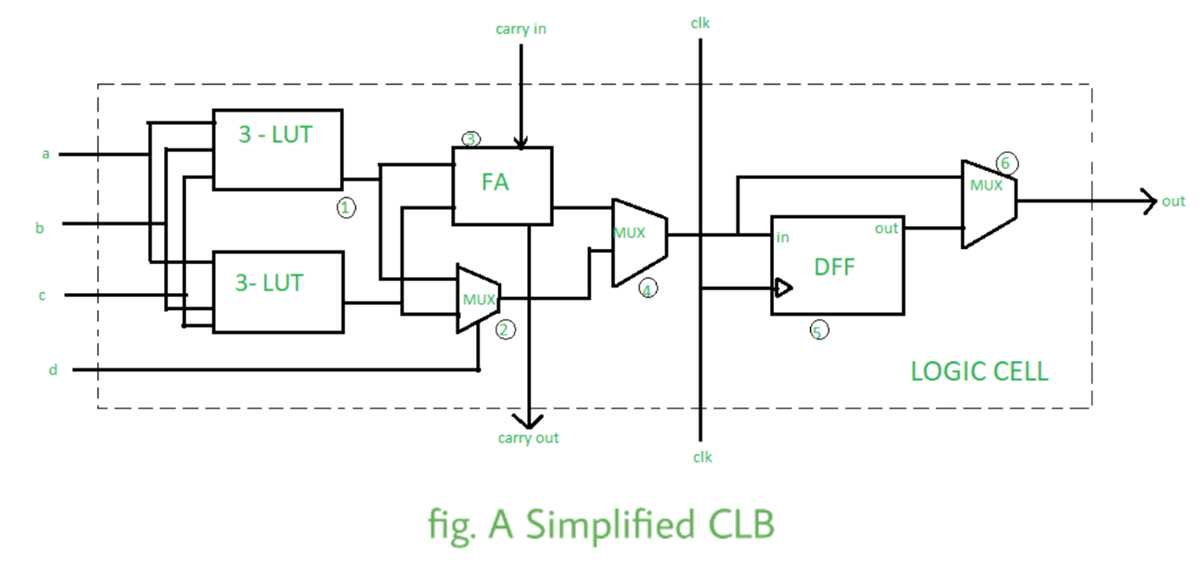

Building a Reconfigurable Logic Design: Key Schematics Steps

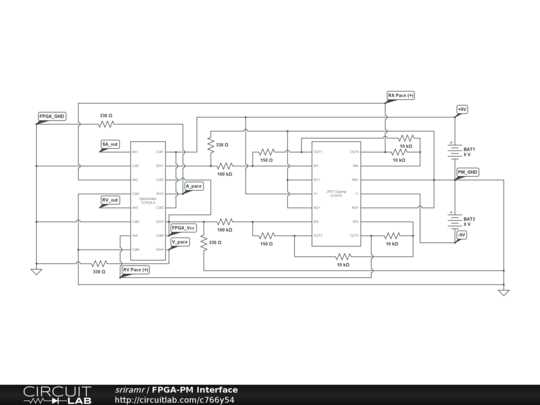

Begin by splitting your project into functional blocks. Assign each block a dedicated section on the board layout. For instance, separate clock management (PLL/DCM), I/O interfaces (SERDES, GPIO), and core processing logic. Use schematic capture tools like Altium Designer or KiCad to ensure net labels match across sheets–mismatches here cause unrouted traces during PCB implementation. Prioritize power rail distribution: dedicate separate planes for core voltage (e.g., 1.0V at 2A) and I/O voltage (e.g., 3.3V at 0.5A). Include decoupling capacitors (0.1µF X7R) on every power pin; distance from pin to cap should not exceed 10mm.

Clock signals require isolated routing. Use controlled impedance traces (50Ω) for single-ended clocks and differential pairs (100Ω) for LVDS. Keep clock traces at least 3x wider than signal traces to reduce crosstalk. Place termination resistors (33Ω for single-ended, 100Ω differential) close to the receiving pin. Avoid vias on clock nets–vias introduce inductance, degrading signal integrity at frequencies above 100MHz. Test clock jitter early: target

Interface connectors demand strict pinout discipline. Below is a reference for common high-speed interfaces:

Interface	Pin Pitch (mm)	Signal Pairs	Suggested Connector
PCIe x4	0.8	4 (Tx/Rx)	Samtec Edge Rate
Gigabit Ethernet	1.27	2 (MDI)	TE Connectivity 5-87439
HDMI 2.0	0.5	4 (TMDS) + 1 (CEC)	Molex 045558

Power-on reset circuits must activate only after all voltage rails stabilize. Use a supervisor IC (e.g., TPS3820) with a delay capacitor (1µF) to hold reset low for at least 20ms. For JTAG debugging, route the 4-wire interface (TDI, TDO, TMS, TCK) to a 0.1″ header. Add pull-up resistors (4.7kΩ) to prevent floating inputs. Keep JTAG traces

Test points should be added to critical nets. Place vias (0.5mm diameter) on nets carrying signals >1MHz for oscilloscope probing. Use thermal reliefs only on low-current power nets–solid connections are better for high-current paths (e.g., core voltage). Document trace widths: 0.2mm for signals, 0.5mm for power. Before fabrication, run ERC checks to flag unconnected pins or shorted nets. Use a DFM tool to verify trace-to-pad spacing ≥0.15mm. Export Gerber files with embedded aperture definitions to prevent fabrication errors.

Critical Elements for a Programmable Logic Board Design Layout

Prioritize power distribution networks with dedicated planes for core and I/O banks. Include decoupling capacitors (0.1μF–1μF) adjacent to every VCC/GND pair, with bulk capacitors (10μF–100μF) spaced at 2–3cm intervals. Separate analog and digital ground planes via a single-point star connection to minimize noise coupling. For high-speed interfaces like DDR or SerDes, follow manufacturer reference designs for termination resistors (typically 33Ω–50Ω) and trace impedance matching (50Ω for single-ended, 100Ω for differential).

Peripheral Integration Checklist

• Clocking: Dual oscillators–one for PLLs (12MHz–100MHz) and another for general logic (50MHz). Include provision for external clock inputs with AC-coupling (0.1μF) if interfacing with LVDS/CML.
• Configuration: JTAG header (2.54mm pitch) with pull-ups on TMS, TDI, and TCK (4.7kΩ to VCCIO). Add a SPI/QSPI flash interface (minimum 16MB) with series resistors (22Ω) on data lines to dampen reflections.
• Connectivity: Reserve at least 20% of I/O pins for future expansion. Group high-speed signals (e.g., PCIe, Ethernet) on the same bank to maintain voltage/impedance consistency. Isolate noisy outputs (e.g., PWM) from sensitive inputs (e.g., ADC) using separate power domains.
• Debugging: Dedicate 8–10 GPIO pins for LEDs (330Ω series resistors) and switches (debounce capacitors: 0.01μF). Include a UART interface with a 1.8432MHz oscillator for baud rates up to 115200.

Label every signal with descriptive names (e.g., DDR3_DQ[15:0]) and net classes to streamline PCB routing. Use hierarchical blocks for complex subsystems like memory controllers or processor interfaces. Document pin assignments in a CSV spreadsheet linked to the schematic, noting voltage levels (e.g., 1.8V, 2.5V, 3.3V) and drive strengths. For comply-with-standards components, such as USB or HDMI, integrate ESD protection diodes (e.g., TI TPD1E10B06) on all connector pins. Validate power budget early–modern logic arrays can consume 0.5W–5W depending on utilization–ensuring regulators (LDO or switching) can handle transient currents (peak ~3A for high-end devices).

Step-by-Step Board Design for Programmable Logic Devices

Begin by segregating high-speed signal lanes from power rails and low-frequency traces. Route differential pairs for clocks and high-speed I/O first, maintaining consistent impedance–typically 100Ω for LVDS–with controlled spacing between traces. Use 3W rule (three times the trace width) to minimize crosstalk between adjacent lanes. Ground planes under these paths should remain unbroken; avoid splits or via clusters that disrupt return paths.

Place decoupling capacitors as close as physically possible to power pins, prioritizing 0.1µF ceramic types for broadband noise suppression. For larger-value bulk capacitors (10µF or more), position them near voltage regulators rather than directly at device pins. Calculate loop area between capacitor pads and power pins–shorter loops reduce inductance. Use via-in-pad for high-density designs, but verify fab house capabilities to avoid additional costs.

Implement star grounding for mixed-signal sections. Connect analog and digital grounds at a single point near the power source to prevent ground loops. If isolation is critical, use a ferrite bead or small resistor (0Ω or 10Ω) to bridge grounds. Avoid daisy-chaining ground connections, as this creates voltage gradients under transient loads.

Thermal vias under exposed pads of packages like BGA or QFN improve heat dissipation. Space vias at least 0.3mm apart to prevent solder wicking during assembly. Fill vias with conductive epoxy if the device dissipates over 2W, or use thermal paste for lower-power applications. Verify via fill requirements with your assembly partner to prevent voids or weak joints.

Fan-out BGA packages using dog-bone patterns for outer rows. For inner rows, adopt via-in-pad with non-conductive fill for pitches below 0.8mm. Route escape traces at 45° angles to minimize stub effects on high-speed signals. If breakout symmetry is critical, ensure all lanes are of equal length post-routing to maintain timing alignment.

Use copper pours for power rails only where necessary–unnecessary pours increase capacitance and can detune high-speed lines. For FPGA core voltages, create dedicated layers to handle currents exceeding 5A. Calculate trace width using 1oz copper (0.035mm thickness) and a 10°C temperature rise: 10A requires ~5mm width for internal layers, ~2.5mm for external layers with airflow.

Label all test points, connectors, and critical nets with silkscreen reference designators. Use anti-pad clearances around vias in pad stacks to prevent shorting. Export Gerber files with separate layers for stencil apertures, especially for fine-pitch components. Validate impedance calculations with a field solver if operating above 100MHz, and include a coupon on the board for post-fab verification.
