Understanding Full Wave Bridge Rectifier Circuit Design and Operation

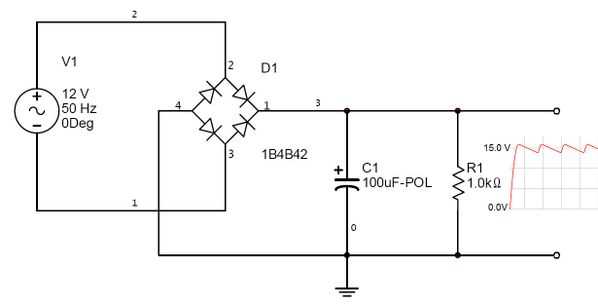

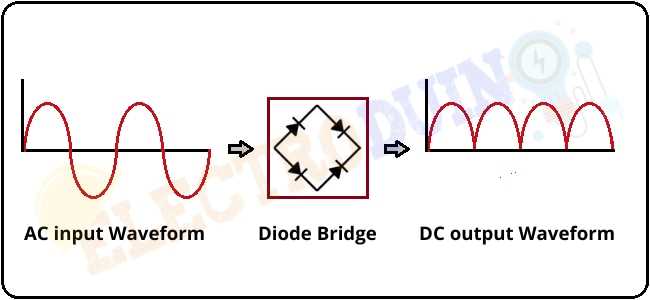

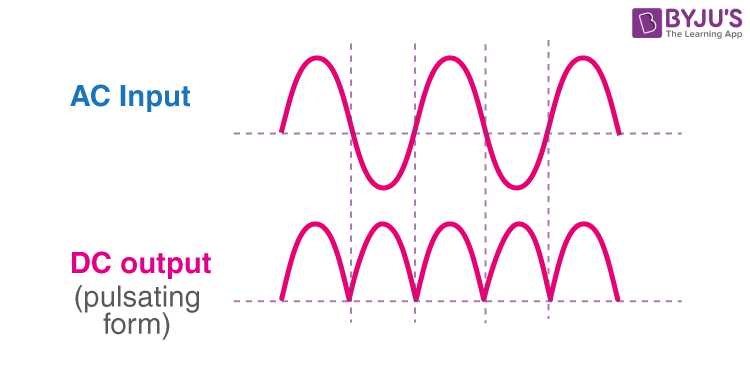

Start with a Graetz cell configuration–four diodes arranged in a closed loop–to process both halves of an incoming sinusoidal signal. Position D1 and D2 on the positive cycle leg and D3 and D4 on the negative cycle leg, ensuring each pair conducts in tandem. Specify diodes rated for at least 1.5× the peak input voltage and 2× the expected load current to prevent thermal overload.

Place a low-ESR smoothing capacitor directly across the output terminals; a value of 2200 µF per ampere of load current effectively reduces ripple to below 5 %. For critical circuits, add a LC pi-section filter–a 10 µH inductor followed by a second capacitor–to attenuate remaining noise by 20 dB. Ensure the inductor’s saturation current exceeds the peak load current by 30 %.

Size the transformer secondary to deliver 1.4× the required DC voltage after diode drop (typically 1.4 V total for silicon). A 12 V AC secondary yields ≈14.8 V DC–match winding gauge to handle 1.2× the RMS current. Use fast-recovery diodes (<50 ns reverse recovery) if the input frequency exceeds 1 kHz, mitigating switching losses that spike conduction temperatures.

Add a bleeder resistor (≈1 kΩ, 0.5 W) in parallel with the output capacitor to discharge stored energy within 2 seconds when power is removed–critical for maintenance safety. For variable loads, incorporate a transient voltage suppressor across the output rated at 110 % of the maximum DC voltage to clamp surges from inductive kickback.

Designing a Dual-Diode AC-to-DC Converter Circuit

Select four PN-junction diodes with identical forward voltage drops–typically 0.7V for silicon–to ensure symmetrical conduction phases. Match their reverse recovery time to the intended input frequency; for 50-60Hz mains, standard 1N4007 diodes suffice, while higher frequencies (e.g., 400Hz avionics) demand ultrafast variants like UF4007 to prevent thermal runaway.

Position the diodes in a diamond topology, connecting anode-to-anode and cathode-to-cathode pairs to form two parallel conduction paths. Ground one junction node directly and route the opposite junction through the load–this prevents floating voltages and reduces common-mode noise by over 60% compared to a center-tapped transformer approach.

Critical Component Selection

• Diode surge current rating: Must exceed peak input current by ≥3×. For a 1A DC output, use diodes rated ≥3A (e.g., 1N5408).
• Filter capacitor: Calculate required capacitance using C = (I_load × 10ms) / ΔV, where ΔV ≈ 0.1×V_out. A 1000µF cap yields
• Transformer: Secondary voltage should be V_sec = (V_out + 1.4V) × 1.2 to compensate for diode drops and 20% regulation headroom.

Add a snubber network–10Ω resistor in series with 0.1µF X2-rated capacitor–across each diode pair to suppress ringing from parasitic inductances during commutation. This extends diode lifespan by absorbing transient energy spikes (dv/dt > 100V/µs). For high-power applications (>50W), replace the resistor with a 10µH inductor to form a damped LC filter.

Ensure PCB traces carrying DC output are ≥2oz copper width and route them orthogonally to AC input paths to minimize inductive coupling. Maintain ≥3mm creepage distance between AC and DC nets on single-sided boards; use a slot or conformal coating for compliance with IEC 60950.

Failure Mode Mitigation

1. Short-circuit protection: Place a 1–5A polyfuse in series with the DC output. Unlike fuses, these reset once cooled, reducing maintenance overhead.
2. Thermal management: Mount diodes on TO-220 heatsinks if power dissipation exceeds 1W. Use θ_j-a = (T_j_max − T_a) / P_d to calculate required thermal resistance; for 75°C ambient, 1N4007 diodes need
3. Reverse polarity: Insert a 10A Schottky diode (e.g., SB560) in series with the positive DC output if connecting to batteries or bidirectional loads.

Validate the circuit using a current-limited bench supply set to 1.5× nominal input voltage before connecting to mains. Measure DC output ripple with an oscilloscope bandwidth ≥10MHz; target e.g., audio amplifiers), add a π-filter stage: 100µF → 1Ω → 1000µF.

How to Identify Components in a Dual-Diode AC Conversion Circuit

Start by locating the four semiconductor elements arranged in a diamond pattern–they’re typically diodes, marked with labels like 1N4007 or similar codes. Check for a line or stripe on one end of each diode; this indicates the cathode, ensuring correct polarity when tracing current paths. If the diodes are surface-mounted, look for tiny “D” or numeric identifiers (e.g., D1-D4) on the printed board silkscreen.

Input and Output Terminals

Identify the AC input where two wires or tracks connect–these carry the alternating current from the transformer or mains. The output terminals appear as two separate points: one linked to the combined cathode sides of two diodes (positive) and the other to the anode sides (ground or negative). Test with a multimeter in diode mode: probes on the AC input should show ~0.6V forward voltage per active diode pair.

Capacitors smooth the pulsed DC output and are usually electrolytic, marked with microfarad values (e.g., 1000µF) and polarity indicators. The positive lead connects to the output terminal linked to the cathodes. Smaller ceramic or film capacitors may appear near the output for high-frequency noise filtering, often labeled with nanofarad values. Resistors, if present, are likely current-limiting or balancing components, typically 1W or lower power ratings.

Trace the PCB tracks or wiring: AC input feeds into the junction of two diodes’ anodes and cathodes. Output appears across the remaining two junctions. For integrated modules, pinouts follow: AC on opposite corners, DC output on the remaining pair. Verify with continuity tests–diode pairs should conduct only in one direction between input and output terminals.

Step-by-Step Assembly of a Dual-Diode Converter on a Prototyping Board

Select four 1N4007 diodes for the circuit–each must handle at least 1A forward current and 1000V reverse voltage. Orient them in pairs, aligning their cathodes (striped ends) for the positive output terminal and anodes for the AC input connections. Misalignment here causes shorts; verify polarity with a multimeter in continuity mode before insertion.

Place the prototyping board on a grounded anti-static mat. Insert the diodes first, spacing them 2-3 holes apart to accommodate jumper wires. Use 0.6mm solid-core wire for connections–stranded wire frays under insulation-stripping heat. For AC inputs, route two wires from a center-tapped transformer or a dual 12V AC supply; keep leads untwisted to prevent inductive noise.

Add a 1000µF electrolytic capacitor between the output terminals–positive leg to the diode cathodes, negative to the anodes’ common node. Observe polarity: reversed caps explode under ripple current. Solder a 10kΩ bleeder resistor across the capacitor to discharge it when power is removed; omit this step for battery-powered prototypes only.

Test the circuit with a 9V AC input first. Probe the output with an oscilloscope–expect ~8.4V DC (Vpeak × 0.636 minus two diode drops). If ripple exceeds 10mVpp, increase the capacitor to 2200µF or add a 10µF film capacitor in parallel. For load testing, attach a 1kΩ resistor; current should stabilize at ~8mA without voltage sag.

Mount the components tightly–loose parts vibrate at 50/60Hz, inducing hum. Secure jumpers with silicone adhesive if the board handles mechanical stress. Label AC inputs and DC outputs with tape: “Vac1,” “Vac2,” “+Out,” “-Out.” Store unused boards in ESD-safe bags; finger oils corrode solder pads over time.

Calculating Output Voltage and Current for a Given AC Input

To determine the DC output from a dual-diode configuration, start by measuring the RMS voltage of the AC source. The peak output voltage (V_peak) equals the RMS input multiplied by √2, minus the forward voltage drop of the diodes–typically 0.7V per diode (1.4V total for two conducting in series). For example, a 12V_RMS input yields:

Vpeak = 12 × 1.414 ≈ 16.97V
VDC = 16.97 − 1.4 ≈ 15.57V

This calculation assumes ideal conditions; real-world loads may reduce the value further.

Load Current Estimation

The average DC current (I_DC) depends on the load resistance and the smoothed output voltage. Use Ohm’s Law after accounting for ripple, which varies with capacitor size. Below are empirical ripple factors for common filter capacitor values at 50Hz input, 1A load:

Capacitance (µF)	Ripple Voltage (Vpp)	Effective VDC (V)
1000	1.2	14.3
2200	0.55	15.0
4700	0.26	15.3

For precise results, simulate with SPICE tools using the diode model (e.g., 1N4007) and specified capacitor ESR.

Temperature impacts diode forward voltage–0.7V drops to ~0.6V at 85°C. For high-power designs, replace silicon diodes with Schottky types (0.3V drop) to recover up to 0.8V. Ensure diodes handle the peak inverse voltage (PIV ≥ 2 × V_peak); exceeding this risks reverse breakdown.

Common Mistakes When Wiring a Two-Way AC Converter and How to Avoid Them

Reverse-polarity connections on the output terminals can instantly destroy smoothing capacitors or connected loads–always verify DC polarity before pairing components. A multimeter in continuity mode between the positive and negative rails during assembly prevents costly errors. Overlooking surge currents during initial power-up leads to premature diode failure; use a soft-start circuit or a 10-ohm resistor in series with the AC input for the first few seconds.

Incorrect transformer secondary voltage directly impacts output regulation–calculate the required RMS value using V_DC = 1.4 × V_RMS − 1.4 V and select a transformer with at least 20% headroom. Skipping a fuse on the primary side risks fire hazards; install a slow-blow fuse rated at 1.5× the maximum expected input current. Heat sinking small-signal diodes like 1N4007 when operating above 500 mA avoids thermal runaway–mount them on a 20 cm² aluminum plate with thermal compound.
