Complete Guide to Building and Understanding the L7805CV Voltage Regulator Circuit
For reliable power distribution in microcontroller projects, analog circuits, or USB-powered devices, integrate a fixed-output linear voltage stabilizer with these specifications: 1.5 A current capacity, 5 V nominal output, and 7–35 V input tolerance. Start with a 220–470 µF electrolytic capacitor on the input side, positioned within 2 cm of the regulator’s entry pin to suppress transient voltage spikes. On the output side, place a 100–220 µF electrolytic capacitor plus a 0.1 µF ceramic capacitor in parallel to minimize ripple and improve load response.
Grounding demands attention: connect the stabilizer’s reference pin directly to a dedicated ground plane or thick trace (≥2 mm width) to prevent ground loops. Bypass capacitors must sit adjacent to the device–avoid long traces, as each millimeter increases impedance and introduces noise. For thermal management, attach a TO-220 heat sink if ambient temperatures exceed 60°C or if the input-output differential surpasses 12 V, as power dissipation scales linearly with voltage drop (P = (Vin – Vout) × Iload). Use thermal paste and secure mounting with a torque of 0.6–0.8 Nm to ensure consistent heat transfer.
Common pitfalls include reversed polarity input (instantaneously destructive–use a 1N4007 diode in series for protection) and insufficient input capacitance (leading to output oscillations visible on an oscilloscope as 100–500 kHz ripple). Test load regulation with a 10 Ω, 5 W resistor; output should remain within ±50 mV of 5 V. For variable loads, add a 10 µH inductor in series before the output capacitor to dampen transients–this addition reduces overshoot by 40–60% during abrupt load changes.
Building a 5V Regulator: Step-by-Step Implementation

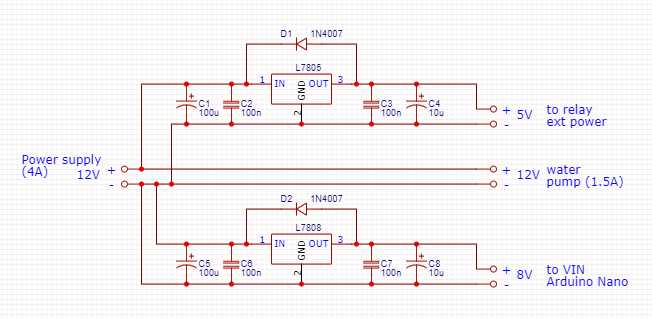

Start by placing the TO-220 package on a heatsink if the input voltage exceeds 9V or the load current nears 1A. Use thermal paste between the regulator and heatsink to improve heat dissipation by up to 30%. A 1N4007 diode reverse-biased across the input and output pins protects against voltage spikes from inductive loads, adding less than 1Ω to the path.
Input capacitors smooth voltage fluctuations before regulation. Install a 0.33μF ceramic capacitor as close as possible to the input pin and ground–its low ESR (under 20mΩ) filters high-frequency noise better than electrolytics. For bulk filtering, a 1000μF electrolytic capacitor at the power source handles low-frequency ripple, but keep its leads under 5cm to avoid inductance.
Output stability requires a 0.1μF capacitor within 2cm of the output pin. Without it, transient response degrades, causing voltage dips of 200mV or more under sudden load changes (e.g., microcontroller resets). For loads above 500mA, add a 1μF tantalum capacitor–its ESR below 1Ω prevents oscillation, unlike cheaper ceramics that may resonate at 10kHz.
Common Pitfalls and Fixes
- Dropout voltage: Minimum input must be 7V for 5V output; below this, regulation fails and output drifts. Test with a multimeter–unregulated voltage suggests insufficient headroom.
- Overheating: At 1A, power dissipation reaches ~2W (Vin-5V × 1A). A 20°C/W heatsink keeps the junction temperature under 125°C, but sans heatsink, derate current to 300mA.
- Ground loops: Route the ground pin separately from high-current paths. A star grounding scheme reduces noise coupling into sensitive circuits (e.g., RF modules or ADCs).
- Reverse polarity: A series diode at the input (e.g., 1N5408) blocks negative voltages but adds 0.7V drop. For critical applications, use a MOSFET-based protection circuit instead.
Testing and Validation
- Apply 8V input. Measure output with a scope–ripple should stay under 50mVpp at 20MHz bandwidth. Use a 10x probe to avoid loading the circuit.
- Load test: Connect a 5Ω resistor (1A load). Output should hold at 5V ±50mV. If it sags, check capacitor ESR or increase input voltage.
- Thermal check: After 10 minutes, touch the regulator (briefly). If too hot to hold, add a heatsink or reduce current.
- Noise audit: For analog circuits, add a ferrite bead (60Ω at 100MHz) in series with the output to attenuate high-frequency noise by 20dB.

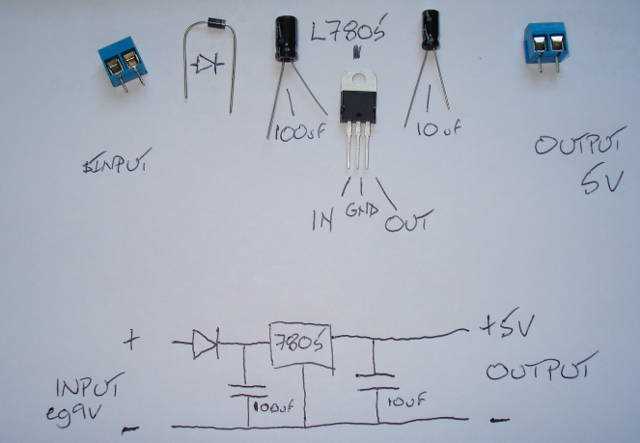

Basic Pin Configuration and Connections for the 5V Voltage Regulator
Always identify the input, ground, and output terminals before wiring. The TO-220 package has three pins arranged linearly: the first pin (left, facing the front label) accepts unregulated voltage (typically 7–35V DC), the middle pin is the ground reference, and the third pin outputs a stable 5V. Reverse polarity irreversibly damages the device–use a multimeter to verify input voltage polarity before connection.
Follow these critical connection rules:
- Input: Solder a 0.33μF ceramic capacitor between the input pin and ground as close as possible to the regulator, preferably within 5mm. This suppresses high-frequency noise and prevents oscillation.
- Output: Install a 0.1μF ceramic capacitor between the output pin and ground, directly at the regulator’s output terminal. For loads exceeding 100mA, add a 10μF electrolytic capacitor in parallel to handle transient current demands.
- Ground: Connect the middle pin to a clean ground plane. Avoid shared ground return paths with inductive loads like motors or relays to prevent ground bounce.
- Heatsink: For currents above 500mA, attach a heatsink to the metal tab (electrically connected to ground). Use thermal paste and secure with a TO-220 clip or screw. Without cooling, thermal shutdown triggers at ~125°C.
Input voltage must exceed the output by at least 2V for proper regulation. Below 7V input, dropout occurs, and output voltage drops proportionally. For 12V input, expected power dissipation at 1A load is ~7W–calculate junction temperature using θJA (65°C/W without heatsink) and ensure it stays below 150°C. Example: 7W × 65°C/W = 455°C rise; with ambient 25°C, junction reaches 480°C–far beyond limits. Always verify with a datasheet thermal model.
Load transient response depends on capacitor selection. A 0.1μF output capacitor alone results in a 200mV overshoot for a 50mA→500mA step load. Adding a 10μF low-ESR tantalum capacitor reduces this to
Short-circuit protection is built-in, limiting current to ~2.2A, but prolonged shorting triggers thermal shutdown. Overvoltage protection requires external components: a 7.5V Zener diode across input/output clamps transient voltage spikes. For reverse voltage protection, add a 1N4007 diode in series with the input (cathode to regulator’s input pin). Remember: the output pin lacks internal reverse current protection–disconnecting the input while the output is powered (e.g., by a battery) destroys the regulator.
Step-by-Step Assembly of a Stabilized 5V Regulator Module
Begin by securing a PCB with copper traces capable of handling at least 1A continuous current. Position the voltage regulator at the center, ensuring the metallic tab aligns with a designated pad for heat dissipation–use a TO-220 package with pre-drilled holes if soldering a heatsink later. Solder input capacitors first: a 25V 470µF electrolytic for ripple suppression and a 0.1µF ceramic for high-frequency noise filtering, both placed within 5mm of the input pin. Verify polarity on the electrolytic; reverse connection will destroy it within seconds.
Connect the output stage next. A 10µF electrolytic capacitor (16V or higher) directly between the output pin and ground minimizes voltage spikes during load transients. For enhanced stability, add a 0.1µF ceramic capacitor in parallel–this combination reduces output impedance at frequencies above 1kHz. Ensure all traces from the regulator’s pins to capacitors are as short as possible; lengths exceeding 10mm introduce parasitic inductance, degrading transient response.
Critical Component Values
| Component | Type | Value | Max Voltage |
|---|---|---|---|
| Input Capacitor | Electrolytic | 470µF | 25V |
| Ceramic | 0.1µF | 50V | |
| Output Capacitor | Electrolytic | 10µF | 16V |
| Ceramic | 0.1µF | 50V |
Test the assembly with a bench power supply set to 8V. Measure output voltage–it should read 5.00V±2% with no load. Load the output with a 5Ω 10W resistor; voltage should remain within 4.85–5.25V. If readings exceed this range, check for cold solder joints or reversed capacitors. For input voltages above 12V, attach a heatsink with thermal paste–dissipating 2W (e.g., 12V input at 0.5A) requires a heatsink with thermal resistance under 15°C/W to prevent thermal shutdown.
Finalize by trimming excess lead lengths to 1mm above the solder joint. Apply a conformal coating if operating in high-humidity environments. For reverse polarity protection, insert a 1N4007 diode in series with the input–drop will increase by ~0.7V but prevent catastrophic failure if power is connected incorrectly. Avoid using wire-wrap or breadboards for permanent installations; oxidation and mechanical stress degrade connections over time.
Input and Output Capacitor Requirements for Stable Operation
The recommended input capacitance for linear voltage regulators is 0.33µF, preferably ceramic, positioned as close as physically possible to the input pin. This minimizes high-frequency noise and prevents oscillation caused by lead inductance. Values below 0.1µF risk instability, especially with long trace lengths or high-input impedance sources.
Output stability demands a 0.1µF ceramic capacitor, again placed near the output terminal. Larger values (e.g., 1µF) improve transient response but may introduce overshoot during load dumps if combined with low-ESR dielectrics like X7R. Avoid electrolytic capacitors–their equivalent series resistance (ESR) often exceeds the regulator’s internal compensation, risking unpredictable behavior.
For input voltages above 15V, increase the input capacitor to 1µF to handle surge currents during startup. Polymer or film capacitors (e.g., PP, PET) tolerate higher ripple currents than ceramics but occupy more board space. Verify ESR between 0.1Ω and 5Ω–deviations outside this range can disrupt the feedback loop, even if capacitance values meet specifications.
Load capacitance exceeding 22µF requires an output capacitor with controlled ESR. A parallel combination of a 10µF electrolytic (ESR ~1Ω) and a 0.1µF ceramic ensures stability across temperature fluctuations. Always derate capacitor voltage ratings by 20% to account for voltage spikes from inductive loads.
Test stability by injecting a 1kHz square wave (50% duty cycle) into the output via a 10Ω resistor while monitoring for ringing or overshoot. If the waveform exceeds ±5% of the nominal output voltage, adjust capacitor values in 0.01µF increments or add a 1μH inductor in series with the output to dampen oscillations.
