Complete Gas Club Car Wiring Schematic Guide for Troubleshooting and Repairs

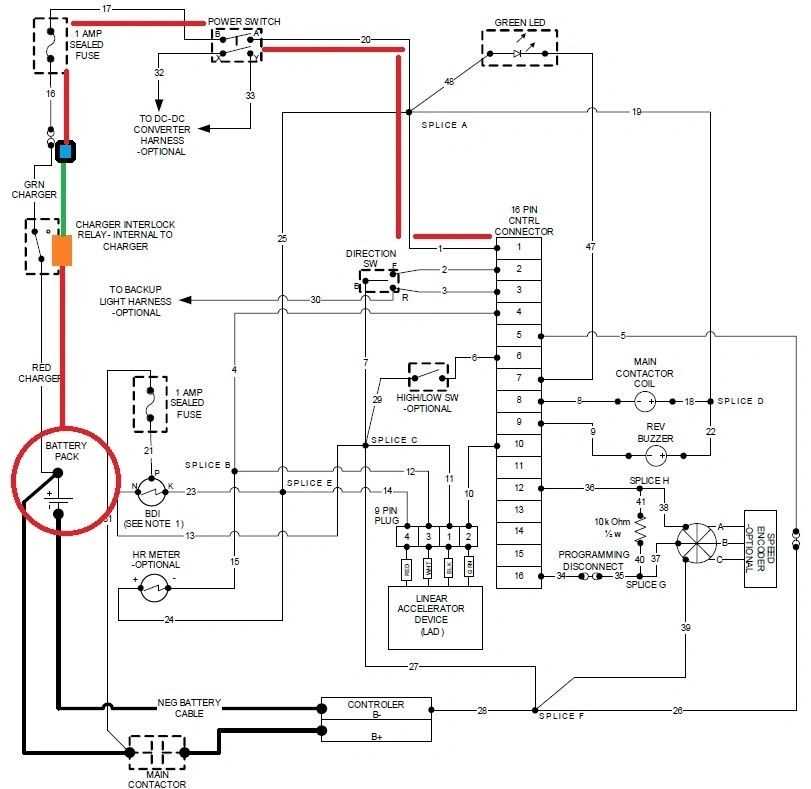

For accurate troubleshooting, begin with the main harness layout. Locate the ignition switch connector–typically a six-pin plug labeled A, B, C, D, E, and F. Pin A connects to the battery’s positive terminal (12V), while Pin B routes through the key switch to the solenoid. Pins C and D manage the starter motor circuit; reversing these will disable engine turnover. Verify continuity between Pins E (ground) and the chassis before proceeding.
Check the solenoid control wires next. The thin red wire from the ignition coil must link to the solenoid’s “S” terminal, while the thicker yellow wire connects to “B+” for voltage input. A common fault involves corrosion at the solenoid–clean terminals with 400-grit emery cloth, then apply dielectric grease to prevent future oxidation. If the engine cranks but won’t fire, test the ignition coil’s primary resistance (should read 0.4–0.8 ohms). Replace the coil if readings exceed 1.0 ohm.
Examine the lighting circuit separately. Headlights draw 10–12 amps; confirm fuse integrity (rated 15A) before testing bulbs. The brake light switch, mounted near the pedal, activates via a microswitch–adjust plunger clearance to 1–2mm to ensure reliable engagement. Turn signals require flasher relay model FLT-245; substitute compatible relays if rapid blinking persists (indicates low amperage or defective bulb).
Use a multimeter for voltage drops across key connections. Measure from the battery’s negative post to the starter motor casing–readings above 0.2V suggest poor grounding. For accessory circuits, probe the auxiliary plug (often labeled “ACC”); voltage should match battery output when the key is in “ON” position. If in-dash gauges flicker, inspect the voltage regulator’s three-wire connector–yellow (input), red (output), and black (ground). Regulators failing intermittently often overcharge the battery; replace with OEM part #101878-01 for exact fit.
Trace the alternator’s output wires to the battery’s positive post. The thick red cable should carry 13.8–14.5V during operation. If voltage fluctuates, check the brushes’ length (minimum 0.5mm remaining). Ground wires must terminate directly to the frame–avoid daisy-chaining through components. For intermittent power loss, bypass the main ground strap with a 4 AWG jumper cable to isolate the issue.
Electrical Layout for Motorized Golf Vehicles: Field-Tested Instructions
Begin by securing the primary power cables to the battery terminals–red to positive, black to negative–before connecting any auxiliary circuits. Use copper lugs crimped with a hydraulic tool (minimum 12-ton capacity) to prevent corrosion-induced voltage drops, a common failure point in high-draw systems. Verify the connection with a multimeter: 12.6V for a fully charged lead-acid unit, 13.2V for lithium-ion. Anything below 12.4V indicates sulfation or cell imbalance, requiring immediate load testing before proceeding.
Trace the ignition circuit from the solenoid to the key switch, ensuring the wire gauge matches the starter motor’s peak current draw–10 AWG for 400A systems, 8 AWG for 600A+. Replace any splices with soldered joints and heat-shrink tubing (marine-grade polyolefin), as factory crimps often fail under vibration. For vehicles with reverse warning beepers, locate the neutral safety switch (typically a mercury tilt sensor) and bypass it only with a momentary switch rated for 20A, never hardwire–this creates a fire hazard during unintended engagement.
Critical Circuit Checks
- Inspect the voltage regulator’s ground path. A poor connection here causes erratic charging, leading to premature battery failure. Scrape paint from the vehicle frame at the ground point and apply dielectric grease after tightening.
- Test the brake light circuit with a 12V test lamp. If illuminating filament bulbs, upgrade to LED modules with built-in resistors to prevent falsely triggered controllers in regenerative braking systems.
- Measure resistance across the speed sensor (if equipped) with an ohmmeter. Values should read 400–800Ω; deviations indicate a shorted coil, requiring replacement to avoid speedometer errors.
For vehicles with onboard computers, disable the main breaker before disconnecting the controller. Label each connector with masking tape–confusing the throttle input (0.5–4.5V) with the motor temperature sensor (2.5V reference) will fry the controller. When reconnecting, torque all terminal screws to 7 in-lbs; overtightening strips threads, while loose connections arc under load. Finally, cycle the accelerator pedal 10 times with the wheels elevated to purge air from hydraulic brakes, then road-test at half throttle to confirm smooth engagement.
Key Components of an Electric Utility Vehicle Power Network
Start by inspecting the battery pack – the cornerstone of the entire system. Most models use a 48-volt setup with six 8-volt units or four 12-volt deep-cycle variants. Verify connections with a multimeter: terminals should read 50.4V for fully charged six-cell configurations or 54.4V for four-cell setups. Corrosion on posts reduces efficiency by up to 30%; clean with a baking soda-water mixture (1 tbsp per cup) and apply dielectric grease afterward.
Charging Infrastructure
Onboard chargers typically deliver 15-20 amps, taking 8-12 hours for a full cycle. Replace units if output falls below 12.5V after 10 hours of charging. Use only model-specific chargers; third-party adapters risk overheating or permanent battery damage. For 120V household outlets, ensure the extension cord is 10-gauge or thicker to prevent voltage drop. Outdoor charging ports must meet IP65 ratings to withstand moisture and dust.
- Automatic shutoff: Prevents overcharging when battery reaches 80-90% capacity
- Temperature sensor: Cuts power if internal temperature exceeds 120°F (49°C)
- Reverse polarity protection: Safeguards against incorrect cable connections
The motor controller dictates acceleration and speed, typically rated for 300-500 amps. Check for error codes using a diagnostic tool: flashing patterns indicate specific faults (e.g., 3 flashes = throttle signal error). Upgrade to a 600-amp controller if hauling loads exceeding 600 lbs to prevent premature failure. Always match controller voltage to the battery pack – mismatches cause overheating or reduced torque.
Fuses and circuit breakers protect against current surges. The main fuse (usually 200-300 amps) sits near the battery pack. Replace blown fuses with exact amperage ratings; higher values risk fire. For persistent fuse failures, inspect the motor for shorted windings or grounded wires. Circuit breakers, often 150-250 amps, should reset manually after tripping – automatic reset models are unsafe for utility vehicles.
- Locate the main fuse box under the seat or rear storage compartment
- Mark each fuse with its function using a label maker
- Carry spare fuses (10% above rated amperage for emergencies)
- Test fuses with a continuity tester before replacement
Throttle mechanisms use potentiometers (5K-10K ohms) or Hall-effect sensors. Clean terminals with contact cleaner if acceleration becomes jerky. Adjust idle speed via the set screw on the carburetor or electronic governor – target 1200-1500 RPM for optimal performance. Rebuild or replace the throttle assembly if resistance exceeds 5% variance across the range.
Lighting and Auxiliary Circuits
LED headlights draw 1-3 amps each, compared to 5-8 amps for halogen bulbs. Upgrade to 6000K LEDs for better visibility without blinding oncoming traffic. Brake lights and turn signals must meet DOT standards; use 21W bulbs or equivalent LED replacements. Auxiliary circuits (e.g., winches, audio systems) require separate 12V regulators if power draw exceeds 10 amps.
Wiring harnesses degrade over time – inspect for frayed insulation, especially near moving parts like the steering column. Replace damaged sections with 10-gauge primary wires and 14-gauge secondaries. Use heat-shrink tubing (minimum 3:1 shrink ratio) instead of electrical tape for permanent repairs. Color codes follow a standard: red (positive), black (ground), yellow (accessory), purple (ignition). For custom modifications, create a wiring schematic before cutting any circuits.
How to Read Electrical Schematics for New Owners
Identify the power source first–locate the battery symbol and trace its connections. Most layouts use thick lines for main circuits; thinner ones indicate secondary links or signals. If labels like “B+” or “ACC” appear, these mark switched outputs from the ignition system. A table below clarifies common markings:
| Symbol | Meaning | Typical Voltage |
|---|---|---|
| Solid circle | Terminal connection | 12V or 6V |
| Dashed line | Ground path | 0V |
| Arrow inside a triangle | Fuse or breaker | Rated value |
Check color codes next–each wire’s hue corresponds to a function. Red usually denotes primary power, black is ground, yellow often handles lights, and blue typically relays accessory feeds. Cross-reference any diagrams with a multimeter; set it to DC voltage (20V range) and probe suspected terminals to confirm live circuits versus dead ends. If readings drop below 11V, inspect connectors for corrosion or loose fits.
Frequent Electrical Problems in Utility Vehicles and How to Resolve Them
Check the solenoid if the engine cranks but fails to start–listen for a distinct click when turning the key. A silent solenoid often indicates a faulty connection at the battery terminals or a depleted power source. Clean corrosion from the positive and negative posts using a wire brush, then tighten clamps securely. If the issue persists, test the solenoid with a multimeter set to continuity mode; resistance readings above 0.2 ohms suggest replacement is needed.
Dim or flickering headlights typically point to voltage drops across connections. Trace the circuit from the battery to the lighting assembly, inspecting each junction for loose or oxidized contacts. Pay special attention to the voltage regulator–test it by measuring output voltage at 14.2–14.6V under load. Readings outside this range mean the regulator requires recalibration or replacement. For models with LED upgrades, verify compatibility with the existing electrical layout to prevent overheating.
Intermittent power loss during operation often stems from frayed or pinched cables. Examine the harness routing, especially near rotating components like the steering column or suspension, where chafing is common. Use heat-shrink tubing or electrical tape to reinforce damaged insulation. For vehicles with aftermarket accessories, ensure the auxiliary fuse panel is rated for the total wattage draw–exceeding specifications causes brownouts.
Diagnosing Charging System Failures
If the battery drains rapidly after shutdown, test the alternator’s output at the battery terminals while the engine runs. Voltage below 13.5V signals a failing alternator or broken field excitation circuit. Inspect the rectifier diodes for burn marks–replace if continuity shows open or shorted states. For vehicles with voltage-sensitive components, avoid jump-starting from 12V car systems, which can spike above 15V and fry solid-state electronics.
Erratic gauge readings–like the fuel meter pegging full or the speedometer freezing–indicate a faulty instrument cluster ground. Locate the grounding strap beneath the dash, often secured to a chassis bolt, and remove paint or rust from the contact surface. For analog gauges, test the sending units with an ohmmeter; typical resistance ranges are 0–90 ohms for fuel sensors and 50–120 ohms for temperature probes. Deviations warrant sensor replacement.
Starter motors that spin slowly or emit a high-pitched whine may suffer from worn brushes or a weak battery. Remove the starter and measure brush length–replace if under 5mm. Bench-test the armature for shorts by placing it on a growler and noting abnormal magnetic pull. Re-lubricate the drive gear with lithium grease to prevent engagement issues, but avoid excess to prevent attracting dirt.
Blown fuses point to underlying circuit faults, not just defective fuses. Use an ammeter to measure current draw across suspect circuits. Excessive amperage indicates a short, often hidden in splices behind panels or under seats. Probe potential short locations with a non-contact voltage tester–avoid probing live wires directly to prevent accidental grounding. For persistent shorts, disconnect circuits sequentially until the faulty branch is isolated.
