Complete Guide to Generator Wiring Schematics and Connection Setup
Start by verifying the voltage rating of your alternator against the load requirements. Mismatches cause overheating, voltage drops, or hardware failure. For single-phase configurations, ensure neutral and ground bonds meet local codes–typically bonded at the main panel only. Multi-phase systems demand precise phase balancing; deviations above 5% trigger protective relays.
Label conductors with their function: line (L1, L2, L3), neutral (N), and ground (G). Use color-coding–black (L1), red (L2), blue (L3), white (N), green (G)–to prevent miswiring. Cross-sections must match current loads: 10 AWG for 30A, 6 AWG for 50A. Exceeding these risks derating.
Install a double-pole transfer switch for seamless cutover. Mount it within 10 feet of the service panel to minimize voltage loss. For 240V circuits, connect both poles; single-pole setups suffice for 120V. Test phase rotation with a meter–incorrect sequencing damages induction motors.
Avoid backfeeding through wall outlets. Even with interlocks, this violates NEC 702.4 and risks feedback into grid lines, endangering utility workers. Instead, use a dedicated inlet box (NEMA L14-30 for 30A) linked directly to the transfer switch.
Ground the frame separately from the neutral bus. Drive a 8-foot copper-clad rod at least 6 feet from the foundation, connected via 6 AWG bare copper. Bond it to the system ground at the inlet box. Skimp on grounding, and you invite arc faults during surge events.
Add a surge protector between the alternator output and the transfer switch. Models with 60kA clamping capacity prevent transient spikes from frying sensitive electronics. For long cable runs, upsize conductors to counteract voltage drop–3% maximum for branch circuits.
Connecting Power Supply Systems: A Visual Guide
Start by identifying the alternator’s output terminals–typically marked as L1, L2, L3 for three-phase setups or L1, N for single-phase. Verify voltage ratings before connecting: standard residential units output 120V/240V, while industrial models may deliver 208V, 277V, or 480V. Mislabeling can lead to equipment damage or hazardous conditions.
For manual transfer switches, use cables rated for the expected load–10 AWG for up to 30A, 6 AWG for 50A–60A. Grounding must comply with NEC Article 250; attach the ground wire to a dedicated rod with resistance below 25 ohms. Avoid aluminum wiring unless terminated with antioxidant paste and compatible lugs.
- Single-phase connections: Bond L1 to the hot busbar, N to the neutral bar. Ensure the breaker matches the cable gauge (20A breaker for 12 AWG).
- Three-phase setups: Connect L1, L2, L3 to separate breakers of equal rating. Use a CT cabinet for current monitoring if loads exceed 100A.
- Neutral bonding: Only solidly bond neutral to ground at the main panel, never at subpanels to prevent parallel paths.
Label every conductor at both ends: “Alternator Output L1”, “Transfer Switch Line Side”. Use heat-shrink tubing or adhesive markers resistant to UV, oil, and temperature swings (-40°C to 125°C). Color-coding must follow NEC 2023 standards: black/red/blue for hots, white for neutral, green/yellow for ground.
Test continuity with a multimeter before energizing: probe between terminals to confirm 0 ohms resistance on closed circuits. Disconnect all loads during initial startup to avoid inrush surges. For automatic transfer systems, verify plc logic sequences–delay timers should prevent rapid switching (minimum 3-second delay).
- Isolate the power source (lockout/tagout).
- Tighten all terminations to 15–20 lb-ft torque (use a calibrated wrench).
- Apply Non-conductive grease to aluminum connections.
- Recheck insulation resistance (>1M ohm between conductors and ground).
- Energize and monitor voltage stability for 5 minutes before connecting loads.
For emergency backup units, integrate a battery charger with 24V/48V DC output to sustain control circuits. Size the charger to recharge the battery bank within 8–12 hours. Store diagrams in a weatherproof enclosure near the unit with QR codes linking to manufacturer specs and NEC amendments.
Core Elements and Notation in Power Source Schematics
Begin by identifying the alternator itself, typically marked as a circle or oval with three protruding lines–these represent the AC outputs. Look for labels like L1, L2, and L3 for three-phase systems or L and N for single-phase. If the voltage regulator is external, it will appear as a rectangular block with input and output terminals; verify its placement near the alternator for correct signal flow.
Neutral and ground symbols must be distinct: a solid triangle for chassis ground, a single horizontal line with perpendicular dashes for neutral. Avoid substituting these–errors here lead to immediate short risks. Check that neutral connects to a busbar or dedicated terminal, never directly to ground unless specified by local codes.
Circuit protectors–breakers or fuses–are drawn as rectangles or squares with a diagonal line indicating operation. Match their amperage to the cable gauge: 14 AWG pairs with 15A, 10 AWG with 30A. Overcurrent devices should sit downstream of the main disconnect switch, never before it. Verify arc fault or GFCI notation if required, shown as an additional symbol next to standard breakers.
Loads appear as resistive elements (zigzag lines), motors (series of curved lines), or lamps (circle with cross). Size conductors for 125% of continuous loads: a 20A load demands 25A capacity. Inductive devices, like compressors, may require dual-element fuses or slower-acting breakers to accommodate inrush currents–these are labeled with time-delay symbols.
Switchgear uses a gap in a line to show open/closed state, with arrows or curved lines for automatic transfers. Confirm manual switches have proper isolation gaps–double-throw designs need clear “off” positions. Rotary switches add complexity; ensure each position correlates to a specific terminal on the schematic.
Control panels include relays, drawn as squares with coil symbols and contacts (normally open/closed pairs). Follow coil voltage ratings–24V DC coils won’t activate on 120V AC. Auxiliary contacts must align with primary switching logic; cross-reference with ladder logic if present. For programmable systems, PLCs appear as rectangular blocks with labeled I/O points–match these to actual terminal numbers on the device.
Voltage and current transformers are circles with secondary windings labeled as “CT” or “VT.” Current transformers must enclose only one conductor; wrapping multiple wires through a single CT causes incorrect readings. Insulation separators, shown as dashed rectangles, indicate physical barriers between high/low voltage sections–omit these only if manufacturers confirm integrated separation.

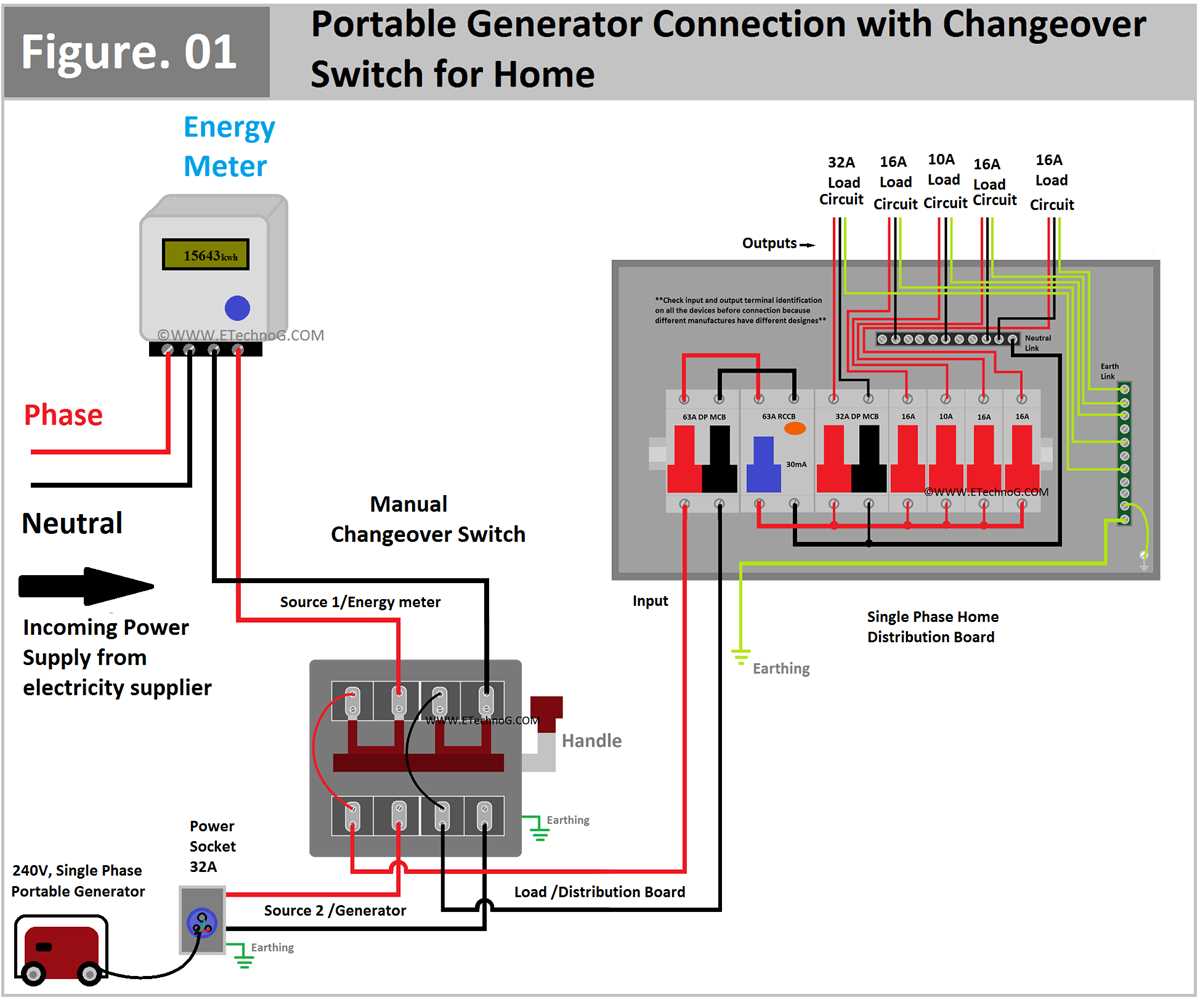

Connecting a Portable Power Unit to Your Household Electrical Box: A Practical Walkthrough
Install an approved transfer switch rated for your power unit’s maximum output. For a 5,000-watt unit, choose a 30-amp switch with 10-gauge wiring; a 7,500-watt unit requires a 50-amp switch and 8-gauge conductors. Mount the switch near the main panel, keeping the run to the inlet box under 10 meters to minimize voltage drop. Verify local codes–some jurisdictions mandate a licensed electrician for this step.
Route the cables from the transfer switch to the inlet box, stripping 12mm of insulation and securing strands clockwise around the terminal screws. Label each circuit you intend to power–refrigerator (15A), furnace (20A), and essential lighting (15A)–then match them to the corresponding breakers in the main panel. Use a torque screwdriver to tighten terminal connections to 1.2 Newton-meters to prevent loosening under load.
Test the setup by first powering the unit outdoors, engaging the transfer switch, then flipping the selected breakers one at a time. Monitor the inlet box’s ammeter–exceeding 80% of the circuit’s rating (e.g., 24A on a 30A circuit) risks tripping the breaker. Keep a non-contact voltage tester nearby to confirm all lines are dead before any adjustments.
Frequent Electrical Setup Errors and Quick Fixes
Incorrect polarity connections rank among the most dangerous oversights in auxiliary power systems. Reversed hot and neutral leads can cause immediate equipment damage, overheating, or even fire hazards. Always verify terminal markings with a multimeter–NEMA L14-30 plugs should show ~120V between hot (gold) and neutral (silver), and ~240V between both hot terminals. If readings deviate, shut off the main breaker immediately and recheck connections against the schematic provided by the manufacturer, ensuring no loose strands cross terminals.
Key Troubleshooting Steps
- Test continuity on ground circuits–resistance should be
- Inspect for voltage drop under load–acceptable losses are ≤3% per circuit. Use a clamp meter to measure current draw; discrepancies >10% suggest undersized cables or poor crimps.
- Check automatic transfer switch operation by simulating a power outage with a load (e.g., a 100W bulb). If the switch fails to engage within 30 seconds, test its control board for blown fuses or relay faults.
- Examine all terminal blocks for torque compliance–aluminum connections should be tightened to 12 in-lbs, copper to 20 in-lbs. Loose terminals oxidize rapidly, increasing resistance and heat buildup.
Choosing Proper Conductor Size and Circuit Protection for Standby Power Systems
For a 50-amp standby unit, use 6 AWG copper conductors rated for 75°C. These handle 65 amps continuously–providing headroom for voltage drop over distances up to 100 feet. Aluminum 4 AWG is an alternative, but requires anti-oxidant compounds at terminations and increases voltage drop by approximately 1.5% per 50 feet compared to copper. Avoid undersized conductors; a 1% voltage drop at full load reduces motor starting torque by nearly 2%.
Select double-pole breakers matching the equipment’s maximum continuous current rating, rounding up to the next standard size. A 45-amp system demands a 50-amp breaker, not 40-amp, to prevent nuisance trips during transient surges. Breaker frames must match the panel bus rating–typically 100 or 125 amps for residential subpanels. Never combine dissimilar metals at terminations; copper-to-aluminum junctions require bi-metal lugs or irreversible mechanical splices.
Voltage Drop and Conductor Length Calculations
| Distance (ft) | 6 AWG Cu (A) | Voltage Drop (%) | 8 AWG Cu (A) | Voltage Drop (%) |
|---|---|---|---|---|
| 25 | 65 | 0.3 | 50 | 0.5 |
| 50 | 65 | 0.7 | 50 | 1.2 |
| 75 | 65 | 1.0 | 45 | 1.8 |
| 100 | 60 | 1.4 | 40 | 2.4 |
For systems exceeding 100 feet, switch to 4 AWG copper or parallel 6 AWG runs to stay below 3% total voltage drop. Parallel conductors halve the resistance but require identical lengths, insulation types, and terminations on both ends. Never splice within conduit–use a junction box with accessible cover.
Breaker and Feeder Coordination
Match the main breaker to the smallest conductor in the circuit. A 100-amp panel with 6 AWG feeders must have a 60-amp main breaker, not 100-amp, to protect downstream conductors. Use time-delay breakers for compressors and pumps–standard breakers trip at 300% of rated current, while time-delay models withstand 500% for 10 seconds. Always label subpanels with the connected load, breaker size, and maximum continuous current.
