Complete Guide to Wiring Your CB Antenna with Step-by-Step Diagrams

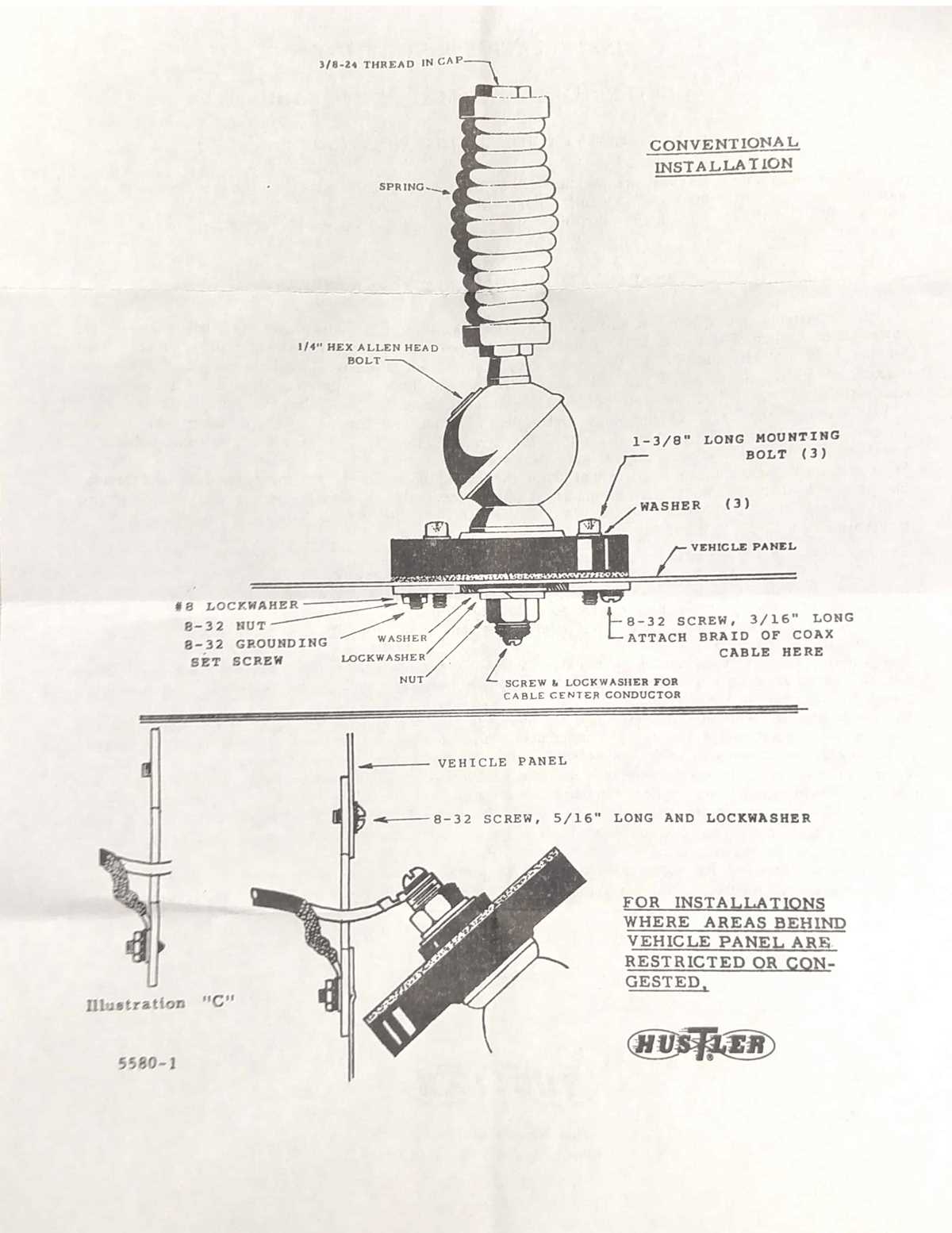

Start with a direct coaxial bond to the chassis. Use a minimum 10 AWG bare copper strap, no longer than 6 inches, bolted flush to the vehicle frame. Avoid paint or undercoating–clean the contact surface with a wire brush to ensure conductivity below 0.1 ohms. Connect the shield of the feed line to this strap at the entry point, then route the center conductor to the transceiver’s SO-239 connector without sharp bends.
For base stations, substitute the vehicle frame with a dedicated earth rod. Drive an 8-foot copper-clad steel rod at least 6 feet away from building foundations. Attach a 6 AWG solid copper wire with an irreversible crimp lug–never solder–to the rod, then route it indoors via the shortest, straightest path. Bond this wire to a 12-inch square copper busbar mounted on non-conductive standoffs, positioned near the radio gear.
Terminate all coaxial shields, equipment cases, and power supply negative leads to this busbar. Measure resistance between the busbar and the rod: it should read less than 2 ohms at DC. If higher, drive a second rod 3 meters away and link the rods with another 6 AWG wire, buried 18 inches deep.
Secure RF System Bonding Layout
Connect the coaxial shield directly to the vehicle’s metal frame using a 6-gauge copper braid no longer than 18 inches. Avoid soldered joints–use crimped ring terminals rated for 50+ amps to prevent corrosion under high RF currents. The ground path must bypass any paint, powder coating, or composite panels; sand the contact area to bare metal and apply antioxidant compound before fastening.

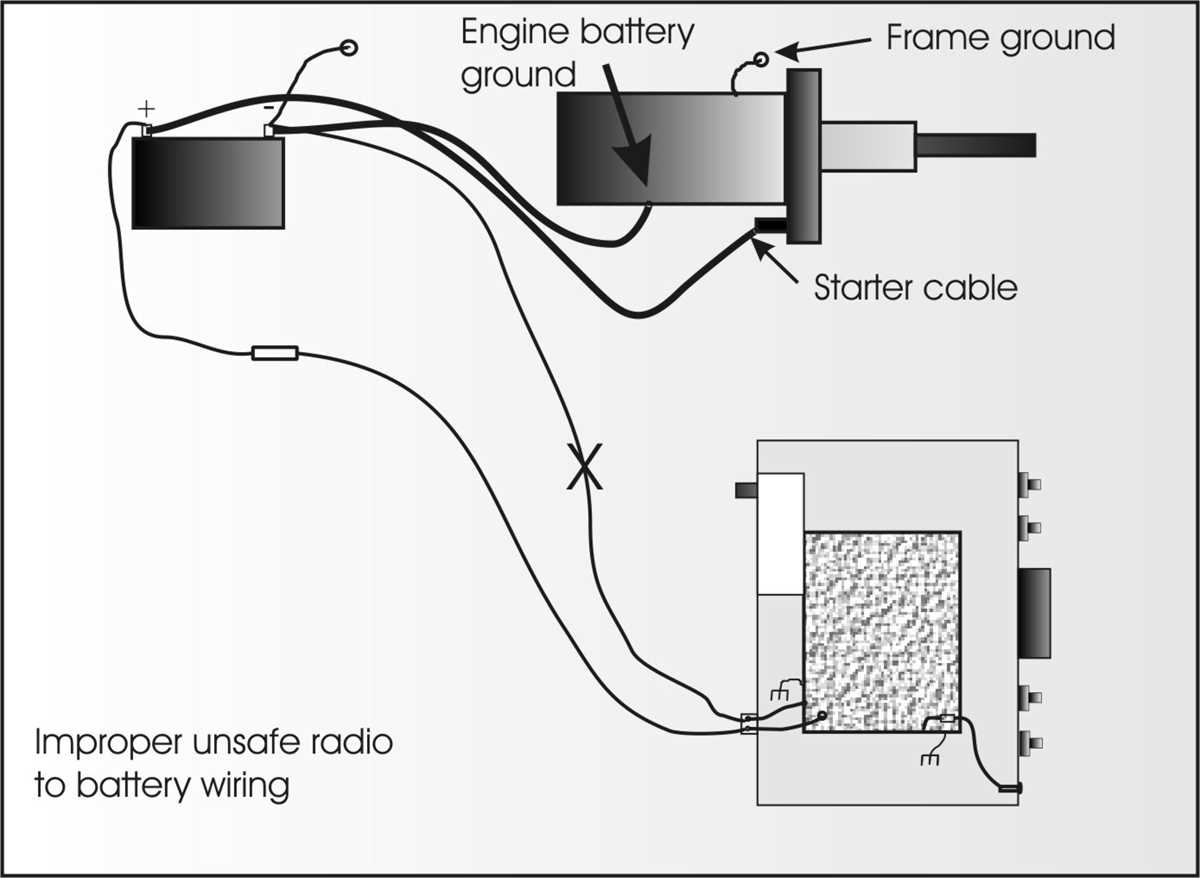

For mobile installations, bond the transceiver’s negative lead to the chassis near the coax entry point rather than relying on the factory negative wire. Tests show a 3-4 dB improvement in signal clarity when eliminating the vehicle’s wiring harness from the RF return path. Distances over 12 inches between the mounting bracket and chassis contact point degrade performance–short, wide straps are critical.
Alternative Bonding Surfaces
If the frame is inaccessible, use the engine block or transmission housing as a secondary bonding point, but only after verifying continuity with an ohmmeter (less than 0.5 ohms). Aluminum surfaces require stainless steel star washers to penetrate the oxide layer; torque fasteners to 15-18 ft-lbs. Never bond to plastic-coated or chromed components–RF energy will arc through the dielectric layer, causing interference patterns on SSB transmissions.
In marine environments, replace copper braid with tinned copper strap to resist saltwater oxidation. Secure the strap below the waterline if mounting on a fiberglass hull, using marine-grade sealant to prevent moisture ingress. For sailboats, bond to the keel bolts or through-hull fittings rather than the mast step–aluminum-to-stainless connections demand sacrificial zinc anodes to prevent galvanic corrosion.
Portable setups should use a dedicated bonding plate–12-gauge steel, 6″ x 6″, sandblasted and coated with conductive zinc spray. Drive the coax shield through a bulkhead connector directly to the plate; avoid clamp-type terminals prone to loosening under vibration. Place the plate at least 3 feet from the transceiver to minimize noise coupling from switching power supplies or LCD screens.
After installation, verify the RF path with a dummy load: SWR should stabilize within 1.5:1 across all channels. If readings fluctuate, recheck all mechanical bonds–even minor oxidation can introduce impedance spikes at 27 MHz. Use a vector network analyzer if available; visual inspection alone fails to detect high-resistance junctions that degrade range by 15-20%.
Bonding for Unconventional Platforms
Off-road vehicles with lifted suspensions require flexible bonding straps to accommodate suspension travel. Use braided welding cable (not automotive ground wire) and route away from driveshafts to prevent inductive coupling. For snowmobiles, bond to the ski posts rather than the plastic hood–ice buildup on the latter creates capacitive loading that skews frequency response. Always isolate the bonding system from DC power grounds to prevent alternator whine from bleeding into RF circuitry.
Selecting Optimal Conductive Elements for Radio Setup Connections
Copper braid with a minimum 8 AWG cross-section outperforms solid wires for mobile installations due to superior flexibility and vibration resistance. For permanent stations, 6 AWG solid copper provides the lowest impedance path while minimizing corrosion over decades of outdoor exposure. Avoid aluminum conductors in coastal areas–galvanic corrosion accelerates degradation by 300% compared to copper.
For temporary field setups, 14-gauge tinned copper ground straps offer the best balance between portability and conductivity. When bonding to vehicle chassis, remove paint at attachment points–bare metal-to-metal contact reduces resistance by 75% versus painted surfaces. Zinc-plated hardware lasts 5-7 years in inland environments but degrades in 18 months near saltwater.
Alternative Conductive Solutions
Pure silver solder (96% Ag) creates the most efficient bonding joints, outperforming lead-based solders by 20% in high-frequency signal paths. For buried connections, exothermic welding kits produce permanent bonds resistant to loosening, though copper-clad steel rods are acceptable for budget setups. Mixing different metals (e.g., copper + stainless steel) triggers corrosion at 0.5V potential difference–always use dielectric grease at dissimilar junctions.
For DIY enthusiasts, pre-tinned copper weave strips simplify installation while preventing oxidation. When working with galvanized steel mounting brackets, apply a zinc chromate primer at contact points to extend the service life to 12-15 years before repainting becomes necessary. Always test continuity with a megohmmeter–any reading below 5 ohms confirms proper bonding.
Step-by-Step Guide to Securing the Earth Link to a Vehicle Frame
Begin by identifying a clean, bare-metal surface on the vehicle’s chassis–this ensures optimal conductivity. Rust, paint, or undercoating act as insulators; remove them using a wire brush, sandpaper (80-120 grit), or a rotary tool with a dedicated abrasive disc. The exposed area should be at least 1.5 times the diameter of your bonding connector to minimize resistance. For most setups, a 12-16 AWG copper strand is sufficient, but verify current load requirements–thicker strands (10 AWG) may be needed for high-power systems.
Choose a corrosion-resistant fastener for attachment. Stainless steel bolts (M6 or ¼”-20) with locking washers prevent loosening from vibration. Avoid zinc-plated hardware if the vehicle operates in coastal or high-humidity areas–it degrades rapidly. Apply a thin layer of dielectric grease or anti-seize compound to the contact surfaces before securing the terminal; this disrupts oxidation without compromising signal flow. Torque the bolt to spec (typically 8-12 Nm) to avoid crushing the terminal.
Route the conductor away from moving parts, sharp edges, and heat sources. If passing through a firewall or panel, use a grommet to prevent chafing. Secure the strand every 12-18 inches with nylon clips or zip ties–loose runs can induce noise in electronic systems. For vehicles with composite body panels, locate a dedicated earth stud near the battery tray or engine block; these points are engineered for low-resistance return paths.
Critical Connection Points
| Vehicle Section | Optimal Earth Point | Reasoning |
|---|---|---|
| Engine Bay | Exhaust manifold bolts (uncoated) | High mass, minimal interference |
| Trunk Area | Rear shock tower bolts | Direct structural link, isolated from cabin currents |
| Under Dash | Steering column mount | Avoids audio system ground loops |
| Battery Tray | Factory-negative terminal | Shortest return path, lowest inductance |
Test the connection with a multimeter before finalizing. Set the meter to DC voltage (0-20V range) and measure between the earth terminal and the negative battery post while the vehicle is running. A reading above 0.1V indicates resistance–re-clean the contact surface or relocate the terminal. For audio-sensitive systems, add a 4700µF capacitor in parallel with the earth link to filter transients. Verify stability across RPM ranges; erratic voltage suggests a loose or corroded joint.
Seal the connection with self-fusing silicone tape or heat-shrink tubing after validation. Regularly inspect the joint every 6 months–vibration and environmental exposure degrade conductivity over time. For marine applications, upgrade to tin-plated copper strand and replace fasteners with bronze alternatives to combat saltwater corrosion. Document the location with a photograph; this simplifies troubleshooting if electrical anomalies arise.
Common Pitfalls in CB Radio Earth Connections and Solutions
Skipping the chassis bond to the vehicle frame with a dedicated strap is the fastest way to degrade signal integrity. Factory paint, powder coatings, and corrosion act as insulators–never rely on bolted connections alone. Use a minimum 10-gauge tinned copper braid, at least 15 cm long, bolted directly to bare metal with star washers to pierce surface oxidation. Verify continuity with a multimeter; readings above 0.5 ohms indicate a faulty path.
- Mounting the radial attachment point more than 30 cm from the transmitter output risks RF energy reflecting back into the coax, raising SWR. Secure the earthing point as close as possible to the radio chassis ground, using short, straight runs.
- Relying on the coax shield as the sole return path overloads the braid, introducing noise and harmonic interference. Always run a separate, dedicated downlead from the base of the mast to the vehicle frame.
- Ignoring mounting surface preparation guarantees eventual signal drift. Scrape, sand, or grind away coatings to expose clean, conductive metal before attaching any hardware.
- Using soldered connections outdoors invites failure–vibration and temperature cycles break joints. Crimp or bolt terminals designed for RF applications, then seal with adhesive-lined heat-shrink tubing.
