Building and Understanding a Half Adder Logic Circuit Schematic

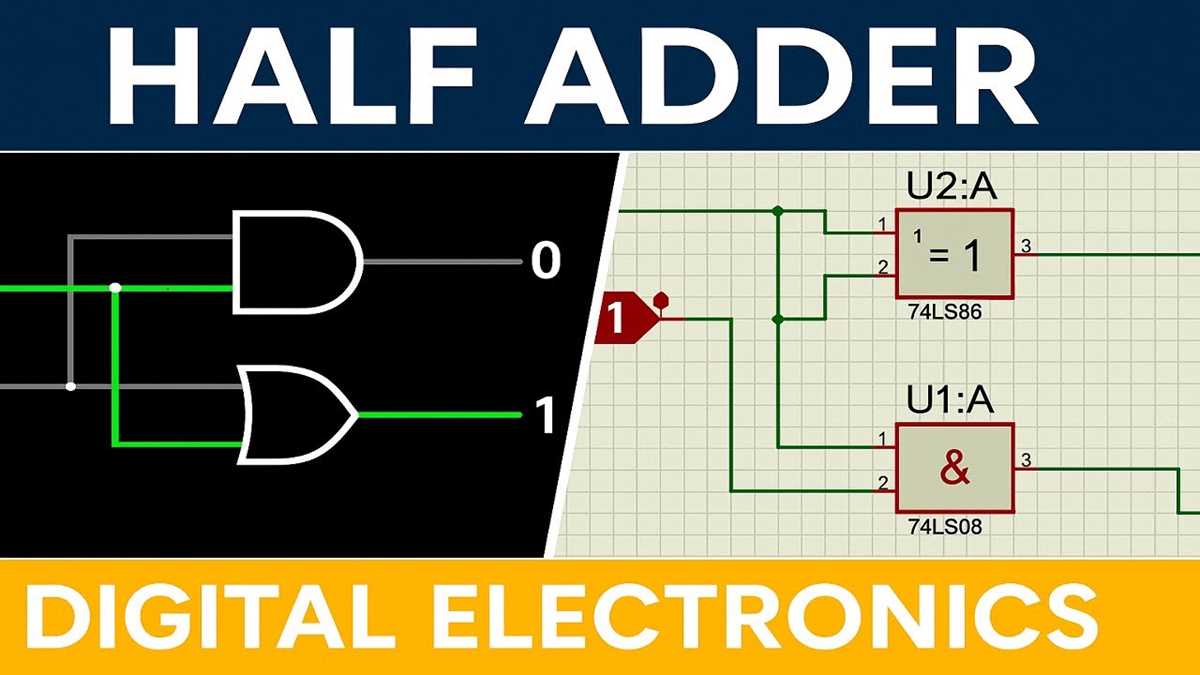

half adder circuit diagram

Start with two logic gates: an AND and an XOR. Connect their inputs to the same binary signals–A and B. The XOR output gives the sum bit; the AND output provides the carry bit. This dual-gate approach eliminates redundant calculations, ensuring minimal propagation delay–typically under 10 nanoseconds for standard 74LS series ICs.

Wire the inputs directly to a breadboard, using 470Ω resistors for current limiting if interfacing with mechanical switches. Avoid floating inputs–tie unused pins to ground through 10kΩ pull-down resistors. For validation, use an oscilloscope with a 10x probe; probe the outputs while toggling inputs between 0V and 5V. Expected behavior: sum follows XOR truth table (0+0=0, 0+1=1, 1+0=1, 1+1=0); carry appears only when both inputs are high.

Optimization note: Replace discrete gates with a single 74LS86 (quad XOR) and 74LS08 (quad AND) for compactness. If using CMOS alternatives (CD4070 for XOR, CD4081 for AND), ensure VDD remains within 3–15V; propagation delay increases to ~50ns at 5V. For higher speeds, select 74ACT series–input thresholds align with TTL, but output drive capability exceeds 24mA per pin.

Debugging tip: If carry output flickers at 1+1 input, check ground connections–poor grounding induces crosstalk. Measure voltage at the AND gate output with a multimeter; a stable 5V indicates correct operation. If using LEDs for visualization, limit current to 5mA per segment (330Ω series resistor) to prevent logic level distortion.

For cascading, connect the carry output to the next stage’s AND input. Each stage adds a 6–8ns delay; account for this in timing-critical applications like arithmetic logic units. Document signal paths with a netlist–label inputs, outputs, and intermediate nodes (e.g., “SUM_AB”, “CARRY_AB”) for maintainability.

Designing a Basic Binary Summing Unit

Begin with two logic gates: an XOR gate for the sum output and an AND gate for the carry signal. Use a standard 74LS86 quad XOR IC for the sum path–connect the first two inputs (A and B) to its pins 1 and 2, then route the output (pin 3) to your LED indicator or next-stage logic. For the carry, deploy a 74LS08 AND IC; wire A and B to pins 1 and 2, then take the output from pin 3. Ensure a common ground between both ICs and a stable 5 V supply from a regulated DC source to prevent erratic switching. Decouple each IC with a 0.1 µF ceramic capacitor placed within 2 mm of the VCC pin to suppress noise spikes.

Gate IC Model Pin Assignment Output Function
XOR 74LS86 A→1, B→2, Sum→3 A ⊕ B
AND 74LS08 A→1, B→2, Carry→3 A • B

Minimize propagation delay by keeping trace lengths under 5 cm; longer paths introduce capacitance that degrades rise times. If testing on a breadboard, place both ICs adjacent to each other and use solid-core 22 AWG hookup wire for low-resistance connections. Validate operation with a dual-channel oscilloscope: channel 1 on the sum output should show a pulse when either input toggles, while channel 2 on the carry output should register a pulse only when both inputs are high. If skew exceeds 10 ns, relocate the ICs closer or reduce trace capacitance with ground-plane shielding.

Core Logic Gates for Constructing a Binary Summation Unit

The XOR gate is indispensable for computing the sum output in a binary summation component. This gate produces a high output only when its inputs differ–when one input is 1 and the other is 0. In practice, connecting two input bits directly to an XOR gate eliminates the need for additional complexity, as it inherently yields the correct sum without carry propagation. For reliable operation, ensure the gate’s propagation delay aligns with the timing requirements of the system; standard CMOS XOR gates typically exhibit delays under 10 nanoseconds, making them suitable for most low-to-mid frequency applications.

A single AND gate is required to generate the carry signal, which activates only when both input bits are 1. Unlike other multi-input gates, the AND gate’s simplicity reduces potential failure points–its output depends solely on the simultaneous presence of high inputs. When selecting a gate, prioritize models with Schmitt trigger inputs to mitigate noise in high-impedance environments, where stray capacitance could otherwise cause false triggering. For power-critical designs, opt for low-power variants such as those in the 74LVC series, which consume less than 10 microamps per gate while maintaining operational integrity.

Integration of these gates demands attention to voltage compatibility and fan-out constraints. While XOR and AND gates can share a common voltage supply, mismatched logic families (e.g., TTL paired with CMOS) may introduce voltage-level discrepancies, leading to undefined states. To prevent this, either standardize on a single logic family, such as 74HC or 74LS, or employ level shifters for cross-family connections. Additionally, verify the gate’s fan-out capability: a single TTL AND gate can drive up to 10 standard TTL loads, but excessive loads beyond this limit degrade signal integrity, necessitating buffer gates for expansion.

Optimize layout by placing the XOR and AND gates in close proximity to minimize trace length and parasitic inductance. Longer interconnects introduce propagation delays and signal reflections, particularly at frequencies exceeding 10 MHz. For high-speed applications, use differential signaling techniques or low-impedance transmission lines (e.g., microstrip traces with controlled impedance) to preserve signal fidelity. Ground bounce–a voltage spike caused by rapid switching–can be mitigated by decoupling each gate with a 0.1 microfarad capacitor placed within 2 mm of the power pin, ensuring stable operation under dynamic load conditions.

Building a Binary Summator with XOR and AND Components

Begin by sourcing a 2-input XOR gate and a 2-input AND gate; these form the core logic of the combinational network. Connect the two binary inputs (A and B) to both gates in parallel: A and B to the XOR’s pins, and the same A and B to the AND’s pins. The XOR output generates the sum bit (S), while the AND output produces the carry bit (C). Verify gate specifications–TTL 74LS86 for XOR and 74LS08 for AND ensure compatibility with 5V logic levels.

  1. Label inputs A and B on a breadboard or schematic. Use distinct colors (e.g., red for A, blue for B) to avoid miswiring.
  2. Route both signals to the XOR gate. Check the datasheet: most XOR gates invert one input internally; confirm the pinout matches your design.
  3. Route the same inputs to the AND gate. Avoid cross-talk by spacing traces ≥2mm apart on PCB layouts.
  4. Attach the XOR output (S) to an LED via a 220Ω resistor. The LED will illuminate for S=1 (odd parity: A≠B).
  5. Connect the AND output (C) to a second LED/resistor pair. Illuminate occurs for C=1 (A=B=1).
  6. Test all input combinations:
    • 0+0 → S=0, C=0
    • 0+1 → S=1, C=0
    • 1+0 → S=1, C=0
    • 1+1 → S=0, C=1

Optimize for integration: replace discrete gates with a single 74LS136 IC–it combines both functions in one package. Reduce propagation delay by placing the AND gate closer to subsequent stages if cascading multiple units. For 3.3V systems, swap to CMOS variants (CD4070 for XOR, CD4081 for AND) to maintain noise margins. Always decouple power pins with a 0.1µF capacitor to ground near the IC.

Truth Table Analysis for Binary Summation Components

Begin by mapping the four possible input states (00, 01, 10, 11) to their corresponding outputs. The sum column follows the XOR logic gate behavior: produces 1 only when inputs differ. The carry column mirrors the AND operation, outputting 1 exclusively for the 11 input pair. This dual-output arrangement directly mirrors the needs of base-2 arithmetic where both result and overflow must be tracked simultaneously.

Critical Input-Output Relationships

Examine the 01 and 10 rows–both yield identical sum outputs (1) while generating zero carry. This symmetry demonstrates why position does not affect the sum calculation, a property that simplifies hardware implementation. The 11 condition uniquely triggers both outputs, requiring careful design to prevent signal propagation delays from affecting downstream computations. Always verify these states with logic analyzers before finalizing layouts, as timing constraints become stricter with higher clock speeds.

Use the truth table to derive optimized gate arrangements. Replace discrete XOR and AND gates with pre-fabricated modules like the 74LS86 (quad XOR) and 74LS08 (quad AND) to reduce board real estate and improve signal integrity. For custom ASIC designs, encode these truth table values directly in the RTL description using case statements to ensure synthesis tools generate minimal gates while maintaining exact functional equivalence.

Typical Errors in Schematic Representations of Binary Summing Units

Incorrectly labeling input pins leads to confusion when verifying logic behavior. Ensure A and B are explicitly marked near their connection points, not just near logic gates. Ambiguous or missing labels force readers to trace lines manually, increasing error risk during implementation or debugging. Use consistent naming (e.g., avoid mixing In1/In2 with X/Y in the same sketch).

Omitting the XOR gate’s distinct symbol in favor of reusing an OR gate’s shape is a frequent oversight. While both gates have curved inputs, the XOR includes an additional curved line inside the body–a subtle but critical distinction. Verify this detail in every graphical tool, as some default libraries incorrectly render it. Confusing these gates alters the entire truth table output, producing incorrect sum results.

Incorrect Gate Ordering and Wire Routing

  • Swapping AND and XOR gate positions reverses signal priority, causing the carry output to activate prematurely. Always route inputs first to the XOR, then branch the same signals to the AND.
  • Overlapping wires without proper T-junctions or dots creates false connections. Most schematic editors auto-connect intersecting lines, but this default behavior isn’t universal. Manually add junction dots to avoid hidden shorts.
  • Failing to differentiate between input/output pins and intermediate nodes forces unnecessary probing during testing. Label all outputs (SUM, CARRY) and internal nodes (e.g., N1, N2) for clarity.

Neglecting power and ground symbols in transistor-level sketches misleads beginners into omitting essential bias conditions. Even in purely symbolic representations, explicitly showing VCC and GND underscores that the behavior relies on underlying voltage levels–not just abstract logic. Add these symbols near the gate’s base terminals to reinforce correct functionality.
