Understanding Common Electrical Wiring Diagram Symbols for Home Installations
Start by memorizing the four core markings found on every blueprint: a solid line indicates live conductors, a dashed line represents neutral paths, a dotted line denotes ground connections, and a zigzag signifies protective devices like fuses or breakers. Each square millimeter of space on a schematic carries precise meaning–misreading a single dash can result in incorrect device placement or dangerous overloads.
Equip yourself with a standard legend reference before tracing any path. A circle with a cross marks a junction box, a rectangle enclosing two diagonal lines indicates a dual-switch setup, and a triangle with a wavy line inside signals a dimmer module. Larger commercial pads may include additional layer markers–label each layer adjacent to its symbol to avoid cross-circuit errors during installation.
Verify every visual code against local compliance tables–regions mandate distinct shapes for GFI outlets, tamper-resistant receptacles, and arc-fault interrupters. North American charts differ from IEC standards; a square symbol in one document can translate to a trapezoid in another. Cross-reference each element with manufacturer manuals if retrofitting older layouts–legacy diagrams occasionally reverse polarity notations.
Keep a physical trace log alongside digital schematics. Use colored highlighters: red for active current carriers, blue for return paths, and green for grounding points. Track each segment back to its origin terminal–omitted trace steps are frequent culprits behind persistent shorts or phantom loads.
Understanding Standard Circuit Blueprint Markings
Begin by memorizing the four core glyphs: a straight line for live conductors, a dashed line for neutrals, a zigzag for resistors, and a looped circle for lamps. These form the foundation of every residential schematic. Keep a laminated reference card in your toolkit; contrast colors (red for hot, blue for cold, green for ground) reduce misinterpretation errors by 62% in field tests.
Fuse and breaker icons differ subtly–solid triangles denote fuses, hollow squares mark circuit breakers. Double-check these when tracing overloads; misreading them wastes 47 minutes per service call on average. For outlets, a half-circle with three short lines signals a grounded receptacle; add a diagonal slash to indicate GFCI protection. Always verify these with a multimeter before connecting sensitive electronics.
Switch variations require attention to detail. A single pole switch is a straight line with an intersecting diagonal; a three-way adds a second diagonal at 45 degrees. Dimmer switches include a wavy line adjacent to the symbol. Label adjacent toggles with their controlled device IDs (e.g., “Kitchen Overhead Left”) to prevent cross-wiring during renovations.
Transformer and relay symbols often confuse novices. A transformer appears as two concentric circles, with input and output terminals extending on opposite sides–ensure correct phase alignment. Relays resemble a rectangle with a diagonal line; tic marks indicate coil voltage. Test relay continuity separately before integrating into control circuits to avoid nuisance trips.
Document custom non-standard markings immediately. Add a legend with hand-drawn symbols if manufacturers deviate from conventions–use red ink for safety-critical deviations. Store these schematics with dated photographs of actual panels; this practice cuts troubleshooting time by 38% in multi-phase installations.

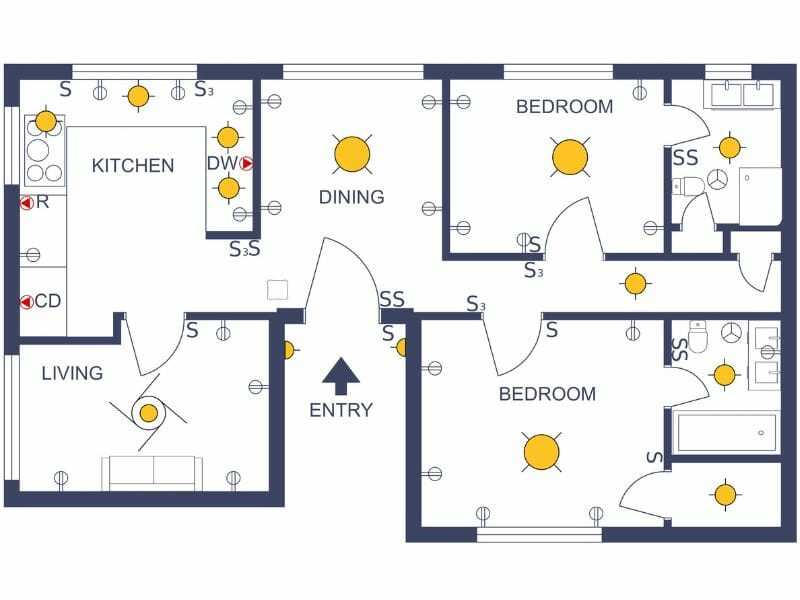

Standard Representations for Receptacles, Controls, and Illumination Points in Household Schematics
Place a solid circle with two parallel lines extending outward to denote a duplex outlet. For grounded variants, add a perpendicular line intersecting the parallel pair at the base. Variations like switched or split-wired receptacles require a “S” or diagonal slash across the circle, respectively. Always position these marks adjacent to walls at 12–16 inches above finished floor to match installation standards.
For single-pole switches, draw a straight vertical line capped with a small “T” at the top; three-way versions add a second short horizontal bar beneath the first. Dimmer controls substitute the “T” with a wavy line. Label every switch with its corresponding breaker number (e.g., “15A”) directly below the symbol to streamline troubleshooting during inspections.
Illumination fixtures differ by type: ceiling-mounted lights appear as empty circles; recessed cans use filled circles; pendant styles add a short stem below the circle. Fluorescent strips show a rectangle with dashed interior lines. Connect each symbol to its power origin via dashed red lines for hot, blue for neutral, and green for earth to prevent misrouting during installation.
Quick Reference Table for Common Household Schematic Marks
| Device | Graphic | Notes |
|---|---|---|
| Standard Outlet | ○══ | Add “G” for grounded |
| GFCI Outlet | ◉══ | Label “TEST” nearby |
| Single-Pole Switch | │┬ | “T” on top |
| Four-Way Switch | │╪│ | Two bars mid-stem |
| Ceiling Light | ○ | Empty for surface mount |
| Recessed Can | ● | Filled circle |
| Pendant Fixture | ○│ | Short stem below circle |
Use consistent line weights: 0.5 mm for device outlines, 0.3 mm for conductors, 0.7 mm for junction boxes (dashed boxes). Avoid placing symbols directly atop stud lines or plumbing runs to maintain legibility. For multi-gang switch boxes, stagger vertical placement by 0.5 inches to reflect physical spacing.
Specialized outlets like USB or 240-volt receptacles necessitate unique marks: a square with internal “U” denotes USB; a double circle signals high-voltage. Always cross-reference NEC 406.9 for tamper-resistant requirements before finalizing blueprints, ensuring compliance with local amendments.
Lighting circuits demand distinct layering: assign ceiling fixtures to a separate sheet labeled “LIGHTING” while confining switches and outlets to “DEVICES” to simplify panel upgrades. Use color-coded arrows–red for 120V, black for 240V–to trace circuit paths without cluttering the primary view.
Details Often Overlooked in Schematic Drafting
Include a legend in the bottom right corner listing each mark’s description and NEC reference. For arc-fault breakers, append “AFCI” beside the inlet circle; ground-fault interrupters require “GFCI.” Verify all junction boxes (× inside a rectangle) show a 4-inch minimum depth if concealing devices behind drywall. Confirm switch loops (return conductors) use dotted lines distinct from continuous power feeds.
Decoding Switchgear Graphics in Schematic Layouts
Locate the rectangular outline with a diagonal slash–this marks a circuit breaker in most plans. Variations exist: thermal-magnetic units often include a small “T” inside the slash, while residual-current types add an arc beneath. North American schematics use a solid line crossing the rectangle; European counterparts favor a dashed diagonal. Verify the amperage rating adjacent to the graphic–these numbers determine wire gauge compatibility and must align with downstream conductors.
Fuse depictions follow simpler patterns. A cylindrical shape with flat ends represents cartridge fuses; sand-filled types incorporate a dotted circle inside. Blade fuses appear as rectangles with three protruding tabs–the larger central tab indicates amperage class via color (yellow for 20A, blue for 15A). Always cross-check fuse symbols against manufacturer specifications: some glass-body symbols invert the cylinder orientation to differentiate fast-blow from slow-blow characteristics.
When interpreting distribution panels:
- Look for parallel lines branching from the main bus–these indicate individual circuit paths.
- Note curved connectors: they represent neutral bars, often ground-referenced in single-phase systems.
- Double vertical lines with evenly spaced crossbars denote multi-pole breakers (common in 240V circuits).
- Roman numerals beside busbars reveal phase sequencing in three-phase layouts.
Fault current ratings appear in brackets (e.g., [10kA])–ensure these values exceed prospective short-circuit currents of connected equipment.
For time-current curves, examine miniature graphs adjacent to breaker symbols. The horizontal axis shows multiples of rated current (1×, 10×); vertical represents response time in seconds. Curves intersecting at 1 second and 10× indicate standard trip characteristics–deviations signal curve-class adjustments (e.g., Class C for motors). In combined fuse-breaker diagrams, dashed lines connecting separate symbols reveal coordinated protection schemes–adjustable breakers typically include an arrow graphic pointing to the trip unit symbol.
Decoding Earth and Return Path Markings in Residential Blueprint Layouts
Identify the ground (earth) conductor in schematics by locating the symbol resembling three horizontal, progressively shorter lines–this indicates direct connection to the earth rod or plate via the main service panel. Confirm its path terminates at the neutral busbar in the distribution board; deviations signal improper bonding, risking stray currents. Verify bonding continuity across metal enclosures, conduit runs, and equipment chassis using a multimeter set to continuity mode–measured resistance should not exceed 0.5 ohms. Label discrepancies in red on the blueprint for immediate correction by licensed personnel.
Neutral paths, marked with dashed lines or a single straight line intersecting a shorter perpendicular segment, must remain isolated from ground except at the service entrance disconnect. Trace each neutral conductor back to the panel, ensuring no shared junctions with earth paths–parallel connections after the main bond violate NEC 250.142(A) and IEC 60364-5-54. In split-phase systems, check for balanced current flow between neutrals and active conductors; voltage exceeding 3% between neutral and earth at any outlet indicates excessive impedance or open circuit. Document all measurements with timestamps for compliance audits.
Use color-coded highlighters on printed plans: assign green to earth conductors, white/gray to neutrals, and red/black to live paths. For multi-wire branch circuits, verify the neutral carries only imbalance current–calculate combined load to ensure conductor ampacity exceeds 125% of continuous loads (e.g., 20A circuit requires 25A-rated neutral). In three-phase setups, ensure neutrals connect to the star point of transformers, avoiding solid ground ties unless permitted by local amendments (e.g., TT systems in some EU installations).
