Complete Wiring Guide for Honeywell R8184G4009 Relay Control System
Begin with the L1 and L2 terminals–these supply 120V power. Apply wire nuts to secure connections; loose contacts cause ignition failures. Use 18-gauge solid copper wire for low-voltage circuits (under 30V) and 14-gauge stranded for high-voltage lines (120V+).
Locate the thermostat R and W terminals. Bridge R to the high-limit switch first; bypassing this risks overheating. From W, route to the relay’s T-T terminals–polarity doesn’t matter here, but ensure the relay clicks audibly when activated. If silence follows, check the CAD cell alignment: it should detect flame within 5–10 seconds.
For oil burners, connect the motor lead (black) to the relay’s M terminal. Ground the white neutral to the chassis–skip this step and tripping hazards arise. Test the igniter separately: a steady orange glow confirms proper current. Dim or flickering signals a weak transformer; replace immediately.
Label wires with heat-shrink tubing or numbered tags. This prevents miswiring during maintenance. After assembly, power on and verify: 1) motor hums, 2) igniter glows, 3) flame stabilizes at 1–2 inches. If the system shuts off within 15 seconds, recalibrate the pressure switch or clean the nozzle.
Understanding the Primary Burner Control Unit Connection Guide
Connect the R8184G4009’s 24V thermostat terminal (marked “T” or “TH”) directly to a compatible Low-Voltage thermostat using 18-gauge solid copper wire–stranded leads cause intermittent failures due to oxidation. Route the wire away from line-voltage cables to prevent induced noise that disrupts flame sensor readings; maintain at least 2 inches of separation. Confirm polarity before termination: the red wire goes to “R,” while the white connects to “W,” though dual-transformer systems may reverse this convention–verify with a multimeter set to AC voltage during a call-for-heat cycle.
Sensor and Valve Hookup Nuances
The cad cell’s quick-connect terminal accepts only 14-16 AWG leads; larger wires risk damaging the crimp receptacle, and smaller gauges overheat under sustained draw. Ensure the sensor’s lens is free of carbon buildup by wiping with denatured alcohol every 200 hours of runtime–residue as thin as 0.1mm reduces sensitivity by 70%. The gas valve’s common terminal accepts both 24V and ground signals, but if using a millivolt pilot, bridge the “MV” and “PV” posts with a jumper, then attach the thermocouple’s yellow lead to “PV” and its white to “MV”; reverse polarity drops voltage below 250mV, causing lockouts.
For auxiliary components, wire the limit switch in series with the thermostat circuit: a normally closed device interrupts power when tripped, but a normally open configuration requires an external relay to invert the signal–sketch the loop on paper first to avoid floating neutrals. Test all joints with a megohmmeter at 500VDC; readings below 1MΩ indicate compromised insulation. Tighten terminal screws to 12 in-lbs–overtorquing strips threads but undertightening causes arcing. Label each wire at both ends with heat-shrink tubing, not tape, which absorbs moisture and degrades within 18 months.

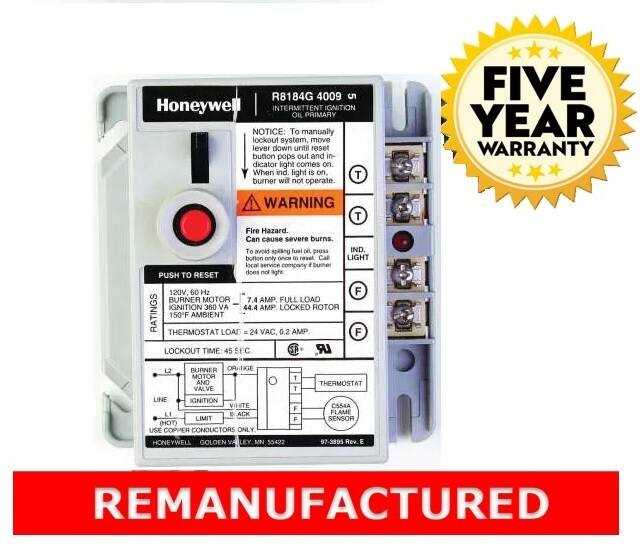

Connecting Thermostat Leads to the R8184G4009 Primary Safety Controller
Begin by attaching the 24VAC power wires from the heating system’s transformer to terminals labeled “T” and “TV” on the controller. Verify voltage with a multimeter to confirm readings between 23–26VAC before securing connections with a screwdriver–loose contacts may cause intermittent failures or overheating. Label each lead before disconnecting any existing setup to prevent miswiring during reinstallation.
The thermostat’s R and W wires connect directly to the corresponding “T” and “TH-TR” terminals on the unit. For systems with separate cooling controls, route the cooling thermostat’s Y wire to an external relay; this model does not support cooling functions natively. Use 18-gauge solid copper wire for all connections, stripping only 3/8″ of insulation to avoid short circuits. Below is a reference table for terminal assignments:
| Controller Terminal | Thermostat Wire | Function |
|---|---|---|
| T | R (Power) | 24VAC supply input |
| TV | C (Common) | Power return |
| TH-TR | W (Heat) | Heat call activation |
For aquastat or remote sensor integration, use the “S1” and “S2” terminals, observing polarity if the device is electronic–reversing leads may damage internal components. If configuring a two-stage heating system, wire the secondary stage’s thermostat lead to a separate relay, never splicing it into the primary circuit. Double-check all connections against the equipment’s manual before powering on; incorrect wiring risks voiding safety certifications or triggering lockout conditions.
After securing all leads, restore power and monitor the controller’s LED indicator. A steady glow confirms proper operation, while rapid blinking signals a fault–refer to the troubleshooting section for error code specifics. Ground the chassis by connecting the grounding screw to the furnace’s bare copper ground wire to prevent static buildup or interference. Use dielectric grease on terminal screws in humid environments to inhibit corrosion.
Power Supply and Transformer Specifications for Relay Control Units
Verify the control module’s voltage input matches the system’s power source before installation. The manufacturer’s specification sheet indicates compatibility with both 24VAC and 120VAC supply lines, each requiring distinct transformer ratings. For 24VAC operation, use a Class 2 transformer with a minimum 40VA capacity, ensuring stable output under load fluctuations typical of burner ignition cycles.
- Connect 120VAC models directly to a dedicated 15A circuit with isolated grounding–never share this circuit with inductive loads like motors.
- Measure voltage at the terminal block with a multimeter set to AC; readings should remain within ±5% of nominal during all operating phases. Deviations beyond this range risk premature solenoid failure or erratic lockout behavior.
- If the system exhibits intermittent shutdowns, first inspect transformer secondary voltage under load–expect 25-28VAC for “universal” 24V models to account for line drops.
Primary current draw varies significantly between power levels: 24VAC units pull approximately 1.2A during ignition, while 120VAC versions demand 0.2A. Size conductors accordingly–#18 AWG suffices for 24V runs under 12 meters, but upgrade to #14 for longer lengths or 120V circuits. Improper gauge selection causes resistive heating and voltage drops exceeding 3%, which may trigger false safety lockouts.
Transformers must meet UL 5085-1 or equivalent safety standards, with built-in short-circuit protection. Cheaper uncertified alternatives often lack thermal cutoffs, creating fire hazards when the control repeatedly attempts failed ignitions. Replace transformers immediately if:
- Output voltage sags below 22VAC under load.
- Observed arcing occurs at terminal connections.
- Case temperature exceeds 60°C during normal operation.
For multi-zone applications, segregate power supplies to prevent cross-load interference. Each burner control should have individual transformer secondary wiring, even if sharing a primary circuit. Parallel 24V connections violate NEC 422.31(B) and lead to unpredictable voltage sharing, risking nuisance trips during simultaneous ignition sequences. Document actual measured voltages and current draw during commissioning for baseline diagnostics; discrepancies often predate visible component degradation.
Step-by-Step Guide to Connecting the Combustion Motor and Spark Sequence
Disconnect the power supply at the circuit breaker before handling any cables. Verify the absence of voltage with a multimeter–probes on L1 and neutral should read zero. Failure to confirm this step risks electric shock or equipment damage.
Locate the control unit’s terminal strip–typically a row of screw-down connectors marked with alphanumeric labels. Identify the three primary leads for the burner assembly: M (motor), PV (pilot valve), and MV (main valve). Cross-reference these with the schematic supplied in the unit’s manual to avoid misconnections.
- Motor (M): Attach the black or red conductor from the motor’s winding to terminal M. Secure with a screwdriver–tighten until resistance increases sharply, then add a quarter-turn to prevent loosening from vibration.
- Pilot Valve (PV): Connect the smaller gauge wire from the ignition electrode to PV. Use a crimping tool for stranded copper to ensure a gas-tight joint; solder if ambient humidity exceeds 70%.
- Main Valve (MV): Link the heavier cable from the gas valve actuator to MV. Confirm the cable gauge matches the system’s ampacity–16 AWG for systems under 10A, 14 AWG for higher loads.
Route secondary circuits next. The flame sensor–usually a thin rod with a ceramic insulator–connects to terminal F. Strip 6mm of insulation, twist strands tightly, and insert into the terminal. Bend the wire 90° after the screw to create strain relief, reducing breakage from thermal cycling.
Ground the system using a dedicated conductor–green or bare copper–to the chassis ground post. Remove any paint or oxidation from the chassis surface with emery cloth to ensure a low-impedance path. Use a star washer between the ring terminal and chassis to prevent loosening.
Verification and Safety Checks
Reintroduce power. Observe the startup sequence: motor should spin within 2-3 seconds, followed by a soft click from the pilot solenoid. If the ignition spark fails to appear after 10 seconds, recheck the PV connection–high resistance here is the most common failure point.
- Measure voltage across MV with a voltmeter during startup–expect 24VAC within 5 seconds. Readings below 22V suggest a weak transformer or undersized conductor.
- Test flame sensor continuity with an ohmmeter–should read 0-100Ω. Values above 500Ω indicate contamination; clean with steel wool.
- Monitor motor current draw with a clamp meter–comparable models draw 0.7-1.2A. Excessive current points to bearing wear or misaligned impeller.
Seal all exposed conductors with heat-shrink tubing or silicone-filled splice caps. Label each connection with self-laminating tags–specify terminal and destination. Store spare cables (18 AWG spooled solid copper) in a sealed container with desiccant packs to prevent corrosion during seasonal downtime.
