Step-by-Step Guide to Creating Accurate Circuit Diagrams for Beginners

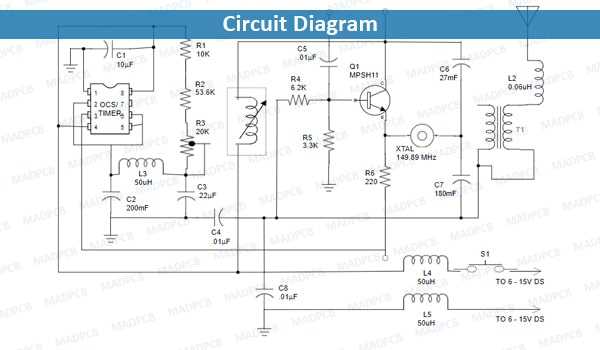

Begin by selecting the right tools–vector-based software or specialized electrical drafting platforms save time and reduce errors. Verify component libraries match project requirements; missing symbols lead to inconsistencies later. Prioritize clarity over aesthetics: use standardized symbols (IEEE or IEC) to ensure instant recognition, even for unfamiliar reviewers. Label every connection sequentially (e.g., R1 for resistors, C1 for capacitors) to eliminate ambiguity during testing.

Position elements logically–group related blocks (power supply, sensors, outputs) to mirror the actual signal flow. Horizontal lines for ground and power rails reduce visual clutter; vertical drops to components keep traces unobstructed. Use net naming for critical paths (e.g., “VCC_5V” or “DATA_OUT”) to simplify troubleshooting. Reserve color sparingly: highlight only high-voltage or critical feedback loops to avoid distraction.

Validate the layout in stages: first, cross-check component values against the bill of materials; second, verify pinouts against datasheets (a single mismatch derails prototypes). Simulate with SPICE tools if stability is critical–oscillations or voltage drops often surface only here. Export final versions in scalable formats (SVG or PDF) with layers preserved for future revisions.

Document constraints upfront–voltage tolerances, current ratings, and thermal limits inform part selection. Add brief annotations for non-obvious connections (e.g., “Pull-up 10kΩ to 3.3V”) but avoid over-explaining obvious steps. Archive revisions with timestamps; changes during development are inevitable.

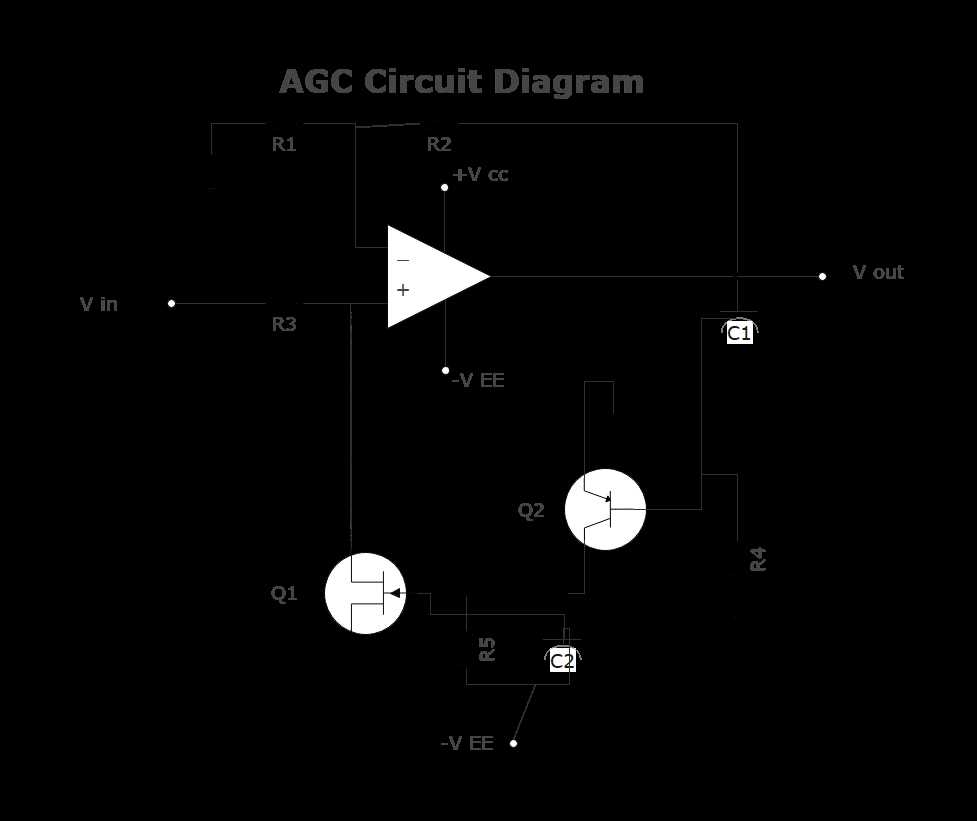

Key Principles for Crafting an Electronic Schematic

Begin by segmenting the system into functional blocks–power supply, signal processing, and output stages–each drawn on a separate horizontal plane. This prevents tangled connections and clarifies signal flow. Label every block with concise identifiers (e.g., PSU-5V, AMP-CH1) and assign unique reference designators to components (R1, C3) immediately. Avoid abbreviations that aren’t standardized in your field.

Use grid snap (1mm step) for alignment and maintain consistent spacing: 0.5cm between component symbols, 1cm for horizontal traces. Power rails run above the drawing area, ground below, with all connections intersecting at right angles. For multi-layer boards, employ net labels (VCC, GND) instead of physical lines to reduce clutter. Prioritize star grounding for analog sections to minimize noise coupling.

Select symbols from a verified library–resistors as rectangles, capacitors as parallel lines, ICs as boxes with pin numbering following datasheet pinout, not physical layout. Annotate pin functions (OUT, IN+) adjacent to each pin, even if redundant. For microcontrollers, group related pins (clock, reset, I/O) into clusters to preserve logical grouping.

Insert test points (TP1) at critical junctions–outputs of regulators, ADC inputs, clock signals. Indicate maximum current ratings (e.g., 1A max) next to fuse symbols. For high-frequency circuits, add impedance values (50Ω) to transmission lines and mark propagation delays where timing is critical (t_pd = 2ns).

Validate net connectivity using ERC (Electrical Rule Check) tools before finalizing. Flag floating inputs, unconnected power pins, and unassigned nets in red. Generate a netlist and cross-reference with the BOM to ensure component count matches. Export the schematic in both PDF (for review) and EDIF (for PCB tools) formats, including layer visibility settings.

Error-Proofing Techniques

Incorporate CRC checksums for firmware-loaded components like EEPROMs by adding a dedicated annotation layer (CRC-16). For redundant systems, mirror duplicate sections identically–swap only reference designators. Document jumper configurations (e.g., JP1: 1-2 for 3.3V, 2-3 for 5V) directly on the schematic rather than relying on external notes. Use dashed rectangles to highlight critical safety circuits (isolation barriers, crowbar protections).

Selecting Optimal Parts for Your Schematic

Prioritize components with clear datasheets from reputable manufacturers to avoid unexpected behavior. For resistors, tolerance matters: 1% metal film ensures stability in precision applications, while 5% carbon film suffices for general use. Capacitors demand attention to voltage ratings–always choose at least 20% above the operating voltage to prevent dielectric breakdown. Ceramic capacitors (X7R, X5R) offer compact size for high-frequency filtering, but tantalum or electrolytic types deliver better capacitance per volume for power supply smoothing.

When integrating semiconductors, cross-reference pinouts with the package type–TO-220 transistors won’t match SOT-23 layouts, and a misstep here burns traces. MOSFETs require careful R_DS(on) selection: for 5V logic, logic-level devices (30V max) outperform standard types, while 100V+ models handle inductive loads without desaturation. ICs need decoupling capacitors (0.1µF ceramic) within 2mm of power pins to suppress noise, and larger bulk caps (10µF+) near the power source to handle transient currents.

Matching Component Specs to Load Conditions

Microcontrollers vary widely in current draw–an ATmega328P consumes ~5mA active, but an ESP32 spikes to 240mA during Wi-Fi transmission. Factor these peaks when sizing power supplies, adding at least 30% overhead to prevent brownouts. For motor drivers, calculate stall current and multiply by 1.5x: a 2A motor typically needs a 3A driver with proper heatsinking (TO-220 packages tolerate ~1W without a sink, 5W with a moderate one). Always verify thermal resistance (θ_JA) in datasheets–exceeding it by even 10°C cuts lifespan in half.

Sensors introduce unique constraints: analog outputs (e.g., MLX90614 IR thermometer) demand low-noise traces (pp ripple) and separated ground planes to avoid cross-talk. Digital interfaces (I2C, SPI) tolerate noise but require pull-up resistors (4.7kΩ typical) and trace lengths under 20cm to prevent signal degradation. For high-speed signals (e.g., USB), differential pairs must maintain

Step-by-Step Guide to Drawing Clear Symbols and Connections

Begin by selecting a standard symbol set–IEEE, IEC, or ANSI–to ensure consistency across schematics. Store these symbols in a library with precise dimensions (e.g., resistors at 6mm×3mm, logic gates at 8mm×6mm) to avoid scaling discrepancies. Label each symbol with its reference designation (R1, C3, U2) in a legible sans-serif font (Arial 10pt for paper, 8pt for digital) placed adjacent to the symbol, not overlapping lines. For polarized components like diodes or electrolytic capacitors, orient the anode/cathode or positive/negative markers toward the top or right of the page by default to reduce misinterpretation.

Use a 0.5mm line weight for all connections, reserving 0.7mm for power rails and ground. When routing traces:

• Avoid diagonal lines–use only horizontal or vertical segments for clarity.
• Keep junctions at 90° angles; T-junctions should never form acute angles.
• Maintain a 2mm minimum spacing between parallel lines to prevent visual clutter.

For nets with multiple nodes, adopt a hierarchical naming convention (e.g., “CLK_MAIN,” “CLK_PERIPH”) and group them with dotted 0.2mm lines to designate signal buses, adding a 3mm arrow at one end to indicate direction.

Symbol Placement Rules

Component Type	Spacing from Nearest Element	Alignment Preference
Passive (R, L, C)	1.5× symbol height	Centered on grid
ICs (DIP, SOIC)	2× pin pitch	Pin 1 at top-left
Connectors	3mm clear zone	Label side aligned
Transistors (TO-92)	1× lead length	Emitter toward bottom

Introduce a grid system with 2.5mm squares for manual drafting or 1mm increments for CAD tools. Snap all symbol origins and line endpoints to this grid to eliminate misalignment. For densely populated areas, shift text labels outside the bounding box of their associated symbols, using a 45° leader line terminated with a dot if the distance exceeds 5mm. When stacking components vertically, alternate label positions (above for top component, below for next) to prevent overlap. Ground symbols should always point downward; power symbols (VCC, +5V) upward, with their barbs terminating on the net line without gaps.

Labeling and Organizing Nodes for Clear Troubleshooting

Assign node identifiers using a hierarchical naming scheme–ground connections should start with GND_, power rails with VCC_ or VSS_, and signal lines with SIG_–followed by a brief descriptor and unique suffix (e.g., GND_MAIN_01, SIG_I2C_SCL_03). Group related nodes under sub-identifiers like CTRL_ for control signals or DATA_ for data buses. Avoid generic labels such as “Node1” or “PointA”; instead, embed functional context–MOTOR_DRIVE_PWM instead of PWM_OUT. For multi-board systems, prefix labels with board identifiers (MCU_ANALOG_IN_04, POWER_REG_VSENSE) to eliminate ambiguity during probing.

Structured Node Grouping

• Place global reference nodes (ground, primary power) at schematic edges, separating them from signal paths.
• Cluster related nodes in dedicated zones–power delivery near the top, analog signals on one side, digital on another.
• Use net ties or off-page connectors to link identical nodes across sheets, labeling both ends identically (e.g., SIG_SPI_MOSI_SHEET1_SHEET2).
• Append pin numbers to IC or connector nodes (e.g., U5_12_SPI_MISO) to cross-reference with datasheets.
• Highlight critical debug points–test headers, probe pads–with distinct labels like TP_I2C_SDA and color-code them in red or bold to prioritize visibility.
