How to Read and Create Simple Electronic Circuit Schematics Step by Step

Begin with a power source. Batteries, AC lines, or regulated supplies form the backbone of any circuit–label voltage, polarity, and current limits. A 9V battery should show + and – terminals; a wall adapter needs an input/output rating (e.g., 12VDC/1A). Draw connections thicker than signal lines to distinguish high-current paths instantly.

Use standard symbols consistently. Resistors, capacitors, and IC pins follow IEC standards: zigzag for resistors, parallel lines for caps, numbered rectangles for chips. Label every pin with its function (VCC, GND, IN1) and value where applicable (e.g., 10kΩ). Non-standard parts–transistors, relays–require a legend in the corner listing type (NPN/PNP) and footprint (TO-92, DIP8).

Split circuits into blocks. Power input, regulation, MCU core, sensors, and output drivers each get their own horizontal or vertical section. Connect blocks with thin signal lines, ensuring no intersections cross; use corners instead of diagonal jumps. Label each block with its primary function (e.g., “5V Regulator”) and critical component values (LM7805, 100μF).

Add test points beside crucial nodes. Mark them TP1, TP2, and reference expected voltages (e.g., TP1 = 3.3V). Include a component list in a table beneath the drawing: part number, value, footprint, and quantity. For SMD resistors, specify package size (0603, 0805) and tolerance (1%).

Verify every connection before transfer to board layout. Identify parallel paths that might merge unintentionally. Highlight high-frequency traces (SPI, I2C) and keep them short, away from switching regulators. If using ground planes, draw a bold line around the plane’s edge to indicate a solid return path.

Understanding Electronic Blueprints: A Practical Start

Start by labeling every part clearly–use uppercase letters (R1, C2, Q3) followed by its value. Example: R4 10kΩ denotes a 10-kilohm resistor. Avoid abbreviations like “k” alone; always include units (Ω, F, H) to prevent ambiguity. Group related components: place resistors near their associated IC pins, capacitors adjacent to voltage regulators.

Use standardized symbols consistently. IEC 60617 provides a reference–stick to these shapes:

• Resistor: rectangle with value inside
• NPN transistor: circle with arrow pointing outward
• Ground: downward triangle or three horizontal lines decreasing in length

Never invent custom symbols; misinterpretation wastes hours.

Draw connections as straight horizontal or vertical lines only. Diagonal traces confuse–tools like KiCad enforce this rule automatically. Power rails should run along the top and bottom edges; signal paths flow left-to-right, matching the schematic’s data direction. Highlight net names for repeated connections:

VCC_5V, GND_AUD

Annotate critical details directly on the layout:

• Pin numbers beside IC pads
• Voltage ratings near electrolytic capacitors
• Polarity markers for diodes and tantalum caps

Omit decorative borders–wasted space distracts from clarity. If space permits, add footprint references (e.g., 0805) beneath component labels.

Validate every connection before finalizing. Print the draft, grab a highlighter, and trace each path:

• Verify no floating inputs (connect resistors to ground if unused)
• Check capacitor ESR ratings against ripple current requirements
• Confirm MOSFET body diodes align with commutation needs

Errors caught here save PCB re-spins.

Save versions incrementally (amplifier_v1.kicad_sch, amplifier_v2.kicad_sch). Use revision tables in the corner listing:

• Change description
• Date
• Author initials

Export PDFs alongside native files–cross-platform readability ensures collaboration.

Selecting Proper Symbols for Core Electronic Parts

Begin with resistors: use a zigzag line (IEC standard) or a rectangle (ANSI) to represent fixed values. For variable resistors, add an arrow diagonally across the base shape. Avoid confusion by clearly distinguishing between potentiometers (three terminals) and rheostats (two terminals) in drawings. Label resistance values directly beside the symbol–4.7kΩ, 100Ω–omitting units only invites errors.

Capacitors require immediate clarity between polarized and non-polarized types. Draw electrolytic components as two parallel lines with a curved or marked positive plate; film or ceramic capacitors appear as simple parallel lines. Always indicate capacitance (10µF, 220nF) and voltage ratings (16V, 50V) next to the symbol–omitting this risks component damage during assembly.

Transistors demand precise symbol selection: NPN types show an arrow pointing outward from the base, while PNP arrows point inward. For MOSFETs, use a distinct vertical line with three terminals (gate, drain, source) and a perpendicular arrow for enhancement-mode devices. Mark pinouts (B, E, C or G, D, S) on diagrams–mislabeled pins cause circuit failure. Include transistor model numbers (2N3904, IRFZ44N) for reference.

Integrated circuits should use a simplified rectangle with numbered pins, avoiding detailed internal block drawings unless necessary. Label each pin with its function (VCC, GND, CLK) and IC designation (LM358, 74HC595) to prevent miswiring. For logic gates, adhere to standard symbols: AND (&), OR (>=1), NOT (1↗). Keep gate inputs on the left, outputs on the right–reversing this disrupts signal flow understanding.

Diodes appear as a triangle pointing to a line, with a parallel bar for Schottky or zener types. LEDs add two small arrows radiating outward from the triangle. Always specify semiconductor type (1N4007, 1N5817) and forward voltage drop (0.7V typical, 0.3V for Schottky) near the symbol–ignoring this leads to incorrect power calculations.

Step-by-Step Guide to Drawing Your First Simple Circuit

First, select a power source: a 9V battery or a 5V USB adapter. Mark its terminals with clear symbols–+ (positive) and - (negative)–to avoid confusion later. Sketch a straight line from the positive terminal to the first component, ensuring no intersections unless intentional.

Choose a load–an LED, resistor, or buzzer–to place between the power source and ground. For an LED, note its polarity: the longer leg connects to +, the shorter to -. Draw the symbol as a triangle with a line (anode) and two arrows pointing outward (cathode). Label values if known (e.g., 220Ω resistor).

Wiring Rules



• Use straight lines for connections; avoid diagonal routes unless necessary.
• Keep components aligned horizontally or vertically for readability.
• Leave gaps where wires cross without connecting–use a small arc over one line.
• Connect the final component’s exit to the ground symbol: a downward-pointing triangle or parallel lines.

Verify the flow: power → load → ground. Check for unintended breaks–missing lines or misplaced symbols will prevent current. If using a switch, insert it between the battery and the load, denoting its state (open/closed) with a small gap or intersecting line.

Common Pitfalls

1. Reversed polarity: Double-check component orientation (e.g., LEDs fry if hooked up backward).
2. Floating components: Ensure every element connects to both power and ground.
3. Overlapping lines: Reroute if wires cross ambiguously–clarity prevents errors.
4. Unlabeled values: Add resistance (e.g., 1kΩ), voltage ratings, or component names (e.g., D1 for diode).

Final step: test with a multimeter. Probe the positive lead and trace the path; voltage should drop across each component. If not, re-examine connections–often, a misaligned wire or overlooked ground is the culprit.

Common Mistakes to Avoid When Labeling Nodes and Connections

Use unique, descriptive names for every signal–v_in, v_out, or node_1 are too vague. Prefix power rails with “V” (e.g., V_CC, V_EE) and grounds with “GND” to distinguish them instantly. If a net carries a specific function like “CLK” or “RESET,” label it exactly that–never abbreviate differently across drawings. Reserve generic labels like “Temp” for truly temporary or intermediate points; permanent nets deserve clarity. Avoid mixing uppercase and lowercase unless dictated by a strict convention–pick one case per project and stick with it.

Ensure every label corresponds to a single, unambiguous net. Cross-verifying net names against a bill of materials or pinout list prevents mismatches where a label might imply one connection but maps to another. Below is a table of typical label errors and their fixes:

Incorrect	Correct	Reason
PWR	VBATT	Too generic; risk of conflating with logic power (VDD)
gnd	GND_ANALOG	Case inconsistency; lacks differentiation of analog/digital return
IO3	SPI_MOSI	Numbers are forgettable; functional names persist across revisions
LED	LED_STATUS	Ambiguous–LED cathode or anode?
Temp1	NTC_OUT	Non-specific; name implies the actual signal (e.g., thermistor output)

Additional Pitfalls

Omit units in labels–write “5V0” instead of “5V supply”; the latter clutters without adding context. Never reuse labels for different purposes in the same project, even if separated by hierarchy. In hierarchical designs, use dot notation to maintain traceability: top.u1.sda is clearer than i2c_sda at the top level where multiple I²C buses exist. Double-check net names against datasheet pins–mismatched labels cause silent errors during PCB layout.

Structuring Circuit Blueprints for Clarity and Diagnostics

Group related components into functional blocks using dashed 1pt outlines with 2mm spacing between segments. Label each block at the top-right corner in 0.25″ Arial Bold, left-aligned with a unique alphanumeric prefix (e.g., “PWR-01” for power section) followed by a colon and the function name. Place voltage rails horizontally at the top/bottom edges, with thicker 0.5mm lines for primary rails and 0.3mm for secondary. Ground symbols should always point downward–never at angles–to maintain consistency.

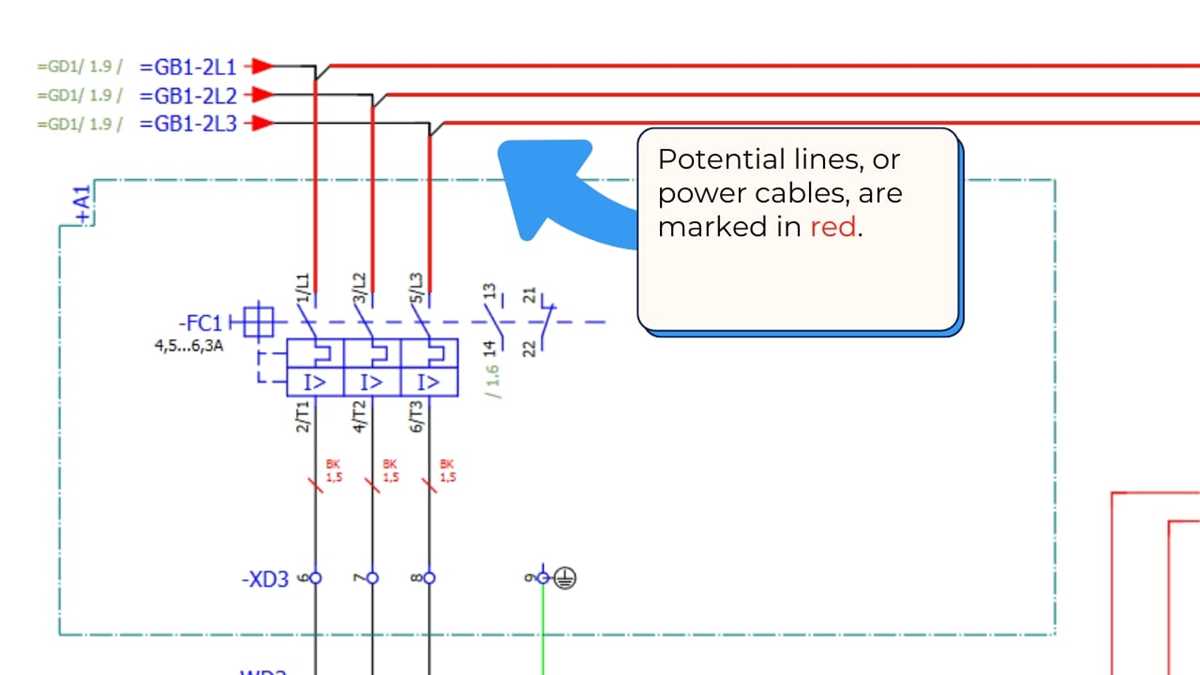

Use a left-to-right or top-down signal flow convention, avoiding crisscrossing connection lines. When unavoidable, route crossovers at 90° angles with a 0.5mm jump gap on one trace. Color-code essentials: red (#FF0000) for V+, blue (#0000FF) for ground, black (#000000) for signal paths. Annotate each wire with its nominal voltage or signal name at both origin and destination points, 1mm from the line end, in 0.18″ font.

Reserve the center-left area for critical components (MCUs, regulators, sensors) with clear 5mm surround space. Place decoupling capacitors ≤2mm from IC power pins, labeled with capacitance and voltage rating. Add test points as 2mm filled circles with a 1mm label radius (e.g., “TP1: VOUT+5V”) and link them to a margin tabulated reference list. Include a revision block in the lower-right corner with date, version (vX.Y), and a 6-character checksum of the file hash.

Insert fault-finding cues directly above connectors: “RESET if R5
