Understanding Electrical Schematics A Practical Guide for Beginners

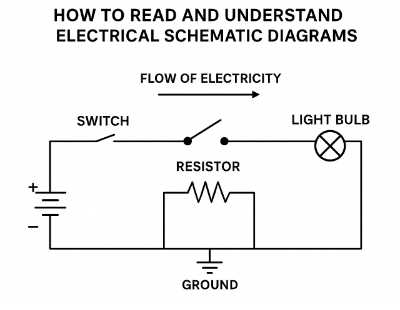

Begin by identifying power sources–these appear as straight lines with a + or – mark, battery symbols, or voltage labels. Trace their path immediately; every component downstream relies on this flow. Miss this step, and connections become ambiguous.
Symbols reveal functions instantly: zigzag resistors, parallel plates for capacitors, and circles with an X denote light bulbs. Memorize three variations of switches–SPST, SPDT, and DPDT–because their configuration dictates on/off paths. A single misread switch renders a schematic unusable.
Ground references demand attention. Look for downward-pointing triangles or lines converging at a common node. Treat them as zero-voltage anchors; any floating component without this reference introduces ghost voltage errors. Measure continuity here first before debugging.
Crossing wires should never be assumed connected unless marked with a dot. A dot indicates a junction; its absence means no electrical contact. Misinterpreting this rule creates false circuits that short power rails unexpectedly.
Component values matter–560Ω differs from 56kΩ. Check units (ohms, microfarads, volts) carefully; a misplaced decimal point changes current by orders of magnitude. Use Ohm’s law (V = IR) to sanity-check calculations whenever values seem implausible.
Transistors require pinout verification. Label Emitter, Base, and Collector (or Source, Gate, Drain for FETs) before soldering. Reversing leads burns silicon within seconds–no warnings precede failure.
Test points are deliberate. Circled letters or numbers on schematics correspond to physical probes; chase these during troubleshooting, not random traces. Skipping them leads to guessing, prolonging repair time unnecessarily.
Reading Electrical Schematics Like a Pro
Begin by identifying power sources–look for batteries, terminals labeled “VCC” or “GND,” and rails marked with voltage values. Positive rails often use a horizontal line at the top, while ground appears as a downward triangle or three parallel lines. Trace these first; everything flows from them.
Symbols follow consistent standards: resistors are zigzag lines, capacitors appear as two parallel lines (one curved for electrolytic), and transistors use three-legged shapes with arrows indicating current direction. ICs are rectangles with numbered pins; cross-reference datasheets for pin functions. MOSFETs show an insulated gate, while LEDs include an arrow pointing outward.
Follow signal paths methodically. Start at the input (switches, sensors) and move toward outputs (motors, lights). Branches indicate splits–label each path if the schematic lacks clarity. Series components share the same current; parallel paths split it. Measure impedance or voltage drops if values seem off.
Decoding Common Annotations
Values: “4.7k” means 4,700 ohms; “10μF” is a 10 microfarad capacitor. Tolerances (±5%) appear next to values. Designators: “R1” is resistor one; “C3” is capacitor three. Ratings: “2W” on a resistor denotes wattage; “50V” on a capacitor specifies voltage limits. Missing data often hides in footnotes or a reference box.
Troubleshooting Hidden Mistakes
Check for floating nodes–points connected to nothing or only high-impedance inputs. Verify polarity on electrolytic caps and diodes (strip marks cathode). Look for shorted traces (accidental connections) or open loops (broken paths). Reverse-engineering a working board helps match schematic errors to physical layout. Use a multimeter in continuity mode to confirm connections.
Switches and relays toggle states; dashed lines show alternative positions. Dotted lines around components mark shielded areas or ground planes. Crossed-out symbols denote deprecated parts–check revision notes. Large circles often represent test points; small dots indicate junctions. Always confirm physical connections if the drawing seems ambiguous.
Decoding Symbols for Key Elements in Schematics
Begin by memorizing resistor notation–zigzag lines with labeled values (e.g., “R1 10kΩ”). Direction of current flow is irrelevant for these passive parts, but orientation of polarized components (LEDs, capacitors) must match the drawing’s arrow or notch. For transistors, note the emitter, base, and collector positions: the arrow always indicates the emitter and points toward n-type material in NPN types or away in PNP. Common errors stem from reversing these leads, leading to improper switching or amplification.
Capacitor symbols split into two variants. Non-polarized types use parallel lines, while polarized (electrolytic) variants add a curved plate denoting the negative terminal. Always cross-check the schematic with component markings; “C+” or “+” indicates positive polarity. Inductors appear as coiled lines, often annotated with μH or mH values–confusion arises when mistaking them for resistor symbols at small scales.
Core Symbols and Frequent Pitfalls
| Component | Symbol | Critical Detail |
|---|---|---|
| Resistor | ▯▯▯ | Tolerance band (gold/silver) near one end |
| Capacitor (polarized) | │┴─ or ┌─│ | Negative terminal marked “+” or omitted |
| NPN Transistor | ─┤├─ | Arrow on emitter (outward) |
| Diode | ─┤▯ | Anode (line) to cathode (block) |
| Ground | ┼─ or △ | Floating grounds cause noise |
Switches and relays use varying symbols based on pole count. A single-pole switch is a break in a line, while double-pole variants show parallel breaks. Momentary pushbuttons add an arc to the line–press-to-make closes the gap, press-to-break inverts the logic. Misreading these causes circuits to activate unintentionally during power-up sequences.

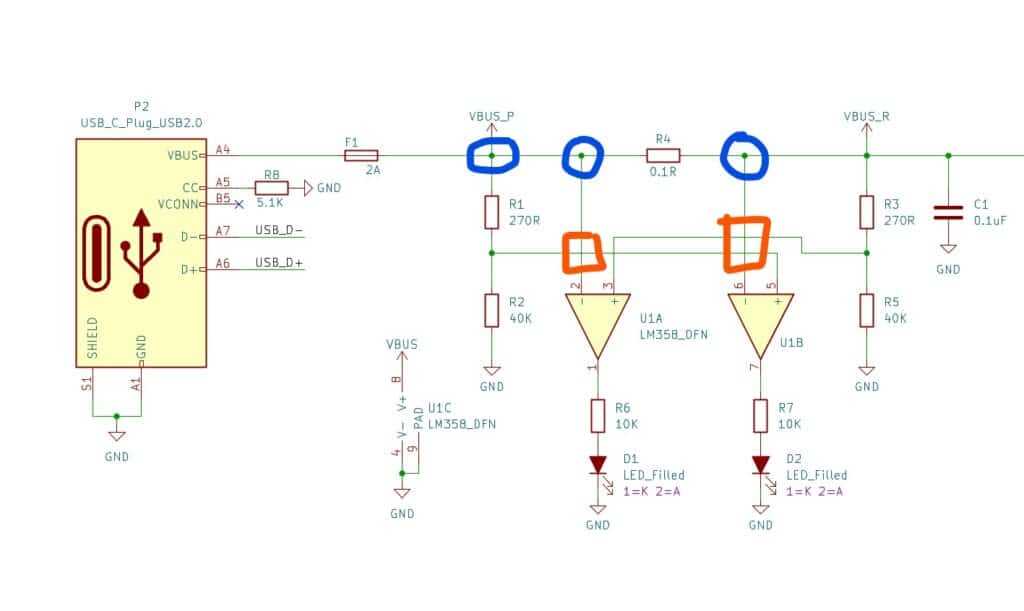

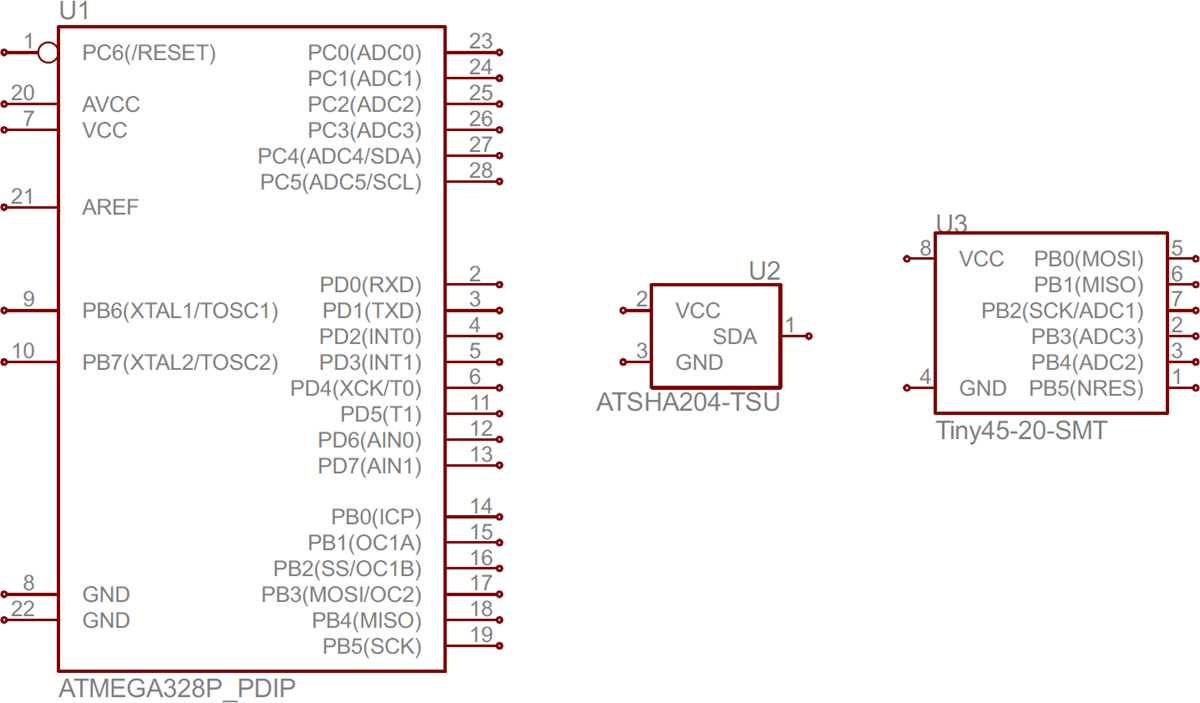

Integrated circuits simplify notation but require diligence. Pin 1 is typically marked with a dot or notch; subsequent pins follow counterclockwise numbering when viewed from above. Voltage regulators (7805) and op-amps (LM358) label inputs clearly (+/non-inverting, -/inverting) but lack standardized pin arrangements across manufacturers. Always cross-reference with datasheets–assumptions here lead to smoke-emitting failures.
Tracing Current Flow: Step-by-Step Method for Reading Schematics
Identify the power source first–batteries, voltage rails, or supply terminals–and mark its positive and negative terminals with arrows indicating direction. Work downstream through components: resistors drop voltage proportionally to their value, capacitors block DC while charging/discharging, and inductors oppose sudden current changes. Label each component’s voltage drop with a multimeter reading from the schematic’s reference points. If a path splits, follow one branch at a time, noting series connections (same current) and parallel paths (same voltage).
Key Markers for Error Checking
Verify continuity at junctions: sum of currents entering a node must equal the sum exiting (Kirchhoff’s Current Law). Cross-check resistor color codes against calculated values–discrepancies signal misreadings. For ICs, trace pinouts to datasheets; incorrect connections disrupt logic states. Ground symbols (⏚) denote 0V reference–ensure all branches converge here without floating potentials. Use a highlighter to track completed paths, isolating loops until the flow returns to the source.
Recognizing Power and Ground Lines in Schematic Representations
Start by locating symbols resembling a horizontal line with three descending spikes–this is the standard ground notation in technical blueprints. Variations include a downward arrow or the letters “GND,” though less common designs may use a bold underscore or a triangle. Verify the symbol’s consistency across adjacent components, as mixed markings often signal data reference points rather than true ground.
For power sources, search for battery icons–two parallel lines (one longer than the other), voltage rails labeled “VCC,” “VDD,” “+5V,” or similar. High-current paths frequently feature thicker strokes or colored highlights, distinguishing them from signal traces. Cross-check the schematic legend if present; power nets are usually listed at the top for quick access.
In complex layouts, power connections may split into multiple branches. Trace these back to a single origin–a voltage regulator, fuse, or power jack. If the path loops back to a component without an obvious source, suspect an error. Ground loops, while rare, should terminate in a single plane; look for a large bold line at the bottom of the illustration.
Key Symbols to Prioritize
Memorize these visual cues:
- A dashed circle with an arrow: typically denotes a chassis ground, separate from signal ground.
- An upward-pointing arrow: often marks input power (e.g., “VIN”).
- A T-junction with a diagonal slash: indicates a power plane split–confirm with the netlist.
- Rectangles with “+” and “−” inside: electrolytic capacitors bridging power rails.

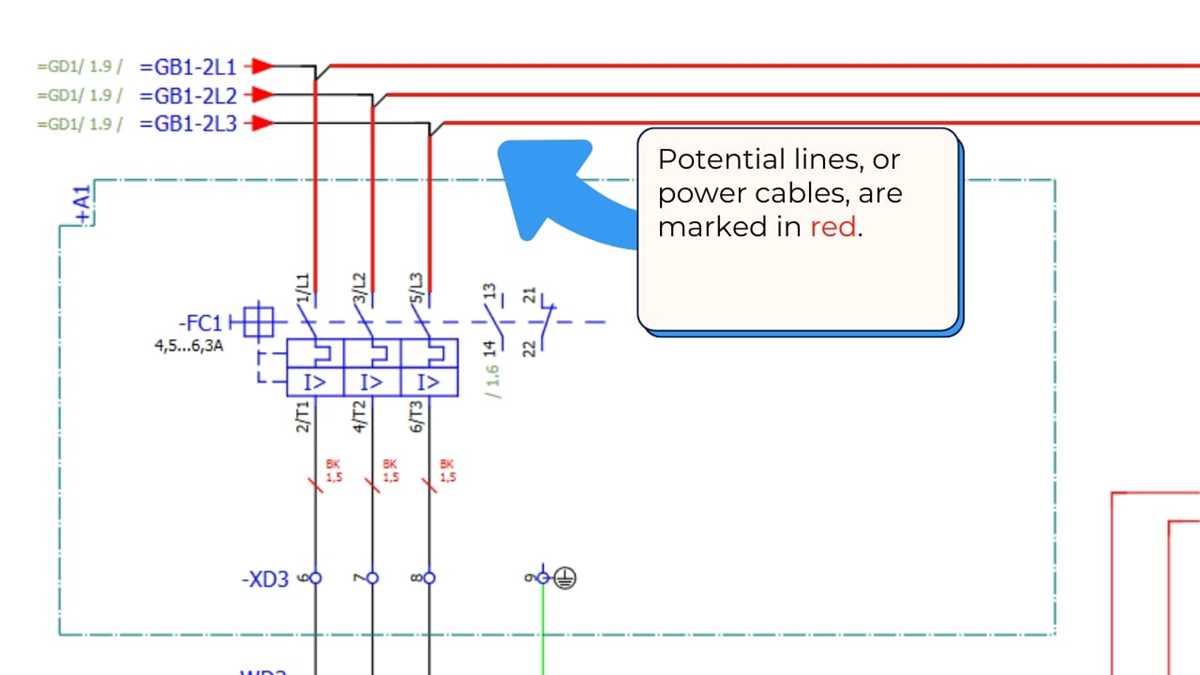

Digital schematics often use color-coding to distinguish power domains. Red traces usually carry positive voltage, while blue or black denote ground. Analog sections may label rails differently (“AVDD” for analog power), requiring careful isolation. If colors are absent, follow the thickest lines; these almost always represent power paths.
In IC-heavy designs, power pins carry fixed names: “VSS” (ground) and “VDD” (positive) for CMOS, “VCC” for TTL. Datasheets list these with pin numbers–cross-reference if the schematic omits them. Decoupling capacitors adjacent to ICs confirm power pin proximity; missing these suggests an unpowered state.
For safety-critical systems, ground symbols appear with protective earth markers–a circle enclosing a ground icon. These demand strict separation from signal grounds. Use a highlighter during review: power in one color, grounds in another, ensuring no unintended crossing between domains.
