Step-by-Step Guide to Designing a Schematic for LED Flasher Circuits
Use an astable multivibrator configuration with two transistors (2N3904 or similar) to generate consistent on-off cycles. Arrange a 10kΩ resistor between each transistor’s base and the opposite collector, with a 100µF capacitor connecting each base to ground. This setup delivers a 1Hz blink rate–adjust capacitor values down to 47µF for faster pulses or up to 470µF for slower intervals. Power the circuit with 5V DC for reliable operation without excess heat.
Position LEDs in series with 220Ω current-limiting resistors on the collectors of Q1 and Q2. Verify polarity: the anode connects to the resistor, cathode to ground. For brighter output, substitute standard LEDs with high-efficiency models (30–50mA) while recalculating resistor values using Ohm’s Law (Vcc − Vf) / I. Test each branch with a multimeter–expect 0.7V drops across transistor bases during active cycles.
Integrate a 555 timer IC configured in astable mode as an alternative. Connect pins 2 and 6 with a single resistor-capacitor pair (e.g., 4.7kΩ and 10µF) to pin 7, yielding precise control over duty cycle. Add a potentiometer (10kΩ) between pins 2/6 and Vcc to fine-tune timing without recalculating components–a 1MΩ pot expands the range to 0.1Hz–10Hz. Ensure decoupling with a 0.1µF capacitor across the IC’s power pins to prevent erratic behavior.
For dual-channel synchronization, couple transistor outputs via a 1kΩ resistor or optocoupler (PC817) to isolate loads. Use this method when driving separate strings–voltage spikes from inductive loads (relays, solenoids) risk damaging unprotected junctions. Validate timing consistency by measuring frequency at the LED cathode with an oscilloscope; anticipated square waves should exhibit
Building an Electrical Blueprint for Pulsing LED Circuits
Start with a 555 timer IC configured in astable mode–this forms the core of any reliable blinker setup. Set the timing intervals by selecting precise resistor (Ra, Rb) and capacitor (C) values using the formula: T = 0.693 × (Ra + 2Rb) × C. For a 1Hz blink rate, use Ra = 47kΩ, Rb = 47kΩ, and C = 10µF. These components should be soldered directly to the timer pins to minimize noise and ensure consistent performance.
Integrate a power MOSFET like the IRFZ44N to handle higher current loads when driving multiple LEDs. Connect the timer’s output (pin 3) to the MOSFET gate through a 10kΩ resistor to prevent gate oscillation. Source the MOSFET to ground and connect the drain to the LED positive terminal. For 12V systems, a 330Ω current-limiting resistor per LED prevents burnout while maintaining brightness.

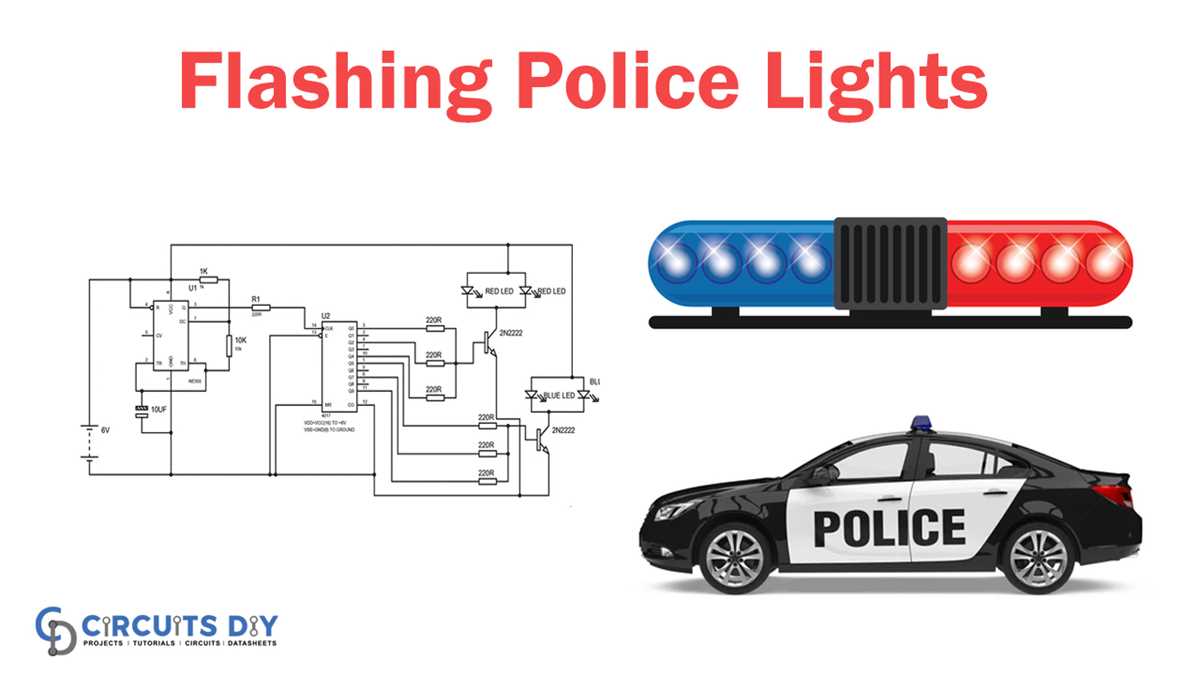

For dual-color pulsing, wire two separate 555 circuits–one for red and one for blue LEDs–each tuned to different frequencies. Synchronize them via a shared clock signal by linking the reset pins (pin 4) to a third timer or microcontroller. This avoids phase drift between channels. Below is a reference table for common timing configurations:
| Frequency (Hz) | Ra (kΩ) | Rb (kΩ) | C (µF) |
|---|---|---|---|
| 0.5 | 47 | 100 | 22 |
| 1 | 47 | 47 | 10 |
| 2 | 22 | 22 | 10 |
| 5 | 10 | 10 | 4.7 |
Add a flyback diode (1N4007) across inductive loads like buzzers or relays if included in the design. Position it cathode-to-positive to clamp voltage spikes. For battery-powered setups, prioritize low-ESR capacitors (e.g., tantalum) to avoid timing errors under fluctuating supply voltages, especially at startup.
When laying out traces on PCB, separate high-current paths from timing circuits to reduce electromagnetic interference. Ground the timer’s control pin (pin 5) to the main ground plane via a 0.1µF decoupling capacitor. For prototyping, use a breadboard but verify connections with a multimeter–false contacts often mimic component failure.
Troubleshooting Common Issues
If LEDs remain lit or fade instead of pulsing, check the timer’s output waveform with an oscilloscope. A clipped waveform indicates insufficient load resistance; replace the MOSFET or reduce LED count. Dim pulses suggest incorrect capacitor values–swap with a known-good one and retest. Erratic behavior often stems from poor grounding; star-connect all grounds at a single point.
For adjustable blink intervals, replace fixed resistors with 100kΩ potentiometers. Wire them in series with a 4.7kΩ resistor to protect the timer from extreme values. Label all components on the board to simplify future modifications–hand-drawn legends on the silkscreen layer work well for DIY projects.
In automotive applications, bypass the 555’s power pin (pin 8) to the input voltage through a 100nF capacitor and a 10Ω resistor in series. This filters noise from alternators and ignition systems. For AC-driven designs, rectify the input first using a bridge rectifier, then add a 7812 voltage regulator to stabilize the supply.
Selecting Parts for a Simple Blinker Layout
Opt for a 555 timer IC as the pulse generator–its stability and widespread availability make it ideal for intermittent signal control. Pair it with a 10µF electrolytic capacitor to set the blink rate; adjusting the value between 1µF and 100µF allows fine-tuning of the timing interval without complex recalibration. A 1kΩ resistor in series with the capacitor ensures consistent charge-discharge cycles, while a 470Ω resistor limits current to the LEDs, preventing burnout. For power, use a 9V alkaline battery with a 220µF smoothing capacitor to minimize voltage fluctuations during switching.
Key Component Variations
Replace standard LEDs with high-brightness variants (20mA, 3mm) for better visibility in daylight. For prolonged operation, substitute the 555 timer with a low-power CMOS version (TLC555) to reduce current draw by up to 70%. If space constraints exist, swap the electrolytic capacitor for a tantalum type–its compact size sacrifices minimal performance while improving durability. Always match transistor ratings (e.g., 2N3904) to the LED wattage to avoid thermal damage.
Series vs. Parallel LED Circuits: Brightness Optimization
For consistent luminosity across multiple LEDs, wire them in parallel when using a single power source with limited voltage. Each LED receives the full supply voltage (e.g., 5V), ensuring equal current distribution and preventing dimming common in series configurations. Parallel circuits demand higher total current (sum of all LED currents), so select a power supply with adequate amperage–calculate using Itotal = n × ILED, where n is the number of LEDs. Use 20 mA per LED as a baseline for standard 5mm indicators, but verify specifications for high-brightness variants requiring 30–50 mA. A 12V supply paired with a current-limiting resistor per branch maintains stability; for 10 LEDs (20 mA each), a 300 mA+ adapter prevents overheating.
Series Risks and Workarounds
- Voltage drop accumulation: A series string of 3x 3V LEDs on a 9V supply leaves no margin for resistor losses–use Ohm’s Law (R = (Vsource – VLED total) / I) to confirm viability. Exceeding the supply’s voltage rating dims or extinguishes LEDs.
- Current uniformity: A single failed LED in series breaks the circuit; parallel branches isolate failures. For high-power applications (e.g., 1W LEDs), parallel wiring with individual drivers (LM317 regulators) prevents thermal runaway.
- LED count limits: Standard 12V systems support up to 3x 3.3V LEDs in series; beyond this, add a boost converter (e.g., MT3608) or switch to parallel. For dynamic brightness control (PWM dimming), parallel circuits respond linearly, whereas series strings exhibit uneven fading.
Prioritize parallel arrangements for projects requiring uniform output or >4 LEDs. Reserve series for space-constrained designs where component count must be minimized–e.g., a single-path signal indicator–but account for voltage headroom and redundancy planning.
Calculating Resistor Values to Protect LEDs from Overcurrent
Begin by determining the LED’s forward voltage (Vf) and forward current (If) from its datasheet. For standard 5mm LEDs, Vf typically ranges from 1.8V to 3.3V, while If Often sits at 20mA. Use Ohm’s Law: R = (Vsource – Vf) / If. For example, powering a 2V LED at 20mA from a 5V supply requires a resistor of (5V – 2V) / 0.02A = 150Ω. Round up to the nearest standard value–150Ω or 160Ω–to ensure safety.
High-brightness LEDs demand lower currents (5–15mA), while power LEDs (1W+) may need active current limiting via buck converters. For pulsed operation, account for peak current: if driving LEDs at 50% duty cycle with 30mA pulses, select a resistor for 15mA average current to prevent thermal stress. Always verify calculations with a multimeter–real-world Vsource fluctuations can deviate from nominal values.
For series chains, sum the Vf of all LEDs and subtract from the supply voltage. Three 2V LEDs in series on a 12V rail: R = (12V – 6V) / 0.02A = 300Ω. Parallel configurations require separate resistors for each branch to avoid uneven current distribution. Avoid connecting LEDs directly to microcontroller pins–MCU GPIO typically sources 20–40mA max, risking burnout with multiple LEDs or higher-Vf variants.
Power dissipation in the resistor must not exceed its rating. Calculate: P = I2 × R. A 150Ω resistor at 20mA dissipates 0.06W–well under a ¼W resistor’s limit. For high-current applications, use resistors rated for ½W or 1W to avoid overheating. Voltage spikes (e.g., in automotive circuits) may necessitate additional clamping diodes or transient suppressors.
Color-specific Vf varies: red LEDs drop ~1.8V, blue/white ~3.2V. UV LEDs may exceed 3.5V. Always measure or confirm datasheet values–manufacturer tolerances can shift by ±0.2V. For precision, use constant-current drivers instead of resistors at currents >50mA or in temperature-sensitive environments.
