Understanding Electrical Schematics A Step-by-Step Practical Guide

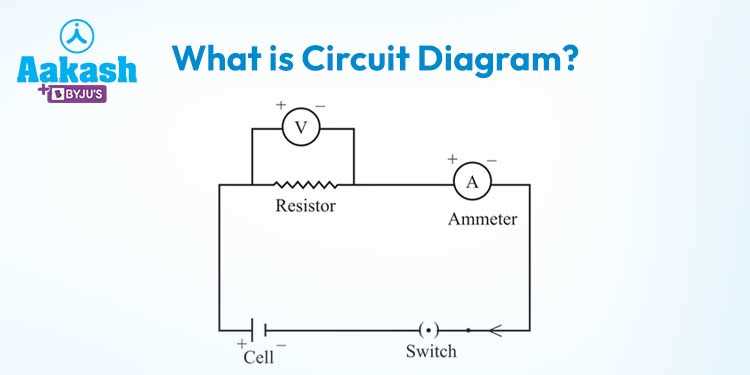

Begin by locating the power source. Trace its path through components using the lines–these represent connections, not physical layout. Voltage flows from positive terminals through switches, resistors, or transistors before grounding, marked by a downward triangle or the letter GND. Follow this path sequentially to avoid misreading the flow.

Identify symbols first. A zigzag line is a resistor, while a straight line with a perpendicular bar denotes a capacitor. A circle with an X or + is an LED; its orientation matters–current enters the longer leg. Transistors appear as three-legged shapes with labels E (emitter), B (base), and C (collector). Cross-reference symbols with a datasheet if unfamiliar.

Color-coded annotations indicate values: R1 (10k) means a 10-kilohm resistor, C2 (22μF) a 22-microfarad capacitor. Letters following numbers–k (kilo), M (mega), or μ (micro)–clarify units. Polarized components like electrolytic capacitors or diodes have a marked cathode (negative) side–usually a stripe or shorter leg.

Group related sections. A cluster of resistors near a transistor often forms an amplifier; an array of capacitors suggests noise filtering. Look for dashed boxes or labels like U1 to isolate integrated circuits–their pins connect internally, so verify pinouts externally.

Test your reading with real-world examples. Compare a power supply drawing to an actual board: the AC input, fuse, transformer, and rectifier should mirror the layout. Reverse-engineer a simple circuit by redrawing it–sketching reveals errors in interpretation.

Use tools sparingly. Multimeters confirm voltages at key points, but rely on the drawing first. Software like KiCad or Fritzing can verify complex designs, but start with pen and paper to build intuition. Errors in component placement often stem from misread polarity or overlooked ground connections.

Decoding Circuit Blueprints: Key Steps for Engineers

Begin by isolating each functional block. Modern designs often fragment into modules–power supplies, signal chains, microcontrollers, and interface sections. Label these areas directly on the print or in your notes. For instance, a switch-mode converter will show inductors, capacitors, and a feedback network; mark these components immediately to avoid mixing them with adjacent logic.

Trace connections methodically. Use a highlighter or digital overlay to follow signal paths from sources to loads. Pay attention to net labels and ports–they eliminate visual clutter but require verification. Cross-check every junction: a single missed dot indicating a connection (or its absence) can invert logic behavior. Keep a reference table of common symbols:

Symbol	Component	Typical Values
⏚	Ground	0V reference
–[ ]–	Resistor	10Ω–1MΩ
–||–	Capacitor	1pF–1000µF
–⨯–	Diode	1N4148, Schottky
–▷|–	FET	IRF540, 2N7000

Examine polarities and orientations. Electrolytic capacitors and LEDs demand correct alignment; flip them, and the circuit fails. IC pins also follow strict pinouts–confusing V_CC with GND risks permanent damage. Manufacturers often embed pin numbers near connectors; verify these against datasheets before prototyping.

Identify control signals and buses. SPI, I²C, and UART lines usually appear as grouped nets. Note their names–MOSI, MISO, SCL, SDA–and confirm pull-up resistors. Missing a 4.7kΩ resistor on an I²C bus can lead to intermittent failures. For parallel buses like address/data lines, count bits to ensure sufficient traces (e.g., 16-bit bus = 16 wires + control signals).

Validate power distribution. Calculate total current draw; undersized traces cause voltage drops. Check decoupling capacitors–place 0.1µF ceramics within millimeters of IC power pins to suppress noise. For high-speed designs, impedance-controlled traces require matched lengths; consult stack-up notes if available. A 50Ω trace misaligned by 1mm can reflect signals and corrupt data.

Simulate critical sections before assembly. Tools like LTspice or KiCad’s built-in simulator can flag errors early. Focus on initial conditions–charging capacitors, startup sequences–to avoid latch-up. For example, a reset circuit with improper RC timing may hold a MCU in limbo indefinitely.

Document deviations. If modifying an existing design, note changes in revision blocks. Include annotations for non-standard parts–obsolete ICs, custom footprints–to streamline troubleshooting. A single obscure note (e.g., “R3 adjusted for 3.3V compatibility”) can save hours during debugging.

Recognizing Critical Parts and Their Graphic Representations in Circuit Blueprints

Begin by locating resistors, marked with zigzag lines or rectangular boxes depending on the standard. ANSI/IEEE uses zigzags, while IEC prefers rectangles with numeric labels (e.g., R1, 220Ω). Check for tolerance bands–gold (±5%), silver (±10%), or color-coded stripes on older variants. Non-standard values often include EIA-96 codes (e.g., “1003” = 100kΩ). Precision resistors may show “±1% or tighter” in a separate note.

Active elements like transistors demand attention to pinouts. BJTs (NPN/PNP) display a base lead entering the symbol, emitter with an arrow, and collector branching outward. FETs (JFET, MOSFET) replace the base with a gate, often perpendicular to the source-drain path. Darlington pairs merge two transistors, while IGBTs combine MOSFET and BJT traits–verify datasheets for unique symbols. Surface-mount variants may shrink symbols but retain core shapes.

• Capacitors: Two parallel lines (non-polarized) or curved/straight plates (polarized, e.g., electrolytic). Large values (μF range) often include suffixes like “22p” or “10μ.” Tantalum capacitors add a “+” mark near the anode. Supercapacitors double the lines with higher spacing.
• Inductors: Coiled lines or filled rectangles; ferrite-core versions add dashed lines flanking the coil. High-frequency chokes may specify “10nH-SMD” or “RF47μH.” Toroidal inductors show a circle around the coil.
• Diodes: Triangle pointing to a line (standard), Schottky adds a “S,” Zener includes a “Z” or “V_Z.” LEDs replace the line with an outward arrow. Photodiodes add two inward arrows.

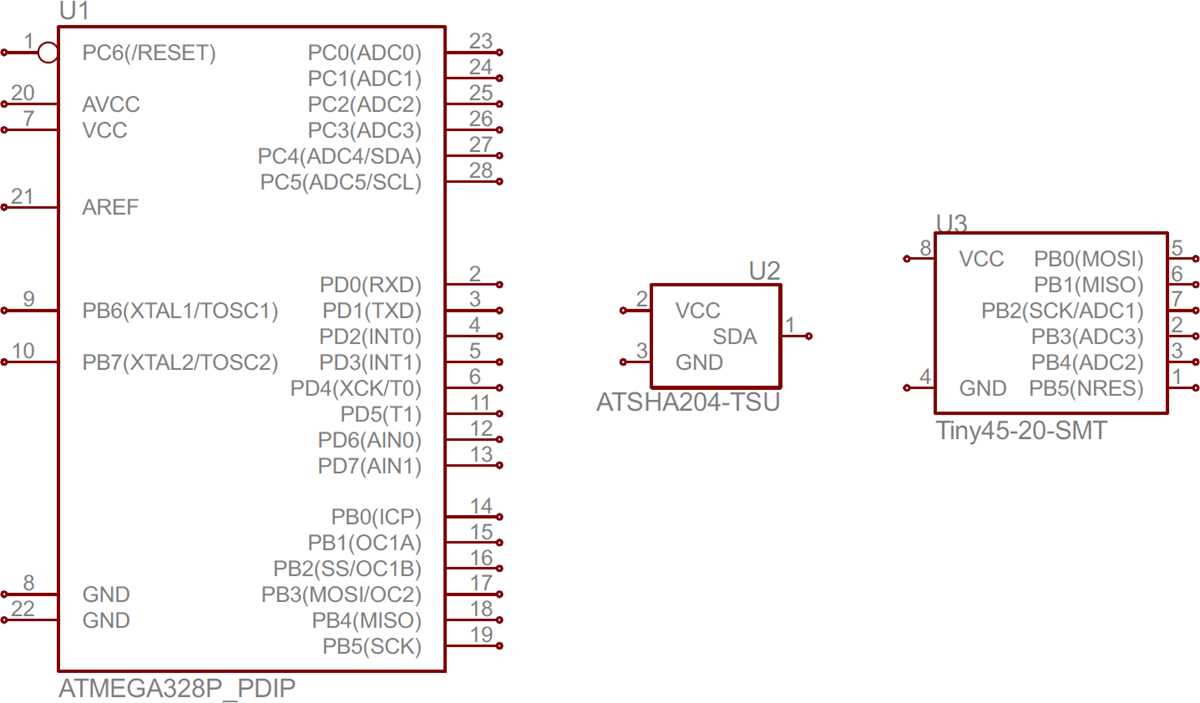

ICs appear as rectangles with labeled pins, often prefixed by “U” or “IC.” Microcontrollers include “MCU,” while op-amps show “U∞” (e.g., LM358). Pin numbering follows counter-clockwise from the top-left notch/mark. Power rails (“VCC/GND“) frequently use thick traces or global net labels. Watch for “NC” (no connect) pins–verify against datasheets to avoid miswiring.

Switches and relays use intuitive symbols: SPST switches as a simple gap/bridge, DPDT as two parallel gaps with a diagonal line. Relays separate coil (zigzag) from contacts (parallel lines). Fuses show a straight line interrupted by a sine wave or “F” label. Connectors adopt “J” or “P” prefixes, with gender-specific shapes (plug = protruding pins, jack = inward holes). Crystal oscillators pair with capacitors, marked “XTAL” or “Y1,” often specifying frequency (e.g., “8MHz“).

Following Signal Paths in Circuit Blueprints

Begin at the input terminal, marked by connectors like jacks, pads, or labeled nodes such as V_IN or SIG_IN. Look for arrows, dashed lines, or annotations indicating direction–these denote the primary route.

Identify series components directly in line with the signal: resistors (R), inductors (L), capacitors (C), or semiconductors. Note their values and labels–e.g., R1 (1kΩ)–as they alter amplitude, phase, or impedance along the path.

Check for branches where the path splits, often via junctions or parallel elements. Follow the dominant branch first (usually the thickest line or the one leading to a labeled output). Use net names like CLK or DATA to trace continuity across sections.

Locate active elements–transistors (Q), operational amplifiers (U), or ICs (e.g., TL072)–as they amplify, switch, or process the signal. Pin numbers and footprint references (e.g., U1:5 for pin 5) confirm connections. Verify phase inversion marks (⊕/⊖) on amplifiers to track polarity shifts.

Trace loops formed by feedback paths: resistors/capacitors connecting outputs back to inputs (R_F or C_F). These define gain, filtering, or stability characteristics. Use color-coding if the blueprint includes it–red for power rails, blue for signals, green for grounds.

At the output, confirm the expected signal form: sine waves (OUT_AC), pulses (CLK_OUT), or DC offsets (V_OUT). Cross-reference with test points (TP) or designated measurement pads to validate the path’s integrity.

Document each stage’s behavior: e.g., a bandpass filter (R2-C1-L1) attenuates frequencies outside 1kHz–10kHz; a MOSFET (Q1) switches at 5V gate threshold. Annotate voltage/current expectations–3.3V TTL vs. ±12V analog–to detect anomalies during prototyping.

If the path vanishes into off-page connectors (↗ J4), follow the reference designator to the linked sheet. Label consistency (e.g., PWR_GND vs. SIG_GND) prevents ground loops or unintended short circuits. Always terminate at a defined node–GND, VCC, or an open collector.

Decoding Power and Ground Connections in Electronic Circuit Drawings

Trace all power rails back to their source–whether a battery, voltage regulator, or power supply pin. Label each rail with its expected voltage (e.g., +5V, +3.3V, VCC) and mark any series components like fuses, inductors, or resistors that drop voltage before the load. Ground symbols–chassis, analog, digital, or quiet grounds–must never merge arbitrarily; instead, note convergence points (e.g., a single star or split ground plane) directly on the drawing to prevent noise coupling.

• Power lines thicker than signal traces imply higher current; verify wire gauge or PCB trace width matches specifications.
• Decoupling capacitors (typically 0.1µF or 10µF) should sit within 1cm of IC power pins to suppress transients.
• Voltage dividers shown near input pins indicate reference levels–calculate expected output using Vout = Vin * (R2 / (R1 + R2)).

Check for hidden ground loops: any ground symbol connected to multiple ICs without a defined plane risks introducing interference. In mixed-signal boards, isolate analog and digital grounds at the ADC/DAC pins, then reunite at a single point near the power source. Mark this point with a triangle and label it “Star Ground” for clarity.

Test continuity between ground symbols and the power supply negative terminal; unexpected open circuits reveal missing vias or faulty solder joints. Measure voltage differences between ground symbols–values above 10mV suggest improper separation or excessive current return paths that require rerouting.
