Creating Accurate Schematic Diagrams from PCB Layouts Step-by-Step Guide
Start by scanning the physical board with a high-resolution camera or scanner–300 DPI minimum–to capture fine traces and vias. Export images in lossless formats like PNG or TIFF to preserve edge clarity. Use vector-based software (Inkscape, KiCad) over raster tools to avoid pixelation when scaling or modifying track widths.
Isolate each layer by digitally separating power planes, signal layers, and silkscreen. Overlay the images in a layer-based editor, aligning them via fiducial markers or rigid connectors. If multi-layer stacking is unclear, backlight the board with a bright LED to reveal internal traces through translucent substrate materials like FR4 glass epoxy.
Trace connections manually using a pen tablet with 2000 LPI resolution or higher for accuracy. Begin with ground and power nets first–they’re typically thicker and easier to follow. Label component footprints (e.g., 0603 resistors, TQFP-100 ICs) immediately to avoid confusion during netlist reconstruction. Cross-reference with known datasheets to confirm pinouts.
Validate every path with a multimeter in continuity mode–probes must be
Export the finalized blueprint to Spice-compatible formats (e.g., KiCad’s .sch, Altium’s .PrjPcb) for simulation. Annotate critical tolerances (e.g., 8/10 mil traces, 20 mil drill holes) and material stack-ups (copper thickness, solder mask clearance) directly in the document to ensure manufacturability.
Converting a Physical Circuit Board into an Electrical Blueprint
Start by photographing both sides of the board under even lighting to avoid shadows. Use a macro lens or smartphone with manual focus to capture fine traces and vias clearly. Save images in lossless formats like PNG to preserve details–JPEG compression obscures thin lines. Scale the photos to actual dimensions by measuring a known component (e.g., a resistor’s 0603 package) and adjust magnification accordingly. This ensures accurate component placement later.

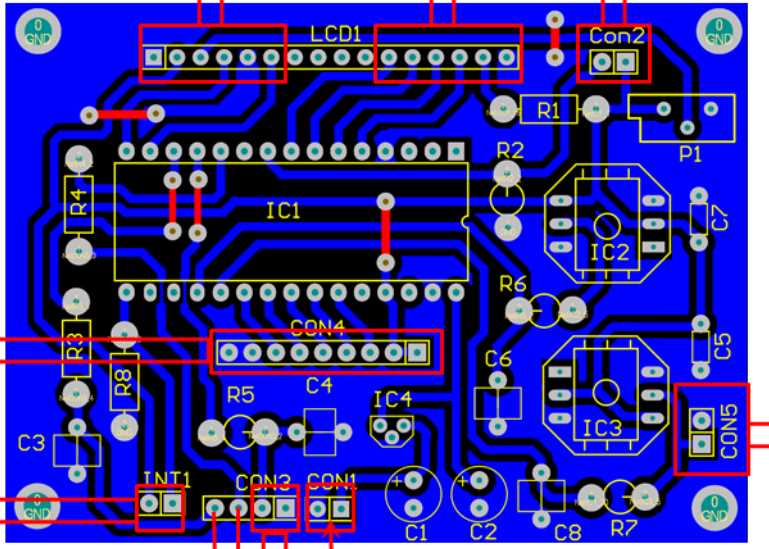

Identify component footprints first, as they anchor the design. Mark IC pins, capacitors, and resistors directly on the image using vector tools (Inkscape, Adobe Illustrator) or PCB software (KiCad, Eagle). For through-hole parts, trace connections from the pad outward; for SMD, follow the smallest visible paths. Use contrasting colors (e.g., red for top layer, blue for bottom) to distinguish overlapping traces. Record pin numbers for ICs by cross-referencing datasheets–ambiguity here causes errors.
Critical Steps for Trace Reconstruction
- Isolate Layers: Separate multi-layer boards by toggling layer visibility in software. If inner layers aren’t visible, assume continuity where vias connect outer layers.
- Via Handling: Label vias with unique IDs (e.g., V1, V2) to track inter-layer links. Use a continuity tester to verify connections if the board is non-functional.

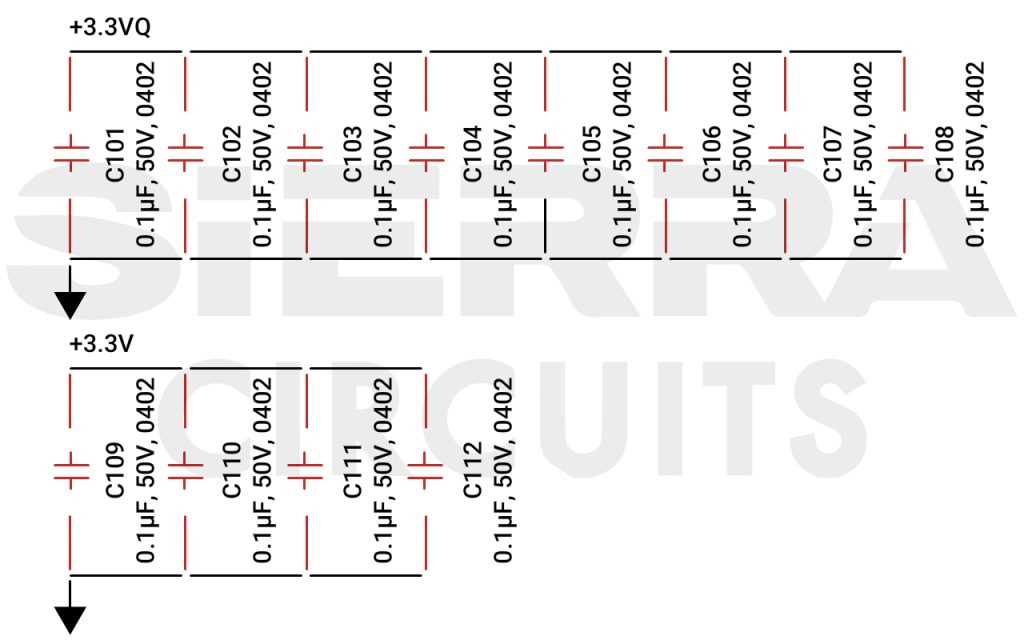

- Net Labeling: Assign names to nets (e.g., “GND,” “VCC”) based on component functions or proximity to power rails. Avoid generic labels like “NET1.”
- Ground Planes: Large copper areas are usually ground–outline them as polygons to maintain clarity.
Export the draft into a PCB editor to refine connections. Use the editor’s DRC (Design Rule Check) to flag unconnected pins or shorts. For complex boards, split the work into functional blocks (e.g., power supply, MCU, peripherals) and reconstruct each block separately before combining. Save incremental versions–manual tracing requires frequent backtracking. If traces are obscured by solder mask, use a multimeter in diode mode to probe continuity between pads. Validate each net against the original board before finalizing.
Choosing Tools for PCB Reverse-Engineering
Start with a high-resolution camera or dedicated PCB scanner capable of capturing traces at 1200 DPI or higher. Entry-level options like the Creality Falcon2 or Elegoo Mars 4 provide sufficient detail for most boards, while industrial-grade scanners such as the Keyence VHX-7000 deliver micron-level precision for dense, multilayer designs. Avoid smartphones–their sensors compress data, obscuring critical vias and thin tracks.
Opt for software that balances automation with manual control. KiCad’s PCB reverse-engineering plugins, though free, demand significant manual input. Altium Designer’s built-in tools automate netlist extraction but carry a steep license cost. Mid-range alternatives like DipTrace or Proteus offer hybrid workflows, where AI-assisted tracing reduces errors on simple boards while allowing adjustments for complex layouts.
Multimeters with continuity testing and low-ohm measurement modes are non-negotiable. The Fluke 87V or Brymen BM257s detect shorts and verify trace connections with minimal interference. For advanced debugging, add an oscilloscope like the Rigol DS1054Z to identify signal integrity issues or hidden test points. Avoid cheap clones–their inaccurate readings waste hours.
Thermal cameras, such as the FLIR E4 or Seek Thermal Pro, reveal power distribution networks by highlighting hotspots on active components. This method bypasses obscured traces under solder masks or conformal coatings. For boards with BGA packages, an X-ray system like the Nordson DAGE Quadra 7i resolves hidden solder joints, though budget options exist for DIY setups using dental X-ray films.
Tweezers with ESD protection and fine tips (e.g., Hakko CHP-170) extract components without damaging pads. A desoldering station like the Hakko FR-301 removes through-hole parts systematically, while a hot air rework station (e.g., Quicko T12) handles SMD components. For stubborn residues, a fiberglass pen or precision cleaning swabs prevent short circuits during re-assembly.
Compare extracted data against reference materials. Datasheets for ICs often include partial netlists–cross-reference these with your captures. For obsolete components, archive sites like Octopart or manufacturer-specific repositories (e.g., Texas Instruments’ Product Information Centers) fill gaps. Use PDF-to-text tools cautiously–OCR errors skew pinouts, requiring verification with physical measurements.
Document anomalies immediately. A digital notepad with pressure-sensitive stylus (e.g., Remarkable 2) sketches trace deviations or temporary jumpers. Version control systems like Git track changes in netlist files, preventing repetition of errors. For team collaborations, platforms like Upverter synchronize edits without overwriting critical revisions.
Manual Extraction of Circuit Layouts: Component and Trace Identification
Begin by securing a high-resolution photograph of both sides of the board under uniform lighting to eliminate shadows that obscure fine traces. Use a macro lens or microscope for surface-mount devices (SMD) smaller than 0402 to detect silkscreen markings, orientation notches, and pin 1 indicators. Document critical details in a table:
| Component | Marking | Package | Pin Count | Observed Polarity/Key |
|---|---|---|---|---|
| U1 | ATMEGA328 | TQFP-32 | 32 | Dot on pin 1 |
| C3 | 10u | 0805 | 2 | Bar on cathode |
Isolate power rails first; thicker traces typically denote VCC and GND. Trace them backward from connectors or test points, noting vias that switch layers–mark these with colored highlighters on a printed overlay. For multilayer boards (4+ layers), use a multimeter in continuity mode to follow buried traces, probing each pad systematically. Record layer transitions directly on the overlay with arrows or line-style codes (solid, dashed, dotted).
Identify resistors by their three-digit codes (102 = 1kΩ) or color bands for through-hole types. Measure actual resistance with a multimeter if the value is ambiguous–some manufacturers use non-standard markings. Capacitors often lack visible values; infer them from placement (bulk decoupling near ICs = 10-100µF, HF decoupling = 0.1µF). Diodes and transistors require noting anode/cathode or emitter/base/collector orientation; use the board’s silkscreen or datasheet pinouts as reference.
For ICs, cross-reference any partial markings (e.g., “STM32F” instead of full “STM32F103C8T6”) against distributor databases like Octopart or manufacturer parametric search tools. Pinout diagrams are critical–label each pin with its function (SCK, MOSI, EN) before tracing connections. Avoid relying solely on PCB silkscreen for pin numbering; verify against the chip’s footprint in the datasheet, as some boards use mirrored or rotated orientations.
Trace signal paths by following the thinnest traces, often 0.1-0.2mm wide. Use a fiber-tip pen to trace each path on a transparent sheet placed over the board–different colors distinguish nets. For dense boards, divide the tracing into quadrants, completing one sector fully before moving to the next. Note stubs, branches, and any series components (resistors in signal lines, capacitors for AC coupling) that alter the net’s behavior.
Document via styles: through-hole vias connect all layers, blind vias connect outer to inner layers, and buried vias connect inner layers only. Use a 3D view tool like KiCad’s “3D Viewer” if available, or visually confirm burial by backlighting the board–buried vias will not transmit light. Label each via type in your notes; this informs layer stack-up assumptions for later reconstruction.
For connectors, note pin pitch (e.g., 2.54mm, 1.27mm), shell orientation (notch, chamfer), and mating side. Trace each pin to its destination, identifying power, ground, and signal groups. High-speed differential pairs (USB, HDMI) often use tightly coupled traces with consistent spacing–measure this spacing and note any serpentine routing for length matching.
Finalize net identification by merging traced nets across layers. Use a dry-erase board to sketch provisional blocks: power domains, microcontroller peripherals, analog sections. Cross-verify critical nets (reset, crystal connections, programming interfaces) against manufacturer reference designs or known-good boards to catch errors like false shorts or missed vía connections.
