Complete HP Compaq Presario CQ40 Motherboard Circuit Schematic Guide

Locate the official service manual for the HP laptop model 3040 through verified hardware documentation portals. The most reliable source is HP’s enterprise support archive, where technical guides are stored under product code WD400. Avoid third-party schematic repositories–many distribute corrupted or outdated versions with critical errors in voltage regulation paths or BIOS power rails.

For immediate reference, download the board-level layout from Badcaps Forum or Electro-Tech-Online, where experienced repair technicians upload scanned PDFs of original schematics. These files label every MOSFET, capacitor placement, and signal line (e.g., LVDS connector pinout, DDR2 traces, EC clock circuit) with exact tolerances. Cross-check component values against a multimeter reading taken from a functional unit–the power jack circuit (U701) often differs between revisions.

If the mainboard wiring chart is missing, reconstruct it using GTL signaling diagrams from Intel’s 82801IBM ICH9-M datasheet. The SMBus lines (pins 134-140) and GPU power delivery network require precise rework guidelines–refer to IST Service Guide Volume 3 for solder mask patterns and via sizes. Replace generic “repair tutorials” with factory-approved engineering drawings; poorly inferred connections frequently cause irreversible damage to the southbridge.

For troubleshooting power-on failures, isolate the PQ26 transistor (near the DC jack) using the schematic’s netlist index. Measure resistance across R237 (10KΩ)–any deviation from the reference value indicates a shorted charging IC. Always verify ground loops between the CPU heatsink and VRM section before applying power; the service manual’s layer stackup notes specify acceptable impedance ranges.

HP Series CQ40 Circuit Reference: Step-by-Step Troubleshooting

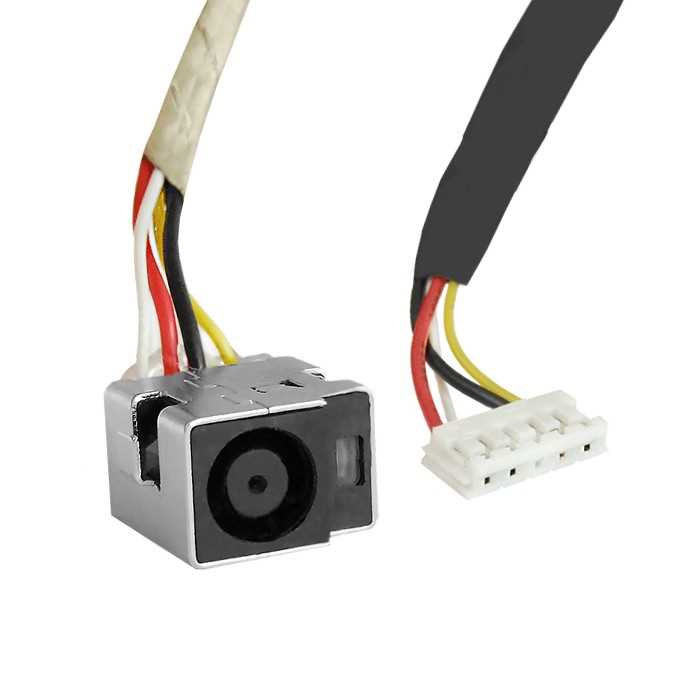

Locate power delivery paths first–trace the 19V input from the DC jack to the charging IC (BQ24721 or equivalent) on the mainboard. Verify continuity with a multimeter: probe pins 1 (VCC), 2 (ACDRV), and 5 (ACOK) against ground. Resistance under 1Ω signals intact traces; readings above 10Ω indicate corrosion or broken vias near the chip’s perimeter.

Check SMD fuses along the 3.3V and 5V rails before powering on. The CQ40 uses a 2A fuse (marked F1) near the VRAM modules–replace any blown unit with an identical 1206 package fuse. For voltage testing, activate the board in isolation: remove RAM and storage, power via a bench supply set to 19V/3A, then measure outputs at coils L11 (1.5V), L20 (1.8V), and L25 (1.05V). Absent voltages point to failed PWM controllers (APW7073 for 1.5V, RT8204 for 1.8V).

Signal Flow Diagnostics

• EC/KBC chip (ITE IT8512F) monitors onboard sensors–access BIOS boot log via UART header JP1 (pins 2 TX, 4 RX, 6 GND). Connect a 3.3V USB TTL adapter; 115200 baud rate reveals POST errors.
• Display backlight inverter (TXC-15L) requires 12V from Q5 (P-channel MOSFET). If the screen stays dark, swap Q5 or check R103 (100Ω) for open circuits.
• Keyboard matrix leaks 3.3V through rows/columns–isolation requires cutting traces near U27 (keyboard controller). Remeasure voltages after disengaging the flex cable.

Thermal throttling triggers at 85°C (CPU) and 90°C (GPU). The embedded controller pulls GPIO7 low, reducing clock speeds via PECI. Override this by shorting R320 (0Ω resistor) near the Nuvoton chip–useful for isolating heat-related shutdowns. Replace dried-out thermal pads on the GPU die (MXM footprint) with 1.0mm Arctic pads cut to fit.

Battery charging faults typically stem from the firmware’s “no valid battery” flag. Reset this by discharging the CMOS coin cell (CR2032) for 30 seconds while AC power is disconnected. Reconnect and press the power button ten times to force recalibration. If the issue persists, reflash the EC firmware via an SVOD programmer–use the original .bin file extracted from a working identical model.

Peripheral Circuit Checks

1. Webcam: Verify 3.3V at C785 (tantalum). If absent, trace back to LDO Q43 (AIC1563).
2. Wi-Fi: Check mini-PCIe slot pins 20/52 (1.5V). Replace onboard capacitor C478 if ESR exceeds 0.8Ω.
3. USB ports: Test continuity on data lines D+ (green)/D- (white). Resistance below 5Ω confirms intact traces; replace USB hub IC (GL850G) if readings are erratic.

Repairing liquid damage requires immediate power removal. Rinse affected areas with isopropyl alcohol (99%), then dry under warm airflow for 4 hours. Test vias with a fine-tip probe–oxidized pads often hide under solder mask. Reball severely corroded chips (southbridge/northbridge) using a stencil and SAC305 solder spheres. Calibrate reflow profiles: preheat to 150°C for 120 seconds, peak at 245°C for 30 seconds, then cool at 2°C/s to avoid warping.

Reliable Sources for HP Laptop Circuit Board Blueprints

Start with the manufacturer’s official support portal: support.hp.com. Select your model variant (e.g., CQ40-100, CQ40-200) using the serial number lookup, then navigate to “Manuals” or “Technical References.” Only a fraction of HP’s older consumer notebooks have publicly released board-level layouts, but enterprise-class machines (EliteBook, ZBook) often include full technical documentation in their service guides. If the specific circuit layout isn’t listed, download the maintenance and service manual–it frequently contains partial block diagrams and component placement charts that substitute for a complete wiring illustration.

Independent electronics repair databases offer curated archives. BadCaps maintains a dedicated thread for HP laptops, aggregating verified board files uploaded by repair technicians. Register an account, use the forum search with the exact board number (found on the PCB silkscreen, typically starting with “DA” followed by six digits), and filter for attachments tagged “schematic” or “boardview.” Another repository is Electronic Repair Guide, which hosts direct download links organized by brand and board identifier. Always cross-reference downloaded files against the PCB revision number to avoid mismatched layouts.

Third-Party Tools for Board File Extraction

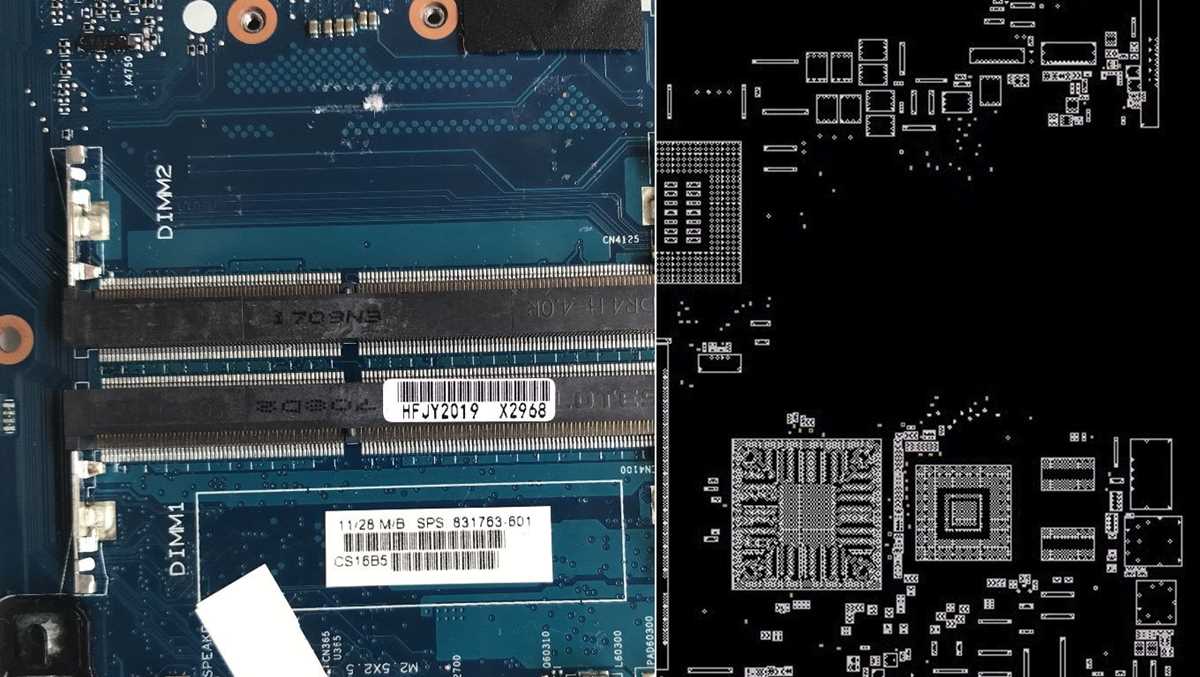

Board repair software like OpenBoardview (open-source) or BVXML (proprietary) can reverse-engineer partial signal paths from raw boardview files. Install the software, load a compatible board file (often distributed as .brd, .bv, or .asc formats), and use the net-highlighting feature to trace power rails and critical data buses. While these tools don’t generate missing blueprints, they reveal enough netlist data to reconstruct faulty sections. For HP’s 2008–2010 generation, boardview files commonly leak from Lenovo or Dell repair kits, where similar chipsets were reused–search forums for “Intel 4 series chipset boardview” to find alternative sources.

Specialized hardware forums catering to BIOS and embedded system developers may host rare circuit layouts. BIOS Mods archives BIOS dumps paired with partial board diagrams for firmware recovery. The EDA Board forum has subsections for laptop PCB reverse engineering, where engineers share KiCad or Altium project files derived from donor boards. Use precise search terms: “48.4T01.011 schematic” (the board identifier on the CQ40 motherboard) or “HP Quanta DA30 nm layout” to narrow results. Expect encrypted or password-protected archives; request decryption keys directly from contributors with a clear explanation of your repair goal.

Voltage regulator datasheets often include simplified functional block diagrams applicable to the laptop’s power delivery network. Identify the PWM controller IC (e.g., Intersil ISL6237, Texas Instruments TPS51125) on the board’s VRM section, then locate the vendor’s datasheet or reference design documents. These documents detail pinouts, feedback loops, and enable signals, allowing reconstruction of critical power rails without a full circuit layout. Combine this with thermal camera imagery of the board under load to verify suspect components before rework.

University engineering repositories and torrent networks occasionally mirror decommissioned service documentation from OEM repair centers. Legal grey-area sources include Internet Archive, which hosts snapshots of defunct HP FTP servers, and private tracker forums like Rutracker, where complete HP service kits surface periodically. Search for “HP CQ service manual bundle” or “Quanta DA series PCB files” within these platforms. Verify file integrity with SHA-256 hashes shared in repair communities to avoid malware-laced archives.

For on-demand board layout requests, commission a reverse-engineering service via platforms like eBay or Fiverr, where electronics engineers offer custom schematic extraction from dead donor boards. Supply clear, high-resolution photographs of both board sides, noting key ICs, connectors, and resistor/capacitor values. Expect turnaround times of 3–10 days and costs ranging from $50–$200 depending on board complexity. Specify output format (e.g., Altium Designer, OrCAD) to ensure compatibility with your diagnostic tools.

Last-resort options include contacting HP’s escalation support teams for enterprise customers or authorized repair centers. Reference HP’s “Design and Manufacturing” portal (accessible to registered partners) or file a formal request under the EU’s “Right to Repair” directives if applicable. While responses are inconsistent, some technicians share obsolete documentation internally rather than risk violations of corporate retention policies. Include the exact board part number, a summary of the failure mode, and a statement of intent (e.g., “personal repair, no commercial use”) to improve cooperation chances.
