Complete 1995 Ford F350 Wiring Schematic Guide for DIY Repairs

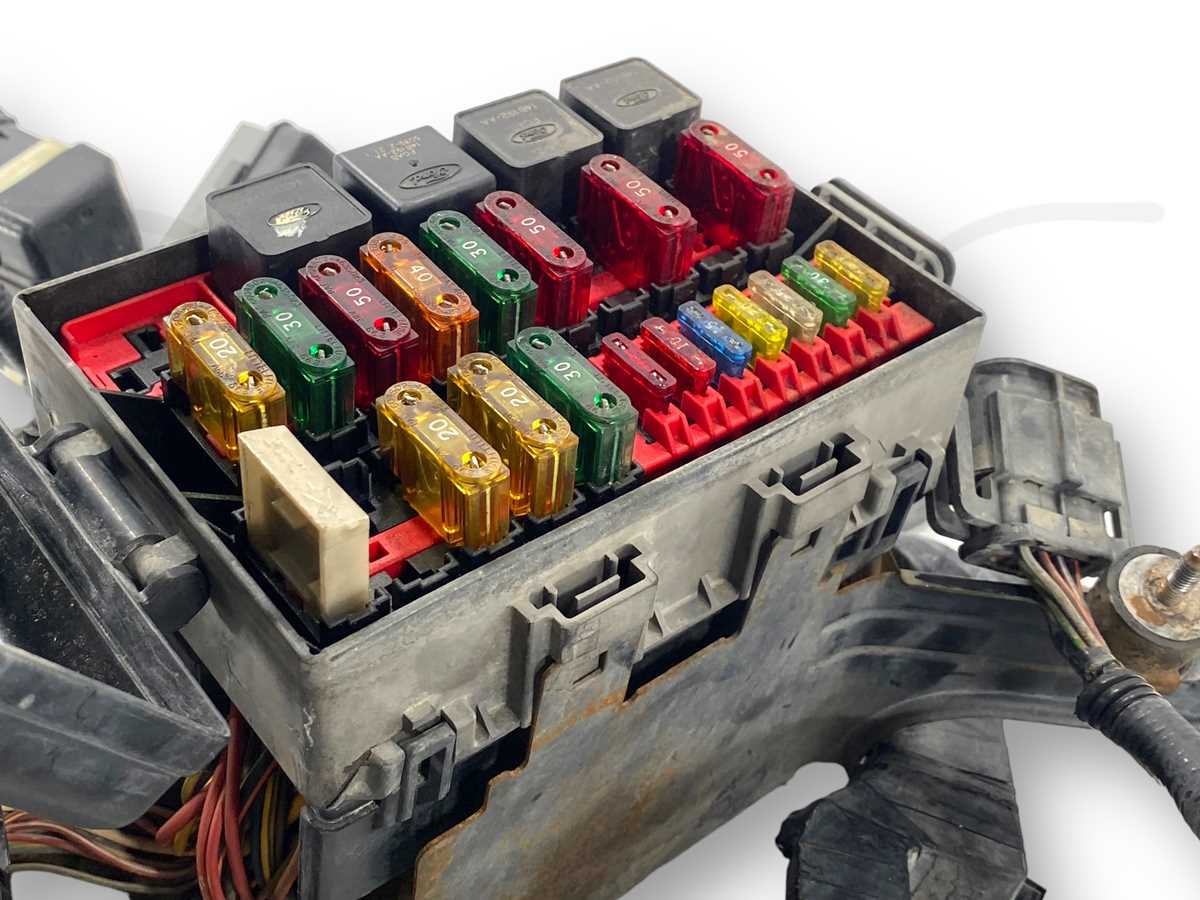

Begin troubleshooting by locating the central fusebox under the dashboard on the driver’s side–this houses critical relays and fuses for lighting, fuel injection, and ignition circuits. Pinpoint the gray 22-pin connector (labelled C201) behind the instrument cluster; its terminals correlate to dashboard functions, including the tachometer and warning indicators. If voltage drops occur, verify the red/light green wire (circuit 36) running from the ignition switch to the ECM–corrosion at the firewall grommet is a frequent failure point.
For the charging system, test the alternator output wire (circuit 3) at the black/yellow terminal–expected voltage is 13.8–14.2V at 1,500 RPM. The starter solenoid requires a minimum of 9.6V on the purple/yellow control wire (circuit 541) during cranking. Ground connections at the passenger-side frame rail (G100) must be clean and torque-secured to 15 lb-ft to prevent parasitic drains.
Trailer lighting circuits rely on the brown/white wire (circuit 54) feeding the rear harness–inspect the seven-way connector for pin damage if brake lights or turn signals malfunction. The 4WD engagement system uses a dark blue/white wire (circuit 763) from the transfer case switch; ensure continuity to the front axle actuator. For EEC-IV engine control, the throttle position sensor connects via a tan/light blue wire (circuit 933)–probe this line with a multimeter (0.5–4.5V expected range) to confirm proper operation.
When rewiring, use 16-gauge TXL wire for lighting circuits and 12-gauge GXL for power feeds–inferior substitutes risk overheating. Crimp connections with heat-shrink butt splices and seal exposed terminals with dielectric grease to prevent moisture ingress. Label all harness branches using a color-coded wiring schematic specific to the vehicle’s build date (check the door jamb sticker for production month).
Electrical Blueprint Reference for Heavy-Duty 1990s Pickup Trucks
Locate the central junction box under the dashboard on the driver’s side–this houses fuses and relays controlling critical circuits. Remove the kick panel to access it; label each connector before disconnecting to prevent signal cross-talk. The main power distribution block connects to the battery via a thick red cable (4 gauge), branching into ignition, lighting, and accessory feeds. Verify voltage at each terminal with a multimeter (12.6V on battery, 14.2–14.8V when engine runs) to rule out parasitic draws or faulty alternators.
Trace the instrument cluster harness by following the 16-pin connector behind the speedometer. Pins 1–4 deliver power to gauges (key-on voltage), while 5–8 handle signal returns. A corroded connection here often mimics sensor failures–clean terminals with dielectric grease or replace pigtails if insulation cracks are visible. For trailer brake controllers, splice into the blue/red wire (pin 7 on the 7-way plug), ensuring a 20-amp fuse protects the circuit to prevent fires.
Ground points cluster near the engine block and frame rails; common corrosion sites include the G100 (left fender) and G103 (rear passenger side). Scrape paint at attachment points until bare metal is exposed, then secure with star washers. The starter solenoid connects via a purple/yellow stripe wire–resistance above 0.5 ohms indicates cable failure. Replace with 6-gauge welding wire if fraying is detected, not generic automotive wire.
For aftermarket upgrades, avoid tapping into the orange/light blue wire (fuel pump circuit) as it triggers limp mode under load. Instead, use the gray/yellow ignition-switched line (pin 107 at the PCM) for auxiliary devices. Relay triggers should pull to prevent ECU damage. When diagnosing intermittent faults, wiggle test harnesses while monitoring voltage drops–a 0.4V dip or more identifies chafed insulation or loose connections.
Engine bay sensors (MAP, TPS, IAT) share a common reference voltage (5V) from the ECM. Shorts in these circuits can disable multiple systems; check resistances between sensor pins (TPS: 0.8–1.2kΩ, IAT: 2–3kΩ). The VSS wire (white/black stripe) carries pulse-width signals to the transmission–erratic readings here cause harsh shifts. If splicing, solder joints and heat-shrink tubing outlast crimped connectors in high-vibration zones.
Finding Main Electrical Bundle Hookups Beneath the Instrument Panel
Kneel on the driver’s side floorboard, facing the firewall. Slide your fingers along the underside of the steel dash beam until you feel a rigid plastic conduit clamped to it–this is the vehicle’s primary power bundle leading to the fuse block and chassis grounds. The conduit measures roughly 2 inches in diameter, entering the cabin from the engine bay through a grommeted hole just left of the steering column support.
Three critical junctions branch off within the first 12 inches of this bundle:
- The first joint splits a 12-gauge red wire (ignition-switched power) for the fuel pump relay, typically secured with a blue/white-striped pigtail connector.
- Eight inches farther, a black/yellow-striped 14-gauge lead supplies the instrument cluster–trace it upward to locate the cluster’s green 16-pin plug.
- The lowest connector, a single-wire ground lug (bare copper, 10-gauge), bolts directly to the beam with a 10mm nut; verify torque at 15 lb-ft.
Matching Plugs to Components
Examine the rear of the fuse panel for two bulkhead connectors:
- A 22-pin rectangular plug (white plastic, locking tab on the right side) feeds all dash-mounted circuits–cigarette lighter, HVAC controls, and courtesy lamps.
- A smaller 6-pin oval plug (black housing) links the turn signal switch and multifunction stalk module.
Disconnect these only after marking terminal positions with masking tape–reversing them risks fusing the hazard flashers or disabling the starter solenoid.
Behind the glove box door, the passenger-knee airbag unit shares the same harness channel. Locate its two-pin orange plug by following the heaviest-gauge orange wire (8-gauge) back to the dash beam–never probe this plug with a multimeter; static discharge can trigger deployment.
For hidden splice points, pull back the thick carpet sections along the driver’s side sill. Two inline splices (waterproof gray caps) join the chassis harness to the rear light circuits–one for the brake light switch (white/red-stripe), another for the trailer tow module (gray/black-stripe). Probe these splices only after applying dielectric grease to newly exposed contacts.
Locating Engine Control Module Connections for the 7.3L Power Stroke
Trace the main harness beneath the driver-side dash to pinpoint the 60-pin ECM connector. Label C113 and C114–these contain critical sensor and actuator feeds for the turbocharged diesel. Use a multimeter set to continuity mode to verify pin integrity before probing; corrosion often mimics open circuits.
The violet/white wire (position 37 on C113) carries injector pressure data–disruption here triggers limp mode. Check resistance between this pin and the ICP sensor (mounted near the front valve cover); values should fall between 30-70 ohms. Anything outside this range indicates a short or severed link, often caused by chafing near the steering column.
Pin 58 (light blue/red stripe) on C114 governs the EGR position sensor. Disconnect the sensor at the intake manifold and measure voltage across this wire and ground while cycling the ignition–expect 5V reference. If readings fluctuate erratically, inspect the harness for abrasions near the radiator support.
For fuel delivery diagnostics, focus on pin 51 (orange/black) at C113. This line feeds the FPR (Fuel Pressure Regulator) solenoid. With the engine off, backprobe the connector and observe current draw–spikes above 1.2A suggest a sticky solenoid or frayed conductor, typically found where the harness bends at the engine block.
Verify glow plug relay control via pin 14 (dark green/yellow) on C114. Jumper this pin to battery voltage to test relay response–audible clicks should follow within 2 seconds. Silent relays often trace to oxidized contacts at the firewall bulkhead, where moisture accumulates.
The red/light green wire (position 42) transmits oil temperature signals. Probe this line with the engine cold; readings below 0.5V suggest a failed sensor or severed ground at the oil pan. Replace the sensor if voltage remains constant–internal shorts mimic wiring faults.
Tracing Power Distribution Cables from the Main Power Source to the Central Electrical Panel
Begin by locating the positive terminal on the vehicle’s primary power cell–usually marked with a red cover or “+” symbol. Attach a multimeter probe to this terminal and set the device to DC voltage measurement (20V range). The second probe should connect to a known chassis ground, ensuring the reading stabilizes at approximately 12.6V for a fully charged system. If the voltage drops below 12.2V, inspect the cell for sulfation or internal degradation before proceeding.
Follow the thick red cable (typically 4-6 AWG) as it exits the power cell housing. This conduit is the main supply line and will terminate at a solenoid or starter relay. Use a non-contact voltage tester to confirm live current along this path; any interruption indicates corrosion, fraying, or a loose connection. At the solenoid, verify the cable splits into two branches–one leading to the starter motor, the other directing power inward toward the cabin.
| Wire Gauge | Expected Voltage Drop (10A Load) | Max Length Before Recommended Relay |
|---|---|---|
| 4 AWG | 0.1V per 10 ft | 25 ft |
| 6 AWG | 0.2V per 10 ft | 15 ft |
| 8 AWG | 0.4V per 10 ft | 8 ft |
The secondary branch from the solenoid feeds directly into the central electrical panel, often housed behind the dashboard on the driver’s side. Trace this cable–usually insulated in red with a yellow stripe–to its entry point in the panel’s rear. Before disassembly, disconnect the negative terminal from the power cell to prevent accidental shorts. Remove the panel’s mounting screws (often Torx T20 or Phillips #2) to expose the backside where the main power cable terminates.
Inside the panel, the main supply line connects to a vertical bus bar or a thick fuse link. Use a continuity tester to confirm conductivity between the input cable and the bus bar screws. If resistance exceeds 0.5 ohms, inspect for oxidation on the terminals. Clean with a wire brush and apply dielectric grease before reassembly. The bus bar distributes current to the primary fuses, typically rated at 100A, 60A, and 30A, which then feed sub-circuits.
For vehicles with dual batteries, the auxiliary power cell connects via a paralleling relay. The relay’s 86 and 85 terminals receive a 12V signal from the ignition switch, closing the relay contacts (30 and 87) to combine both power sources. Test the relay by applying 12V across terminals 85 and 86–an audible click confirms functionality. If silent, replace the relay before diagnosing downstream issues.
Downstream of the fuses, power splits into two critical paths: the ignition-controlled circuit and the always-hot circuit. The ignition circuit (red/light blue stripe) only activates when the key is in the “ON” or “START” position, while the always-hot (red) maintains constant voltage. Verify these circuits by probing the fuse sockets with the ignition off–always-hot should read 12V, ignition-controlled should read 0V. Deviations indicate faulty fuses, corroded terminals, or shorts in the harness.
Common failure points include the fusible link near the power cell, the splice under the driver’s side kick panel, and the ground stud mounted to the firewall. Test each by back-feeding 12V through a test light–bright illumination confirms continuity. For grounds, measure voltage drop between the stud and the negative terminal; anything above 0.2V necessitates cleaning or replacement of the grounding strap. Complete the trace by reconnecting the negative terminal and cycling the ignition to verify all dashboard indicators illuminate correctly.
