Complete Guide to HVAC Blower Motor Electrical Connections and Circuit Layouts

To troubleshoot or replace the fan unit in your heating and cooling system, locate the label on the housing–it typically lists the part number, voltage, and amperage requirements. A 240-volt setup will have a dual-pole breaker, while 120-volt units use a standard single breaker. Disconnect power at the source before handling any connections to prevent shock or short-circuiting components.

Identify the three or four color-coded wires emerging from the fan assembly: black (power), white (neutral), green or bare (ground), and possibly blue or red (secondary speed) for variable-speed models. Use a multimeter set to continuity mode to verify each wire’s function–touch probes to the corresponding terminals on the fan’s plug while cycling through speed settings to confirm signal integrity.

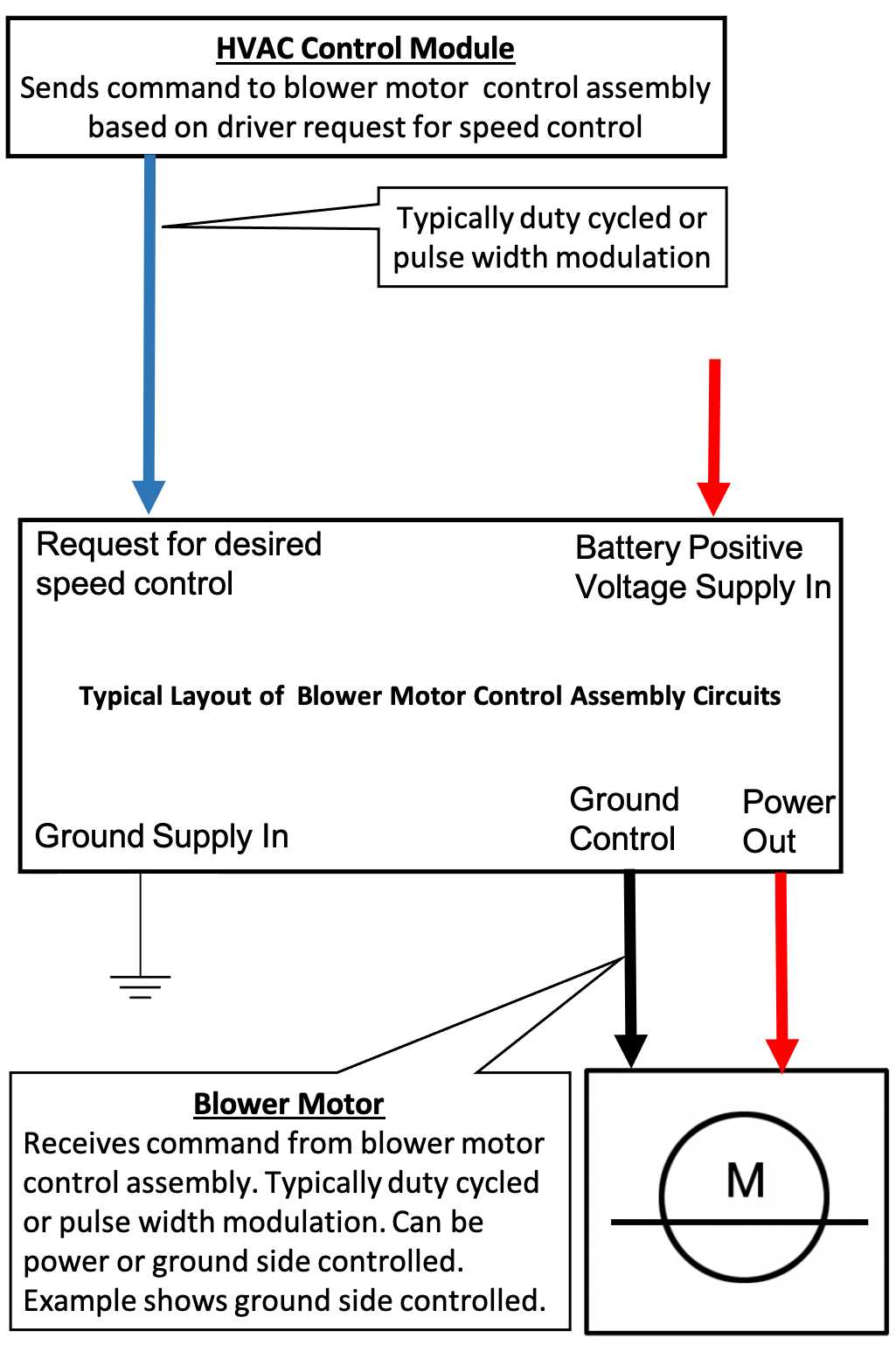

For direct-drive fan units, the wiring harness connects to a control module or relay cluster–trace the path back to the furnace or air handler to identify splices or corrosion points. If the system uses a resistor pack for multi-speed operation, inspect it for overheating signs–burnt spots or melted plastic indicate a need for replacement. Capacitors, often cylindrical or oval, should also be checked; a bulging top or leaking fluid signals failure.

When reassembling, secure connections with crimp connectors or ultrasonic welding terminals–twisting wires alone risks vibration-induced disconnections. Label each lead with heat-shrink tubing or color-coded tape to avoid miswiring during future maintenance. For ECM (electronically commutated) fan units, ensure the control board matches the wiring harness pinout–mismatches will trigger error codes or prevent startup entirely.

Test the repaired system by restoring power and monitoring the fan rotation–it should ramp up smoothly without unusual noises. If the unit hums but doesn’t spin, the start capacitor is faulty; if it spins erratically, inspect the run capacitor for proper charge. Keep a spare thermistor or current sensor on hand for quick replacements, as these small components often fail without warning.

Fan Assembly Electrical Schematics: Practical Setup Instructions

Identify power supply terminals first–most residential climate control fans use a single-speed configuration with a 115-volt AC source requiring a 15-amp circuit breaker. Dual-speed units split into high (black wire), medium (blue or red), and low (yellow) leads, while variable units integrate a control module between the power input and fan coil. Replace default wire nuts with crimp connectors rated for 20 amps if operating current exceeds 12 amps under load to prevent heat buildup at connection points.

Common Fan Terminal Layouts

Fan Type	Color Coding (NEMA Standard)	Typical Voltage	Max Rated Current
Single-speed impeller	Black (hot), White (neutral), Green (ground)	115V AC	8A
Multi-tap impeller	Black (hi), Blue/Red (med), Yellow (lo), White (neutral)	115V AC per tap	12A hi, 7A med, 4A lo
ECM-controlled unit	Red/Blue (power), Brown (neutral), Gray (signal)	24V DC control + 115V AC input	Variable 0.5–15A

Integrate a 5-amp fuse inline with the power lead to ECM-driven assemblies–omit this step only if the manufacturer specifies integrated fuse protection. For multi-tap fans, measure resistance across each tap-to-neutral pair: values should differ by ≤10% between taps; discrepancies indicate damaged windings requiring replacement. Label all connections immediately after installation: pressure-sensitive vinyl tags resist heat better than adhesive paper. Test rotation direction before finalizing enclosures–reverse polarity on single-speed units by swapping hot and neutral leads at the source, but never on ground wires.

Identifying Terminals on a Single-Speed Fan Unit

Locate the labeled connectors on the electric drive–most feature standardized markings: C (common), R (run), and H (high). For older models, check for L (line) instead of R, while some GE or Emerson setups substitute S (start) for C. Confirm polarity with a multimeter–C to R should read ~120VAC, while C to H often shows 0V until energized. Mismatched labels? Cross-reference with the manufacturer’s data plate or trace the capacitor leads; the dual-terminal cap typically bridges C and H.

• Common (C): Neutral return–connects to the system’s ground reference. If absent, search for a thick wire linked to the housing or a terminal with three prongs.
• Run (R or L): Power input–thinner wire than C, often paired with a thermal fuse or resistor near the winding. Test for continuity to C; an open circuit signals a failed coil.
• High (H): Speed control–verify with the capacitor’s second lead. Some units add M (medium) or L (low), but single-speed variants omit these.

For unmarked terminals, use a 9V battery: momentarily touch leads to suspected C and H–a brief rotation confirms correct pairing. Reverse leads to check for reverse rotation if directions matter (e.g., heat pumps). Document each connection with color-coded tape; red for L/R, blue for C, black for H. Replace any terminal block showing corrosion–oxidized contacts cause voltage drop and overheating.

Assembling a Multispeed Fan Circuit: Practical Installation Guide

Locate the manufacturer’s nameplate on the unit’s frame–it specifies voltage requirements and speed tap configurations. For a typical 120V three-speed assembly, you’ll see labeled terminals: Common (C), Low (L), Medium (M), and High (H). Verify these markings with a multimeter in continuity mode; cross-check each tap against the common lead to confirm correct identification before proceeding.

Connect the power feed’s neutral conductor directly to the common terminal–this establishes the return path. Secure it with a crimped ring terminal and torque to 12–15 in-lbs to prevent loosening. Strip only 3/8″ of insulation; excess exposed copper can create unintended shorts when energized under load conditions.

Selecting and Joining Speed Leads

Decide the operating speed based on system demand–medium is standard for most climate zones. Route the chosen speed lead (M) to the furnace control board’s designated blower relay output. Use 18-gauge stranded wire for runs under 10 feet; upgrade to 16-gauge for longer distances to reduce voltage drop. Twist the new lead with the existing harness and secure with high-temperature splice connectors, then wrap with fiberglass tape to withstand ambient heat up to 200°F.

A dedicated ground connection must bond the unit’s chassis to the electrical panel’s grounding busbar. Use a separate 12-gauge green conductor; attach one end to the frame’s grounding stud and the other to a grounding lug inside the panel. Avoid relying on conduit as the sole ground path–vibration can degrade the connection over time, leading to intermittent faults.

Before applying power, energize the circuit through a 10A circuit breaker and observe startup behavior. Listen for smooth ramp-up without hesitation; a stuttering spin suggests incorrect tap selection or weak capacitor. Measure current draw at the speed lead with a clamp meter–values should align with the nameplate’s stated amperage (±10%). If readings exceed specification, disconnect immediately and inspect for binding or bearing drag within the housing.

Finalize installation by enclosing all splices inside a UL-rated junction box mounted adjacent to the unit. Label each conductor with heat-shrink tubing printed with speed designation and voltage rating. Seal the box entry points with silicone to prevent moisture ingress, especially in unconditioned spaces. Re-test operation under load for 30 minutes; monitor temperature with an infrared thermometer–outer casing should not exceed 140°F at any point during sustained operation.

Proper Capacitor Installation for Climate System Air Handlers

Always use a run capacitor with a microfarad rating matching the manufacturer’s specifications–typically 5–10 µF for permanent-split systems and 10–30 µF for shaded-pole units. Verify the voltage rating exceeds the maximum line voltage by at least 50 V; a 370 V capacitor suffices for 230 V systems, while 440 V models handle 380 V supply lines without premature failure.

Connect the capacitor’s common terminal to the auxiliary winding lead–marked “C” or color-coded brown–and the remaining terminal to the start winding, usually orange or purple. Secure terminals with insulated spade connectors and heat-shrink tubing to prevent arcing. Never reverse polarity; this will degrade dielectric film within minutes, reducing lifespan from 10+ years to mere months.

For dual-capacitor setups: the start unit must have at least twice the capacitance of the run capacitor–e.g., pair a 20 µF run with a 40–60 µF start. Route wires away from sharp metal edges and moving parts; a 2-inch clearance prevents chafing. Test continuity between capacitor terminals and housing before energizing to confirm no internal shorts exist.

Troubleshooting Capacitor Connections

A humming air handler with no rotation often signals incorrect capacitance or inverted start-run leads. Use a multimeter set to 1 kΩ to measure resistance across windings: a reading below 0.5 Ω suggests a shorted capacitor, while infinite resistance indicates an open circuit. Replace capacitors showing bulging cases or oil leaks immediately to avoid catastrophic winding damage.

Label wiring with permanent marker or adhesive sleeves to document original routing. Store spare capacitors in a climate-controlled environment–high humidity accelerates dielectric deterioration. Apply anti-corrosion grease to terminals in coastal installations to counter salt-air oxidation, which otherwise increases resistance and overheats connections.
