Complete HVAC Thermostat Wiring Diagrams for Home Systems Guide
Begin by confirming the voltage rating of your control system–most residential units operate at 24V AC, but commercial setups may use 120V or 240V. Misidentifying this will void components or create hazardous shorts. Label each conductor with adhesive tags before disconnecting power to avoid confusion during reassembly. A multimeter set to continuity mode verifies terminal continuity without energizing the circuit.

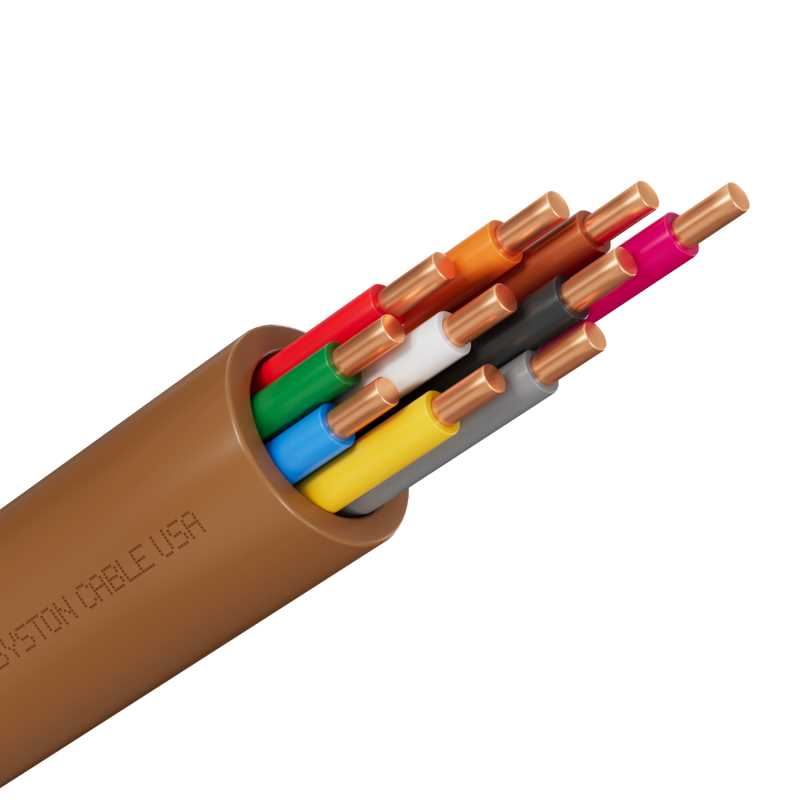

Use color-coded conductors as specified in the manufacturer’s installation manual–common standards assign red to power (R), yellow to compressor cooling (Y), green to fan (G), white to heat (W), and blue or orange to reversing valves for heat pumps. Deviating from these conventions risks incorrect sequencing and damage to the compressor or blower motor. For low-voltage configurations, ensure wire gauge is no thinner than 18 AWG to prevent voltage drop over extended runs.
Install a dedicated circuit breaker for the climate regulator if integrating it with modern variable-speed drives–shared circuits cause interference and erratic operation. Use a gas-filled surge protector between the transformer and control board to absorb voltage spikes from induction motors or external power fluctuations. For multi-stage systems, connect the second-stage relay in parallel with the first, not in series, to prevent false triggering.
Test the anticipation resistor on mechanical controls by measuring resistance across the heat and power terminals–values between 0.5 and 1.2 ohms indicate proper calibration. For digital interfaces, verify the firmware version supports dual-fuel switching if combining gas and electric heating. Replace corroded terminals immediately; even minor oxidation increases resistance and causes overheating.
For radiant floor setups, isolate the humidistat circuit from the temperature regulator to prevent condensation buildup on sensor contacts. In geothermal applications, use shielded conductors between the underground probes and control box to block electromagnetic interference from nearby power lines. Always crimp connectors with insulated crimp sleeves to prevent short circuits from vibration or thermal expansion.
Connecting Climate Control Systems: A Practical Guide

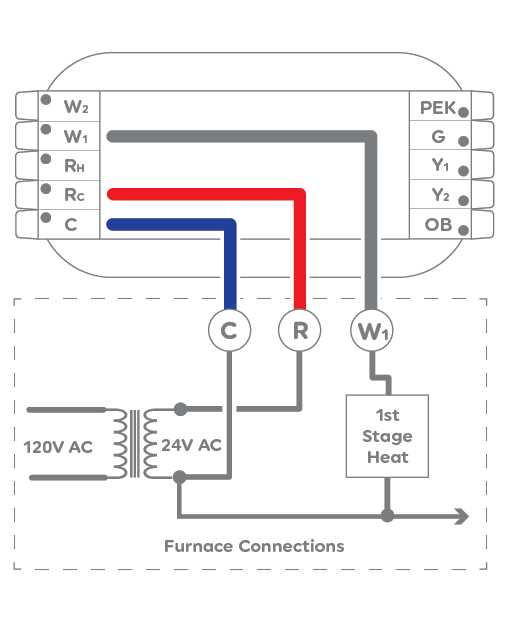

Begin by identifying the power supply terminals on your heating or cooling unit–typically labeled R (24VAC), C (common), and sometimes Rh/Rc if separate circuits for heating and cooling exist. Use a multimeter to verify voltage between R and C before proceeding; readings outside 23-28VAC indicate potential transformer issues or unsafe conditions. Label wires with masking tape during disconnection to prevent mismatches, particularly in systems with auxiliary components like humidifiers or dehumidifiers that may share the same control board.

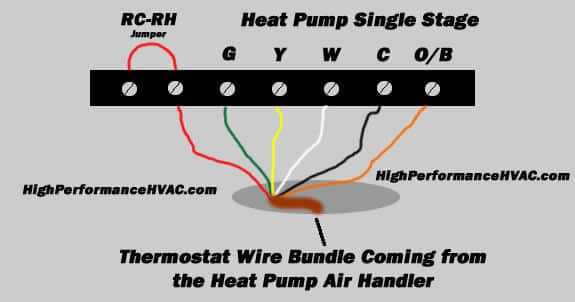

Low-voltage connections demand precision: match gauge sizes (18-22 AWG copper) to circuit length to avoid voltage drop–longer runs (over 50 feet) require thicker wires. Ground all metal enclosures and shielded cables for Z-wave or Wi-Fi-enabled devices to minimize interference. For heat pump systems, ensure the reversing valve (O/B terminal) is correctly polarized:
- O = energized in cooling mode (common in Trane/Carrier)
- B = energized in heating mode (typical for Rheem/Goodman)
Miswiring here can cause compressor damage within minutes of operation.
For multi-stage equipment (e.g., two-speed fans or dual-fuel setups), verify sequence timing in the equipment manual. Stage 1 should activate 1-2 minutes before Stage 2 to prevent rapid cycling; adjust delay settings via the control interface or jumper configurations. Emergency heat strips on backup systems require separate relay wiring (often labeled E or Aux)–never connect them directly to the standard heating circuit, as misuse risks tripping breakers or overheating elements. Test limit switches with a continuity tester before reinstallation to confirm proper operation.
Troubleshooting Common Wiring Errors
Symptoms of incorrect terminal connections include:
- Short cycling: Check for crossed R and W wires (heating) or R and Y (cooling) causing immediate shutdown. Check for loose connections at the equipment’s control board.
- Non-responsive screen: Verify C wire continuity back to the transformer; absence of a C connection prevents modern smart controllers from functioning.
- Fan runs continuously: Inspect G terminal wiring–accidental jumper to R will bypass auto/on settings.
- Compressor hums but doesn’t start: Confirm capacitor connections and test for 24VAC at the start relay before condemning the motor.
Use a wire nut or crimp connector to splice damaged wires, never twist-and-tape alone–vibration from equipment can loosen connections over time.
Advanced setups like zoned systems require zone control panels with dedicated transformers (minimum 40VA per zone). Isolate dampers (normally open/closed) with separate power feeds to prevent backfeeding across zones. For radiant floor heating, use dual-stage floor sensors (one for floor temp, one for ambient) wired to separate inputs to prevent condensation buildup during startup. Always refer to the equipment-specific sequence of operations; generic schematics may omit critical safety interlocks or proprietary protocols.
Decoding Control Panel Wire Markings and Connection Points
Always verify the power source before touching any colored leads–most residential climate control systems use a 24-volt AC supply, but industrial units may operate at higher voltages. The red (R or Rh/Rc) lead delivers power from the transformer; never connect it directly to ground or other low-voltage terminals without confirmation. For dual-transformer setups, separate Rh (heating) and Rc (cooling) wires prevent backfeed, but many modern installations combine them into a single R terminal–check the equipment manual to avoid damaging relays.

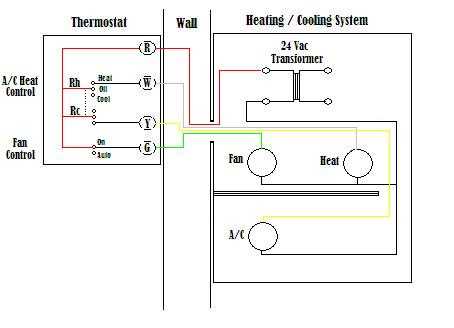

Match colored wires to their corresponding terminals with precision: white (W) activates heating (furnace or heat pump), yellow (Y) triggers cooling (AC compressor), green (G) controls the blower fan, and blue or brown (C) provides the common return path for smart panels requiring continuous power. Older systems may use orange (O) or dark blue (B) for heat pump reversing valves–swapping these leads will force the system into cooling mode during heating cycles, risking compressor failure. Label wires with heat-resistant sleeves if reusing existing cables to prevent cross-connections.
Test every connection with a multimeter set to AC voltage: between R and C, expect 24V; between R and W/Y/G, voltage should drop to near 0V when activated. If using a programmable panel, ensure the battery backup (typically AA or AAA) is installed to retain settings during power outages. For systems with auxiliary stages, W2 (second-stage heating) or Y2 (second-stage cooling) are often marked in black or light blue–these must not be tied to primary terminals unless equipment supports multi-stage operation.
How to Connect a 4-Connection Climate Control System
Power down the furnace or air handler using its dedicated circuit breaker before touching any cables. Use a non-contact voltage tester to confirm the lines are inactive–even residual current can cause shorts or injury.
Remove the old control panel cover by unscrewing its fasteners, then detach the existing wires from the terminal block. Label each wire with masking tape or a marker, noting its original position (R, C, W, Y, etc.). This prevents incorrect reconnection later.
Identify the four primary leads in your new setup: power (R), common (C) for continuous power, heat (W), and cooling (Y). Some systems may include a fifth fan (G) lead, but exclude it if your configuration doesn’t require it.
Strip 1/4 inch of insulation from each wire end using wire strippers. Twist the exposed copper strands to prevent fraying, then insert each into its designated terminal slot. The order is critical: R → Rc or Rh, C → C, W → W, Y → Y. Secure each connection with the terminal screw, ensuring no bare wire extends beyond the clamp.
For systems with separate heating and cooling transformers, bridge the Rc and Rh terminals with the provided jumper wire. Omit this step if the setup has a single transformer. Verify the bridge’s tightness–loose jumpers cause erratic operation.
Mount the new control unit’s backplate to the wall using drywall anchors if the original holes don’t align. Thread the labeled wires through the backplate’s opening, then snap the control face into place. Restore power at the breaker and observe the display–if it fails to illuminate, recheck the C lead connection.
Program the device according to the manufacturer’s default settings, then test heating and cooling modes separately. Listen for the system’s startup sequence–delays or silence indicate a miswired lead. If cooling runs continuously, swap the Y and W connections; if heat doesn’t activate, verify R and W terminals.
Troubleshooting Common Errors
Humming or buzzing at the furnace points to a loose C lead–re-tighten or replace the connection. If the system cycles rapidly, ensure the R and C wires aren’t reversed. For units with heat pumps, confirm the O/B lead (not covered here) matches the reversing valve’s default state.
Diagnosing Electrical Control Unit Connection Problems
Start by verifying the power supply to the climate control panel. Use a multimeter to check voltage at the main terminals–typically 24V AC between the R (power) and C (common) wires. If readings are absent or below 20V, inspect the circuit breaker, transformer, or fuse box for tripped switches or blown components. Low-voltage systems are sensitive; even a 2V drop can disrupt operation.
Inspect wire connections for corrosion or loose fits. Oxidation on terminals appears as white or greenish deposits–clean with fine-grit sandpaper or a wire brush, then re-secure. Tug-test each lead; if it detaches, strip ¼ inch of insulation, twist strands tightly, and reattach using a crimped connector or solder joint. Avoid twisting wires together without protection–exposed copper invites shorts.
Check for crossed or misaligned cables. Refer to the control board’s labeled ports and confirm each conductor matches its designated slot. A swapped R (power) and G (fan) lead, for example, can prevent cooling cycles entirely. Use colored electrical tape to mark questionable wires temporarily during testing.
Symptom-Based Troubleshooting Guide
| Issue | Likely Cause | Resolution Steps |
|---|---|---|
| Blank display | No power, dead batteries, or faulty backlight | Test R-C voltage; replace AAA batteries; inspect for burnt traces on circuit board |
| Fan runs continuously | G terminal shorted to R or Y | Disconnect G wire; test for continuity between G and other terminals |
| Cooling/heating refuses to start | Broken Y (cooling) or W (heating) circuit | Jump R to Y or W–if unit engages, trace wire to outdoor/indoor equipment |
| Inconsistent temperature readings | Damaged sensor or dirty thermistor | Measure resistance (typically 10kΩ at 70°F); clean sensor or replace if out of spec |
Test for open circuits by jumping the R terminal to each function terminal (Y, W, G) one at a time. If the corresponding equipment (compressor, heater, blower) activates, the issue lies in the wire run or internal board logic. If nothing happens, probe further along the circuit–likely a severed wire or failed relay.
Examine the anticipator setting on mechanical units. A misadjusted heat anticipator (usually a small dial marked 0.1 to 1.2) causes short cycling. Measure resistance across the fixed terminals, then adjust the dial until current draw matches the manufacturer’s spec–often 0.3A for gas furnaces.
For smart or programmable units, reset the device to factory defaults before retrying setup. Remove all conductors, wait 30 seconds, then reconnect in order: C, R, G, Y, W. Reboot the device–cloud-dependent models may take 5 minutes to recalibrate sensors. If Wi-Fi sync fails, relocate the device away from interference sources or use a Wi-Fi extender with a 5GHz band.
