Complete Wiring Guide for Coleman RV Air Conditioner Installation and Troubleshooting

Start by disconnecting the RV’s power source at the breaker panel before handling any internal components. Coleman’s rooftop units typically require a dedicated 15-amp or 20-amp circuit, depending on the model–Mach 3 operates on 20 amps, while Mach 8 draws 15. Verify the amperage rating on the unit’s identification plate, usually located behind the return-air grille or on the evaporator housing.

Identify the color-coded leads in the control box: red (live/hot), white (neutral), and green or bare (ground). Mach series units often include a secondary brown wire for heat strips–ensure this is capped with a wire nut if unused. For older models like the Mach 10 or 15, the black lead may serve as a secondary power input for heating elements; confirm function via the schematic printed on the unit’s internal panel.

Use 12-gauge copper wire for the primary circuit and 10-gauge if the run exceeds 25 feet to prevent voltage drop. Secure connections with crimp-on terminals and heat shrink tubing–avoid twist-and-tape methods, as vibrations from travel can loosen them. For 30-amp service, split the power at the distribution block: one leg to the climate unit, the other to remaining RV loads, ensuring neither exceeds the breaker’s capacity.

Label each wire at both the unit and breaker ends to simplify future troubleshooting. Coleman’s built-in start capacitor (typically 25–40 µF) requires no additional relay for standard cooling; however, if upgrading to a soft-start kit, redirect the capacitor wires to the new module’s terminals as specified in the kit instructions. Test the system with a multimeter before sealing the control box: 120V AC across the red and white leads confirms proper power delivery.

For ducted units like the Mach 15, connect the thermostat’s blue (cooling) and yellow (fan) wires directly to the unit’s corresponding terminals–no intermediate relay is needed. Non-ducted models may require a separate fan relay if the internal switch fails to handle the current draw. Always terminate the ground wire to the RV’s chassis at a clean, unpainted surface to ensure proper grounding.

Electrical Connection Guide for RV Climate Control Units

Start by locating the terminal block inside the unit’s access panel–typically marked with L1, L2, and ground symbols. Use 10-gauge copper wire for circuits rated up to 30 amps; verify gauge requirements against the model’s specifications to prevent overheating. Connect the black (hot) wire to L1, red (hot) to L2, and green or bare (ground) to the grounding screw. Avoid twisting wires together without securing them in terminal lugs; loose connections create resistance and increase fire risk.

Check the thermostat’s compatibility before integrating it with the system. Most Coleman units require a single-stage thermostat with a 12VDC power source and a three-wire setup: R (power), G (fan), and Y (cool). If replacing an older thermostat, confirm the wire colors match the new unit’s labeling–reversing R and G, for example, will prevent the fan from engaging. Test the thermostat’s calibration by setting it 5°F below ambient temperature; the compressor should activate within 30 seconds.

Install a dedicated 30-amp breaker in the RV’s power distribution box, labeling it clearly to avoid accidental disconnection. For units with heating elements, ensure the breaker matches the heater’s amp draw–typically 15 or 20 amps. Use a voltmeter to confirm 120VAC between L1 and L2 at the terminal block before energizing the system. Voltage below 115VAC can trip internal overload protectors or reduce cooling efficiency by up to 15%.

Capacitors for the compressor and fan motor (usually marked “C” and “F”) must match the microfarad (µF) rating listed on the unit’s data plate. A 35/5 µF capacitor, for instance, is common–swapping values can cause the compressor to hum without starting or the fan to run at half speed. Discharge capacitors with a 20,000-ohm resistor before handling to avoid electric shock. When replacing, secure the new capacitor with zip ties to prevent vibration damage, which can rupture internal components.

Inspect the low-voltage control board for corrosion, especially near the 12VDC transformer and relay switches. Corroded traces can disrupt signals to the compressor or fan, leading to erratic operation. Clean contacts with a fiberglass brush or isopropyl alcohol; avoid sandpaper, which can scratch conductive surfaces. Replace valves or relays if continuity tests show resistance above 0.5 ohms. Label all removed components to ensure correct reassembly–misplaced wires can trigger the unit’s safety lockout mode.

Finalize setup by sealing all conduit entries with silicone to prevent moisture ingress, which accelerates wire oxidation. Run a 10-minute test cycle: monitor current draw with a clamp meter (should not exceed 80% of breaker rating), listen for unusual noises (grinding or rattling indicates loose parts), and verify airflow at all vents. Record the date, wire gauge used, and capacitor values in the RV’s maintenance log for future reference.

Finding Electrical Schematics for Your Coleman Mobile Cooling System

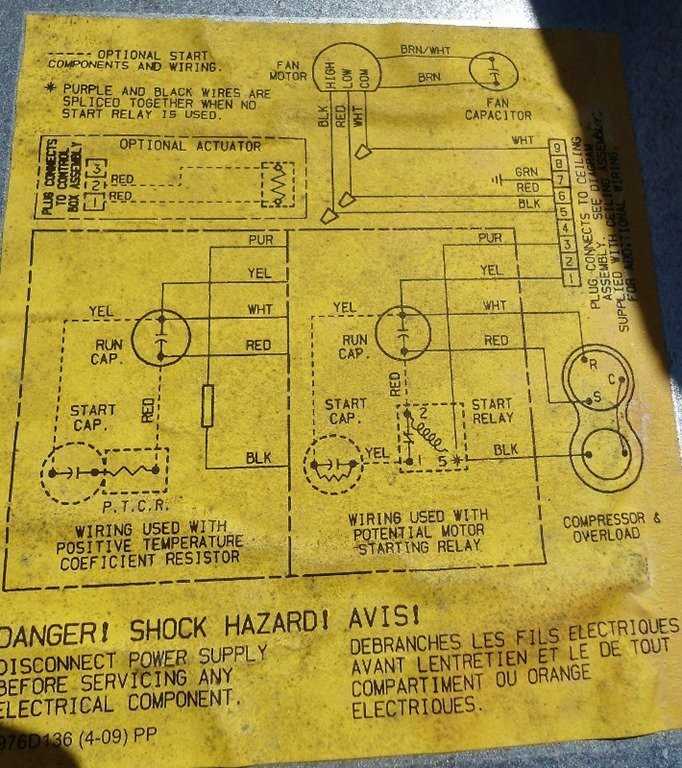

Check the interior panel of the rooftop unit. Most models store a laminated reference sheet behind the removable grille near the evaporator coil–unsnap the clips holding the cover and look along the left or right flange. If absent, locate the model number sticker (typically near the return air opening) and cross-reference it with the official manual on the manufacturer’s support portal using the exact serial prefix.

Alternative Label Placement

Examine the control box enclosure mounted beneath the shroud. Remove the single Phillips screw securing the metal door; behind it, a folded paper strip often displays terminal assignments and color codes. Some older variants embed the diagram directly on the terminal block housing–scrub away dust accumulation around the high-voltage connections to reveal etched or inked labels.

For units lacking onboard documentation, measure the overall housing width: models under 13.5 inches correlate with Dometic-produced assemblies, while wider frames link to universal wiring charts found in generic RV cooling service guides. Note the compressor brand–Copeland scroll compressors indicate a split-capacitor configuration distinct from Tecumseh rotary designs.

Resort to the rooftop access ladder method only after exhausting onboard sources. Lower the unit by disconnecting the four corner bolts–this exposes the underside junction box where a redundant schematic may be affixed. Exercise caution with 120VAC wiring; isolate power at the breaker panel and verify with a non-contact tester before handling.

Digital Retrieval

Use the model number’s numeric sequence: omit alphabetic prefixes, remove dash suffixes, then search the truncated digits in the FCC equipment authorization database–entries often contain scanned internal diagrams. Alternatively, input the full model tag into RV-specific forums where moderators attach OEM-derived schematics stripped across multiple ZIP files.

If still unresolved, snap high-resolution photographs of every visible label, terminal strip, and capacitor rating, then upload them to a collaborative technical platform. Contributors frequently overlay missing details within hours, particularly for rare E-series or late-90s vintage assemblies where factory documentation is fragmented.

Locating Critical Elements in Your RV Climate System Electrical Blueprint

Start by pinpointing the compressor relay–typically marked with a circular symbol paired with coil notation. This component governs power delivery to the cooling unit’s heart, and its failure often mimics broader system shutdowns. Check for voltage drops across terminals 2 and 5 during startup; values below 115V AC indicate corroded contacts or a failing relay. Replace immediately if resistance exceeds 0.5 ohms.

Trace the capacitor leads next–dual-run versions show two distinct sections for motor start and fan operation. A swollen or leaking case signals imminent failure, while bulging tops confirm dielectric breakdown. Test with a multimeter set to capacitance mode; deviations over 10% from the rated µF demand prompt replacement. Label connections before detachment to avoid miswiring the new unit.

Thermal Overload Protector and Thermostat Connections

The thermal cutout embeds near the evaporator coil, often wrapped in insulation. Its role is to halt current flow if temperatures exceed 120°C. Probe for continuity–absence means the device has tripped or burned out. Reset tripped units only after cooling periods, but permanent failures require identical model replacements to maintain safety protocols.

Inspect thermostat wiring harnesses for brittle insulation or greenish oxidation at terminals. The control board communicates via low-voltage loops, typically 24V, so frayed or pinched wires can disrupt cooling cycles. Verify signal integrity by bridging R and G terminals; the blower should activate within 3 seconds. Non-response suggests board or thermostat failure.

Power Supply and Grounding Verification

Confirm the main breaker’s integrity by toggling it off and checking for zero voltage at the L1 and L2 inputs. Trip events often stem from poor grounding or overloaded circuits. Measure neutral-to-ground voltage–any reading above 1V suggests loose connections or corroded bus bars. Tighten all terminal screws with a torque driver to manufacturer specs.

Finally, examine the condenser fan motor’s wiring for overheating signs–discolored wires or melted insulation indicate excessive current draw. Test windings for resistance: values should match ±5% across all three legs. Uneven readings point to internal shorts, necessitating motor replacement. Secure connections with heat-shrink tubing to prevent vibration-induced wear during transit.
