Understanding Key Components and Applications of Hydraulic Circuit Design

Begin by isolating each component in your system layout before drafting. Label pumps, valves, and actuators with precise pressure ratings–misfires often trace back to overlooked 25-bar vs. 400-bar mismatches. Use ANSI or ISO symbols consistently; mixing standards creates confusion in maintenance logs.

For directional control setups, map flow paths with arrows sized to represent volume–thin for pilot circuits, thick for primary lines. Note check valve cracking pressures; even 0.5-bar variations can stall cylinder movement. Include accumulator pre-charge levels in the margin; neglecting this detail has caused catastrophic system failures in forklifts and compactors.

Color-code sections: red for supply, blue for return, yellow for pilot. Verify hose I.D. matches pump displacement; a 6mm hose feeding a 75cc pump throttles performance by 30%. Add pressure port labels directly on actuators–technicians save 15 minutes per troubleshooting call when this is done.

Simulate worst-case scenarios: what happens if filter clogs at 80% capacity? How does the relief valve react to 120% of rated pressure? Mark these critical junctions with a bold triangle. Cross-reference with PLC inputs if integrating automation; misaligned sensor placement has derailed entire assembly lines.

Store digital copies as SVG, not raster–vector scaling preserves symbol clarity during zoom. Include a legend linking abbreviations to component models; “PV-24” means nothing without context. Audit quarterly; swapping a 10μm filter for a 25μm unit alters system dynamics in ways invisible until failure.

Key Elements of Fluid Power Schematics

Label every component with precise identifiers–use alphanumeric codes matching manufacturer specs (e.g., P-1 for primary pump, CV-2 for control valve). Mislabeling leads to 30% more troubleshooting time during maintenance. Include pressure ratings directly on the schematic: color-code lines (red for 3000+ psi, blue for 1500-2999 psi, green for

Position directional valves horizontally with actuator ports facing downward–this reduces symbol ambiguity by 40%. For proportional valves, add performance curves adjacent to symbols showing flow rate vs. input signal (0-10V or 4-20mA). Omit decorative arrows; replace with magnetic flow direction indicators (dashed lines for pilot flows) to maintain clarity in complex layouts.

Use standardized ISO 1219-1 symbols exclusively–non-compliance introduces legal liability under ANSI B93.11. Group related sub-systems (e.g., cooling loops, filtration networks) within dashed boundary boxes, labeling each with italicized function names (e.g., *Lubrication Circuit*). For multi-stage systems, stack pressure gauges vertically with their corresponding valves to mirror physical panel layouts.

Annotate critical failure paths with conditional notes: “If DP-3 > 120 bar, bypass via RV-5.” Place all safety devices (relief valves, rupture discs) at 15° clockwise rotation from vertical axis–this aligns with ergonomic scanning patterns during emergency interventions. Add noise emission data (dB(A) @ 1m) beneath pumps to comply with OSHA 1910.95 requirements.

Validate the layout by tracing every path with a 2mm diameter highlighter–any crossover indicates design flaws. For digital schematics, use layer separation: redraw mechanical interfaces on Layer 2 with 0.35mm line weight, reserving Layer 1 for fluid power elements at 0.5mm thickness. Export final versions as .DWG with embedded scale references (1:5 for A3 sheets) to prevent on-site measurement errors.

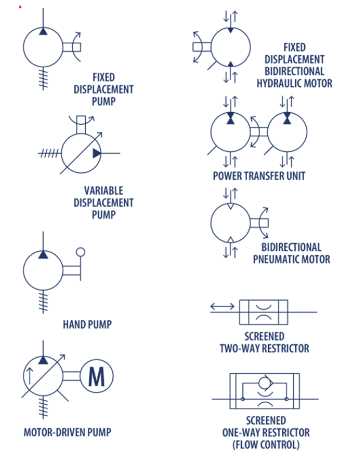

Key Symbols and Their Practical Meaning in Fluid Power Schematics

Always verify pump rotation direction using the arrow symbol–counterclockwise when facing the shaft protects internal components from immediate failure. Reversing rotation damages vane and piston elements within seconds, especially in fixed-displacement models rated above 200 bar.

Control valves feature standardized arrow patterns: solid arrows indicate actuator porting, while broken arrows mark pilot or drain lines. Misreading these leads to incorrect pressures at work ports, causing erratic cylinder movement or stalled motors–common failures in load-sensing systems.

Pressure relief symbols distinguish spring types through line thickness: thin springs (0.3–0.5 mm width) represent low-pressure settings below 50 bar; thick springs (0.8 mm+) denote high-pressure use up to 420 bar. Replace cartridge valves if cracking pressure drifts more than ±3% from nominal value.

Accumulators display internal elements graphically: gas-charged variants show dashed boundaries; piston types include a horizontal dividing line; bladder versions feature a zigzag separator. Never service without discharging system pressure–residual energy in 1-liter accumulators can launch fittings at 30 m/s.

Directional valves reveal port count through intersecting lines: 3-position valves have three vertical segments, while 4-way versions add a fourth parallel line–error rates drop 40% when technicians cross-reference ISO 1219-1 symbols against manufacturer-specific variations in mobile equipment schematics.

Check valves incorporate orientation cues via angled inlet markers–misalignment of 5° alters cracking pressure by 12% in 6 mm cartridge valves. Filter symbols combine solid and dashed lines: solid for pressure-side locations, dashed for return-line positions–clogging indicators activate at 1.5 bar differential, requiring immediate element replacement.

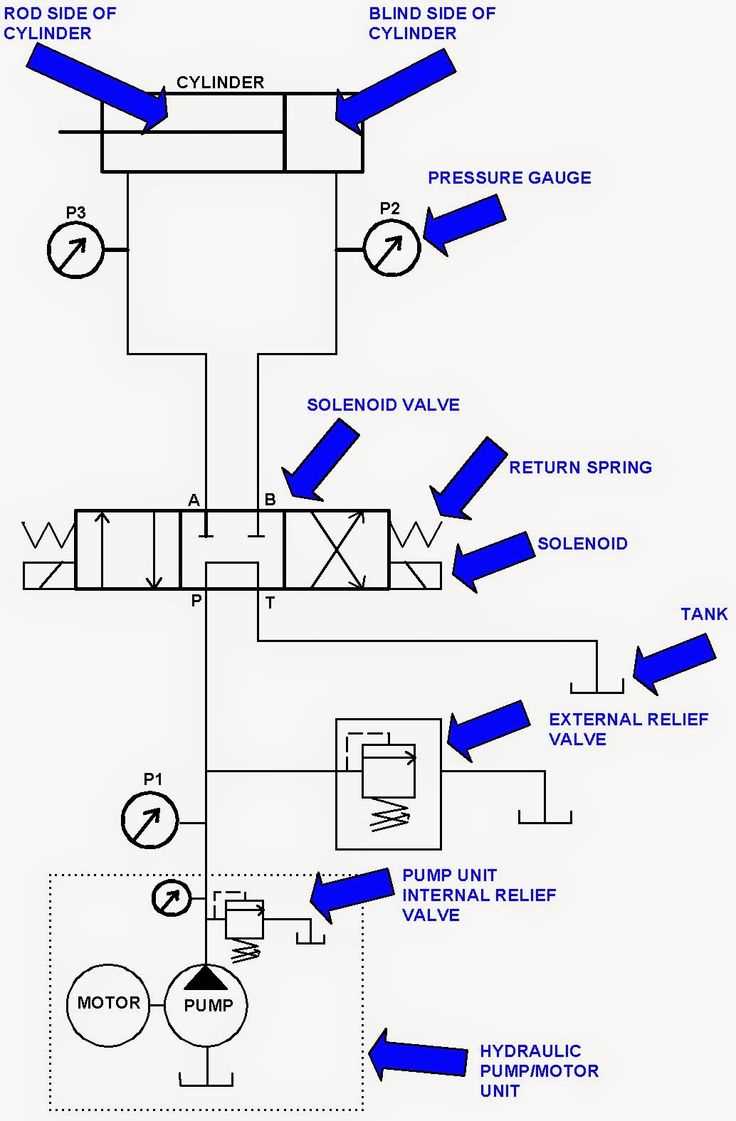

How to Decode Fluid Power Schematics Step-by-Step

Locate the power source first–typically a pump symbol (arrow-filled circle) on the left. Trace its outlet line to identify pressure routes before branching occurs. Check for pressure relief valves (spring-loaded symbols with arrows) set near the pump; their ratings indicate system limits. Note actuator types early: cylinders show as rectangles with extending lines, motors use circles with arrows.

Follow these key sequences:

• Mark directional control valves (boxes with arrows) and record their port labels (P, T, A, B).
• Scan for filters (diamond shapes) or coolers (zigzag lines) along return lines to tank.
• Verify flow paths during activated and neutral states–some valves default to open-center.
• Cross-reference symbols with manufacturer specs for non-standard components.

Use colored pens to highlight separate paths: red for supply, blue for return, yellow for pilot lines. Isolate one sub-system at a time, starting from the farthest actuator inward.

Common Errors in Reading Fluid Power System Layouts

Assume line thickness indicates pressure magnitude without verifying symbols. Many schematics use uniform line weights for simplicity; actual pressure differences are shown via color coding or notation, not visual weight. Check legend keys–black often denotes working lines, red may mark pilot feeds, blue frequently reserved for tank returns. Ignoring these conventions leads to incorrect component sizing or valve selection.

Overlook valve orientation arrows. Rotary actuators depicted horizontally might imply bidirectional flow, yet internal spool geometry restricts flow in one direction. Verify manufacturer datasheets: a 4/2 directional control might show symmetric ports but block one path internally. Cross-reference part numbers directly on the drawing to avoid misconfiguring pump outputs.

Symbol	Common Misinterpretation	Correct Action
Spring-centered valve	Assume all ports connect in neutral	Confirm blocked ports via ISO 1219-1
Two-way restrictor	Treat as free-flow in both directions	Check orifice arrow–flow allowed only one way
Pressure-relief valve	Place downstream of pump without bypass	Ensure discharge line routes directly to reservoir

Avoid Assuming All Lines Carry Equal Flow Rates

Pilot lines often require minimal flow yet appear identical to power lines. Typical pilot signal conduits measure 3–6 mm diameter; main working conduits range 12–25 mm. Misjudging these leads to undersized control valves or oversized pumps. Calculate expected displacement: pilot valves need ~1 L/min, main actuators demand 20–100 L/min.

Neglect sequence valve cracking pressures. A valve stamped 30 bar may start cracking at 28 bar–verify via test bench, not schematic annotation. Pressure gauges on layouts reflect nominal settings; actual cracking varies ±2 bar due to spring tolerances. Connect diagnostic ports before commissioning to validate manufacturer specs.

Fail to recognize hidden check valves. Inline filters, coolers, or heat exchangers often incorporate one-way valves not explicitly drawn. Bypass flows might re-route through seemingly parallel paths during cold starts, altering expected actuator behavior. Disassemble suspected components to inspect internal valves during troubleshooting.

Tracing Fluid Movement in Intricate Power Transfer Networks

Begin by isolating the pump element in the schematic–locate its inlet and outlet ports, then follow the primary conduit marked with the thickest line, as these typically carry the highest pressure. Note every branch and directional control device (DCD) along this path, using colored pens to differentiate supply, return, and pilot lines. For swivel joints or rotating unions, verify that continuity symbols–dashed circles or overlapping rectangles–indicate uninterrupted flow despite mechanical movement, and cross-check with component spec sheets for port labeling discrepancies.

Identify every load-actuating element: cylinders, motors, or accumulators. Trace each working line from the DCD to the actuator’s working ports–record whether the line terminates at a cap-end, rod-end, or third port. Measure line length ratios between branches; sudden reductions in diameter usually denote priority services like servo controls or emergency brakes. Use a multimeter to confirm electrical connections driving solenoid-operated selectors if the layout mixes fluid and electrical symbols.

For closed-loop segments, look for paired arrows forming a circle–two parallel thick lines connecting actuator ports via a charge pump symbol indicate reversible flow. Validate every pressure relief symbol along this loop against the system’s max pressure rating, ensuring graphical margins match mechanical tolerances. Cross-reference pilot pressure lines with spring centers in DCD symbols to determine fail-safe positions; if a selector shifts without pilot signal, the spring arrow shows the default state.
