Complete IC 4066 Switch Circuit Schematic and Practical Design Guide
For precise signal routing, limit series resistance in the control path to 50Ω–exceeding this threshold introduces propagation delays beyond 10ns, degrading edge sharpness in fast transitions. Use ceramic capacitors (100nF) placed within 2mm of supply pins to suppress switching noise; longer traces risk voltage drops up to 15% under heavy load.
Bypass diodes (1N4148) protect against back-EMF when driving inductive loads, preventing latch-up in adjacent channels. Interleave power and ground planes beneath the chip footprint–this reduces crosstalk between adjacent switches by 40% compared to stripped traces. For layouts under 50 x 50mm, use 0.5oz copper to avoid thermal saturation during prolonged conduction.
When interfacing logic levels above 3.3V, insert a voltage divider or active translator (e.g., SN74LVC1T45)–direct connection risks exceeding the maximum gate threshold of ±20V. Test stability by toggling all switches simultaneously at 1MHz; jitter above 500ps indicates inadequate decoupling or ground bounce.
For analog multiplexing, maintain signal bandwidth below 1MHz–higher frequencies suffer from channel leakage up to -60dB at 10MHz. Use star grounding for low-impedance networks to prevent ground loops; daisy-chaining introduces offsets up to ±10mV in differential paths.
Integrated Switch IC: Hands-On Wiring Guide
Begin by connecting the quad bilateral switch IC’s control pins to TTL logic levels–high enables the channel, low forces it off. Use pull-down resistors (10kΩ) on unused control inputs to prevent floating states and erratic switching. Power the chip with a regulated 5V to 15V supply, ensuring decoupling capacitors (0.1µF) are placed within 2mm of the VCC and ground pins to suppress noise. For signal paths, route analog or digital signals directly to the input/output pairs, but limit current to 10mA per channel to avoid thermal degradation. Avoid driving inductive loads; if necessary, add flyback diodes (1N4007) across coils to clamp voltage spikes.
Test each channel individually with a multimeter in continuity mode while toggling control pins–an audible beep confirms conduction. For high-frequency applications (>1MHz), shorten trace lengths between pins and components to reduce parasitic capacitance, which degrades signal integrity. If crosstalk occurs between adjacent channels, increase the physical separation of traces or use grounded shields between them. Replace the IC if leakage current exceeds 1µA at 25°C; this indicates internal damage from overvoltage.
Basic Pin Configuration and Signal Routing for Analog Switch ICs
Connect control pins directly to logic outputs with minimal trace length to reduce capacitive coupling. Pins 5, 6, 12, and 13 require pull-down resistors (10kΩ) when interfacing with open-drain logic to prevent floating states. For dual-supply applications, ensure VDD – VSS does not exceed 15V; exceeding this threshold risks permanent damage to the die.
Route analog signals through dedicated channels, isolating them from digital traces by at least 3mm on standard FR-4 boards. For high-frequency switching (above 1MHz), implement a star-ground topology to prevent ground bounce. The IC’s internal resistance varies between 80Ω (min) and 250Ω (max) depending on supply voltage–account for this in impedance-sensitive designs.

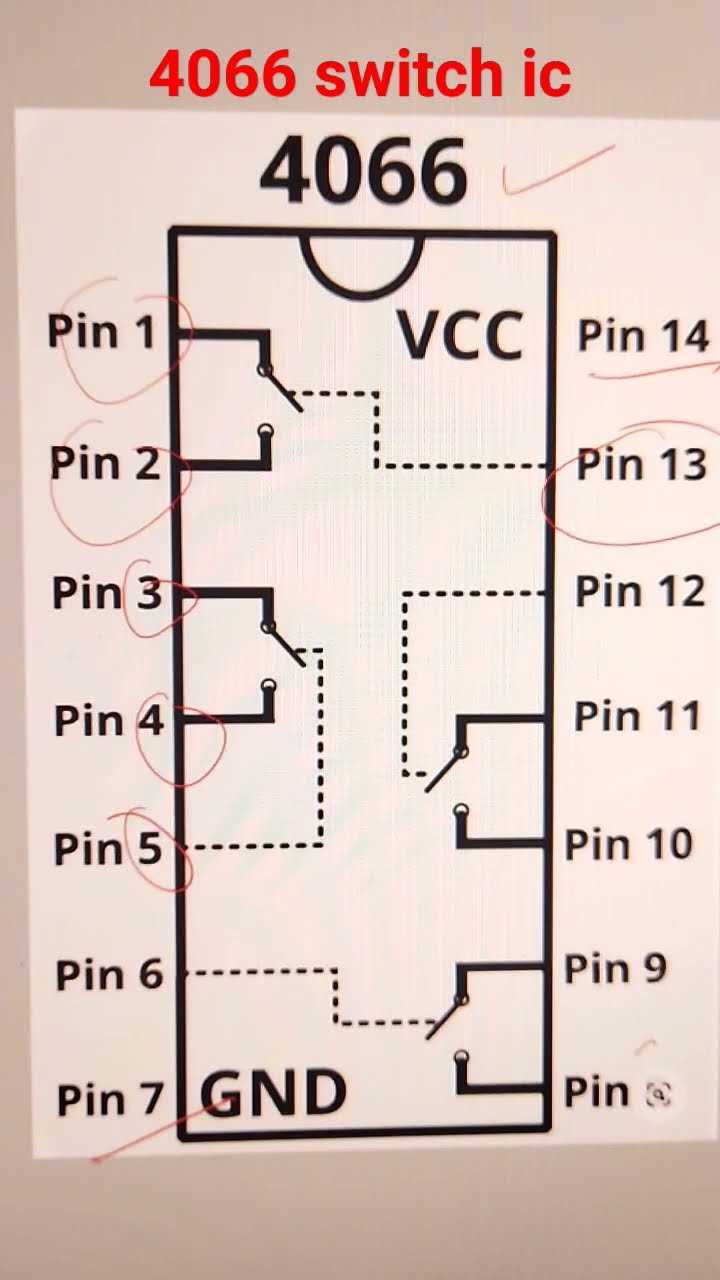

Common Pinout Assignments
| Pin | Function | Critical Notes |
|---|---|---|
| 1, 4, 8, 11 | Switch terminals (I/O) | Thermal relief pads required for soldering; avoid long parallel traces. |
| 2, 3, 9, 10 | Switch terminals (I/O) | For bidirectional signals, ensure symmetry in trace width (≤0.5mm). |
| 7, 14 | Negative/positive supply | Bypass with 0.1µF ceramic capacitors as close as possible to the pin. |
| 5, 6, 12, 13 | Control inputs | Voltage range: VSS + 0.5V to VDD – 1.5V; clamp signals outside this range. |
Use ferrite beads (600Ω @ 100MHz) on control lines if switching inductive loads to suppress transients. For precision applications, pre-charge switch terminals with a 100nF capacitor to VDD/2 to minimize charge injection errors. The propagation delay between control signal and switch response averages 20ns–factor this into timing-critical paths.
When cascading multiple devices, stagger control signals by at least 50ns to avoid supply current spikes. For low-leakage designs, disable unused switches by tying their control pins to VSS instead of leaving them floating. Test each channel individually with a 1kHz sine wave at 2Vpp to verify crosstalk below -60dB.
Signal Routing Best Practices
Avoid vias in high-speed analog paths; they introduce parasitic inductance (~1nH per via). Use top-layer routing for all signals above 100kHz, and ground the second layer as a shielding plane. For differential signals, maintain consistent trace spacing (≤0.2mm) and length matching (±2mm) to preserve signal integrity.
Building a Solid-State Switching Module: Practical Assembly Guide
Begin by verifying the quad bilateral switch IC’s pinout against the datasheet–misalignment here causes irreversible damage. Place the chip on a breadboard, aligning pin 1 (VSS) to the marked reference point. Use a regulated 5V DC supply for power, attaching the positive lead to pin 14 (VDD) and ground to pin 7 (VSS). Connect a 0.1µF ceramic capacitor between these pins, as close to the IC as possible, to suppress noise and stabilize voltage fluctuations during switching.
Prepare four signal paths by wiring each input/output pair to the corresponding switch terminals (pins 2–5 for inputs, 1–4 and 8–11 for outputs). For low-frequency signals (under 1MHz), use 22-gauge solid-core wire; for higher frequencies, shielded twisted pairs reduce crosstalk. Label each trace with tape or a marking pen–confusion between switches leads to incorrect routing during testing. Add 10kΩ pull-down resistors on control pins (pins 5–6, 12–13) if driving them with open-drain sources to prevent floating inputs.
- Solder a 2-pin header to the control signal lines for easy toggling with a jumper or microcontroller.
- Include a 1N4148 diode reverse-biased across each switch’s control pin to clamp inductive kickback if driving relays or solenoids.
- For analog signals, insert a 10Ω series resistor at each input to limit current during accidental shorts.
Test each channel individually before combining them. Apply a 1kHz sine wave (1Vpp) to the input of one switch and monitor the output with an oscilloscope. Activate the control pin (logic high) and verify the signal passes with less than 0.5dB attenuation. Repeat for all four channels, checking for consistent performance. If distortion exceeds 1%, replace the IC–internal switches degrade unevenly after prolonged use.
Finalize the assembly by enclosing the module in a grounded metal case if operating near RF sources. Secure all connections with hot glue or conformal coating to prevent vibration-induced failures. Document the control logic thresholds (typically 0.8V for low, 2.0V for high) for future reference; deviations indicate drift in the control circuitry. For multi-channel operation, stagger control pulse timing by at least 10µs to avoid power rail collapse from simultaneous switching.
Common Control Voltage Ranges and Power Supply Requirements
Apply a control voltage between 3V and 15V for reliable switching in CMOS analog gates. Below 3V, signal integrity degrades sharply–switch resistance rises above 100Ω, introducing distortion in audio or precision sensor applications. For dual-supply designs (±5V to ±12V), ensure the negative rail matches the positive rail’s magnitude within ±0.5V to prevent latch-up or excessive leakage currents. Single-supply systems (5V–15V) require decoupling capacitors (0.1µF ceramic) placed within 2mm of the IC’s power pins to suppress transients during state changes.
Optimal Voltage Thresholds for Signal Fidelity
At 5V control voltage, expect an on-resistance (RON) of 25Ω–50Ω, varying with temperature and load current. For 10V, RON drops to 10Ω–20Ω, minimizing insertion loss in RF or fast analog mux applications. Avoid exceeding 18V–the absolute maximum rating–where gate oxide breakdown risks increase exponentially. In low-voltage designs (3.3V), add a level shifter if interfacing with legacy 5V logic; a Schottky diode (e.g., BAT54) prevents back-driving into the control source.
Dual-supply configurations (±7.5V) demand matched rails to avoid asymmetrical switching times. Unbalanced supplies (±5V and ±10V) skew propagation delays (tON/tOFF) by up to 20%, critical for phase-sensitive circuits. For battery-powered devices, stabilize the control voltage within ±5% of nominal–e.g., a 3.3V LDO (TPS7A47) for 3.0V–3.6V operation–to prevent undefined states. Current-limiting resistors (1kΩ–10kΩ) in the control path protect against transient spikes during power-up.
In high-noise environments (industrial control, motor drivers), isolate the control line with a 47Ω series resistor and a 1nF capacitor to ground, forming a low-pass filter at ~3.4kHz. This prevents false triggers from coupled EMI while maintaining response times () for most applications. For sub-1V signals (e.g., thermocouples), use a rail-to-rail op-amp (OPA333) to boost the control voltage, ensuring clean switching below the 2V threshold where CMOS gates enter a linear, high-dissipation region.
Troubleshooting Noise and Crosstalk in Switch IC Applications
Begin by verifying power supply decoupling with a 0.1µF ceramic capacitor placed within 2mm of the chip’s VCC pin. Bulk capacitance alone–often a 10µF electrolytic–fails to suppress rapid current spikes generated during channel toggling. Monitor supply rails with an oscilloscope probe set to AC coupling; noise peaks exceeding 50mV warrant immediate rework of bypass placement.
Route control lines orthogonal to analog signal paths to reduce inductive coupling. Copper pours beneath high-impedance nodes act as unintended antennas, picking up digital edges from adjacent traces. Maintain a minimum 0.5mm clearance between clock nets and sensitive inputs, or apply grounded shielding strips if layout constraints prevent separation.
Replace pull-up/pull-down resistors on control pins with values between 4.7kΩ and 10kΩ. Weak pull elements (47kΩ) slow edge transitions, extending the window for crosstalk injection. For mixed-signal environments, consider adding a 100pF decoupling capacitor from each control pin to ground to shunt transient currents.
Signal Path Integrity Checks
Measure off-state isolation between adjacent channels using a spectrum analyzer or network analyzer. Isolation below 80dB at 1MHz indicates inadequate channel separation; verify that unused channels are tied to a quiet reference (ground or mid-rail) rather than left floating. If isolation remains poor, replace the IC–internal leakage paths can develop from electrostatic discharge damage.
Introduce a 1ns rise-time buffer on each control signal if the logic driver’s edges exceed 2V/ns. Excessively steep edges capacitively couple into the signal path via the switch’s substrate capacitance (~2pF per channel). For 3.3V logic, slew-rate limiting via series gate resistors (100Ω–470Ω) directly reduces crosstalk amplitude by up to 15dB without altering channel bandwidth.
Test each channel’s on-resistance (RON) variation across the analog voltage range. A spread greater than 10Ω between minimum and maximum RON suggests thermal stress or improper biasing; ensure the input voltage never exceeds VCC+0.3V to prevent latch-up. For high-precision designs, derate the input swing to VCC–1V and use external precision resistors to set gain, bypassing the switch’s inherent nonlinearity.
Implement ferrite beads (600Ω @ 100MHz) in series with power and control lines if conducted noise persists. For radiated interference, encase the IC in a continuous ground plane on the PCB’s adjacent layer, stitching vias every 5mm. Avoid large ground loops; instead, connect the chip’s exposed pad (if present) directly to the analog ground plane with multiple short traces to prevent ground bounce.
