Understanding Induction Cooktop Circuit Design and Wiring Plans

Start with a high-frequency resonant inverter operating at 20–50 kHz. A full-bridge or half-bridge topology using IGBTs rated for 1200 V and 20–40 A ensures efficient power transfer while minimizing switching losses. Pair each switching element with ultrafast recovery diodes (trr ≤ 100 ns) to handle reverse recovery currents. Snubber capacitors (10–100 nF, 1000 V) across each IGBT reduce voltage spikes during commutation.

Use a layered induction coil wound with Litz wire to combat skin and proximity effects. A 2–3 mm air gap between the coil and the ferrite backing optimizes magnetic coupling while maintaining thermal stability. The ferrite core should be segmented into tiles (e.g., 10 × 10 × 3 mm) to prevent eddy currents and improve flux distribution. A thermistor (NTC 10 kΩ) positioned beneath the coil provides overheat protection by triggering shutdown at 120°C.

Implement a current-mode control loop with feedback from a Hall-effect sensor. Sample the coil current at 100 kHz using a precision shunt resistor (≤ 5 mΩ) to avoid phase shift errors. A PID controller adjusts the switching frequency based on the error signal, maintaining a steady 3–5 kW output for varying cookware loads. Ensure the gate drivers provide 12–18 V pulses with rise times under 100 ns to prevent shoot-through faults.

Integrate EMI suppression with a common-mode choke (2 mH) and X2-class capacitors (0.1–0.47 µF) on the input lines. Add varistors (275 V AC) to clamp surges from line fluctuations. The power supply should derive 12 V and 5 V rails via an isolated flyback converter for safe control circuitry operation, with reinforced insulation rated for 3 kV.

Finally, validate the design by measuring efficiency at 90% load. Test cookware compatibility across ferrous and non-ferrous materials, ensuring minimal audible noise (

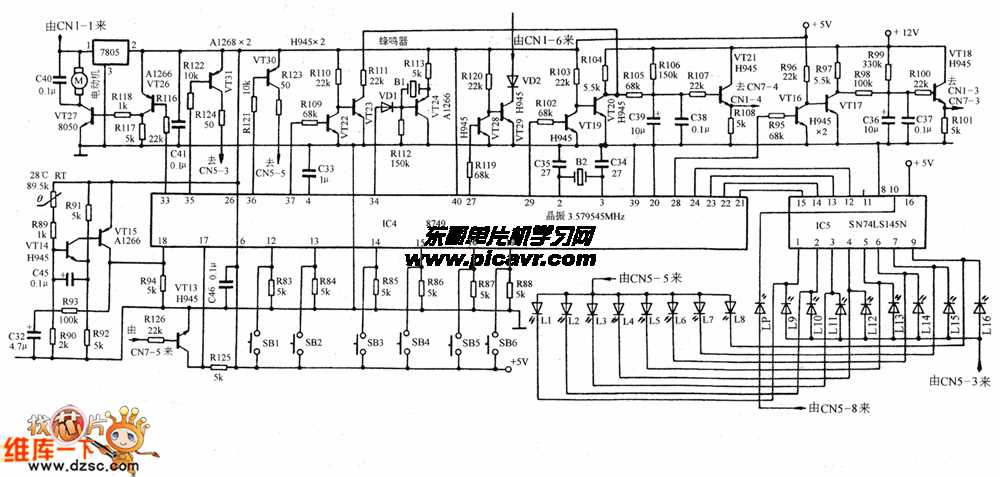

How to Decode the Electrical Blueprint of a Modern Cooktop

Begin by locating the rectifier bridge (typically a KBPC2510 or GBU8J module) on the power stage–this converts AC mains into DC for the inverter. Verify input voltage matches the specification (220-240V for most units) before tracing the line to the resonant capacitor bank (usually 0.27µF-0.47µF polypropylene film types). Failure to confirm component tolerances here risks thermal runaway in the induction coil, often wound from 10-15 turns of 2mm Litz wire. Cross-reference values with the PCB silk-screen labels, as mismatches between schematic and physical board indicate counterfeit or outdated revisions.

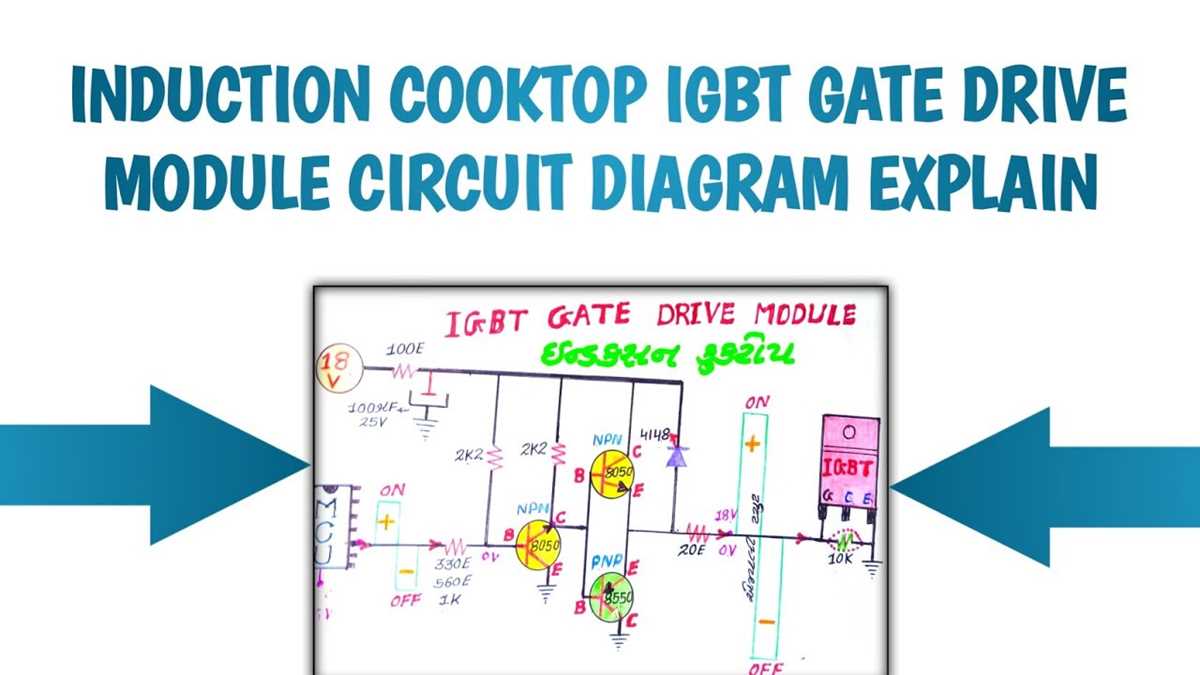

Isolate the IGBT (commonly a FGH40T65SQD or IXYS IXGH40N60) by following the gate driver optocoupler (HCPL-3120 or similar) from the MCU. Measure its collector-emitter voltage (V_CE) under load–optimum range is 1.2-1.8V at 25kHz switching; deviations suggest gate resistor degradation (typically 10-22Ω) or snubber capacitor ESR drift (target

Check the temperature feedback loop by probing the NTC thermistor (usually 10kΩ @25°C) against the MCU’s ADC pin voltage–expected values are 0.5-3.3V across 0-250°C. If readings skew, recalibrate by adjusting the voltage divider resistors (typical ratios: 10kΩ/4.7kΩ) or replace the thermistor if drift exceeds ±2°C. For firmware-based systems, ensure the PID coefficients (default K_p=0.8, K_i=0.2) are flashed correctly–unstable output frequency (critical at 20-50kHz) directly correlates with incorrect tuning, leading to uneven power delivery.

Core Elements of a Magnetic Cooktop Electrical Layout

Begin by integrating a high-frequency power inverter as the foundation. This component converts direct current into alternating current at frequencies between 20–50 kHz, critical for generating the oscillating magnetic field. Select IGBT modules over MOSFETs for higher voltage handling–typically 1200V minimum–for residential units. Ensure thermal management: mount the inverter on a copper heat sink with forced-air cooling or a liquid-based system for commercial designs.

Field-Generating Coil Assembly

Wind Litz wire–16 to 24 gauge, individually insulated strands–into a planar spiral configuration. The coil’s inductance should fall between 50–200 μH, adjustable via turns count, to match resonance with the capacitor bank. Place ferrite plates beneath the coil to concentrate flux and prevent eddy losses in the chassis. Secure the assembly with ceramic spacers to maintain a 2–5 mm gap between coil and cooking surface, reducing parasitic capacitance while maximizing field penetration into cookware.

Pair the coil with a polypropylene film capacitor array rated for 600–1000V AC, forming a resonant tank circuit. Capacitance values typically range from 0.1–0.47 μF; precise tuning ensures optimal power transfer and minimizes harmonic distortion. Use snubber circuits (RC networks) across switching elements to suppress voltage spikes exceeding 1.2× the bus voltage–critical for preventing IGBT latch-up.

Implement a microcontroller-driven feedback loop to regulate power delivery. Hall-effect sensors monitor coil current, while thermocouples embedded in the ferrite stack track temperature rise. Adopt PID control algorithms to maintain consistent heating–target a 5–10°C overshoot tolerance. For safety, integrate redundant shutdown pathways: overcurrent detection (triggering at 1.5× rated current), thermal cutoff at 85°C, and EMC filters to comply with FCC Class B emission limits.

Precision Assembly for High-Frequency Coil Wiring

Select a Litz wire with strands no thicker than 0.1 mm to minimize skin effect losses at 20–50 kHz operating frequencies. Calculate strand count using N = 4 * (I_rms / J_target), where I_rms is the root-mean-square current (A) and J_target is the target current density (4–6 A/mm²). For a 15 A coil, use 60–90 strands bundled in a tight, even spiral to prevent uneven heating.

Secure the workpiece to a non-conductive fixture (e.g., G10 fiberglass) with silicone clamps spaced ≤5 cm apart. Route the wire through laser-cut slots in the base plate, maintaining a radial gap of 1.5–2 mm between turns to prevent arcing. Apply high-temperature epoxy (e.g., Loctite Hysol 1C) between layers, curing at 80°C for 60 minutes under 1 kg/cm² pressure to eliminate voids.

Connect the coil leads to a resonant capacitor bank via 6 AWG copper braid soldered with Sn96.5Ag3Cu0.5 alloy. Use a vector network analyzer to verify the system’s impedance phase angle reaches 89±1° at the target frequency. If phase deviation exceeds ±2°, adjust capacitor values in 5 nF increments until resonance stabilizes. Terminate the circuit with a snubber network (22 Ω resistor + 10 nF X7R ceramic) to suppress transient spikes.

Test under 10% duty cycle pulses, monitoring coil surface temperature with a FLIR E4 camera. For uniform heat distribution, ensure temperature variation across turns stays below 15°C. If hotspots exceed the threshold, increase strand count in affected segments or add ferrite rods (3C90 material) at 120° intervals around the coil’s perimeter.

Decoding Frequency Converter Arrangement in Circuit Blueprints

Locate the inverter’s power stage first–typically a three-phase IGBT bridge or MOSFET array–marked by DC bus capacitors and gate drivers. Count the switching legs: two per phase for half-bridge, three for full-bridge topologies; mismatch here reveals incorrect voltage ratings. Trace the snubber circuits (RC networks across switches) to confirm transient suppression; missing components indicate potential overvoltage risks during commutation. Check the current sensors–Hall-effect devices or shunt resistors–positioned between the bridge and filter; their placement relative to the output node determines measurement accuracy.

Key Layout Patterns

• Grounding splits: Separate analog and power grounds at the DC link negative terminal to prevent conducted noise.
• Gate driver isolation: Optocouplers or isolated DC-DC converters must have dedicated traces avoiding high dv/dt paths.
• Heat sink connections: Thermal vias under switches should align with copper pours; verify pad-to-case resistance meets datasheet specs.
• PWM feedback loops: Identify the signal return path from the controller to the driver; ground loops here degrade regulation.

Compare the switching frequency filter–inductors and film capacitors at the output–to the PCB footprint. Oversized pads indicate high current handling; undersized ones risk thermal failure. Verify the EMI filter components (chokes, Y-capacitors) against EMC standards (IEC 61000-6-3/4); absence suggests compliance gaps.

Resolving Frequent Problems in Cooktop Circuit Layouts

Check coil resistance first–most failures stem from open or shorted windings. Use a multimeter set to ohms (Ω) and measure between the coil terminals. Expected values typically range from 30Ω to 100Ω, depending on power rating. A reading of 0Ω indicates a short, while infinite resistance confirms an open circuit. Replace the coil if readings exceed manufacturer tolerances by ±10%. Always verify against the technical manual, as models like Bosch PUE711BB1E specify 47Ω ±5Ω for 2100W coils.

Examine the IGBT module if the unit powers on but fails to heat. Voltage spikes commonly damage these components, so test with an oscilloscope for pulse-width modulation signals. Probe the gate, collector, and emitter pins–normal operation shows a clean square wave at 20-50 kHz. No signal or irregular waveforms demand module replacement. Ensure the heatsink compound is reapplied during reinstallation; thermal paste degradation causes overheating and premature failure.

Symptom	Suspect Component	Test Method	Expected Result
No power	Fuse, rectifier	Multimeter continuity	Fuse: <1Ω, rectifier: 0.5-0.7V drop (forward bias)
Inconsistent heating	Current sensor, bridge	Oscilloscope	Sine wave at sensor output
Error code E2	Voltage comparator IC	Logic probe	TTL high at pin 5 (e.g., LM339)

Inspect the resonant capacitor if the appliance emits a high-pitched whine. Locate the polypropylene film capacitor (marked “MKP”) connected across the coil–its value usually matches the coil’s μF rating (e.g., 0.27μF for 25A circuits). A swollen, leaking, or discolored capacitor requires immediate replacement. Confirm the new part’s voltage rating exceeds the operating voltage by at least 20%; a 1200V capacitor is critical for 220-240V systems. Use a LCR meter to verify capacitance within ±5% of the labeled value.

Trace the control board for corrupted firmware if the cooktop exhibits erratic behavior, such as cycling power or ignoring button inputs. Flash the microcontroller using the OEM firmware update tool; for example, the Gorenje IT60XBFW uses a USB-UART adapter and proprietary software. Ensure the bootloader jumper is set before initiating the update. If the issue persists, scrutinize the EEPROM (e.g., 24LC16B) for corrupted data–reflashing may resolve stored error flags that trigger false shutdowns.

Test the feedback loop for noisy signals if the unit overheats or shuts down unpredictably. The thermistor (NTC or PTC) must read within 10% of nominal resistance at room temperature (e.g., 10kΩ ±5%). A failing thermistor sends incorrect temperature data, causing the MCU to miscalculate power output. Replace it if readings drift outside thresholds. For Siemens EH651FFB1, the thermistor should measure 5.6kΩ at 25°C; deviations above 6.2kΩ or below 5kΩ indicate failure.
