Designing and Interpreting Industrial Electrical Wiring Schematics

Begin by isolating critical power circuits from auxiliary systems. High-load equipment–Siemens SINAMICS drives, Allen-Bradley PowerFlex controllers–requires dedicated 480V three-phase feeds with individual 40A breakers. Use 2 AWG copper conductors for main lines; anything thinner risks voltage drop under peak loads. Label every junction box with engraved stainless steel tags, specifying voltage and phase at both ends. This prevents miswiring during routine maintenance.

Segment control panels into zones based on operational priority. Safety circuits (e-stops, emergency lighting) must run on 24V DC with redundant power supplies. Route these through separate conduits–schedule 40 PVC for dry areas, EMT for exposed locations. For programmable logic controllers (PLCs), assign a 120V AC branch circuit with a 20A breaker, but include a surge protection device rated for 40kA. Siemens LOGO! or OMRON CP1E will fail if exposed to transient voltages.

Grounding is non-negotiable. Install an 8 AWG bonding conductor between all metallic enclosures and a central ground rod. For outdoor setups, drive two rods 10 feet apart and connect them with a tinned copper busbar. Never combine motor grounds with signal grounds; noise coupling will corrupt encoder feedback. Use shielded twisted pair (STP) for analog signals (4-20mA loops) and terminate shields at one end only–typically the PLC side.

For distributed motor control, adopt a bus topology. ABB ACS880 drives can daisy-chain over Modbus RTU at 38.4 kbps, but keep runs under 300 feet; beyond that, add a repeater or switch to fiber. Document every connection in a scalable vector format (SVG or DXF)–never rely on hand-drawn sketches. Include wire color codes, terminal numbers, and source/target device IDs. Update this file immediately after field modifications.

Electrical Blueprint Design for Manufacturing Facilities

Begin by segmenting the layout into functional zones–power distribution, machinery control, and safety circuits–each assigned a distinct color code on the schematics. ISO 1219-2 mandates red for emergency stop circuits, blue for neutral conductors, and black for live lines, ensuring compliance while reducing misinterpretation risks. Verify cable cross-sections against load calculations: 2.5 mm² for 230V motors under 5 kW, 6 mm² for 10 kW, and 25 mm² for sub-panels handling 50+ amperes.

Integrate PLC interfaces directly into the drawing by annotating I/O points with exact rack-slot-channel designations. Use DIN EN 61131-3 symbols for ladder logic blocks, labeling digital inputs with “DI” and outputs “DO” followed by terminal numbers (e.g., DO_04-12). Specify communication protocols–Modbus RTU for older machinery, Profinet for newer–alongside baud rates (9600, 19200, or 115200) to prevent data collision during multi-device networking.

Embed junction boxes into the blueprint at 3-meter intervals along primary feeder lines, ensuring each box includes a 20% spare terminal capacity. Label all conduits following IEC 60364-4-41: “L1/L2/L3” for phases, “N” for neutral, “PE” for earth, and “EM” for emergency circuits. Grounding electrodes must be represented with a minimum 16 mm² copper conductor buried 0.5 meters deep, connected to a 50×5 mm galvanized plate.

Arc Flash Hazard Mitigation

Insert arc-resistant switchgear at intervals not exceeding 30 meters, selecting devices rated for 10 kA at 480V or 15 kA at 600V. Indicate personal protective equipment zones with dashed red lines: Category 2 for panels below 500V, Category 4 for 600V+ systems. Annotate clearing times–sub-0.03 seconds for circuit breakers, sub-0.1 seconds for fuses–using ANSI/IEEE C37.20.7 testing labels.

Include a separate legend for motor starters, differentiating between DOL (direct-on-line), star-delta, and soft-start configurations. For DOL starters, ensure the schematic shows a 3x motor FLC overload relay setting; for star-delta, annotate the timing relay (typically 5 seconds) and contactor sequence (KM1 then KM2). Soft starters require voltage ramp settings–4-6 seconds from 0% to 100% for 3-phase pumps, 8-10 seconds for compressors.

Mark cable routes with exact bending radii: 6x diameter for XLPE cables, 4x for PVC, and 2x for flexible cords. Avoid right-angle turns; use 45-degree sweeps with a minimum 200 mm offset from structural steel to prevent magnetic interference. Specify cable trays–perforated for 69 kV lines, solid-bottom for control circuits–to comply with NEMA VE 1 standards. Include a “cut sheet” reference tables showing tray fill capacities: 40% for single conductors, 30% for bundled.

Testing Protocol Integration

Annotate every terminal with a Megger test voltage requirement–500V for general circuits, 1000V for high-potential tests–alongside acceptable insulation resistance values (>1 MΩ per 1000V). Insert hipot test points at transformer secondaries, labeling them with ANSI/IEEE 95 voltage-class ratings (e.g., “ANSI Class 10 kV”). Include thermal imaging targets–busbars, contactors, motor bearings–each assigned a delta-T threshold: +30°C for Class B, +40°C for Class F.

Critical Elements for Manufacturing Facility Electrical Blueprints

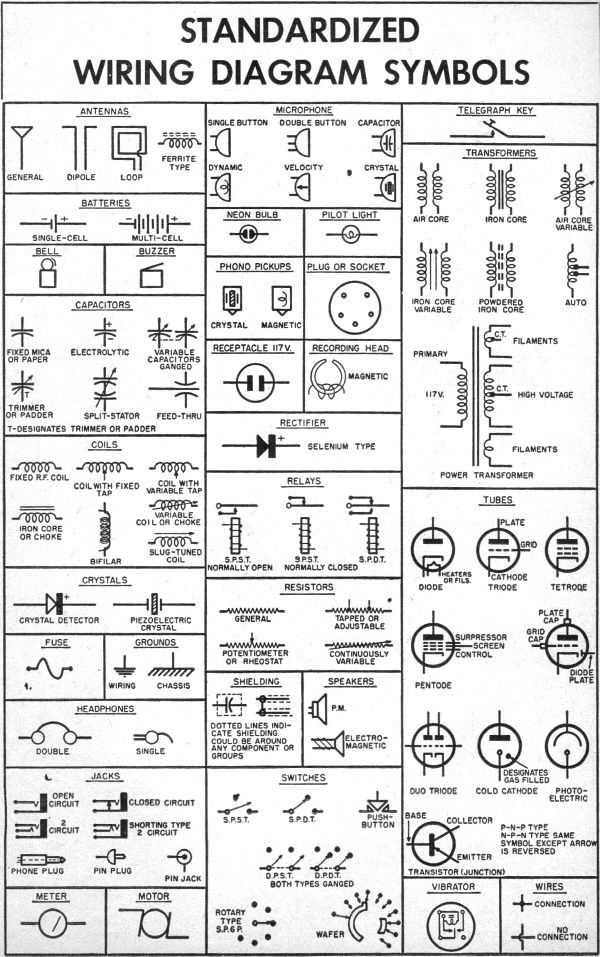

Begin with a legend that decodes all symbols–switches, relays, motors, sensors, and breakers–using the IEC 60617 or ANSI Y32.9 standards. Include a separate table mapping each symbol to its exact part number and manufacturer, reducing ambiguity during assembly or troubleshooting. Update this reference anytime a component is substituted to maintain accuracy.

Map power distribution precisely: label every busbar, feeder cable, and transformer with voltage levels, current ratings, and phase configuration (e.g., 480VAC 3-phase delta, 208VAC 3-phase wye). Use color-coding or distinct line styles to visually segregate high-voltage lines from control circuits, preventing cross-contamination during maintenance.

Component Type	Voltage Rating (VAC)	Current Rating (A)	Cable Gauge (AWG)	Insulation Type
Primary Feeder	480	225	2/0	THHN
Control Panel Branch	120	20	12	PVC
VFD Supply	600	40	6	XHHW

Document grounding architecture in detail: specify grounding rods, grids, and bonding jumpers, including material (copper or galvanized steel), cross-sectional area, and burial depth. Indicate neutral-to-ground bonds at the service entrance only; isolate secondary bonds in subpanels to prevent parallel paths.

Label every motor starter, contactor, and overload relay with its NEMA or IEC size, trip class, and coordination type (Type 1, 2, or 3). Show auxiliary contacts–normally open and normally closed–with unique identifiers matching the PLC I/O list, ensuring seamless integration with automation software.

Control Circuit Annotations

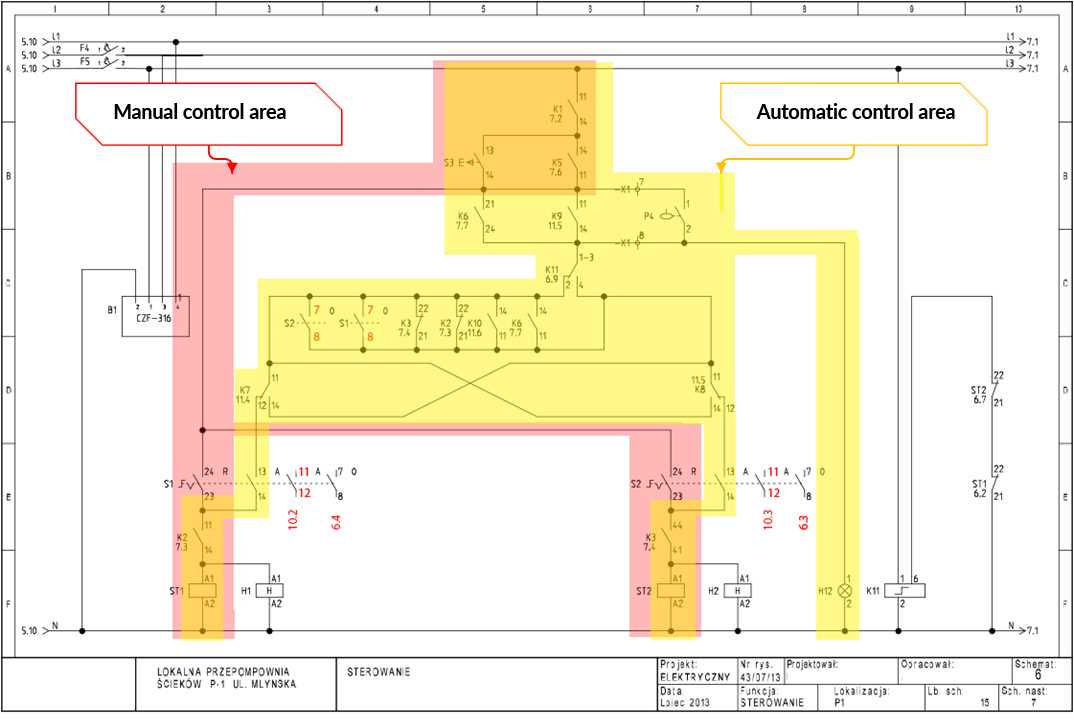

Isolate low-voltage control loops (24VDC, 120VAC) on a dedicated layer or sheet. Use dashed lines for interlocks, solid lines for continuous signals, and dotted lines for emergency stops. Clearly mark wire numbers at both ends of each conductor, cross-referenced to a wire schedule that lists termination points, ferrule IDs, and color codes.

Incorporate safety devices explicitly: include light curtains, E-stops, two-hand controls, and safety relays with their default states (energized/de-energized). Show redundant circuits in safety loops–e.g., dual-channel inputs to a safety PLC–with the exact wiring sequence required for reset after activation.

Integrate communication networks: depict fieldbus segments (Profibus, DeviceNet), Ethernet ports, and wireless nodes with IP addresses, subnet masks, and gateway settings. Show termination resistors at both ends of trunk lines and specify cable types (e.g., Belden 3106A for Profibus, Cat6 for Ethernet).

Annotate environmental constraints: label zones prone to dust, moisture, or extreme temperatures, and specify enclosure ratings (NEMA 12, IP65). Indicate heat tracing for pipes or special ventilation fans where ambient conditions exceed 50°C, ensuring components operate within derated limits.

Step-by-Step Guide to Schematic Design for Control Panel Layouts

Begin by documenting every component in the system before drafting. List all terminals, relays, contactors, circuit breakers, and sensors with their exact labels, voltage ratings, and current capacities. Use manufacturer datasheets to verify pin assignments–mistakes here will propagate through the entire process. Group devices by function (e.g., power distribution, motor control, safety circuits) and arrange them spatially on the layout to minimize crossovers. Prioritize left-to-right or top-down flow for power paths to improve readability. Include a legend in the top-right corner detailing symbols, colors, and wire gauges used.

Key Tools and Standards

• Software: AutoCAD Electrical or EPLAN for precision; SolidWorks Electrical for 3D integration. Avoid generic CAD tools–they lack smart tagging and error-checking for control schematics.
• Symbols: IEC 60617 for global compliance; NFPA 79 for North American machinery. Never mix standards in a single layout.
• Wire colors: Adhere to local codes–black (L1), red (L2/L3), blue (neutral), green/yellow (protective earth). For 24VDC, use brown (+) and blue (-).
• Line formats: Solid for power, dashed for control signals, dotted for auxiliary circuits. Keep line weights consistent: 0.5mm for main paths, 0.25mm for secondary.

Map connections systematically: start with the main power feed, then branch into sub-circuits. Label every wire at both ends with a unique identifier (e.g., M1-3 for motor 1, terminal 3). For complex panels, split the schematic into logical sheets–sheet 1 for power distribution, sheet 2 for motor starters, sheet 3 for PLC I/O. Use cross-references (e.g., “Sheet 2, Item 12”) to link related components across sheets. Add notes for special conditions, such as “Relay K3 latches only when pressure switch S4 closes.”

Validation and Error Prevention

1. Verify continuity: Trace each path with a multimeter after drafting. Confirm no terminals are left unconnected–orphaned wires are a common failure point.
2. Check voltage drops: Calculate total current draw for each branch and ensure wires are sized per IEC 60364 or NFPA 70. A 2.5mm² wire carrying 20A will drop ~0.8V/m–factor this into design.
3. Test fault scenarios: Simulate short circuits and overloads. Ensure protective devices (fuses, breakers) trip within specified limits.
4. Peer review: Have a second engineer verify logic paths–for example, confirm emergency stops cut all power except critical loads.

Export the final layout in PDF and DXF formats. Include a bill of materials with part numbers, vendors, and alternative suppliers. Archive the master file with revision history–future updates must reference the original version to avoid inconsistencies.
