How to Interpret an Infrared Spectroscopy Schematic Step by Step

Begin by sketching the light source–typically a broadband emitter like a Globar (silicon carbide rod) or Nernst filament–positioned at the optical bench’s far left. Ensure its spectral output spans 4000–400 cm^-1, covering near to far mid-range wavelengths without gaps. Direct the beam through an off-axis parabolic mirror (f/4 or tighter) to collimate light with minimal divergence; this avoids energy loss before sample interaction.

Next, place the sample compartment adjacent to the collimator. For solids, use a potassium bromide pellet holder angled at 10–15° to reduce interference fringes. Liquids require sealed cells (0.1–0.5 mm pathlength) with calcium fluoride or zinc selenide windows–avoid glass, as it absorbs below 2000 cm^-1. Gas-phase setups need long-path gas cells (10 cm minimum) with gold-coated mirrors to amplify signal via multipass reflection. Label each component with transmission ranges to preempt compatibility errors.

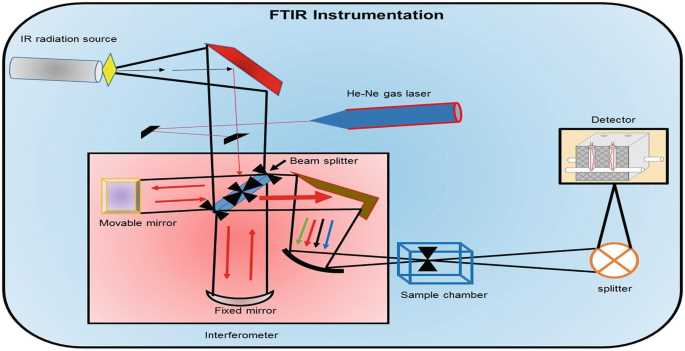

Introduce the interferometer immediately after the sample: a Michelson design with a moveable mirror stroke length of 2–4 cm ensures 0.5 cm^-1 resolution. Align the beamsplitter (germanium-coated potassium bromide or zinc selenide) precisely at 45°; misalignment by >0.1° degrades modulation efficiency. Position the detector–either a deuterated triglycine sulfate (DTGS) for routine scans or a mercury cadmium telluride (MCT) for low-noise applications–on the exiting beam path. Connect it to a preamplifier with bandwidth matching the mirror velocity (0.1–5 cm/s) to prevent signal aliasing.

Include reference markers in the layout: a helium-neon laser (632.8 nm) for precision mirror positioning, and a polystyrene film standard (peaks at 3026, 1601, 1028 cm^-1) for calibration checks. Indicate vacuum ports near the interferometer to eliminate atmospheric water and CO₂ absorption bands (e.g., 3700–3500 cm^-1 and 2350 cm^-1). For attenuated total reflectance (ATR) accessories, specify diamond or germanium crystals with pressure clamps rated for >50 N–insufficient force distorts spectra by altering contact depth.

Annotate the diagram with expected throughput losses: ~30% at beamsplitter interfaces, ~10% per reflective surface, and sample absorption contributions. Highlight critical tolerances: mirror flatness (λ/10 at 632 nm), beamsplitter wedge angle (<0.5°), and detector linearity (±0.1% over full scale). For high-throughput applications, integrate a pre-sample filter wheel (1200, 2000 cm^-1 cut-offs) to prevent detector saturation and extend dynamic range.

Interpreting Mid-Range Energy Absorption Setups

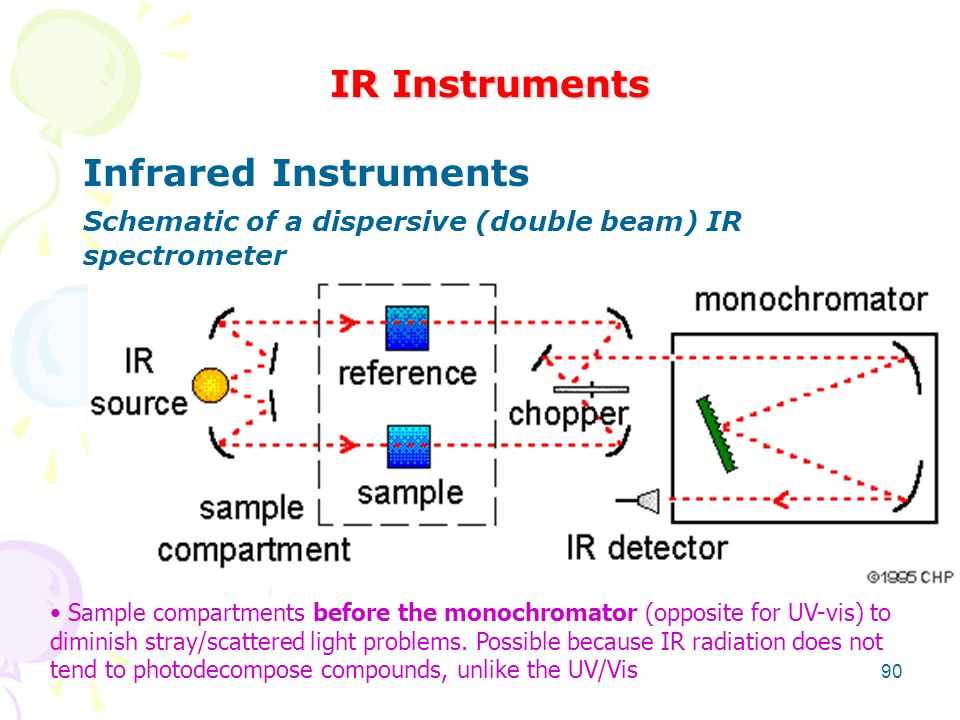

Start with a dual-beam configuration to eliminate atmospheric interference–particularly H₂O and CO₂ absorption bands. Place the sample and reference paths equidistant from the detector to maintain consistent optical pathlength. For solids, use a KBr pellet press with 1–2 mg of finely ground sample per 300 mg KBr; pellet thickness should not exceed 1 mm to prevent signal saturation. Liquids require a sealed cell with NaCl or CaF₂ windows–thickness between 0.01–0.1 mm ensures optimal transmittance without excessive absorption.

Select a thermoelectrically cooled detector like MCT (mercury cadmium telluride) for high sensitivity in the 4000–400 cm⁻¹ range. Avoid DTGS detectors for rapid-scanning applications; their lower detectivity slows data acquisition by 2–3 orders of magnitude. Position the detector at the Fourier transform plane of the interferometer to maximize signal-to-noise ratio (SNR). For reflectance measurements, employ a 30°–45° incidence angle on gold-coated mirrors to minimize polarization effects.

Calibrate the interferometer’s moving mirror using a HeNe laser–accuracy within ±0.01 cm⁻¹ is critical for precise wavenumber alignment. Use a resolution of 4 cm⁻¹ for routine scans; higher resolutions (0.5 cm⁻¹) are necessary only for gaseous samples or fine structural analysis. Apply a Blackman-Harris apodization function to suppress spectral leakage–this reduces side lobes by 50% compared to triangular apodization.

Optimal Sample Preparation Protocols

For polymers, microtome slices at 5–10 µm thickness ensure uniform transmission without scattering artifacts. Suspend powders in Nujol (mineral oil) for qualitative scans–avoid using fluorolube, as its C-F stretching bands (1400–1000 cm⁻¹) overlap with functional group regions. Gases require a long-path cell (10 cm or longer) with ZnSe windows; pressures between 5–50 Torr yield sharp rotational-vibrational bands without collisional broadening.

Position the sample holder perpendicular to the beam to prevent defocusing–misalignment by >2° reduces throughput by 15%. Use background scans collected under identical conditions (temperature, humidity) as the sample spectra; subtract them immediately to isolate analyte features. For diffuse reflectance (DRIFTS), grind samples to

Clean NaCl or KBr windows with dry acetone or isopropyl alcohol–residual moisture etches surfaces, creating false OH absorption bands at 3400 cm⁻¹. Store hygroscopic materials in a desiccator with silica gel or phosphorus pentoxide; exposure to humidity >30% degrades signal quality within hours. Replace beam splitter coatings if throughput drops below 40% in the 4000–2000 cm⁻¹ range–deterioration typically manifests as broad, asymmetric peaks.

Troubleshooting Signal Anomalies

If spectra exhibit “ringing” (oscillations around sharp peaks), reduce mirror velocity by 20% and increase apodization strength. For baseline drift exceeding ±0.5 absorbance units, verify detector linearity by inserting a neutral-density filter–deviations >5% indicate saturation. Noise spikes at 2350 cm⁻¹ (CO₂) or 720 cm⁻¹ (polystyrene) often stem from incomplete background subtraction; recalibrate with a fresh scan.

For liquid cells, ensure spacers are uniformly flat–irregular thickness (tolerance: ±0.002 mm) introduces fringe patterns with periodicity inverse to pathlength. Replace cracked or fogged windows immediately; even minor defects scatter 10–20% of incident radiation. If signal intensity drops in the 400–600 cm⁻¹ region, realign the interferometer’s fixed mirror–misalignment here disproportionately attenuates lower-wavenumber bands.

Critical Elements of an Optical Radiation Analyzer and Their Roles

Select a high-stability thermal emitter, such as a Nernst glower or globar, with output centered between 2.5–25 μm. Match the source’s emission profile to your sample’s absorption bands–globar excels for mid-range wavelengths (4000–400 cm^-1), while a tungsten filament suits near-range (12,500–4000 cm^-1). Ensure the source enclosure maintains inert gas purge to prevent oxidation and reduce baseline noise by 30–40%.

Opt for a Michelson interferometer with gold-coated mirrors when analyzing compounds requiring resolution below 0.5 cm^-1. Configure the moving mirror’s travel distance to double the maximum optical path difference needed for your target bandwidth–for example, 2 cm travel supports 0.25 cm^-1 resolution. Use a He-Ne reference laser (632.8 nm) for mirror position encoding; this reduces wavelength calibration errors to ±0.01 cm^-1. Replace beam splitters annually if processing halogenated or acidic samples to prevent ZnSe degradation.

Choose a detector based on signal-to-noise requirements: a pyroelectric DTGS unit suffices for routine samples (detectivity ~1×10⁸ cm·Hz^1/2/W), while a liquid-nitrogen-cooled MCT sensor (~3×10¹⁰ cm·Hz^1/2/W) is mandatory for trace gases or thin films below 1% reflectance. Position the detector at the conjugate focus of the sample compartment to maximize throughput; misalignment here can reduce signal intensity by 60%. Shield the MCT detector from stray radiation with a 3-mm thick germanium filter when analyzing low-transmission materials.

Implement a dual-beam configuration only if your sample requires real-time background subtraction. Place the reference path’s beam splitter immediately after the interferometer to ensure identical optical paths; deviations above 0.2 mm introduce artifacts at high wavenumbers. For single-beam setups, employ a 10-second delay between background and sample scans to account for source drift. Use KBr windows on sample cells for compatibility across 400–4000 cm^-1, but switch to CaF₂ for aqueous solutions to avoid hydrolysis.

Size sample compartments to accommodate transmission cells with pathlengths from 10 μm to 10 cm. For powders, use a diffuse reflectance accessory with a 3:1 sampling spot-to-ellipsoidal mirror ratio; this preserves linearity down to 0.1% reflectance. Operate transmission cells at elevated pressures only if the window material pair (e.g., diamond/ZnSe) has a compressive strength exceeding 1.5× the working pressure. Avoid plastic cuvettes–they absorb strongly below 1500 cm^-1 and contaminate spectra.

Fit the interferometer with a dynamic alignment system that adjusts mirror tilt via piezoelectric actuators. This corrects for mechanical drift caused by thermal expansion, maintaining better than λ/10 flatness over 8-hour runs. For quantitative analysis, enable background correction using co-addition of 64 scans to suppress random noise below 0.01% T. Disable automatic gain control during absorption band profiling to prevent amplitude distortion near ±2% T.

Process data with apodization functions tailored to your resolution needs: Norton-Beer medium for general use, Happ-Genzel for extracting weak signals near instrument limits. Apply zero-filling (2× interpolation) only if confirming peak shifts below 0.1 cm^-1; excessive zero-filling amplifies high-frequency noise. Use a cutoff filter at 2× the highest wavenumber of interest to eliminate aliasing when transforming interferograms. Store raw interferograms alongside spectra for retrospective validation–compression algorithms can obscure baseline artifacts.
