Complete Guide to Instrument Cluster Circuit Connections and Troubleshooting

Begin by locating the fuse box cover–typically beneath the steering column or inside the driver’s side footwell. Remove it to expose the schematic legend printed on the underside. Match the symbols to the connectors behind the dashboard panel; most vehicles use ISO 11457-compliant terminals, labeled A, B, and C for power, ground, and signal respectively. If your model predates 2005, check for proprietary labeling like Toyota’s 17-pin or GM’s Class-2 data bus, which require a dedicated scan tool to verify continuity.

Trace the 12V constant line first–usually red or orange–to its source at the battery or ignition relay. Interrupting this feed risks corrupting module memory, particularly in vehicles with CAN-bus architecture. For analog gauges, identify the sender wires: coolant temperature uses 200 Ω–10 kΩ variable resistance, while fuel level typically ranges 0–90 Ω. Measure resistance at the sender before assuming a faulty connection; a 30% deviation from specification confirms an open circuit.

Ground paths often fail at chassis mounting points. Inspect the G100, G200, and G300 locations–common corrosion hotspots–using a multimeter in diode test mode. A voltage drop exceeding 0.1V under load indicates high resistance; clean the contact surface to 600-grit finish and apply dielectric grease during reassembly. For LED retrofits, bypass the rheostat with 470 Ω resistors to prevent flickering on PWM-regulated circuits.

Late-modelEuropean makes use FlexRay or LIN bus for dashboard functions. Tap into the network via the OBD-II port, pin 6 (CAN High) and pin 14 (CAN Low), to log diagnostic trouble codes. If the tachometer reads erratically, reflash the ECU with hex-based firmware using Kvaser Leaf or Vector CANape. For hybrid vehicles, isolate the 48V auxiliary system before probing to avoid damaging the DC-DC converter.

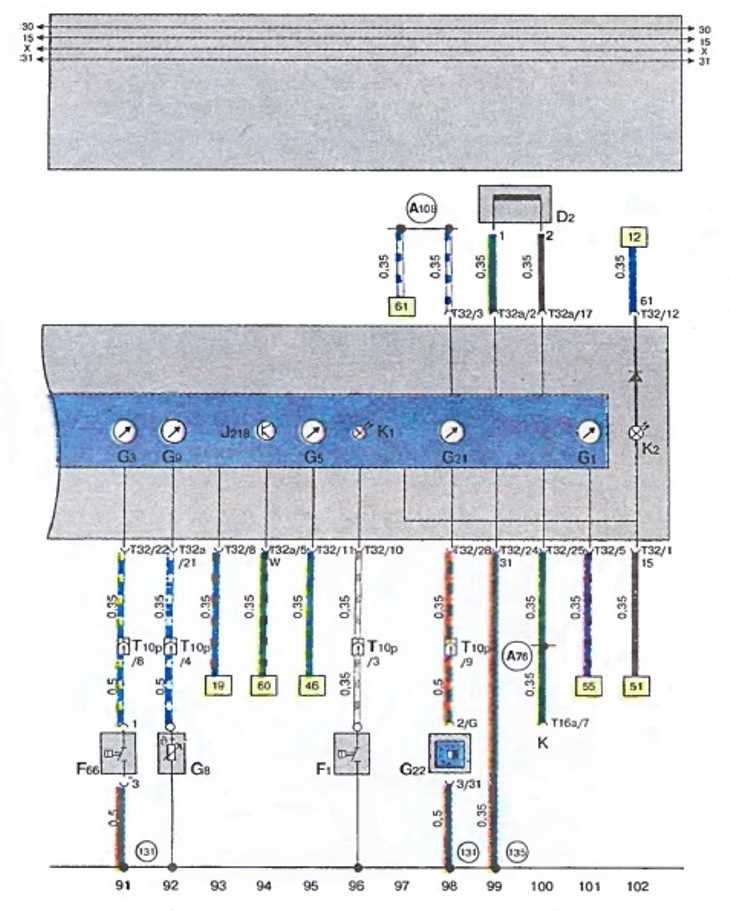

Understanding Vehicle Dashboard Electrical Schematics

Start by identifying the power source labeled “12V Ignition” or “Battery Feed” on the schematic–this typically connects to a fuse rated between 7.5A and 15A. Trace this line to the dashboard’s central harness connector, often marked as “C1” or “X1,” where it splits into multiple branches powering individual gauges and indicators. Use a multimeter set to DC voltage (20V range) to verify the input voltage at the connector; readings below 11.5V indicate a faulty fuse, corroded wire, or loose connection needing immediate attention.

Check the ground connections–look for labels like “GND,” “Ground,” or “Chassis Return” near the dashboard’s mounting points. Poor grounding causes erratic gauge behavior, dim lights, or false warnings. Scrape away paint or corrosion from the grounding surface and secure the wire with a star washer to ensure a solid contact. For vehicles with multiple grounds, measure resistance between each ground point and the battery’s negative terminal; readings above 0.5 ohms require cleaning or replacement of the ground wire.

• Speedometer: Follow the signal wire from the transmission’s Vehicle Speed Sensor (VSS) to the dashboard’s input pin, usually labeled “SPD” or “VSS IN.” If the gauge reads incorrectly, test the VSS output with an oscilloscope–a healthy signal should show a square wave between 0V and 5V at varying frequencies (e.g., 1Hz–2kHz) proportional to speed.
• Tachometer: Locate the ignition coil’s negative (-) terminal or the Engine Control Unit’s (ECU) tachometer output. Wire colors are often white with a stripe (e.g., white/black or white/blue). For coil-mounted signals, expect 2–10V AC pulses; ECU outputs typically provide a 5V square wave–verify with a frequency counter against the known RPM.
• Fuel level: The sending unit’s resistance typically ranges from 0Ω (empty) to 90Ω–240Ω (full), depending on the vehicle. Disconnect the sender wire and measure resistance across the sender’s terminals at various tank levels. If readings are inconsistent, replace the sender or check for wiring breaks.

For digital dashboards, prioritize the data bus connections–CAN (Controller Area Network) or OBD-II pins 6 (CAN High) and 14 (CAN Low). Probe these wires with a CAN bus analyzer; missing or corrupted packets (frames with IDs outside 0x100–0x7FF) indicate a faulty module or broken bus termination. Most late-model vehicles require a 120Ω resistor across CAN High/Low at endpoints–measure resistance between the wires; readings outside 55Ω–65Ω confirm a termination issue.

Label every wire before disconnecting any connectors–use heat-shrink tubing or colored tape to mark original positions. When reassembling, apply dielectric grease to connector pins to prevent corrosion. For retrofitting aftermarket gauges, match the gauge’s current draw (typically 20mA–100mA per indicator) to the vehicle’s existing circuitry; exceeding the original fuse rating risks melting wires or damaging printed circuit boards. Always cross-reference the schematic with the vehicle’s repair manual for model-specific variations (e.g., Ford’s “PID” IDs or Toyota’s “DLC3” pinout).

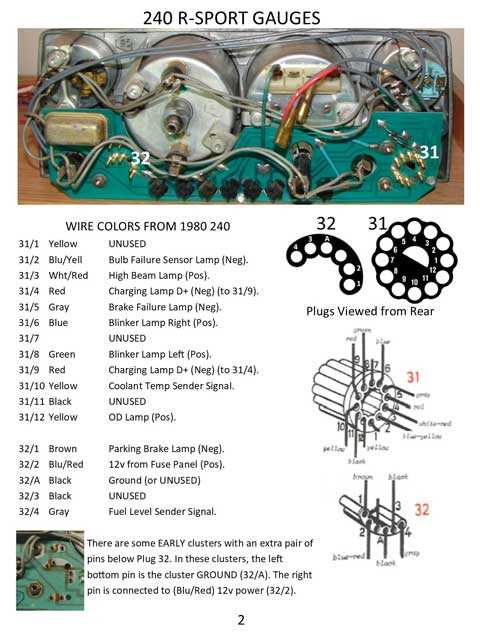

Pinpointing Conductors in a Gauge Assembly Harness

Begin by locating the vehicle’s service manual or technical schematics. Most manufacturers label each lead with a color code and alphanumeric designation (e.g., “YEL/BLK – Tachometer Signal”). Cross-reference these labels with the physical bundle: trace each strand from the connector back to its origin, noting junctions or splices. Use a multimeter set to continuity mode to verify connections–probe between the pin and suspected source point while observing the meter’s response.

Identify power, ground, and signal paths systematically. Power leads typically register 12V (battery voltage) when the ignition is on, grounds show near-zero resistance to chassis, and signal lines carry varying voltages or pulses (e.g., 0-5V for sensors like fuel level or coolant temp). For pulse-width modulated outputs, use an oscilloscope to capture waveforms–steady pulses indicate sensor feeds, while erratic patterns may signal faults or CAN bus data lines.

Label each lead immediately with masking tape or a wire marker as you confirm its function. Record findings in a spreadsheet with columns for color, pin location, voltage readings, and purpose. If schematics are unavailable, compare with known working models of the same make/model–harness layouts often follow predictable conventions, though aftermarket modifications may alter standard configurations.

Step-by-Step Guide to Tracing Dashboard Gauge Power and Ground Connections

Identify the fuse box first–locate it under the dash or in the engine bay based on the vehicle’s service manual. Use a multimeter set to DC voltage (20V range) to probe the fuse terminals while the ignition is off. A reading of 0V confirms an open circuit; 12V+ indicates power presence. Cross-reference the fuse rating with the manual to avoid misdiagnosis–corroded sockets or blown fuses often mimic wiring faults.

Trace the main power feed from the fuse to the connector behind the gauge assembly. Disconnect the plug and inspect terminals for oxidation or bent pins. Use a wiring schematic to pinpoint the correct wire–typically a 10-16 AWG red, yellow, or orange cable. Backprobe the connector with a sharp probe while the key is in the “ON” position; expect battery voltage (12.6–14.5V) on the power pin. No voltage? Check for opens in the harness or a faulty ignition relay.

Ground connections require a different approach. Locate the chassis ground point–often a bolt near the firewall or A-pillar–or follow the black or brown wire from the gauge plug. Scrape paint or rust from the mounting surface to ensure a clean contact. Test continuity between the ground wire and battery negative with the multimeter in resistance mode; values above 0.5 ohms indicate corrosion or a loose connection. Reattach grounds with star washers to prevent future oxidation.

Verify switched power supplies by cycling the ignition to “ACC” and “ON” positions. Some gauges rely on unswitched power (constant 12V) for memory functions, while others require ignition-switched feeds. Use a test light to confirm voltage drops–dim lights suggest high resistance. For CAN bus systems, probe the twisted pair (usually pink/white and green) with an oscilloscope; waveforms should peak at 2.5V with sharp edges. Flatlines indicate a short or severed bus line.

• Disconnect the battery negative terminal before probing airbag circuits–accidental deployment risks injury.
• Label all wires before unplugging connectors to avoid misreassembly.
• Use heat shrink tubing on spliced repairs–electrical tape fails over time.
• Check for T-taps or aftermarket splices–these are common points of failure.

Reassemble the dash panel only after confirming all circuits. Operate each gauge through its full range (fuel, temperature, tachometer) to spot intermittent faults. Dim the headlights–gauges should remain stable. Flickering needles suggest a weak ground or failing voltage regulator. If issues persist, bypass the harness temporarily with jumper wires to isolate the problem to the board or wiring.

Key Symbols in Dash Panel Schematics and Their Practical Uses

Start by recognizing the circle with an arrow–this denotes a sender unit for temperature, fuel, or pressure readings. Its placement near a gauge confirms its role: the arrow direction indicates polarity (ground or signal path). For fuel level circuits, ensure the sender’s resistance range matches the meter’s scale (e.g., 0–90Ω for most analog displays). Mismatches cause erratic readings or pegged needles.

Locate the zigzag line–this represents resistors or rheostats. In tachometer circuits, a series resistor (often 10–15Ω) protects the coil from voltage spikes. For oil pressure senders, a variable resistor (5–190Ω) adjusts the gauge response. Always verify resistor wattage: ¼W suffices for signal conditioning, but ½W is mandatory for high-current dash indicator bulbs.

Symbol	Component	Typical Resistance/Value	Critical Check
♄ (saturn)	Sender unit	5–240Ω	Match gauge scale; test with multimeter in ohms mode
↯ (zigzag)	Resistor	10Ω–1kΩ	Confirm wattage; ½W for bulbs
⏚ (ground)	Chassis ground	N/A	Scrape paint; ensure <0.5Ω to battery ground
⎓ (coil)	Gauge coil	20–200Ω	Check for continuity; diagnose open coils with 12V test light

The ground symbol (⏚) demands rigorous attention. Scrape chassis contact points to bare metal–paint acts as an insulator. Measure resistance from the ground terminal to the battery negative: ideal readings are below 0.5Ω. Corrosion here mimics gauge failures (e.g., speedometer sticking mid-scale). Use dielectric grease to prevent oxidation in humid climates.

Spotting a coil symbol (⎓) signals an electromagnetic gauge (speedo, tach, voltmeter). These operate on 12V but draw minimal current (typically 50–150mA). Test with a bench supply: apply 12V across the coil terminals–the needle should sweep smoothly. If erratic, suspect a partial short; if dead, check for opens with an ohmmeter (expected: 20–200Ω). Voltmeter gauges often include a dropping resistor (200–470Ω) to protect the coil.

For illumination circuits, the light bulb icon (usually a circle with an “X”) connects via a dimmer switch. Bulbs are typically 1.2W (100mA @ 12V), but some European models use 3.6W. Replace with equivalent voltage LEDs only if the dimmer is PWM-compatible–resistive dimmers cause flickering. High-beam indicators share this symbol but operate on a separate 12V switched line; verify with a test light for voltage during activation.

Cross-reference symbols with a fusible link (squiggly line within a rectangle) near the ignition/ACC line. Blown links (commonly 5A–10A) disable multiple dash functions. Replace with the vehicle-specific gauge (never standard fuse wire). For late-model cars, note CAN bus symbols (a double “T” bar)–these require a scan tool for diagnostics, not a multimeter.

Tools for Symbol Interpretation

Equip yourself with a decade box (adjustable resistor, 0–1kΩ) to simulate sender outputs during bench testing. A current-limited benchtop PSU (0–15V, 0–2A) prevents gauge damage during coil checks. For digital schematics, export to a tablet with pinch-to-zoom–avoids misreading nested symbols in tight layouts.
