How to Read and Wire an Air Compressor Pressure Switch Circuit Layout
Start by locating the adjustable spring-loaded mechanism inside the control box–this houses the primary cutoff activation point, typically set between 90–125 PSI for standard industrial setups. Factory-default settings often cluster at 100 PSI (cut-out) and 70–80 PSI (cut-in), but verify these against the manufacturer’s technical specifications before making adjustments. Misaligned thresholds can lead to premature cycling, reducing motor life by 30–40% due to thermal stress.
Examine the wiring path for dual-contact assemblies: one terminal connects to the pump’s motor relay, the other grounds through the tank’s sensor plate. Use a multimeter set to AC 250V to confirm continuity across contacts during cutoff tests–open resistance should not exceed 0.5 ohms. If resistance spikes above 2 ohms, replace the internal diaphragm immediately to prevent pressure fluctuations.
For systems with unloader valves, trace the auxiliary circuit feeding back to the compressor head. Ensure the solenoid’s exhaust port aligns precisely with the valve’s vent orifice–misalignment here creates backpressure that can stall tank depressurization cycles. Test unloader functionality by manually tripping the cutoff lever while monitoring tank bleed time; ideal discharge complete within 8–12 seconds for 30-gallon tanks.
Document all connection points using color-coded labels (e.g., red for hot, black for neutral, green for ground) to avoid cross-wiring during reassembly. Replace any corroded wiring terminals with crimped ring connectors rated for 20A minimum–bare wires risk arcing under load fluctuations typical in high-cycle environments.
Understanding Your Pneumatic Controller Wiring Layout
Start by locating the power supply terminals on the controller–typically marked L (line) and N (neutral) for single-phase systems. Connect the live wire to L and neutral to N, ensuring the circuit breaker matches the motor’s voltage rating (e.g., 120V or 240V). Miswiring here risks immediate damage to the unit.
Identify the motor start/stop terminals, often labeled M or COM (common). A multimeter in continuity mode should confirm a closed circuit between these points when the system is active. If readings show infinite resistance, inspect the internal contacts for corrosion or wear–clean with fine-grit sandpaper if necessary.
| Component | Terminal Label | Voltage Tolerance | Common Failure Signs |
|---|---|---|---|
| Power Input | L, N | ±10% of rated voltage | Burn marks, tripped breaker |
| Motor Relay | M, COM | 20A max (varies by model) | Erratic cycling, overheating |
| Cut-in/Cut-out Adjustment | Adj screws (spring-loaded) | N/A | Unstable pressure readings |

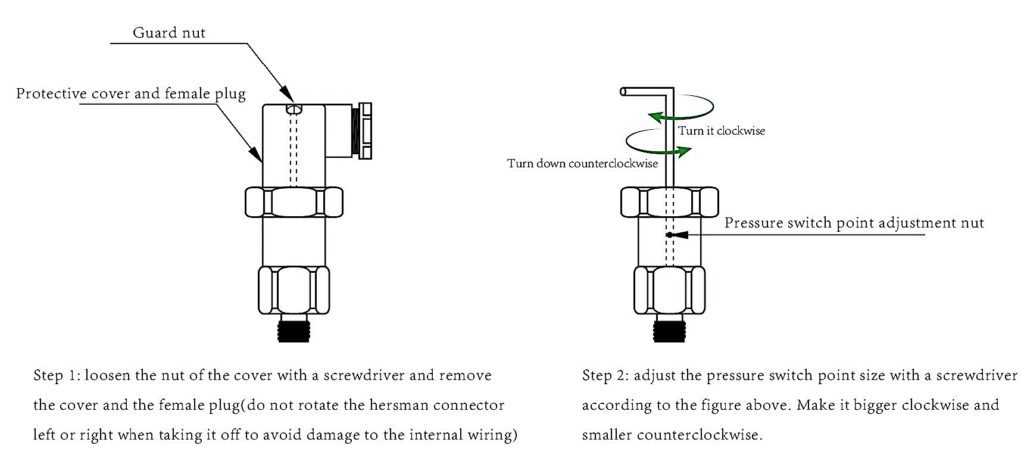

Adjust the cut-in and cut-out settings using the manufacturer’s specified differential (e.g., 90–120 PSI). Turn the corresponding screw clockwise to increase pressure; counterclockwise reduces it. Test by running the system until it shuts off, then slowly release gas–note the exact psi at restart. Repeat to fine-tune within 5 PSI of target values.
Install a safety valve rated at least 10% above your maximum cut-out pressure. Verify its operation by manually activating it during a cold test–gas should release instantly without hissing. Replace any valve that doesn’t open at the marked pressure or fails to reseal within 5 seconds.
Grounding the unit prevents erratic behavior and hazards. Connect the ground wire (green or bare) to the controller’s chassis and a dedicated earth rod driven at least 8 feet deep. Use 8-gauge copper wire for systems up to 20 HP–insufficient grounding causes nuisance tripping.
For dual-stage units, confirm the relay activates the second stage only under load. Monitor current draw with a clamp meter: second-stage engagement should add ≤15% to the baseline amperage. Exceeding this indicates inefficient compression or a faulty unloader valve.
Lubricate the mechanical linkage quarterly with silicone-based grease. Avoid petroleum products–they degrade rubber diaphragms in ≤12 months. Test diaphragm integrity by applying soapy water to ports while pressurized–bubbles confirm leaks. Replace diaphragms showing hairline cracks under magnification.
Critical Elements in Pneumatic Regulator Circuitry Arrangement
Prioritize a clearly labeled terminal block in the circuit setup to prevent wiring errors. Standard layouts include:
- L1/L2 terminals: Connect to the power source (typically 120V or 240V AC), ensuring polarity matches the motor’s requirements to avoid phase reversal.
- Common (COM) and Normally Open/Closed (NO/NC) contacts: Wire the motor’s start/stop relay to COM/NO for activation at set cut-in thresholds (usually 90-100 PSI); NC serves as a failsafe during pressure drops.
- Grounding lug: Bond the metal housing to the system’s earth ground with ≥12 AWG copper wire to mitigate electrical hazards.
Splice connections with crimp terminals and heat-shrink tubing–exposed wires corrode under compressor vibration, causing intermittent failures.
Sensor and Actuator Integration
Locate the diaphragm-driven actuator adjacent to the tank’s outlet valve; improper placement skews cutoff accuracy (±5 PSI deviation). Verify these components:
- Differential spring adjustment: Counterclockwise rotation lowers cut-in pressure (e.g., 20 PSI change per full turn on most residential units).
- Snap-action micro-switch: Test switch bounce with a multimeter–latency >10ms indicates wear; replace if contacts show pitting.
- Unloader valve solenoid: Wire this in parallel with the NO terminal; it vents residual tank pressure (5-10 PSI) during startup to reduce motor strain.
For dual-stage systems, dedicate separate relays for low/high-pressure stages, isolating circuits with 10A fuses to prevent overload propagation.
Use a contactor with a minimum 2× motor FLA rating for sustained operations. For units above 5 HP, integrate a soft-start capacitor (e.g., 300μF/480V) between L1 and the COM terminal to limit inrush current (typically 600% of FLA). Route wiring through conduit if the environment has >70% humidity or oil mist–exposed PVC-insulated wires degrade within 18 months under such conditions. Validate the circuit with a megohmmeter before energizing; insulation resistance
Interpreting Voltage-Specific Control Circuit Blueprints for 220V and 110V Setups
Begin by locating the terminal markings on the wiring layout–220V configurations typically show L1/L2 connections for line voltage, while 110V setups split into L (hot) and N (neutral). Verify the power feed path: high-voltage systems use two live conductors, whereas low-voltage variants require one live and one neutral wire.
Check for a thermal overload symbol near the motor leads–220V circuits often integrate this directly into the relay base, while 110V designs may place it externally. Confirm the reset button’s presence: it’s usually labeled “RO” or “OL” on 220V charts but appears as “Reset” on 110V diagrams.
- 220V layouts include dual-pole protection (DP) indicators, shown as two parallel lines cutting across the current path.
- 110V versions use single-pole (SP) symbols–a single line interrupting the circuit.
- Grounding paths differ: 220V relies on equipment ground (green/yellow striped line), 110V occasionally mixes neutral with ground in older schematics.
Key Voltage-Specific Symbol Variations
Examine coil activation markers–220V relays display a single coil with two opposing arrows, while 110V coils show a single arrow indicating current direction. Switch closure indicators also vary: high-voltage contacts use stacked squares, low-voltage contacts appear as simple open/closed gaps.
Identify capacitor placement–220V systems embed start/run capacitors near the motor windings, labeled “CR” or “CS.” 110V diagrams often group them externally, marked “C-S” or “C-R.” Auxiliary contact labels follow distinct patterns: NC (normally closed) in 220V schematics uses solid dots; 110V diagrams represent NC with diagonal slashes.
Critical Measurement Points
Trace the cut-in/cut-out markings–220V diagrams label pressure thresholds with “” near the relay, while 110V schemes use actual PSI values (e.g., “30/80”). Differential adjustment knobs appear as circular symbols with arrows on 220V charts, but 110V versions show slide bars or screw-type illustrations.
Verify interlock safety features–220V circuits incorporate dual thermal sensors (marked TS1/TS2), while 110V designs use a single sensor (TS). Always confirm voltage ratings stamped beside components: 220V parts show “220-240V,” 110V components are labeled “110-120V.”
- Compare wire gauge notes–220V schematics specify thicker conductors (12-14 AWG), 110V layouts allow thinner (16 AWG).
- Review fuse ratings–high-voltage fuses appear as triangular symbols (e.g., “F1-15A”), low-voltage fuses show rectangular shapes (e.g., “F1-10A”).
- Locate grounding screws–220V diagrams mark them “GND” with a ring terminal symbol; 110V schematics use a simple ground fork illustration.
Observe control voltage separation–220V control circuits often include a step-down transformer (marked “TR”), while 110V systems feed control relays directly from the main supply. Always cross-reference terminal numbers: 220V components use odd/even pairs (e.g., 1/2, 3/4), while 110V terminals follow sequential numbering (e.g., 1, 2, 3).
Step-by-Step Guide to Wiring Your Control Unit
Disconnect the power supply before handling any electrical components. Identify the live (L), neutral (N), and ground (⏚) terminals on your power source–these are typically color-coded: black or red for live, white or blue for neutral, and green or bare copper for ground. Strip 8–10 mm of insulation from the ends of each wire using wire strippers, ensuring no stray strands remain. Twist the exposed copper tightly to prevent fraying.
Locate the labeled terminals on your device: common (COM), normally closed (NC), and normally open (NO). Connect the live wire from the power source to the COM terminal using a crimp connector or by securing it under the terminal screw–tighten to 12–15 in-lbs torque to avoid loose connections. Attach the motor or load wire to the NO terminal, matching the gauge of the wire to the terminal’s capacity (typically 14–12 AWG). If your setup includes a separate on/off circuit, link the neutral wire to its designated terminal on the motor or control panel.
Verify all connections with a multimeter set to continuity mode: place probes on the live wire at the power source and the COM terminal–confirm zero resistance. Repeat for the NO terminal and motor wire. Reconnect power, then test the system in manual override mode by toggling the device’s lever or button. Monitor the current draw (≤10% above rated amperage) during startup; if spikes occur, recheck for loose connections or mismatched wire gauges. Secure all wires with cable ties, keeping them ≥2 cm away from moving parts or heat sources.
