Step-by-Step Guide to Wiring Your Intermatic Pool Timer Correctly
Start by locating the terminal block on the back of the device–typically marked L1, L2 for power inputs and T1, T2 for load outputs. Use 12-gauge THHN wire for all connections to handle the 15-amp circuit safely. Verify the voltage rating (usually 120V or 240V) on the device label before proceeding; mismatched voltage will damage components.
Connect the hot wire (black or red) from the breaker to the L1 terminal. The neutral wire (white) attaches to L2 if using 120V, or joins a second hot wire for 240V configurations. Secure all connections with a torque screwdriver set to manufacturer specifications–overtightening shears terminals, while loose wires cause arcing.
For the load side, attach the pump’s phase wires to T1 and T2. If the aquatic mechanism operates on a dual-voltage motor, refer to its nameplate for correct jumper settings. Never bridge L and T terminals–this bypasses the control relay, creating a continuous current that risks overheating.
Add a ground wire (green or bare copper) to the designated screw on the housing. Grounding prevents voltage leaks into the enclosure, reducing shock hazards. Test continuity with a multimeter before sealing the cover; a reading above 1 ohm indicates corrosion or improper connections.
Activate the breaker and cycle the preset schedules. Observe the indicator LEDs–steady light confirms activation, while flickering suggests a short circuit or weak wire splice. If the device fails to engage, check for tripped breakers or a reversed load connection at T1/T2.
Connecting Your Aquatic Automation Device: Electrical Layout Guide
Start by verifying the circuit breaker rating matches the controller’s specifications–typically 15 or 20 amps for residential setups. Use a multimeter to confirm zero voltage at the terminals before handling wires, preventing accidental shorts or shocks during installation.
Route the supply cable from the panel directly to the automation unit, ensuring no splices or junctions exist outside an approved weatherproof junction box. Stranded copper wire (12 AWG for 20-amp circuits, 14 AWG for 15-amp) minimizes voltage drop over longer distances, critical for reliable actuator responses.
Attach the black (hot) conductor to the designated “L” terminal, securing it with a torque driver set to 12 in-lbs to prevent loose connections. The white (neutral) wire connects to the “N” terminal, while the bare copper ground must bond to both the housing screw and the system’s grounding lug for fault protection.
For dual-speed pump configurations, the red auxiliary wire links to the actuation relay’s secondary side, separating high and low-speed operations. Label all wires at both ends with heat-shrink tubing to simplify future troubleshooting or modifications.
After securing all terminals, reinstall the cover plate and apply a bead of silicone sealant around the edges to prevent moisture ingress. Test operation by manually advancing the dial–verify the relay engages with an audible click and the pump starts within two seconds to confirm proper load handling.
If integrating an external sensor or freeze protection module, connect its output to the marked “Sensor” terminals, observing polarity where required. Avoid routing sensor wires parallel to power lines to prevent induced noise from triggering false activation cycles.
Document the completed layout with a dated photograph and store it with the owner’s manual. Include wire gauge, circuit breaker details, and any custom programming settings–this reference reduces diagnostic time during future maintenance or expansion projects.

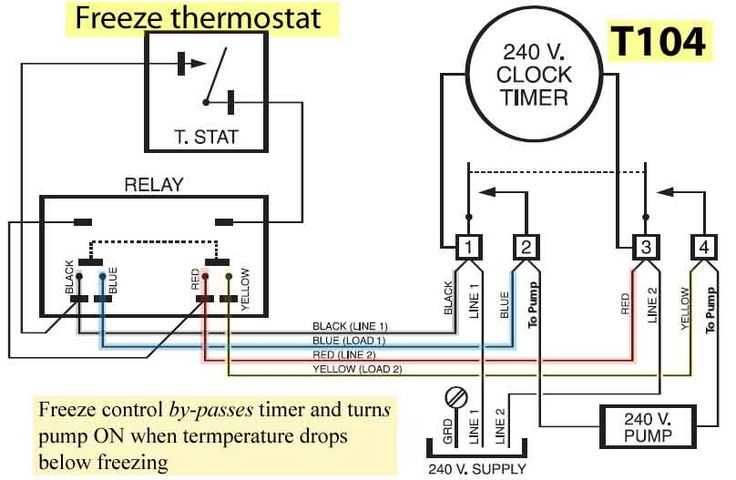

Connecting the T104 Control Unit: Detailed Installation Guide
Power down the circuit at the main breaker before handling any terminals. The T104 unit requires a 240V supply split across two hot legs–labelled L1 and L2–each delivering 120V against neutral. Verify voltage with a multimeter: probe L1 to neutral (115–125V), L2 to neutral (115–125V), and L1 to L2 (230–250V). Any deviation indicates a wiring fault or incorrect breaker rating.
- Strip ½ inch of insulation from each incoming conductor. Insert the black (L1) and red (L2) wires into terminals 1 and 3; torque to 15 in-lbs.
- Land the white neutral on terminal 2; ensure no exposed copper extends beyond the clamp.
- Attach the green grounding conductor to the designated screw post; loop clockwise to prevent loosening.
- Route the load (motor or pump) cables to terminals 4 (L1) and 5 (L2); double-check connections for stray strands.
Cap unused conductors with wire nuts; tape each nut to the jacket for strain relief. Restore power and cycle the schedule selector to confirm the relay engages–listen for a distinct click within 5 seconds. If no click occurs, re-measure voltage at the load terminals; absence indicates faulty relay or incorrect breaker polarity.
- Ambient temperature above 104°F may trip the thermal protector–relocate the unit if mounted near heat sources.
- Apply dielectric grease to terminals annually to prevent corrosion.
- Replace the internal fuse (3AG, 15A) if cycling fails; locate beneath the cover plate.
- Test GFCI protection monthly–press the “Test” button; reset if tripped.
Color-Coding Guide for Scheduled Control Unit Conductors
Always verify conductor colors against the unit’s labeling before making connections–manufacturers occasionally update color schemes without notice. The standard configuration for most residential automated control systems includes:
| Function | Primary Color | Stripe/Alternate | Notes |
|---|---|---|---|
| Power Input (Hot/Live) | Black | None | Connects to breaker or fused disconnect. Handle with care – exposed ends risk shorting. |
| Power Input (Neutral) | White | None | Must tie directly to neutral bus bar; never splice onto other circuits. |
| Load Output (Hot) | Red | None | Supplies current to connected device (pump, heater, etc.). Verify amperage matches unit rating. |
| Ground | Green | Yellow stripe (rare) | Bond to ground rod or panel grounding bus. Omission creates electrocution risk. |
| Low Voltage Control | Blue | White stripe | Typically 12V or 24V; links timer to sensors or relays. Avoid routing alongside line-voltage cables. |
| Auxiliary Signal | Yellow | Black stripe | Used for remote start/override circuits. Confirm voltage before attaching devices. |
When dealing with older models, deviations may occur: brown or orange conductors sometimes replace red for high-load outputs, while purple often marks auxiliary hot legs in split-phase setups. If colors clash with local codes–particularly in aluminum conduit installations–use labeled heat-shrink tubing to distinguish conductors clearly. Never rely solely on color; always cross-check with a multimeter set to continuity mode before energizing circuits, especially when retrofitting legacy systems.
Non-Standard Configurations and Troubleshooting Tips
European or commercial-grade units frequently use IEC color codes: blue for neutral (replacing white), green/yellow for ground, and brown for live (instead of black). If you encounter these, treat them as functional equivalents but re-label to match local conventions to avoid confusion during future maintenance. For multi-speed devices, manufacturers often layer additional colored stripes–red with white stripe may indicate a secondary load, while solid orange could signal a third. Document any such variations immediately; refer to the factory manual’s schematic rather than assuming identical behavior across product lines.
Faded or discolored insulation is a common issue in outdoor environments. If insulation crumbles or shows cracks, replace the entire cable rather than taping; compromised conductors fail silently, leading to overheating or fire hazards. For temporary testing, limit exposure–use alligator clips only long enough to confirm operation, then wire-nut and solder permanent connections. Always de-energize the unit and test for voltage residual before handling conductors, particularly in damp or coastal areas where corrosion accelerates.
Critical Errors in Electrical Setup and Prevention Methods
Connecting the neutral wire to the ground terminal will trip breakers immediately or create a hazardous loop. Verify both conductors using a multimeter–neutral should show near-zero voltage to ground, while ground measures identical to earth potential. Swap these only if testing confirms mislabeling, but never assume installations match standard color codes.
Splicing low-voltage control leads with power-line voltage causes equipment failure or fires. Separate these circuits completely, routing them in distinct conduits or trays. Use wire nuts with insulating sleeves on exposed ends, and confirm each connection’s integrity by tugging firmly before closing junction boxes.
Overlooking a dedicated ground rod for outdoor automation invites lightning damage or erratic operation. Drive an 8-foot copper rod at least 6 feet from the unit, attaching it with a #6 AWG solid conductor. Bond this rod directly to the service panel’s ground bus–not through intermediate connections–to ensure low impedance during transients.
Tightening terminal screws improperly leads to overheating. Torque each connection to manufacturer specifications: typically 12–15 inch-pounds for #14 AWG, increasing incrementally for thicker gauges. Use a calibrated torque screwdriver, and recheck connections after 48 hours–thermal cycling loosens screws initially tightened by hand.
Ignoring local electrical codes compounds safety risks. Measure conduit fill ratios–no more than 31% for three or fewer conductors, 40% for four to six. Inspect wire insulation for cracks or discoloration; replace any segment showing signs of thermal stress or UV degradation before energizing.
Skipping a polarity test after installation can cause reverse motor rotation or sensor malfunctions. Confirm hot, neutral, and ground connections with a non-contact voltage tester first, then validate each terminal’s function using the device’s built-in diagnostics or a secondary load test.
Failing to secure cables properly allows vibrations or weather exposure to degrade connections. Use UV-resistant cable ties every 12 inches for outdoor runs, and bury direct-burial cables at least 18 inches deep. Waterproof all splices with heat-shrink tubing or resin-filled enclosures rated for wet locations.
