Complete International 4300 DT466 Wiring Diagram and Electrical Guide

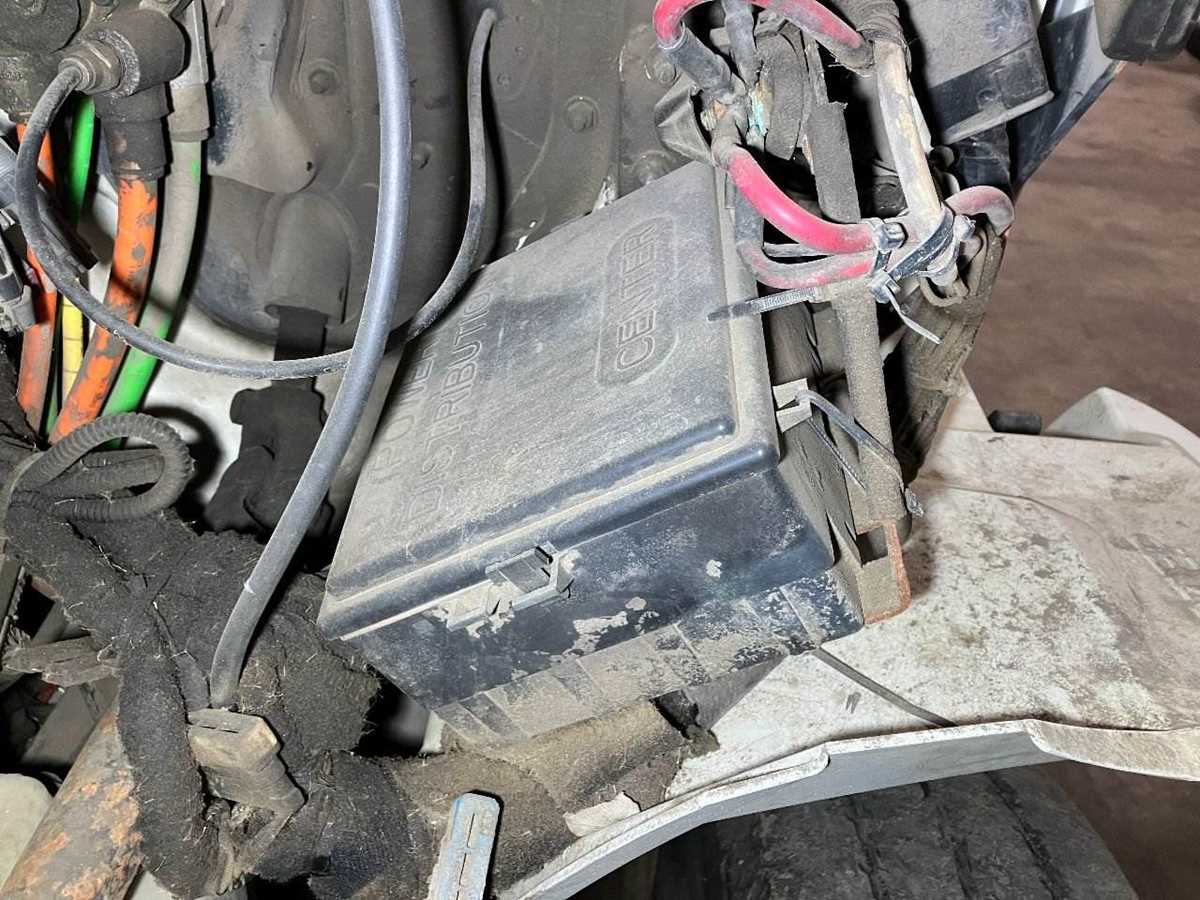

Locate the primary power distribution module under the driver-side dashboard–it houses the main relay and fuse block for the engine control system. The ignition feed (labeled 30/51) branches into three critical paths: fuel pump relay, ECU, and instrument cluster. Verify the 10A fuse for the ECM before testing voltage at pin 16 (red/white wire) of the 48-pin connector; readings should match battery voltage (12.6–13.8V) with the key in the ON position.

For sensor circuits, focus on the coolant temperature sensor (CTS) and intake air temperature (IAT) circuits. The CTS runs a 5V reference (gray/yellow wire) through pin A12 of the harness, returning to pin A30 (signal ground). Resistance should measure 2.3k ohms at 20°C (68°F) and drop to 270 ohms at 100°C (212°F). Deviations indicate a faulty sensor or corroded terminals–clean with dielectric grease if oxidation is present.

Fault codes P0118 (high CTS voltage) or P0117 (low) often trace to damaged wiring near the exhaust manifold heat shield. Use a multimeter to check continuity between the sensor and ECM; readings above 5 ohms suggest a break. The throttle position sensor (TPS) shares the same 5V reference–if both sensors fail simultaneously, inspect the common supply wire (pin B9) for chafing against the engine block.

The starter solenoid receives power through a 200A fusible link (red wire, 4 AWG) from the battery positive terminal. If cranking issues arise, test voltage drop across the link; values exceeding 0.2V indicate internal resistance. For intermittent no-start conditions, bypass the neutral safety switch (green/white wire) temporarily–if the starter engages, replace the switch.

Grounding errors frequently cause erratic gauge readings. The chassis ground (black wire) connects at the firewall stud; ensure a torque of 10–12 Nm and no paint or rust interference. For aftermarket modifications, isolate auxiliary circuits from the OEM system using a relay kit to prevent parasitic draw on the 30A ignition fuse.

Practical Steps for Troubleshooting the Heavy-Duty Truck Electrical System

Begin by isolating the ignition circuit–trace the 12-gauge red wire from the starter solenoid to the ignition switch terminal (labeled “B” or “50”). Verify voltage at the switch with a multimeter: 12.6V with the key in the “ON” position confirms proper battery feed. If voltage drops below 11V, inspect the fusible link near the battery positive terminal–corrosion or a melted section often disrupts power flow to downstream components like the ECM and fuel pump relay.

Check sensor grounds next. The engine harness uses three primary ground points:

• G1: Behind the intake manifold (1/0 gauge braided strap).
• G2: Left frame rail near the firewall (10-gauge black wire).
• G3: Under the driver’s seat (thin black wire for cabin electronics).

Clean each connection with a wire brush and apply dielectric grease. Poor grounds cause erratic tachometer readings, stalling, or failed injectors–symptoms often misdiagnosed as faulty sensors.

For intermittent faults, test the alternator output under load. Run the engine at 1,500 RPM and measure voltage at the battery: 13.8–14.5V indicates proper charging. If output spikes above 15V, replace the voltage regulator immediately–overcharging damages the ECM and blower motor resistors. Use a scan tool to monitor PID 167 (system voltage); readings below 13V under load point to a defective alternator or loose serpentine belt.

When splicing into the harness (e.g., for auxiliary lights), avoid cutting original wires. Instead, tap into junction blocks:

1. Remove the fuse for the target circuit (e.g., 30-amp “Lighting” fuse).
2. Use a T-tap connector on the load-side wire–match wire gauge (14-12 AWG for most accessories).
3. Solder and heat-shrink all joins to prevent moisture ingress.
4. Relay auxiliary circuits through a 40-amp mini relay (85: ground, 86: fused 12V trigger, 30: load input, 87: accessory output).

Never parallel-tap the starter circuit–it draws 200+ amps and will melt splices.

Finding the Right Electrical Schematic for Your Medium-Duty Truck by Build Year

Start with the manufacturer’s official service portal–Navistar’s online resources split schematics by chassis serial number ranges, not just engine codes. Input your VIN to pull the exact revision applicable to your build date; early 2004 models use a different harness pinout at the glow-plug controller than late 2006 units, despite sharing the same inline-six configuration. Ignore generic PDFs labeled by gross horsepower alone; the fuse panel layout shifted after chassis number 1HTXLADR84H573000 due to regulatory updates in trailer brake circuits.

For post-2007 trucks, the central body controller schematic is integrated into the powertrain harness PDF, but pre-2005 units separate the ABS module wiring on a standalone page–look for document titles beginning with “SBC” followed by a three-digit suffix. Third-party manuals often splice diagrams from different model years, missing critical revisions in the CAN bus termination resistors added in 2008. Verify the color-coding legend; some aftermarket prints swap the J1708 high-speed blue wire with the J1939 purple wire, leading to misdiagnosis of intermittent communication faults.

If the VIN-specific download fails, cross-reference the engine serial number stamped on the block’s left side with Navistar’s build-sheet archive; the eleventh digit of the ESN matches the schematic revision code on older dealer CDs. Avoid relying solely on aftermarket forums–thousands of threads mislabel the “I” wire for the OEM telematics port, conflating it with the “C” wire used in post-2010 DEF pump circuits.

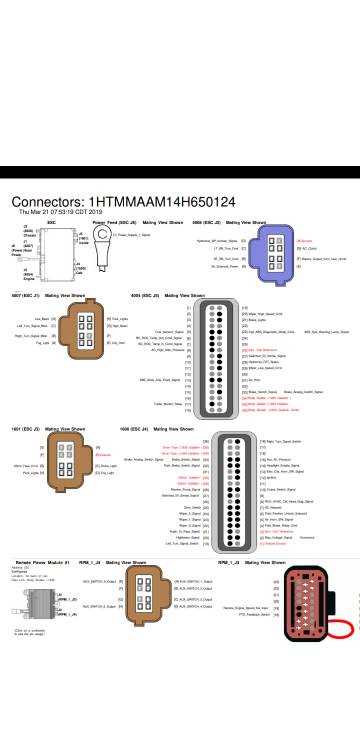

Locating Critical Electrical Connectors in the Medium-Duty Powerplant Bay

Trace the main engine harness along the upper intake manifold–look for a rectangular 12-pin connector labeled EGR. This plug manages exhaust gas recirculation sensors; if corroded, replace the pigtail with a pre-terminated unit featuring heat-shrink seals. Verify wire gauge matches the original 18 AWG to prevent voltage drop.

Find the turbocharger pressure sender near the valve cover; its single-pin connector uses a silver-plated terminal susceptible to fretting corrosion. Apply dielectric grease during reassembly and route the harness away from exhaust components to avoid insulation melting.

Inspect the injection control module (ICM) harness–three harnesses converge here: 8-pin main, 4-pin timing, and 2-pin fuel sync. Label each with colored tape before disconnecting; misalignment causes fault codes P0200-P0299. Clean terminals with electrical contact cleaner and torque to 2 Nm.

Step-by-Step Troubleshooting of Common Electrical Issues Using the Schematic

Begin by isolating the affected circuit on the vehicle’s electrical blueprint. Locate the fuse or relay linked to the malfunctioning component–common culprits include the starter motor, fuel pump, or instrument cluster. Use a multimeter to verify voltage presence at the fuse socket; a reading of 0V indicates an open circuit upstream, while 12V confirms a downstream fault. Replace blown fuses only after confirming no short persists; a recurring failure suggests hidden corrosion or a pinched conductor.

Trace the circuit path from the power source to the load using color-coded conductors. On heavy-duty trucks, red wires typically carry constant voltage, while yellow or brown denote switched or ignition-fed paths. At each connector, separate the terminals and inspect for oxidation–white or green deposits impede current flow. Clean contacts with a fine wire brush or electrical cleaner; never scrape with abrasives, which damage plating. Reassemble connectors with dielectric grease to prevent future corrosion.

Test sensors and actuators in sequence. For resistance-based components like temperature senders, remove the connector and measure ohms across the terminals. A reading outside spec (e.g., 20–100 ohms for a coolant sensor) signals internal failure. For solenoids, apply 12V directly via a jumper wire–audible clicks confirm functionality, absence indicates a seized valve or broken coil. Always cross-reference readings with the manufacturer’s specifications; assumptions lead to misdiagnosis.

Diagnosing Intermittent Faults

Intermittent issues often stem from loose connections or worn insulation. Wiggle each harness section while monitoring voltage–dropouts pinpoint the faulty segment. Pay special attention to areas subject to vibration: behind the dashboard, near the transmission, and at frame-mounted junctions. Splice repairs must use solder and heat-shrink tubing; crimp connectors fail under stress. For concealed shorts, divide the circuit into halves and test sequentially with a continuity tester until the fault zone narrows.

1. Disconnect the battery’s negative terminal to prevent accidental shorts.
2. Label all removed connectors to avoid cross-wiring upon reassembly.
3. Use a non-powered test light for high-amperage circuits (e.g., starter); multimeters risk damage from voltage spikes.
4. Document every step–skipped procedures introduce new variables.

Final Checks and Validation

After repairs, energize the circuit and verify stable operation. Observe the component for overheating–hot junctions indicate excessive resistance. For computer-controlled systems, reset ECU fault codes using a scan tool; persistent codes require re-evaluation of the repair scope. Reassess grounding points: a single corroded chassis bolt can mimic complex failures. Always road-test under operational loads; static bench tests miss dynamic issues like harness flex-induced opens.

Store the schematic digitally or in a protected binder. Annotate it with custom notes–circuit modifications, common failure points, or voltage drop measurements–streamlining future diagnostics. Equip your toolkit with a thermal camera; heat signatures expose hidden resistance sources invisible to multimeters.
