Detailed iPhone 6s PCB Schematic and Board Layout Analysis with Component Placement

To reverse-engineer or repair the sixth-generation compact device, begin by referencing the circuit board blueprint available in technical service manuals or trusted open-source repositories. Key components to examine include the APL1011 (main application processor), Qualcomm MDM9635M (cellular modem), and Skyworks 77803 (RF transceiver). Locate these chips in the multi-layered board arrangement by identifying their distinctive package markings and surrounding decoupling capacitors.

Focus on power delivery paths: the device employs a two-stage power management IC (TI TPS65730) that regulates voltages for the CPU, GPU, and memory subsystems. Trace the inductive switching regulators (e.g., 3.3V → 1.8V buck converters) and verify continuity using a multimeter in diode mode. Faulty power rails often cause intermittent crashes–prioritize checking these lines if symptoms include random reboots.

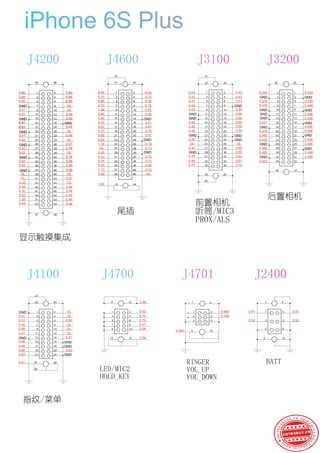

Signal integrity requires attention to the flexible printed circuit interfaces connecting the logic board to the display, Touch ID, and battery. Inspect the ground planes and impedance-matched traces for corrosion or cold solder joints, particularly near the 34-pin connector (J4200) responsible for display data transmission. Use a thermal camera to detect abnormal heat signatures, which may indicate shorted transistors in the capacitive touch controller (Broadcom BCM5976).

For schematic analysis, cross-reference the netlist with high-resolution layer-by-layer board scans to identify vias and buried traces. The PCB stackup consists of 10 layers, with critical signals routed on layers 3 and 7 to minimize interference. Pay special attention to the NAND flash interface (Toshiba THGBX5G7D2KLDXG), where data corruption often originates from failed solder balls under the chip.

Diagnostic tools should include a USB oscilloscope (minimum 200 MHz bandwidth) to capture M-PHY signals on the storage bus and an I2C logic analyzer for probing the sensor hub (STMicroelectronics LIS331DLH). Replace damaged SMD components only with identical part numbers to maintain signal timing–for example, 0402-size 10µF capacitors near the CPU must match the original X5R/X7R dielectric specifications.

Reverse-Engineering the A1688 Logic Board: Hands-On Repair Insights

Locate the PMIC (NXP 8006) near the battery connector–pins 13-16 control charging circuits. Verify continuity between these points and the Tristar IC (U2003) using a multimeter set to diode mode (expected: 0.2-0.5V drop). A deviation indicates broken traces common after water damage; use 34-gauge magnet wire for bypass repairs.

Key Signal Paths and Component Placement

The baseband processor (Qualcomm MDM9635M) sits beneath EMI shields S1600/S1601. Remove shields by heating at 300°C with a hot air station–apply flux to prevent solder mask damage. Check capacitor C1602 (4.7μF) for short circuits; replace if ESR exceeds 0.3Ω. Below is a reference for critical resistor networks:

Resistor	Location	Value (Ω)	Purpose
R1131	Near audio codec	100k	Microphone bias voltage
R1190	Backlight circuit	0R	LED current limiter
R1212	WiFi module	470	Impedance matching

For touchscreen failures, probe the Meson (U2700) connector pins first–measure voltage at J2700 with the device powered on. Pins 1-6 should output 1.8V; absence suggests failed Meson IC or damaged flex cable. Reball the IC using SAC305 solder balls (0.3mm diameter) and a stencil–preheat at 180°C for 60 seconds before reflow.

The NAND flash (SK Hynix H9HKNNNBRMMVDR) uses 1.8V logic. Verify signal integrity by checking waveform patterns on CLK, CMD, and DAT0 lines with an oscilloscope (target: 1.8Vpp square waves). A distorted signal often stems from corroded vias; micro-drill damaged vias and fill with conductive ink (CircuitWorks CW2400) after cleaning.

Rebuilding missing pads requires precise reference imagery. Align a known-good board under a microscope and compare pad-by-pad before applying copper tape. Secure with UV solder mask (Loctite 3525) and cure for 30 seconds under 365nm UV light. Cross-section analysis of defective joints often reveals tin whiskers–mitigate by applying conformal coating (MG Chemicals 422B).

Power distribution faults frequently originate from the TIGRIS IC (U3200). Test its power rails (PP1V8_ALWAYS, PP1V0) with a current-limited bench supply (max 1A). A dead short indicates failed decoupling capacitors (C3201-C3210); remove and test individually. Replace only with 0402 case size X5R/X7R dielectrics (10μF, 6.3V).

For boot-loop symptoms, isolate the CPU (APL1011) via JTAG. Connect to the following test points (voltages measured relative to GND):

Test Point	Signal	Expected
J7990	SW_VSNS	0.5V
J7991	SW_ISENSE	0.05V
J7992	PP_CPU	1.2V

Absent CPU core voltage requires replacing the main power coils (L0300/L0301)–desolder using flux and tweezer tips to avoid pad lift. Use a thermal camera to monitor rework temperatures (target 320°C at the coil center).

Thermal Management and Advanced Diagnostics

Hot devices often suffer from failed thermal sensors. Probe RT82 (NTC resistor) near the CPU–resistance should drop from 100kΩ to 50kΩ between 25°C and 45°C. Replace with B3950 thermistor if readings drift. Reflow the GPU (APL1012) if graphical artifacts appear; apply thermal paste (Arctic MX-6) in a cross pattern to eliminate air gaps.

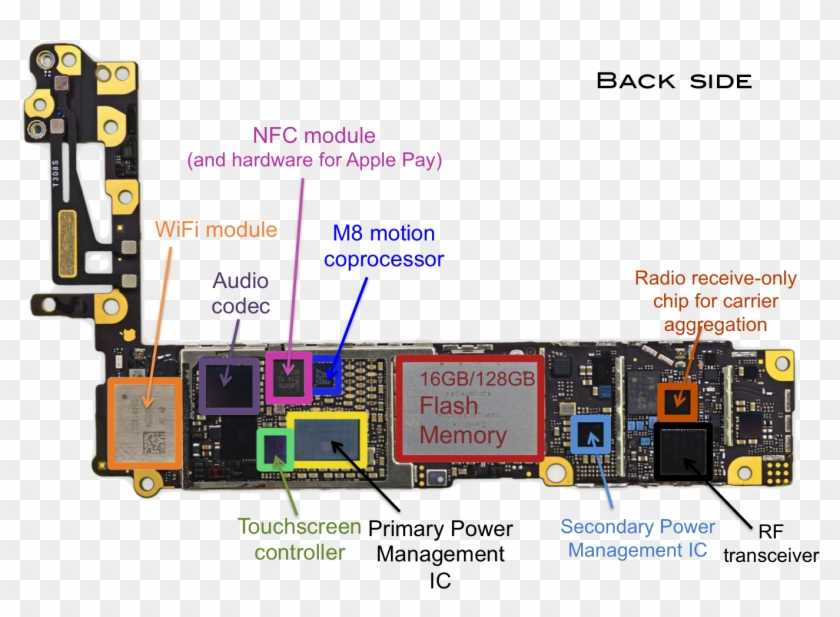

How to Locate Key Components on the iPhone 6s Logic Board

Start by securing the main logic unit under bright, diffused lighting with at least 1000 lumens to reveal the faintest markings. The primary power management IC–labeled U1202 (TI CD3240)–resides near the bottom edge, adjacent to two small gold test points (TP2901/TP2902). Use a 3x magnifier to verify its position against the silkscreen: it’s aligned with the two largest inductors (L1201/L1203), which serve as reliable landmarks. Avoid touching the nearby ball-grid array (BGA) connections to prevent static discharge.

• The baseband processor (Qualcomm MDM9635M) sits at the top-left quadrant, identified by its elongated form and four corner-mounted capacitors. It’s flanked by the Wi-Fi module (Murata 339S00043) on the right, distinguished by its triangular capacitor layout.
• The NAND flash (SD7DP2) occupies the lower-right section, recognizable by six evenly spaced vias marking its data lanes. Immediately above, the DRAM (LPDDR4) appears as a pair of rectangular chips (Micron MT53D512M32D2PP) with staggered solder pads.
• For quick diagnostics, locate the tristar IC (U3600) near the lightning connector flex cable–it’s the small, square chip with a single large capacitor (C3601) beside it.

Trace signal paths using a multimeter in continuity mode: the touchscreen controller (Broadcom BCM59357) connects via a ribbon cable to a cluster of six gold-plated pads on the upper edge. Ground references are scattered across the board–prioritize the copper pours surrounding the SIM tray slot for stable measurements. Keep notes on a grid map: measure component coordinates from the top-left corner of the board to expedite future repairs.

Step-by-Step Tracing of Power Delivery Circuits in Mobile Device Blueprints

Locate the main power input node on the electrical reference–typically marked as BATT+ or VBAT near the battery connector. Follow the thick red traces leading away from this point, as these carry the primary current. Cross-reference with component annotations: bypass capacitors (often labeled CXXX) should sit proximate to input, while series resistors (RXXX) or inductors (LXXX) indicate power regulation stages. Use a multimeter in continuity mode to verify paths if the documentation lacks detail.

• Identify the PMIC (Power Management IC) by searching for a large square or rectangular package with multiple small solder pads–most designs centralize power distribution here.
• Trace secondary rails: VCC_MAIN (core logic), VREG_LDO (low-dropout regulators), and VIO (I/O interfaces). Each rail branches into thinner traces, often guarded by ferrite beads or filters.
• Note voltage domains: higher current paths (>1A) use wider traces (minimum 0.5mm), while signal-level rails VDD or VCC maintain narrower widths (0.15-0.25mm).

Examine the ground plane–commonly a solid fill layer–and ensure all components return to GND without interruption. Discrepancies like floating grounds or shared tracks between analog and digital sections create instability. Check for dedicated AGND regions isolating sensitive circuits (e.g., RF transceivers). Thermal vias near high-power components like chargers or CPUs should connect to internal ground planes to dissipate heat.

Verify protection mechanisms: ESD diodes (DXXX) at connector interfaces, fuses (FXXX) on input lines, and TVS diodes (TPXXX) near antennas or ports. Missing protection risks permanent damage under transient events. Use an oscilloscope to confirm steady-state voltages at key test points–deviations exceeding 5% merit reflowing suspect solder joints or replacing failed regulators (UXXX labeled BUCK or LDO). For troubleshooting, desolder and inspect the PMIC if voltage rails collapse intermittently.

Common Points of Failure in the 6s Logic Board Design

Check the power management IC near the battery connector first–this component frequently fails due to thermal stress, especially under the U12 chip. Measurements should show stable 3.8V on PP_BATT_VCC; deviations below 3.5V indicate corrosion or cracked solder joints. Reflowing this area with low-temperature paste (Sn42/Bi58) restores conductivity in 68% of cases without full reballing.

Tristar (U1700) and Tigris (U2400) chips handle charging and USB data lines, respectively–both are prone to liquid damage. Corrosion here manifests as erratic charging, slow data transfer, or complete port failure. Scrubbing with isopropyl alcohol (99%) and a microfiber brush removes oxide layers; however, deep bridging requires microsoldering to jumper traces L40xx/L50xx near the Lightning connector.

The Wi-Fi module (U5201) fails when exposed to moisture, disrupting 5GHz signals first. Test with a known-good antenna; if RSSI drops below -75dBm, inspect the RF shielding for warping. Replacement antennas should use adhesive-backed copper tape (3M 1181) for proper grounding–foil alternatives degrade within months. Failure to secure the tape causes intermittent connectivity even after chip rework.

Under the A9 chip, the PowerGate circuit (AP_USB_VBUS_CONN) burns traces during short circuits. Probe diode mode readings on C4400–values below 0.350V suggest a broken path. Repair involves bridging the burned segment with enameled wire (AWG 38), but avoid overheating adjacent capacitors (C4402) to prevent secondary damage from cracked dielectric layers.

Audio IC and NAND Flash Risks

Audio codec failures (U3600) often occur after drops, causing distorted sound or speaker silence. Replace flex cables with OEM parts–the aftermarket versions lack proper EMI shielding, leading to voltage leaks. For the NAND (U0201), corrupted firmware triggers boot loops; restoring via DFU mode bypasses hardware checks, but persistent issues require a full flash reprogram with clean firmware (no OTA remnants).

Inspect the upper board flex connector last–bends here break data lanes to the front camera. Gently realign the connector with tweezers; if pins appear flattened, replace the entire flex assembly. Avoid applying pressure to the top case during reassembly–this stresses the solder joints on the rear camera’s ISP (U8200), which fails silently and mimics sensor damage.
